Hammond 1591BSFLBK 112x62x31mm Black ABS Enclosure with Flanged Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall mounting flanges molded into the lid; 137.40 mm [5.409 in] overall length
- Black GPABS body, 112 x 62 x 31 mm (4.41 x 2.44 x 1.21 in)
- Card guides in all side walls accept 1.5 mm (0.062”) boards
- IP54 lap joint lid resists dust and splashing water
- Box, lid and 4 black cover screws included; UL94 HB
- Optional 1593ATS lid PCB screws and 1591Z card adapters

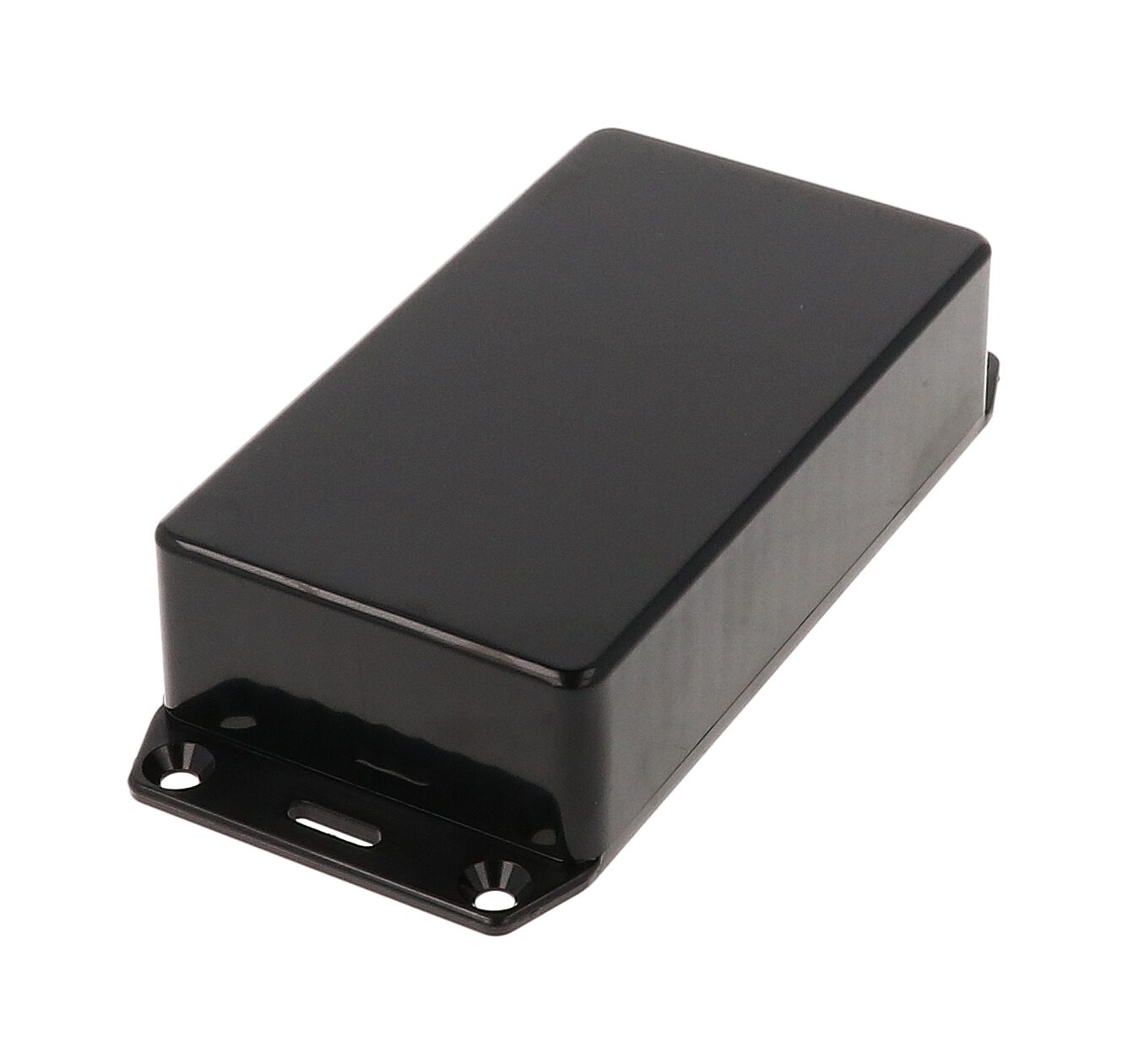

The 1591BSFLBK is a black general purpose ABS enclosure in the 1591B size with wall mounting flanges molded into the lid. The body measures 4.41 in x 2.44 in x 1.21 in (112 mm x 62 mm x 31 mm), and the flanged lid brings the overall length to 137.40 mm [5.409 in] on the drawing, so the unit can be screwed directly to a wall, panel or chassis.

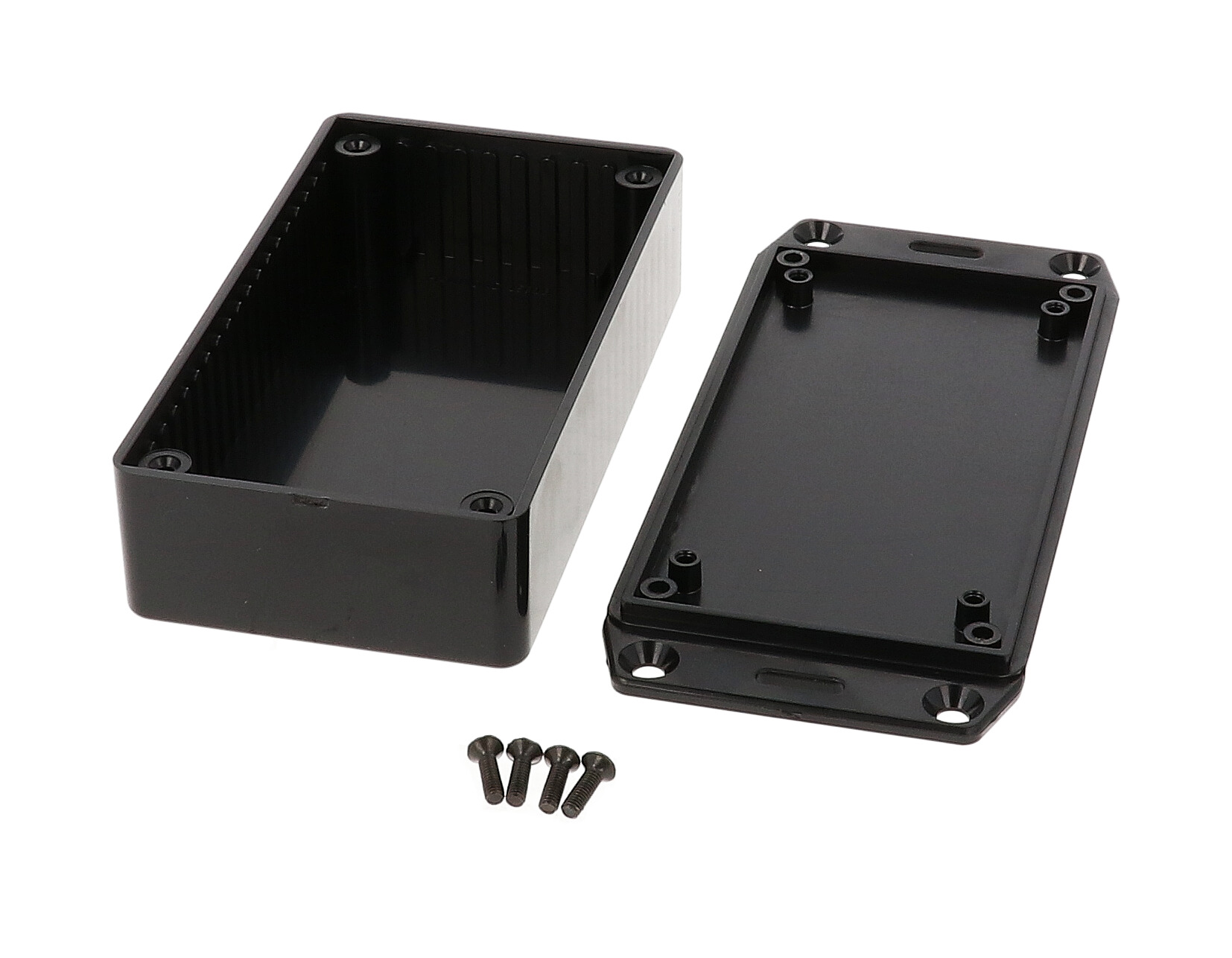

Inside, card guides molded into all side walls accept 1.5 mm (0.062”) thick boards for vertical PCB mounting. The drawing lists an interior of 105.78 mm x 55.78 mm x 26.90 mm with 21.90 mm guide height and 2.13 mm slot width.
This version is molded from GPABS with a UL94 HB flame rating and uses self-tapping screws into fully plastic posts. The purchased assembly includes box, lid and 4 cover screws (black on black enclosures), with a recommended torque of 42-57 ozf.in (30-40 cN.m). The drawing also lists 1593ATS50 and 1593ATS100 #4 X 1/4" (6.4mm) self-tapping P.C. board screws for the lid.
Lap joint construction provides IP54 protection against dust and splashing water. The 1591BSFLBK is RoHS and REACH compliant, weighs 0.15 lbs (0.07 kg) shipped and comes shrink wrapped.
Ideal For
- Wall- or panel-mounted electronics housings
- Vertical PCB mounting with flanged lid attachment
- Control and sensor boxes in IP54 environments
- Prototype enclosures that need fixing points
Overview
| Type | general purpose, flanged |
| Color | Black |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | 1591B GPABS FLANGED LID BK |
| Long Description | enclosure - plastic |
Dimensions
| Inside Width | 55.78 mm [2.196 in] |
| Inside Height | 26.90 mm [1.059 in] |
| Inside Length | 105.78 mm [4.165 in] |
| Size L X W X H | 4.41 in x 2.44 in x 1.21 in (112 mm x 62 mm x 31 mm) |
| Overall Width (Drawing) | 62.00 mm [2.441 in] |
| Overall Height (Drawing) | 30.80 mm [1.213 in] |
| Overall Length (Drawing) | 112.00 mm [4.409 in] |
| Overall Length Including Flanges | 137.40 mm [5.409 in] |
| Nominal Size (Ordering Table L X W X D) | 4.41 in (112 mm) x 2.44 in (62 mm) x 1.22 in (31 mm) |
Accessories
| Clear Lid Accessory | 1591BC (flame retardant polycarbonate, lid only) |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Nylon Belt / Pocket Clip | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Replacement Cover Screws | 1591TS100 (Silver) / 1591TS100BK (Black), #4 X 1/2" (100Pkg) self-tapping plated cover screw |
| P.C. Board Screws For Lid | 1593ATS50 (50Pkg) / 1593ATS100 (100Pkg), #4 X 1/4" (6.4mm) self-tapping |
Identifiers
| UPC | 623980544335 |
| UNSPSC | 39121301 |
| Part Number | 1591BSFLBK |
Documentation
| Drawing | 1591BSFL, REV: 07.01.2020 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.13 mm [.084 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.00 mm [.118 in] |
| Guide Height | 21.90 mm [.862 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Lid Fastening | Accepts #4 self-tapping screw |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |
| Purchased Assembly Includes | Box, lid and 4 cover screws |
| Enclosure Material (Drawing) | GPABS (general purpose ABS) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1591BSFLBK mount?▾
Its wall mounting flanges are molded into the lid, extending the overall length to 137.40 mm [5.409 in] according to the drawing.
Is there a flame retardant flanged-lid version?▾
Yes. The ordering table lists 1591BFLBK (black) and 1591BFLGY (gray) as the flame retardant ABS flanged lid versions of this size.
Can a circuit board be fixed to the lid?▾
The drawing lists P.C. board screws for the lid: 1593ATS50 (50Pkg) and 1593ATS100 (100Pkg), #4 X 1/4" (6.4mm) self-tapping.
What is the flame rating?▾
The 1591BSFLBK is general purpose ABS with a UL94 HB flame rating; economy versions are not flame retardant.
What torque should I use on the cover screws?▾
The drawing recommends 42-57 ozf.in (30-40 cN.m).
