Hammond 1591MSBK 85x56x26mm Black General-Purpose ABS Card-Guide Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Molded card guides in all side walls accept 1.5 mm (0.062 in) PC boards for vertical mounting
- Nominal 85 x 56 x 26 mm (3.34 x 2.2 x 1.03 in) black ABS enclosure
- General purpose ABS, UL94 HB (not flame retardant)
- Lap joint construction, designed to meet IP54 against dust and splashing water
- Lid secured by #4 self-tapping screws into plastic posts
- Inside dimensions 78.63 mm x 51.83 mm x 20.90 mm

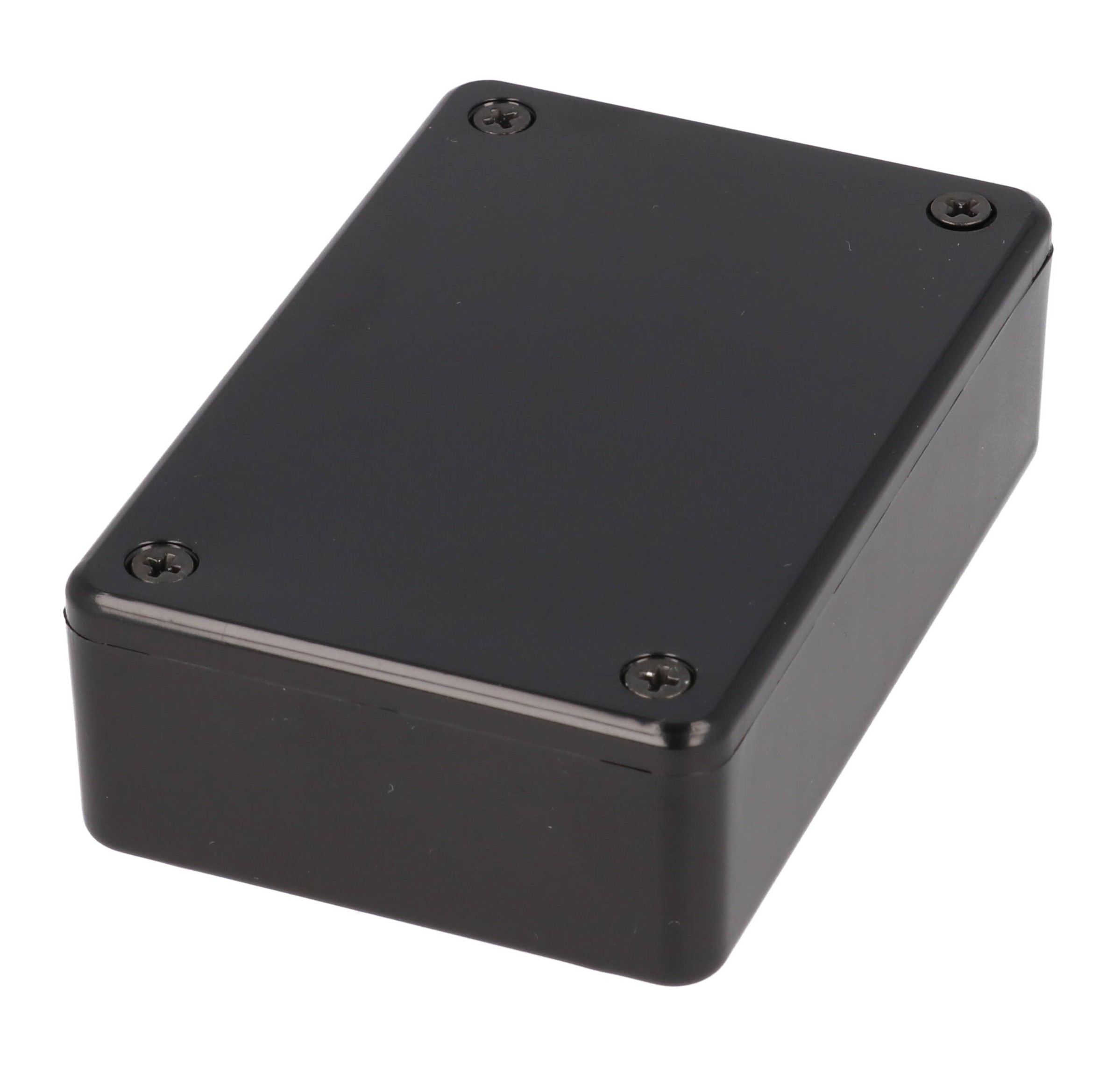

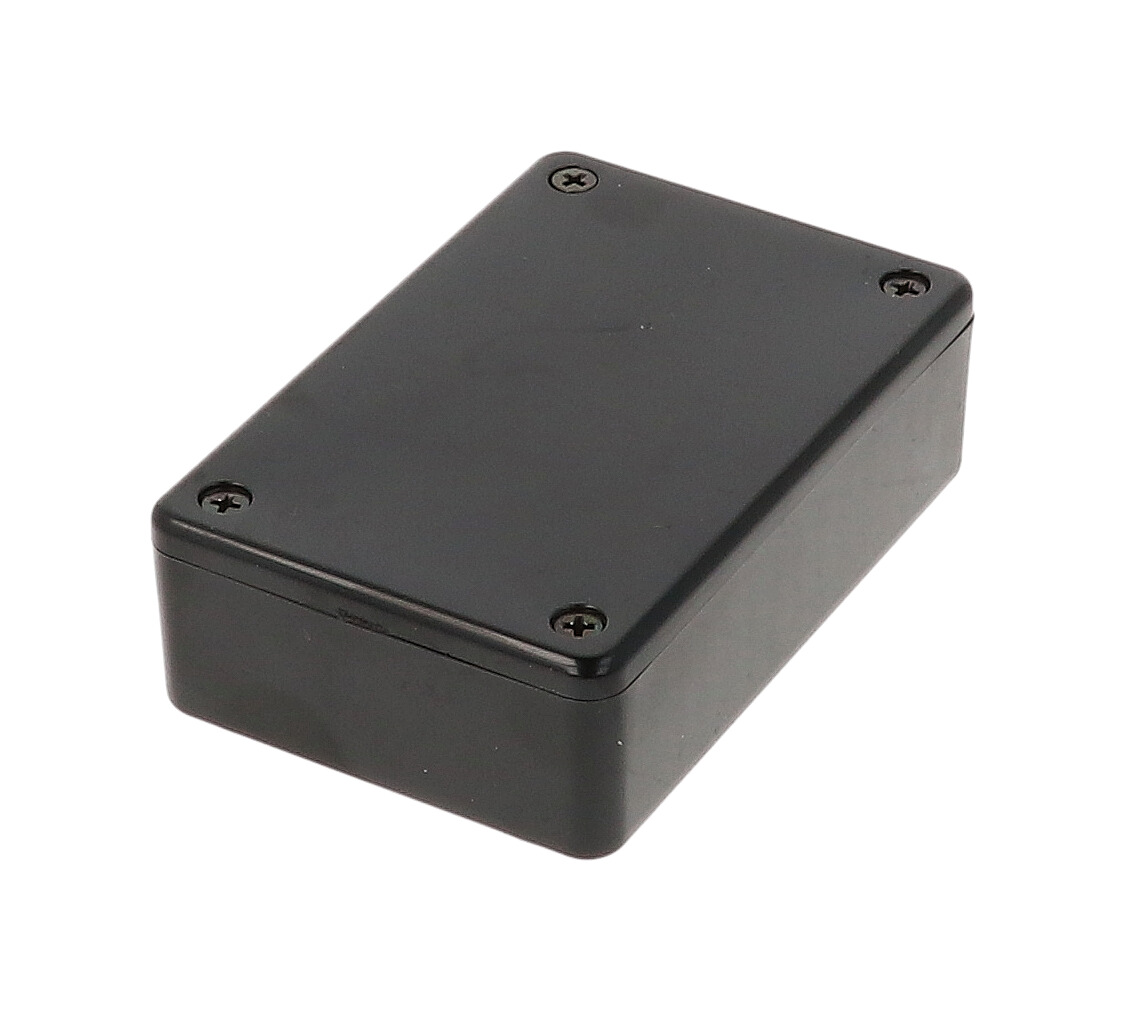

The 1591MSBK is a black 1591M plastic enclosure without mounting flanges, the low-profile 26 mm version of the 85 x 56 mm footprint. It is aimed at designers of small electronic assemblies who want a compact box with card guides molded into all side walls, accepting 1.5 mm (0.062 in) printed circuit boards mounted vertically.
This is the economy version, molded from general purpose ABS rated UL94 HB and not flame retardant. It keeps the lap joint box-to-lid construction that guards against dust and splashing water and is designed to meet IP54. The lid is secured with self-tapping screws driven into fully plastic posts, and the black finish comes with black screws.
Nominal size is 3.34 in x 2.2 in x 1.03 in (85 mm x 56 mm x 26 mm). The drawing gives an inside length of 78.63 mm [3.096 in], inside width of 51.83 mm [2.041 in] and inside height of 20.90 mm [.823 in], with a guide height of 15.90 mm [.626 in] and a slot width of 2.07 mm [.082 in].

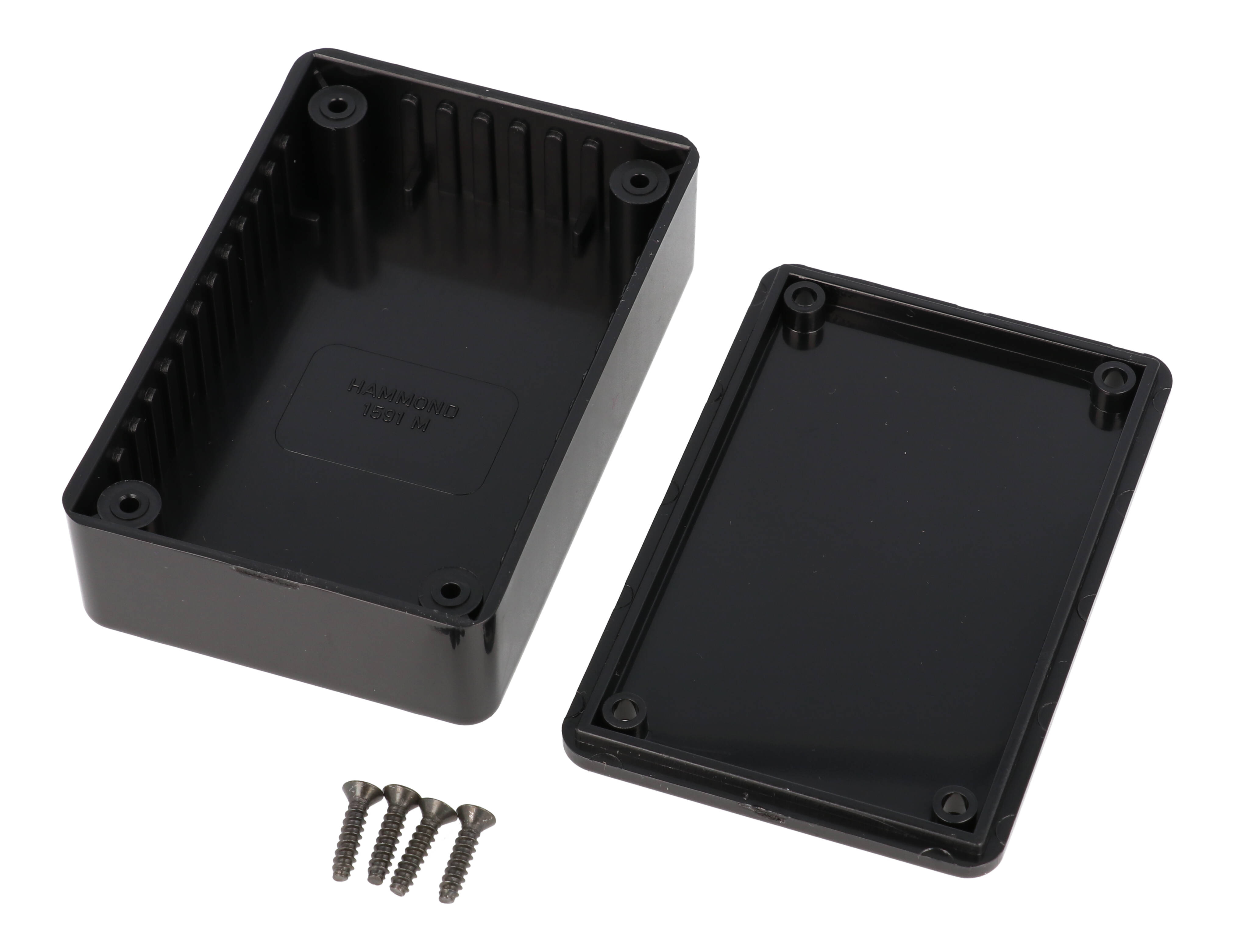

Each 1591MSBK assembly includes the box, lid and 4 cover screws; recommended cover screw torque is 42-57 ozf.in (30-40 cN.m). Shipping weight is 0.1 lbs (0.05 kg), and the part is RoHS and REACH compliant. For horizontal board mounting, 1591Z card adaptors are offered.
Ideal For
- Housing a vertically mounted printed circuit board
- Small project box for prototypes and hobby electronics
- Electronic assemblies needing IP54 dust and splash protection
- Cost-sensitive general purpose electronic enclosures
- Handheld devices with the optional nylon belt / pocket clip
Overview
| Series | 1591 Series ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Version | Economy (general purpose ABS, not flame retardant) |
| Ordering Table | Enclosures Without Mounting Flanges |
| Long Description | enclosure - plastic |
| Short Description | 1591M PLASTIC BLACK |
Dimensions
| Inside Width | 51.83 mm [2.041 in] |
| Inside Height | 20.90 mm [.823 in] |
| Inside Length | 78.63 mm [3.096 in] |
| Box Width (Drawing) | 56.00 mm [2.205 in] |
| Box Height (Drawing) | 26.10 mm [1.028 in] |
| Box Length (Drawing) | 84.80 mm [3.339 in] |
| Nominal Size (L X W X H) | 3.34 in x 2.2 in x 1.03 in (85 mm x 56 mm x 26 mm) |
| Nominal Depth (Ordering Table) | 1.02 in (26 mm) |
| Nominal Width (Ordering Table) | 2.20 in (56 mm) |
| Nominal Length (Ordering Table) | 3.35 in (85 mm) |
Accessories
| Clear Lid (Drawing) | 1591MC, flame retardant polycarbonate, lid only |
| Nylon Belt / Pocket Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Replacement Cover Screws | #4 x 1/2 in self-tapping, 100 pkg: 1591TS100 (silver / nickel plated), 1591TS100BK (black) |
| Clear Lid Accessory (Ordering Table) | 1591LC |
Identifiers
| UPC | 623980794372 |
| UNSPSC | 39121301 |
| Part Number | 1591MSBK |
PCB Mounting
| Slot Width | 2.07 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062 in) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.00 mm [.118 in] |
| Guide Height | 15.90 mm [.626 in] |
| Horizontal PCB Option | PC board card adaptors 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg), molded from flame retardant ABS |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Color | Black |
| Included | Box, lid and 4 cover screws |
| Material | ABS Plastic |
| Construction | Lap joint construction |
| Screw Finish | Black screws |
| Solid Models | Available in .stp or .x_t |
| Lid Fastening | Self-tapping screws into fully plastic posts (box accepts #4 self-tapping screw) |
| Factory Modification | Milling, drilling, printing etc. available from the factory (modshop@hammfg.com) on quote |
| Enclosure Material (Drawing) | GPABS |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection and anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1591MSBK?▾
Nominal size is 3.34 in x 2.2 in x 1.03 in (85 mm x 56 mm x 26 mm). Inside dimensions are 78.63 mm [3.096 in] long, 51.83 mm [2.041 in] wide and 20.90 mm [.823 in] high.
What thickness of PC board fits the card guides?▾
The card guides molded into all side walls accept 1.5 mm (0.062 in) thick boards. For horizontal mounting, 1591Z6, 1591Z50 and 1591Z100 card adaptors are available; their instructions recommend 1.5 mm - 1.75 mm PCB thickness.
Is this enclosure flame retardant?▾
No. This economy version is molded from general purpose ABS rated UL94 HB and is not flame retardant. Flame retardant UL94 V-0 versions are also offered in the 1591 series.
What is included and how is the lid fastened?▾
The assembly includes the box, lid and 4 cover screws. The lid fastens with #4 self-tapping screws into plastic posts; recommended torque is 42-57 ozf.in (30-40 cN.m).
What IP rating does it have?▾
It is designed to meet IP54, with lap joint construction protecting against access of dust and splashing water.
Are replacement screws available?▾
Yes. #4 x 1/2 in self-tapping lid screws come in packs of 100 as 1591TS100 (nickel plated) or 1591TS100BK (black).
