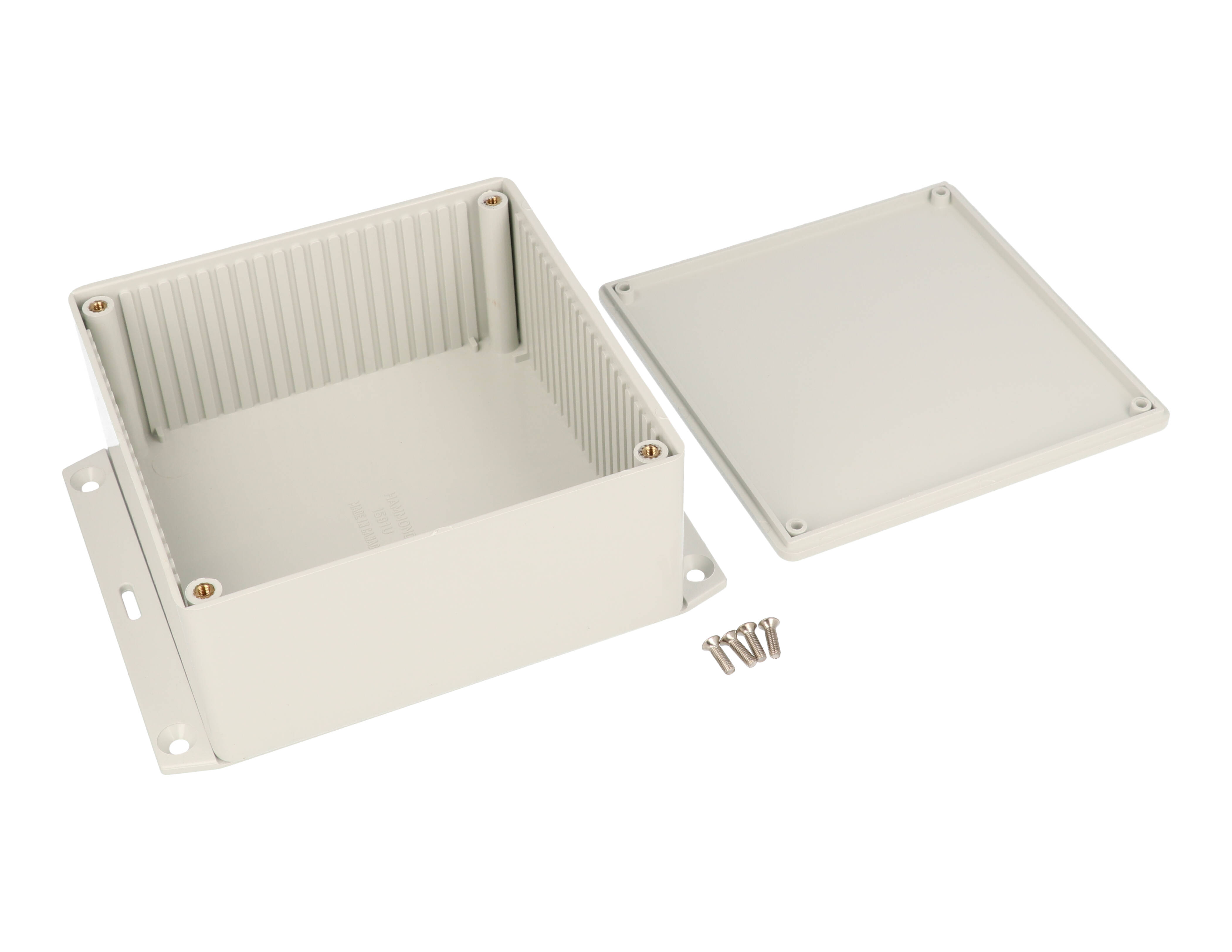

Hammond 1591UF2GY 120x120x59mm Bottom-Flange Flame Retardant Box, Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray flame retardant ABS, UL94 V-0
- Bottom flange with 133.50 mm hole centres
- 120 x 120 x 59 mm body; 145.20 mm long with flange
- Nickel finish M3 x 10 mm screws into brass inserts
- Card guides for 1.5 mm (0.062") PCBs
- IP54 design with lap joint construction
The 1591UF2GY is the light gray, flame retardant bottom-flange enclosure in the square 120 x 120 x 59 mm (4.72 x 4.72 x 2.32 in) size of the 1591 Series. The flange attached to the bottom lets electricians and OEMs fix the box securely to a mounting surface.
Molded from easy-to-machine flame retardant ABS with a UL94 V-0 rating, it provides card guides in all side walls for 1.5 mm (0.062") boards. Lap joint construction protects against dust and splashing water, and the enclosure is designed to meet IP54.
- Overall length including flange: 145.20 mm [5.717 in]
- Flange hole centres: 133.50 mm [5.256 in]
- Overall height: 60.50 mm [2.382 in]
- Inside: 113.54 x 113.54 x 54.90 mm
The lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings; light gray enclosures include nickel finish screws. Tighten to 35.5–42.5 ozf.in (25–30 cN.m). The 1591UF2GY includes box, lid, 4 cover screws and pre-installed brass inserts, ships in shrink wrap at 0.38 lbs (0.17 kg), and is RoHS and REACH compliant.
Accessories listed on the drawing include the 1591UC clear flame retardant polycarbonate lid, 1591Z card adaptors for horizontal boards and 1599CLIP/1599CLIPGY nylon belt or pocket clips.
Ideal For
- Surface or chassis mounted electronics
- Flame retardant vertical PCB housings
- Repeatedly serviced equipment boxes
- IP54-design light gray housings
Overview
| Type | general purpose, flanged |
| Colour | Light Gray |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591UF2GY |
| Mounting Style | Bottom flange |
| Enclosure Grade | Flame retardant ABS (standard version) |
| Long Description | enclosure - plastic |
| Short Description | 1591U ABS WITH FLANGE |
Dimensions
| Inside Width | 113.54 mm [4.470 in] |
| Inside Height | 54.90 mm [2.161 in] |
| Inside Length | 113.54 mm [4.470 in] |
| Size (L X W X H) | 4.72 in x 4.72 in x 2.32 in (120 mm x 120 mm x 59 mm) |
| Overall Width (Drawing) | 120.00 mm [4.724 in] |
| Overall Height (Drawing) | 60.50 mm [2.382 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Flange Hole Centres (Length) | 133.50 mm [5.256 in] |
| Overall Length Including Flanges | 145.20 mm [5.717 in] |
| Nominal Size (L X W X Depth, Ordering Table) | 4.72 in (120 mm) x 4.72 in (120 mm) x 2.32 in (59 mm) |
Accessories
| Clear Lid Accessory | 1591UC |
| Nylon Belt / Pocket Clip | 1599CLIP (black) or 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591MS100 (nickel plated/silver) or 1591MS100BK (black), M3-0.5 x 10 mm, pack of 100 |
Identifiers
| UPC | 623980136783 |
| UNSPSC | 39121301 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards; ideally suited for vertical PCB mounting |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.00 mm [0.118 in] |
| Guide Height | 49.90 mm [1.965 in] |
| Guide Slot Width | 2.06 mm [0.081 in] |
| Horizontal PCB Mounting | Optional PC board card adaptors 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack), molded from flame retardant ABS; recommended PCB thickness 1.5–1.75 mm |
Documentation
| Solid Models | Available in .stp or .x_t |
| Drawing Reference | 1591UF2 (REV: 06.16.2023) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.38 lbs (0.17 kg) |
Construction & Finish
| Included | Box, lid, 4 cover screws and pre-installed brass inserts |
| Material | ABS Plastic (flame retardant ABS, FRABS) |
| Screw Finish | Nickel finish screws (light gray enclosures) |
| Lid Fastening | M3 x 10 mm Phillips machine screws (M3-0.5) threaded into pre-installed integral brass inserts |
| Machinability | Factory modification available (milling, drilling, printing) |
| Joint Construction | Lap joint – protects against access of dust and splashing water |
| Recommended Cover Screw Torque | 35.5–42.5 ozf.in (25–30 cN.m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet IP54) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents; use only plastic-safe cleaners |
Compliance & Certifications
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What screws come with the 1591UF2GY?▾
Nickel finish M3 x 10 mm Phillips machine screws, as included with light gray enclosures. Replacements: 1591MS100.
What is the overall height with the flange?▾
60.50 mm [2.382 in] per the drawing.
What is the inside space?▾
113.54 x 113.54 x 54.90 mm.
Is there a general purpose equivalent?▾
Yes, 1591UF2SGY is the general purpose ABS bottom-flange version in gray.
