Hammond 1591HFLBK Black Flanged Lid FR Abs Enclosure, 166x71x29 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall mounting flanges molded into the lid
- Black flame retardant ABS, UL94 V-0, IP54
- 166 x 71 x 29 mm body; 190.90 mm [7.516 in] across lid flanges
- Card guides take vertical 1.5 mm (0.062") PCBs
- Lid bosses accept #4 self-tapping PC board screws
- M3 cover screws into brass inserts; 6 black screws included

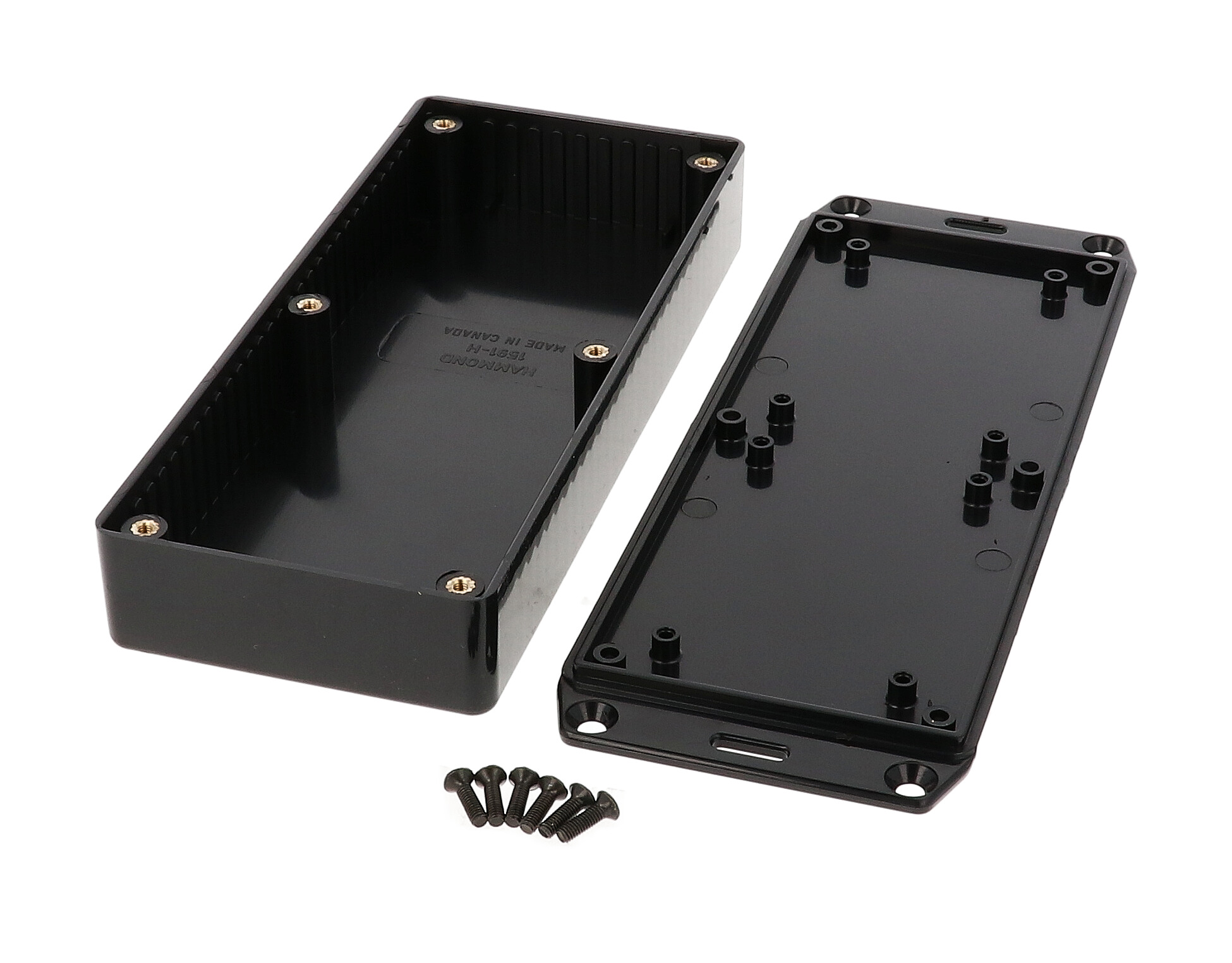

The 1591HFLBK is a black flame retardant ABS enclosure whose lid has wall mounting flanges molded into it. The 6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm) box is suited to integrators who want to fix the lid to a wall or panel and hang the body from it.
The 1591HFL drawing shows an overall length across the lid flanges of 190.90 mm [7.516 in] and an overall height of 28.80 mm [1.134 in]. Inside dimensions are 159.70 x 64.80 x 25.00 mm [6.287 x 2.551 x .984 in]. Bosses inside the lid accept #4 self-tapping screws, with optional #4 x 1/4" (6.4 mm) PC board screws for the lid sold as 1593ATS50 and 1593ATS100.
It is molded from flame retardant ABS with a UL94 V-0 rating, is IP54 rated, and uses lap joint construction to keep out dust and splashing water. Card guides in all side walls accept 1.5 mm (0.062") boards vertically.
The 1591HFLBK includes box, lid, 6 cover screws and pre-installed brass inserts for M3 - 0.5 machine screws; tighten to 35.5-42.5 ozf.in (25-30 cN.m). Black enclosures include black screws. It is RoHS and REACH compliant, weighs 0.23 lbs (0.10 kg) and ships in shrink wrap.
Ideal For
- Wall mounted electronics and controls
- Panel mounted PCB assemblies
- Flame retardant device housings
- Service-access enclosures with repeated lid removal
Hardware
| Included | Box, lid, 6 cover screws, and pre-installed brass inserts |
| Cover Screw | M3 - 0.5 x 10 mm machine screw |
| Screw Finish | Black enclosures include black screws |
| Clear Lid Accessory | 1591HC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591MS100 (silver / nickel plated) or 1591MS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591HFLBK |
| Mounting Flange | Wall mounting flanges molded into the lid |
| Product Description | enclosure - plastic |
| Ordering Table Version | Flame Retardant ABS, Flanged Lid, Black (Enclosures With Mounting Flanges) |
| Manufacturer Description | 1591H FLANGED LID BLACK |
Dimensions
| Inside Width | 64.80 mm [2.551 in] |
| Inside Height | 25.00 mm [.984 in] |
| Inside Length | 159.70 mm [6.287 in] |
| Size L X W X H | 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm) |
| Nominal Size - Depth | 1.14 in (29 mm) |
| Nominal Size - Width | 2.80 in (71 mm) |
| Body Length (Drawing) | 165.70 mm [6.524 in] |
| Nominal Size - Length | 6.54 in (166 mm) |
| Overall Width (Drawing) | 70.80 mm [2.787 in] |
| Overall Height (Drawing) | 28.80 mm [1.134 in] |
| Overall Length Incl. Lid Flange (Drawing) | 190.90 mm [7.516 in] |
Identifiers
| UPC | 623980196862 |
| UNSPSC | 39121301 |
| Drawing | 1591HFL, REV: 06.16.2023 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 20.00 mm [.788 in] |
| Inside Lid Bosses | Accept #4 self-tapping screw |
| Card Guide Slot Width | 2.00 mm [.079 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| PC Board Screws For Lid (Optional) | #4 x 1/4" (6.4 mm) self-tapping: 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.23 lbs (0.10 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | M3 - 0.5 machine screws threaded into pre-installed brass inserts |
| Drawing Material Note | Enclosure made from FRABS |
| Material Grade (Drawing) | Flame retardant ABS (FRABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where are the mounting flanges on the 1591HFLBK?▾
The wall mounting flanges are molded into the lid.
What is the overall length with flanges?▾
190.90 mm [7.516 in] per the 1591HFL drawing.
Can I mount a board to the lid?▾
The inside lid bosses accept #4 self-tapping screws; PC board screws for the lid are available as 1593ATS50 (50 pack) and 1593ATS100 (100 pack).
Is it flame retardant?▾
Yes, flame retardant ABS rated UL94 V-0.
What is included?▾
Box, lid, 6 cover screws and pre-installed brass inserts.
