Hammond 1591BGY 112x62x31mm Flame Retardant ABS Enclosure, Light Gray

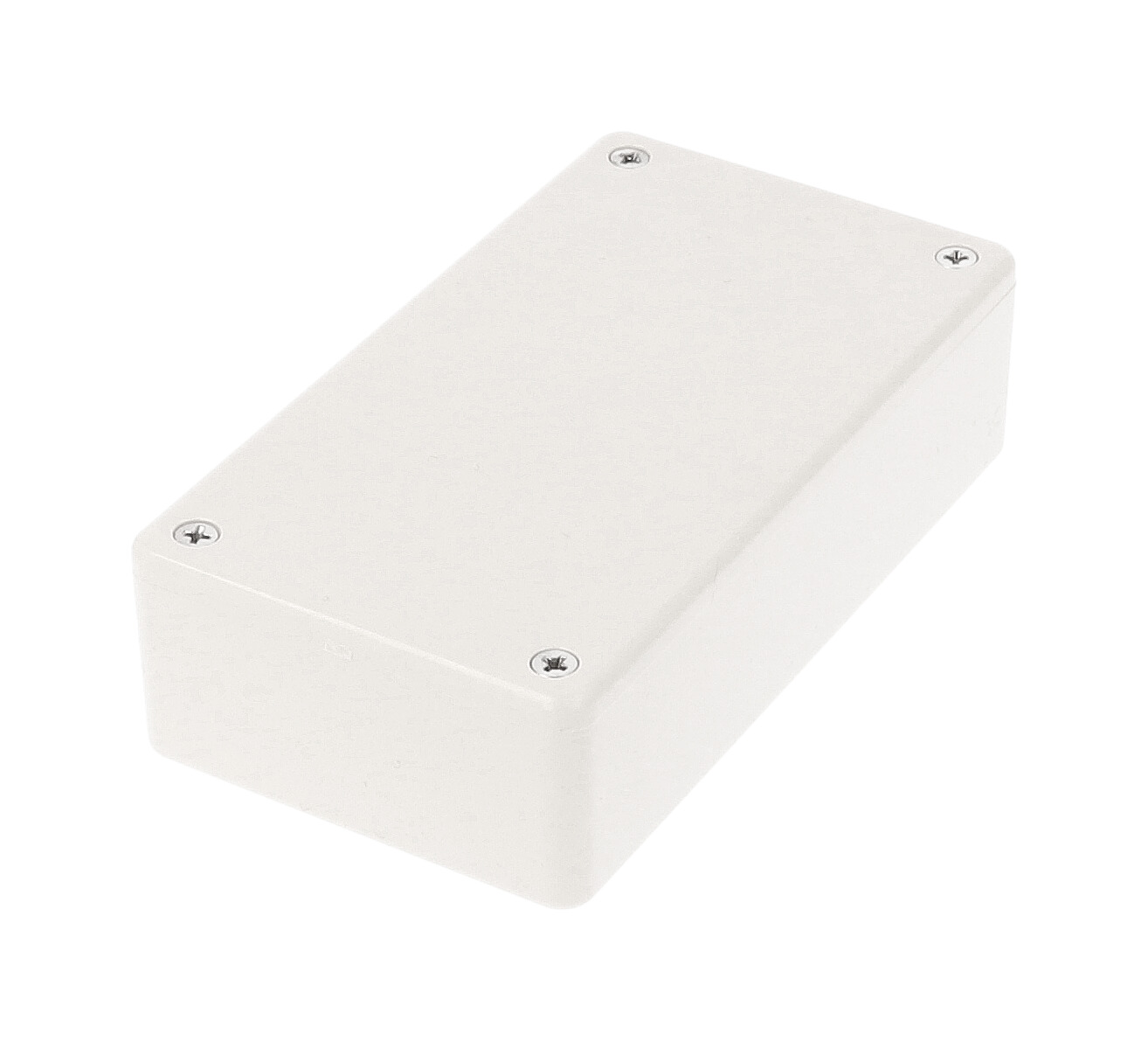

The 1591BGY is a light gray 112 x 62 x 31 mm ABS plastic enclosure from the 1591 Series of multipurpose boxes with card guides, supplied as a plain rectangular box with no mounting flanges. It suits electronics designers, OEM engineers and integrators who need a compact project box for vertically mounted printed circuit boards, with guides molded into all side walls that accept 1.5 mm (0.062") thick boards.

This is a standard version molded from easy-to-machine flame retardant ABS plastic rated UL94 V-0. The lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings, which suits applications needing repeated assembly and disassembly. Lap joint construction between lid and base protects against dust and splashing water, and the enclosure is designed to meet IP54. As a light gray enclosure it ships with standard nickel finish screws.

Nominal size is 4.41 in x 2.44 in x 1.21 in (112 mm x 62 mm x 31 mm). The drawing gives outside dimensions of 112.00 mm [4.409 in] by 62.00 mm [2.441 in], an overall height of 30.80 mm [1.213 in], with inside dimensions of 105.78 mm [4.165 in] long, 55.78 mm [2.196 in] wide and 26.90 mm [1.059 in] high. Shipping weight is 0.16 lbs (0.07 kg).

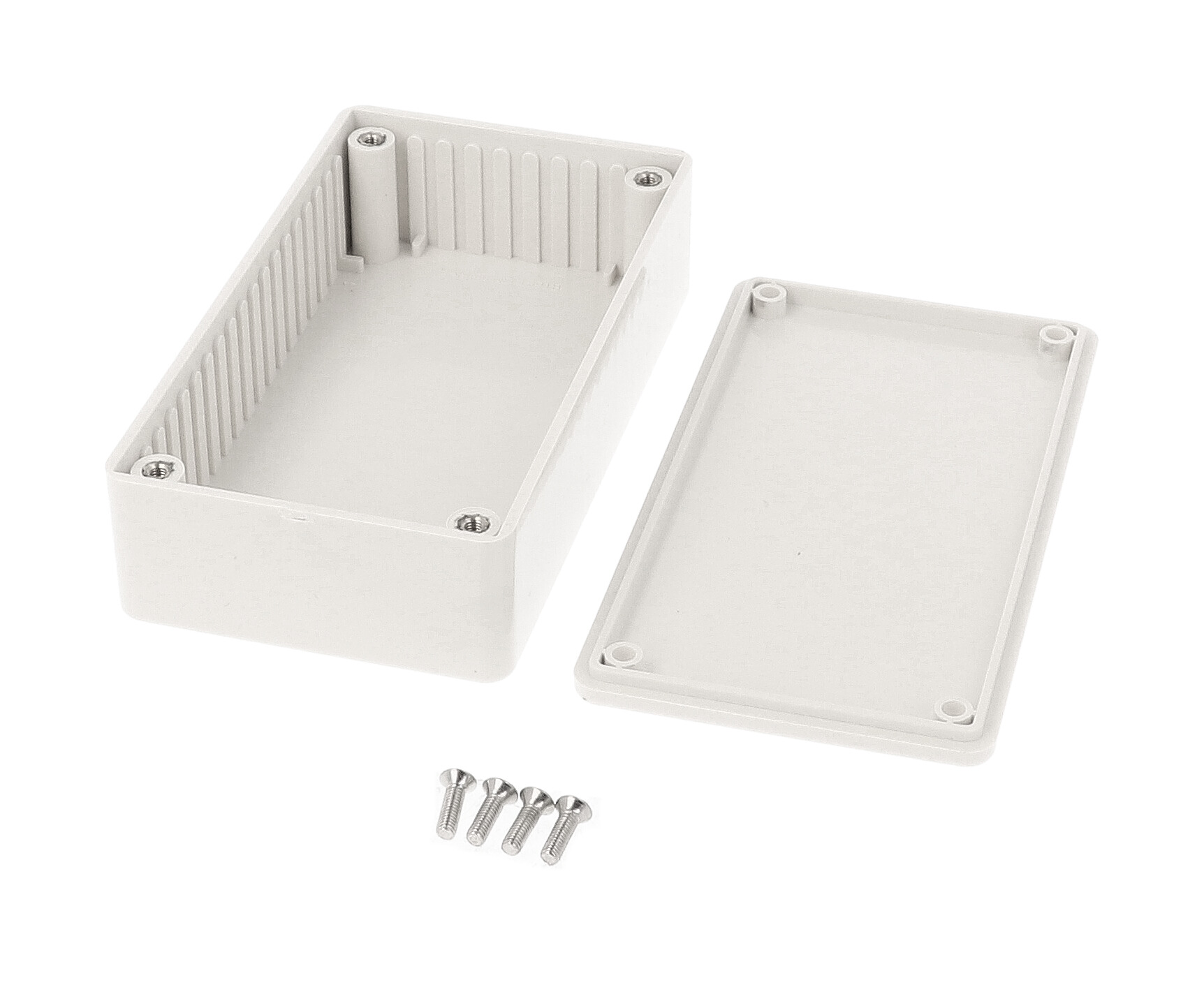

The 1591BGY is supplied as box, lid, 4 cover screws, and pre-installed brass inserts. Recommended cover screw torque is 35.5-42.5 ozf.in (25-30 cN.m). Matching accessories include the 1591BC clear flame retardant polycarbonate lid, 1591Z6/1591Z50/1591Z100 PC board card adapters for horizontal board mounting, and 1599CLIP (black) or 1599CLIPGY (grey) nylon belt/pocket clips. The part is RoHS and REACH compliant, and the enclosure can be factory modified (milling, drilling, printing).
