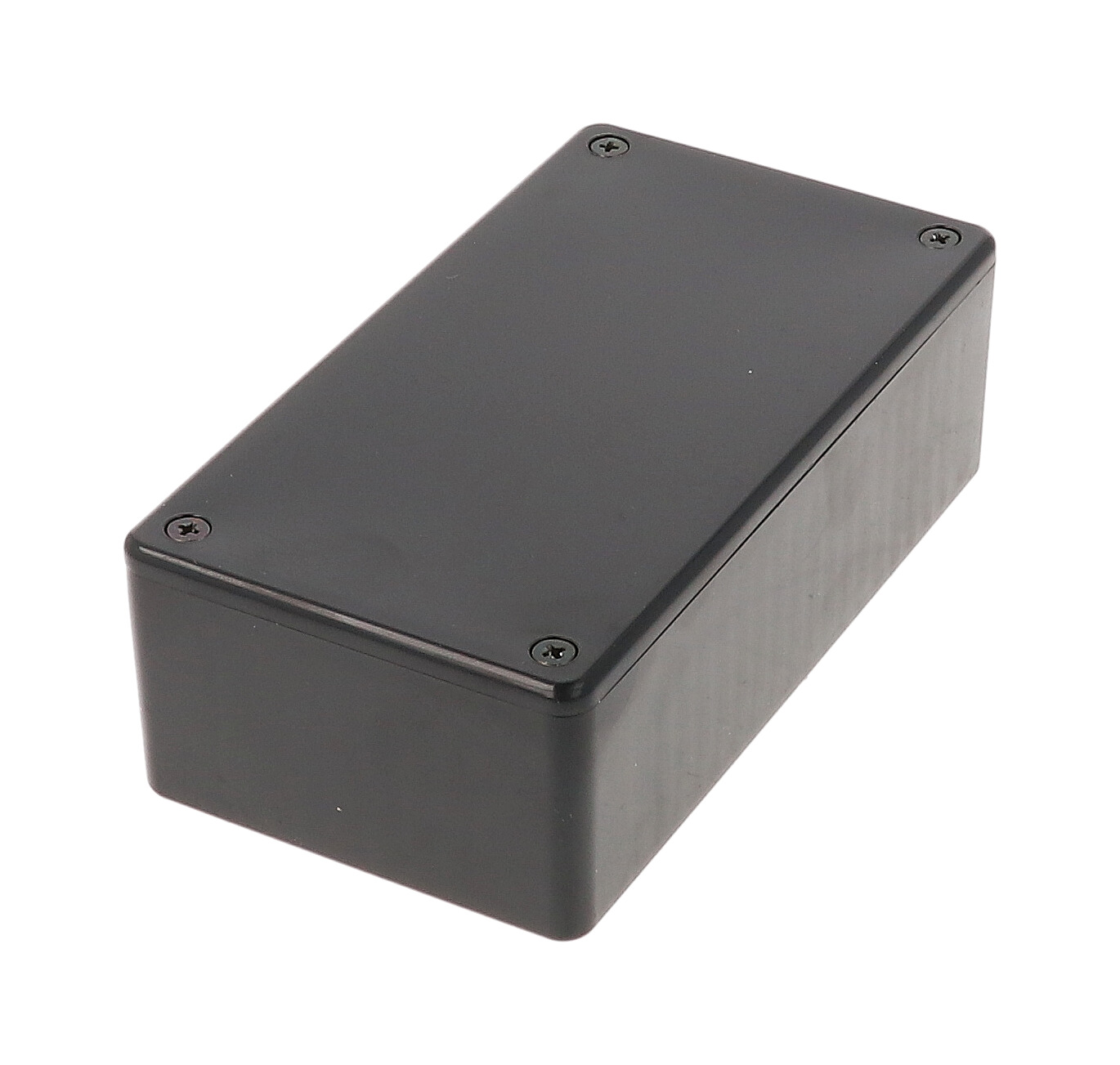

Hammond 1591CBK 120x65x40mm Black Flame Retardant ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black flame retardant ABS rated UL94 V-0
- 120 x 65 x 40 mm (4.72 x 2.56 x 1.57 in) with 113.53 x 58.53 x 35.90 mm interior
- Molded card guides accept 1.5 mm (0.062”) PC boards vertically
- M3 x 10 mm machine screws into pre-installed brass inserts for repeat access
- IP54 lap joint construction against dust and splashing water
- Includes box, lid and 4 black cover screws; RoHS and REACH compliant
The 1591CBK is a black flame retardant ABS enclosure from the 1591 Series, measuring 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm). It suits OEM engineers, integrators and designers who need a compact, UL94 V-0 rated plastic housing for a vertically mounted circuit board.
Card guides are molded into all side walls and accept 1.5 mm (0.062”) thick boards. The drawing gives an inside length of 113.53 mm, inside width of 58.53 mm and inside height of 35.90 mm, with a 30.91 mm guide height and 2.08 mm slot width.
As a standard version it is molded from easy-to-machine flame retardant ABS. The lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings, which is well suited to repeated assembly and disassembly. The purchased assembly includes box, lid, 4 cover screws and pre-installed brass inserts; black enclosures include black screws. Recommended torque is 35.5-42.5 ozf.in (25-30 cN.m).
Lap joint construction gives IP54 protection against dust and splashing water. The 1591CBK is RoHS and REACH compliant, weighs 0.19 lbs (0.09 kg) shipped and is packed in shrink wrap. The ordering table lists the 1591CC clear polycarbonate lid for this size.
Ideal For
- Flame retardant housing for vertically mounted PCBs
- OEM electronic modules needing frequent lid access
- IP54 control and instrumentation enclosures
- Small electronic assemblies and interface boards
Overview
| Type | project box, general purpose |
| Color | Black |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | ABS PLSTC CASE & LID |
| Long Description | enclosure - plastic |
| Colour Options On Drawing | FR ABS UL94 -V0: Black 1591CBK, Blue 1591CBU, Grey 1591CGY; Translucent Polycarbonate: Ice Blue 1591CTBU, IR Red 1591CTRD, Crystal Clear 1591CTCL |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Nominal Size (Ordering Table L X W X D) | 4.72 in (120 mm) x 2.56 in (65 mm) x 1.57 in (40 mm) |
Accessories
| Clear Lid Accessory | 1591CC |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Replacement Cover Screws | 1591MS100 (Silver) / 1591MS100BK (Black), M3 - 0.5 X 10mm (100Pkg) plated cover screw |
Identifiers
| UPC | 623980546605 |
| UNSPSC | 39121301 |
| Part Number | 1591CBK |
Documentation
| Drawing | 1591C, REV: 06.16.2023 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.08 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.01 mm [.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Lid Fastening | Accepts M3 - 0.5 machine screw |
| Screw Inserts | Pre-installed brass inserts |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |

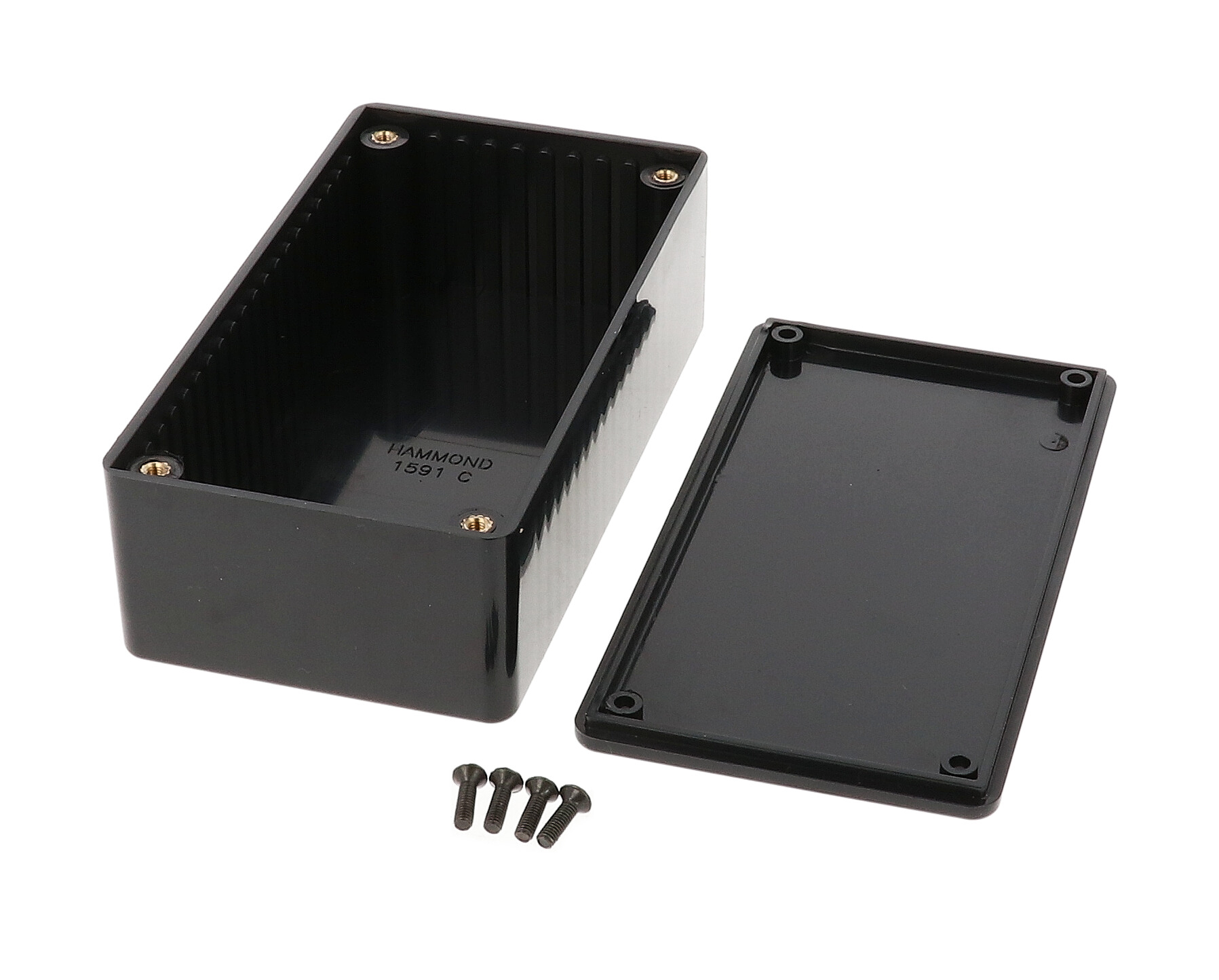

| Purchased Assembly Includes | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Enclosure Material (Drawing) | FRABS or Polycarbonate (drawing shared with 1591C translucent versions) |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What flame rating does the 1591CBK have?▾
It is molded from flame retardant ABS with a UL94 V-0 flame rating.
How is the lid attached?▾
With M3 x 10 mm Phillips machine screws threaded into integral brass bushings. The purchased assembly includes 4 cover screws and pre-installed brass inserts.
What are the internal dimensions?▾
Inside length 113.53 mm [4.469 in], inside width 58.53 mm [2.304 in] and inside height 35.90 mm [1.413 in].
Is a clear lid available?▾
The ordering table lists 1591CC as the clear lid accessory for the 1591C size.
Can I mount the board horizontally?▾
Yes, with PC board card adapters 1591Z6 (6Pkg), 1591Z50 (50 Pkg) or 1591Z100 (100Pkg), molded from flame retardant ABS.
