Hammond 1591TSBK 120x80x59mm General Purpose ABS Project Box, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS economy version, UL94 HB
- Black 120 x 80 x 59 mm body, no flanges
- Card guides accept 1.5 mm (0.062") boards
- IP54 design with lap joint construction
- #4 self-tapping lid screws in black
- Inside 113.54 x 73.74 x 54.80 mm
- Light 0.25 lbs (0.11 kg) shipping weight

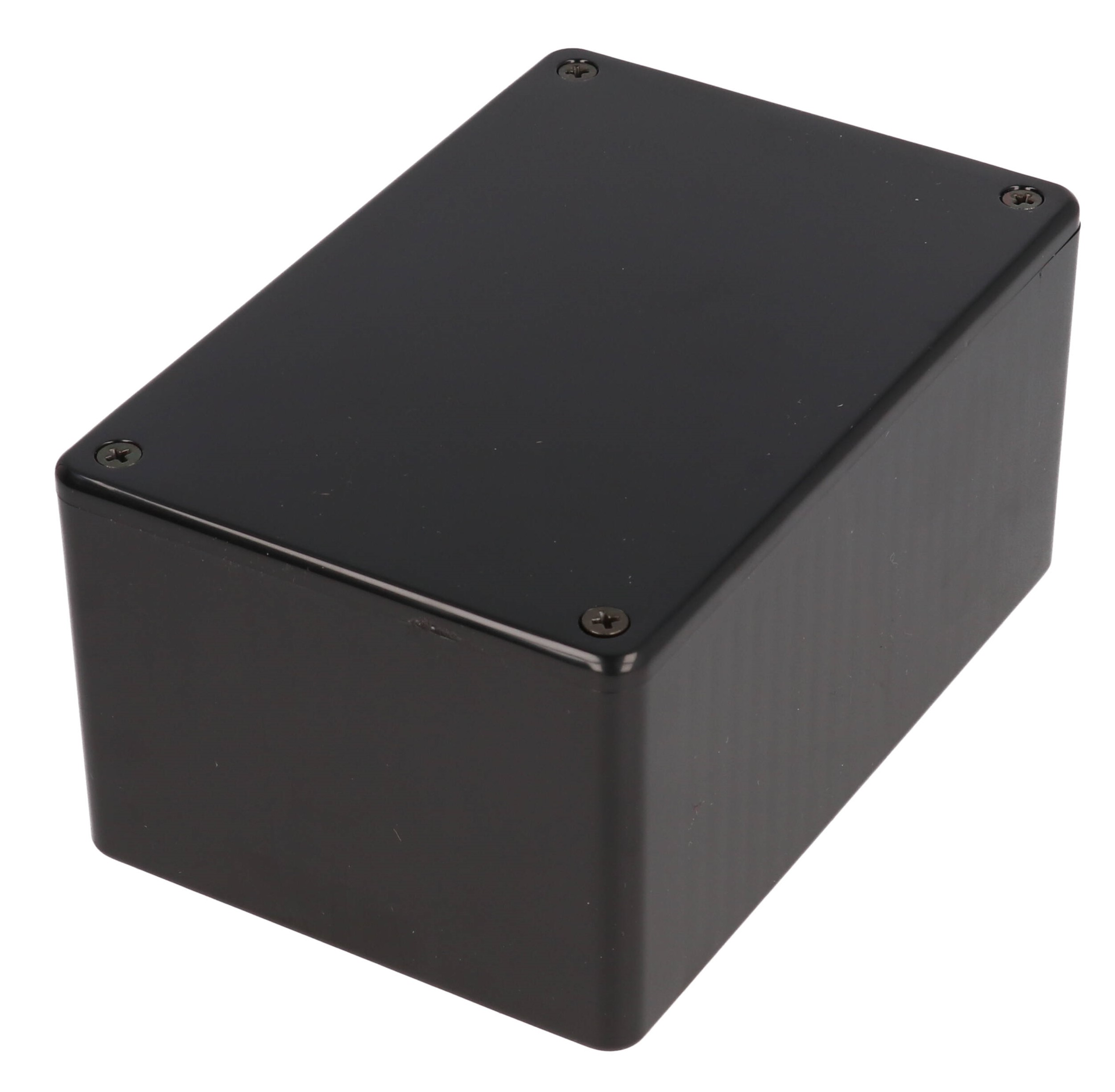

The 1591TSBK is the black economy version of the 120 x 80 x 59 mm (4.72 x 3.16 x 2.32 in) 1591 Series enclosure. Without mounting flanges, it is a compact project box for builders and OEMs whose design does not call for flame retardant plastic.
It is molded from general purpose ABS with a UL94 HB flame rating; economy versions are not flame retardant. Card guides in every side wall accept 1.5 mm (0.062") boards for vertical mounting, and lap joint construction keeps out dust and splashing water to an IP54 design.
Per the drawing, the box measures 120.00 x 80.20 x 58.90 mm overall with an inside cavity of 113.54 x 73.74 x 54.80 mm and 49.80 mm guide height. The lid is assembled with #4 self-tapping screws into fully plastic posts; black enclosures include black screws. Recommended torque is 42–57 ozf.in (30–40 cN.m).

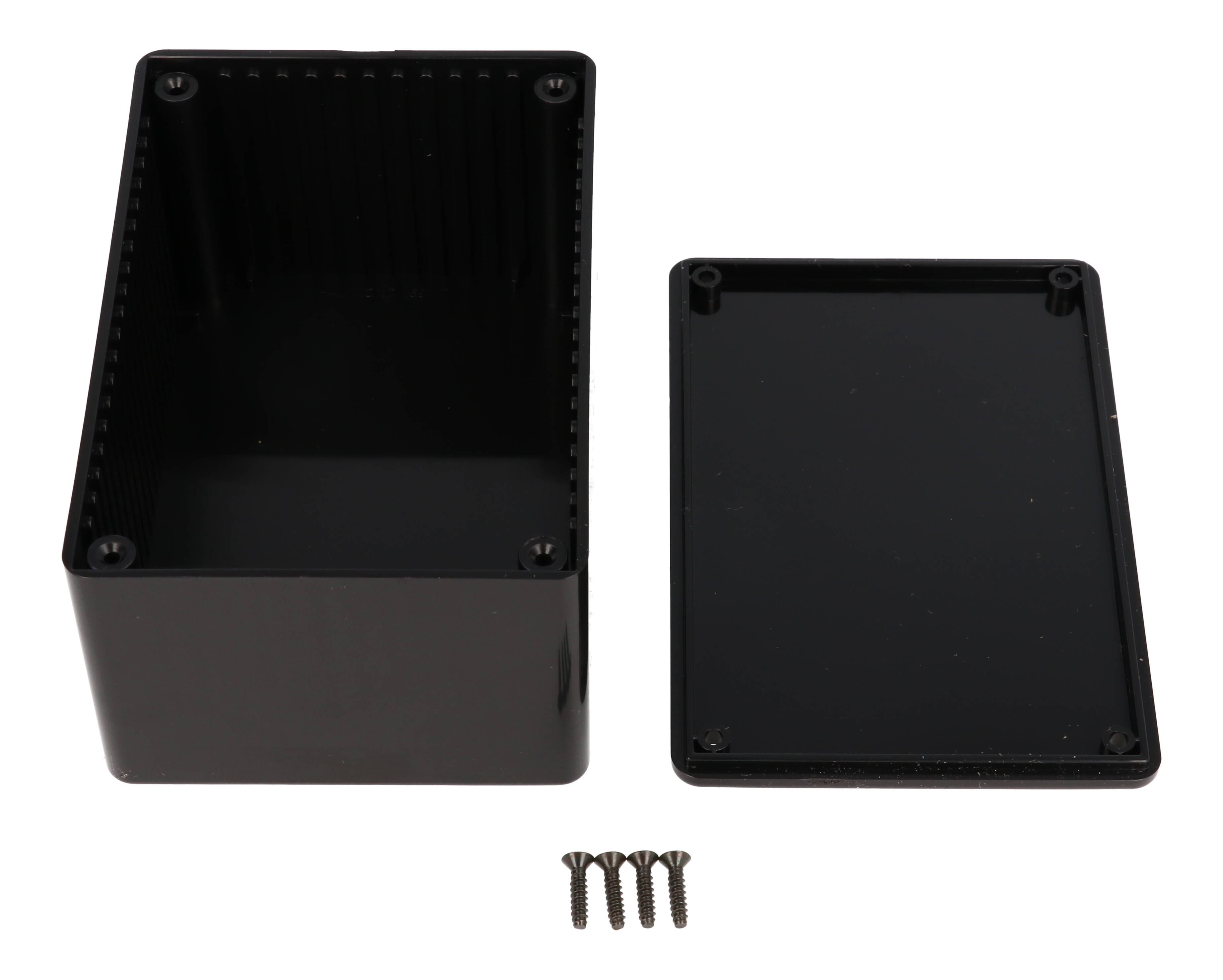

The 1591TSBK includes box, lid and 4 cover screws, ships shrink wrapped at 0.25 lbs (0.11 kg), and is RoHS and REACH compliant. Replacement self-tapping screws are 1591TS100BK, and the 1591TC clear lid fits this size.
Ideal For
- Economy electronics project boxes
- Vertical PCB housings
- Hobby and prototype builds
- Dust and splash protected (IP54 design) housings
Overview
| Type | project box, general purpose |
| Colour | Black |
| Series | 1591 Series – ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591TSBK |
| Mounting Style | No mounting flanges |
| Enclosure Grade | General purpose ABS (economy version, not flame retardant) |
| Long Description | enclosure - plastic |
| Short Description | GPABS PLASTIC CASE |
Dimensions
| Inside Width | 73.74 mm [2.903 in] |
| Inside Height | 54.80 mm [2.157 in] |
| Inside Length | 113.54 mm [4.470 in] |
| Size (L X W X H) | 4.72 in x 3.16 in x 2.32 in (120 mm x 80 mm x 59 mm) |
| Overall Width (Drawing) | 80.20 mm [3.157 in] |
| Overall Height (Drawing) | 58.90 mm [2.319 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Nominal Size (L X W X Depth, Ordering Table) | 4.72 in (120 mm) x 3.15 in (80 mm) x 2.32 in (59 mm) |
Accessories
| Clear Lid Accessory | 1591TC |
| Nylon Belt / Pocket Clip | 1599CLIP (black) or 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591TS100 (nickel plated/silver) or 1591TS100BK (black), #4 x 1/2" self-tapping, pack of 100 |
Identifiers
| UPC | 623980794174 |
| UNSPSC | 39121301 |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards; ideally suited for vertical PCB mounting |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 3.00 mm [0.118 in] |
| Guide Height | 49.80 mm [1.961 in] |
| Guide Slot Width | 2.06 mm [0.081 in] |
| Horizontal PCB Mounting | Optional PC board card adaptors 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack), molded from flame retardant ABS; recommended PCB thickness 1.5–1.75 mm |
Documentation
| Solid Models | Available in .stp or .x_t |
| Drawing Reference | 1591TS (REV: 07.01.2020) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.25 lbs (0.11 kg) |
Construction & Finish
| Included | Box, lid and 4 cover screws |
| Material | ABS Plastic (general purpose ABS, GPABS) |
| Screw Finish | Black screws (black enclosures) |
| Lid Fastening | #4 self-tapping screws into fully plastic posts |
| Machinability | Factory modification available (milling, drilling, printing) |
| Joint Construction | Lap joint – protects against access of dust and splashing water |
| Recommended Cover Screw Torque | 42–57 ozf.in (30–40 cN.m) |
Environmental & Protection
| IP Rating | IP54 (designed to meet IP54) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents; use only plastic-safe cleaners |
Compliance & Certifications
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the difference between 1591TSBK and 1591TBK?▾
1591TSBK is the general purpose (economy) ABS version with UL94 HB rating and self-tapping screws into plastic posts; the 1591TBK is the flame retardant version with machine screws into brass inserts.
What screws does it use?▾
#4 self-tapping screws into fully plastic posts; black enclosures include black screws. Replacements: 1591TS100BK (pack of 100).
What is the recommended screw torque?▾
42–57 ozf.in (30–40 cN.m).
Is it dust and water resistant?▾
Lap joint construction protects against dust and splashing water, and it is designed to meet IP54.
