Hammond 1591LF2BK Black Bottom Flange FR Abs Enclosure, 85x56x39 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Bottom mounting flange; 110.20 mm [4.339 in] overall length
- Black flame retardant ABS, UL94 V-0
- 85 x 56 x 39 mm (3.35 x 2.2 x 1.54 in) body
- IP54 with lap joint construction
- Card guides for 1.5 mm (0.062") PCBs
- 4 black M3 screws into brass inserts

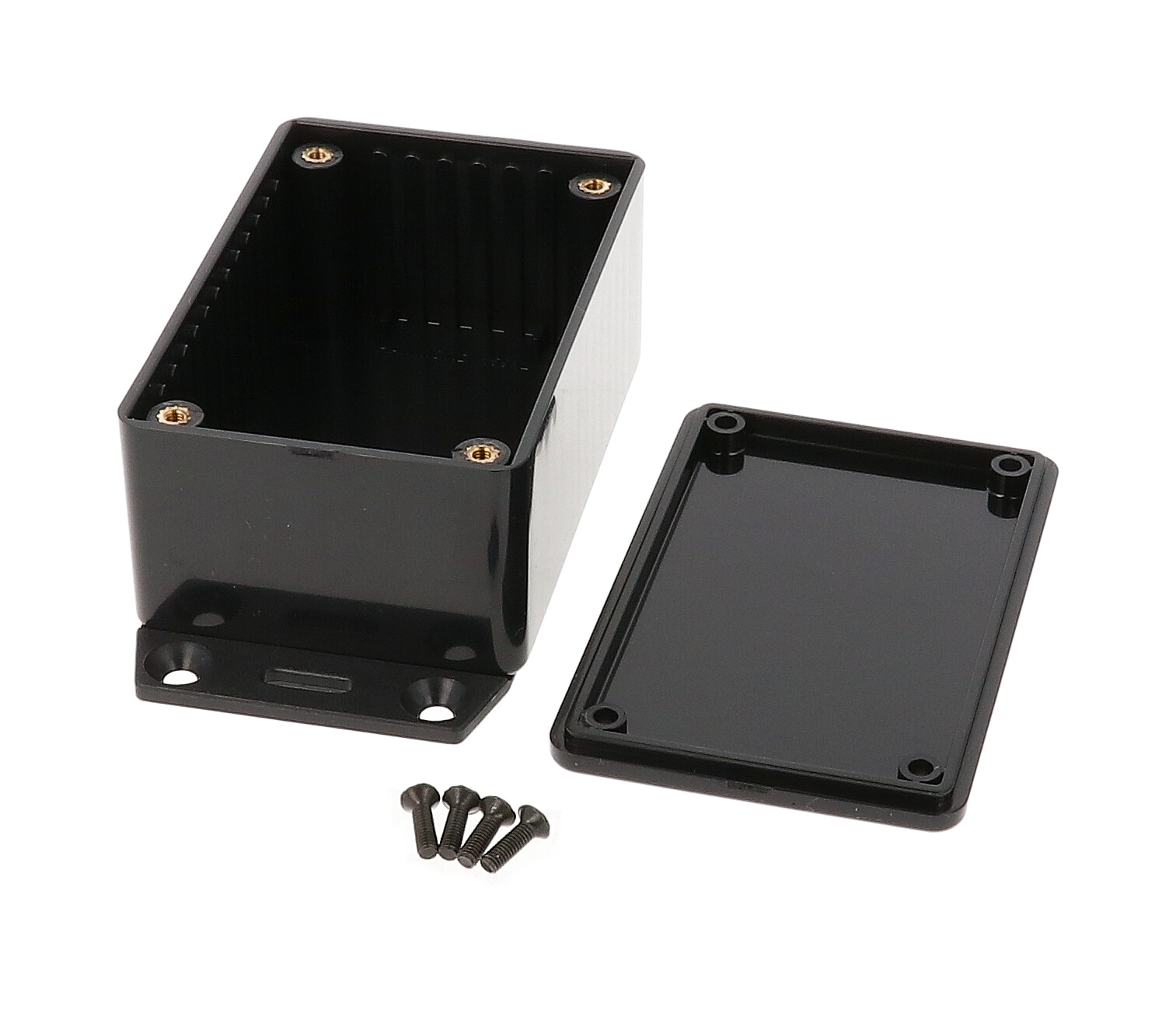

The 1591LF2BK is a compact black flame retardant ABS enclosure with a bottom mounting flange. The 3.35 x 2.2 x 1.54 in (85 x 56 x 39 mm) body is a fit for small controls, sensors and modules that need to be fastened to a surface.
The 1591LF2 drawing gives an overall length with flange of 110.20 mm [4.339 in] and an overall height of 40.60 mm [1.598 in]. The interior is 78.71 x 51.71 x 34.90 mm [3.099 x 2.036 x 1.374 in].
It is molded from flame retardant ABS with a UL94 V-0 rating, is IP54 rated, and uses lap joint construction to protect against dust and splashing water. Card guides molded into all side walls accept 1.5 mm (0.062") boards for vertical PCB mounting, with 1591Z adaptors for horizontal boards.
The 1591LF2BK assembly includes box, lid, 4 cover screws and pre-installed brass inserts; the M3 - 0.5 cover screws are torqued to 35.5-42.5 ozf.in (25-30 cN.m). Black enclosures include black screws. It is RoHS and REACH compliant, ships in shrink wrap at 0.16 lbs (0.07 kg) and takes the 1591LC clear lid.
Ideal For
- Surface-mounted compact electronics
- Small panel or chassis mounted PCB housings
- Flame retardant sensor boxes
- Control modules needing repeated lid access
Hardware
| Included | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Cover Screw | M3 - 0.5 x 10 mm machine screw |
| Screw Finish | Black enclosures include black screws |
| Clear Lid Accessory | 1591LC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591MS100 (silver / nickel plated) or 1591MS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591LF2BK |
| Mounting Flange | Bottom flange (accessory flange attached to the bottom) |
| Product Description | enclosure - plastic |
| Ordering Table Version | Flame Retardant, Bottom Flange, Black (Enclosures With Mounting Flanges) |
| Manufacturer Description | 1591L ABS WITH FLANGE |
Dimensions
| Inside Width | 51.71 mm [2.036 in] |
| Inside Height | 34.90 mm [1.374 in] |
| Inside Length | 78.71 mm [3.099 in] |
| Size L X W X H | 3.35 in x 2.2 in x 1.54 in (85 mm x 56 mm x 39 mm) |
| Nominal Size - Depth | 1.54 in (39 mm) |
| Nominal Size - Width | 2.20 in (56 mm) |
| Body Length (Drawing) | 85.00 mm [3.346 in] |
| Nominal Size - Length | 3.35 in (85 mm) |
| Overall Width (Drawing) | 56.00 mm [2.205 in] |
| Overall Height (Drawing) | 40.60 mm [1.598 in] |
| Overall Length Incl. Bottom Flange (Drawing) | 110.20 mm [4.339 in] |
Identifiers
| UPC | 623980136608 |
| UNSPSC | 39121301 |
| Drawing | 1591LF2, REV: 06.16.2023 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 29.90 mm [1.177 in] |
| Card Guide Slot Width | 2.09 mm [.082 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.16 lbs (0.07 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | M3 - 0.5 machine screws threaded into pre-installed brass inserts |
| Drawing Material Note | Enclosure made from FRABS |
| Material Grade (Drawing) | Flame retardant ABS (FRABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1591LF2BK mounted?▾
It has a bottom mounting flange; overall length with the flange is 110.20 mm [4.339 in].
What are the inside dimensions?▾
78.71 x 51.71 x 34.90 mm [3.099 x 2.036 x 1.374 in].
Is it flame retardant?▾
Yes, flame retardant ABS with a UL94 V-0 rating.
What hardware comes with it?▾
Box, lid, 4 cover screws and pre-installed brass inserts.
What clear lid fits?▾
The 1591LC clear polycarbonate lid.
