Hammond 1591AC 100x50mm Clear Polycarbonate Lid, UL94 V-0
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid made to fit 1591A enclosures
- 100 x 50 x 6 mm (3.94 x 1.97 x 0.23 in)
- UL94 V-0 flame rating
- IP54 rating
- Fits flanged and non-flanged 1591A versions listed in the ordering tables
- Supplied as lid only

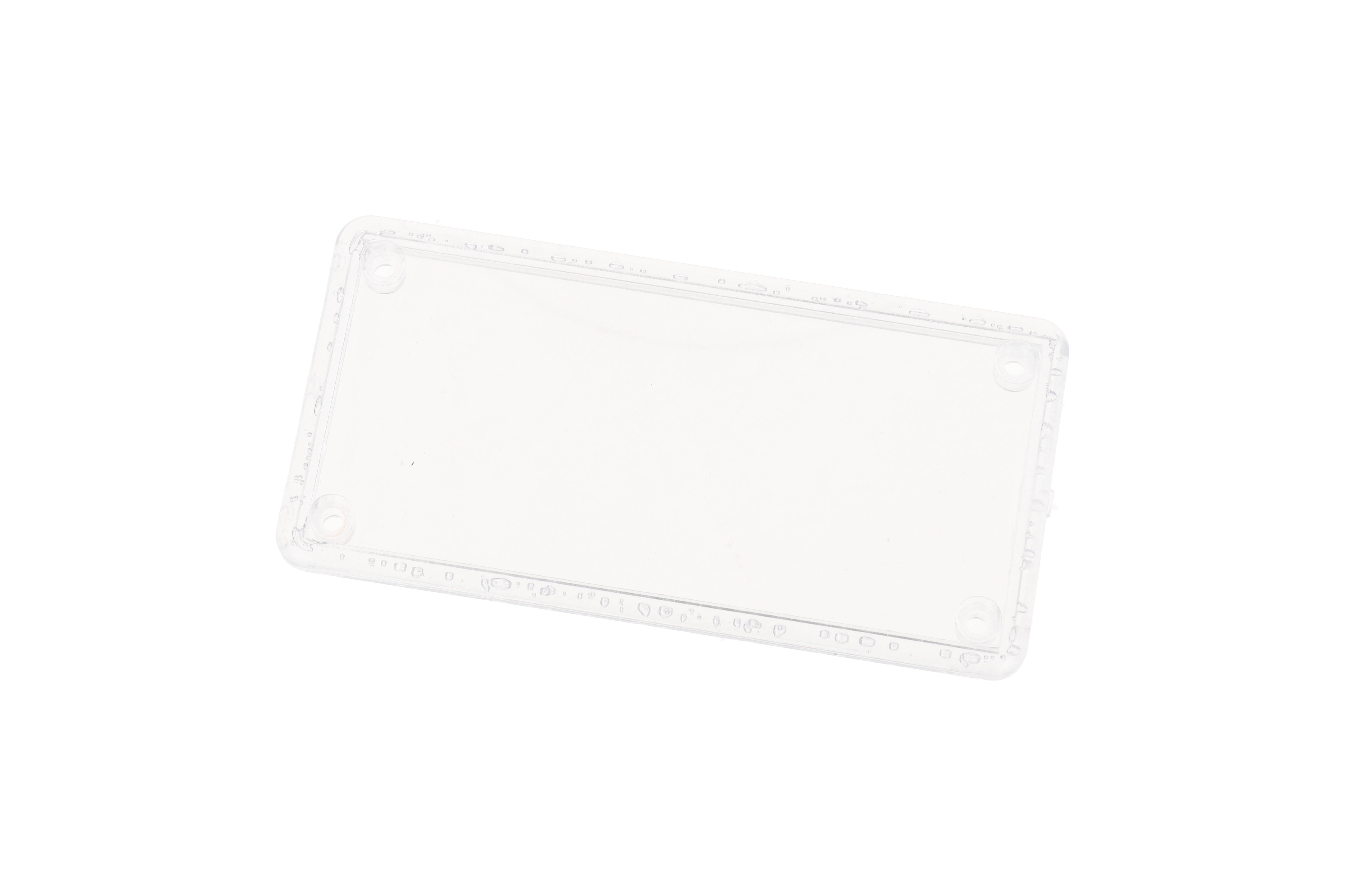

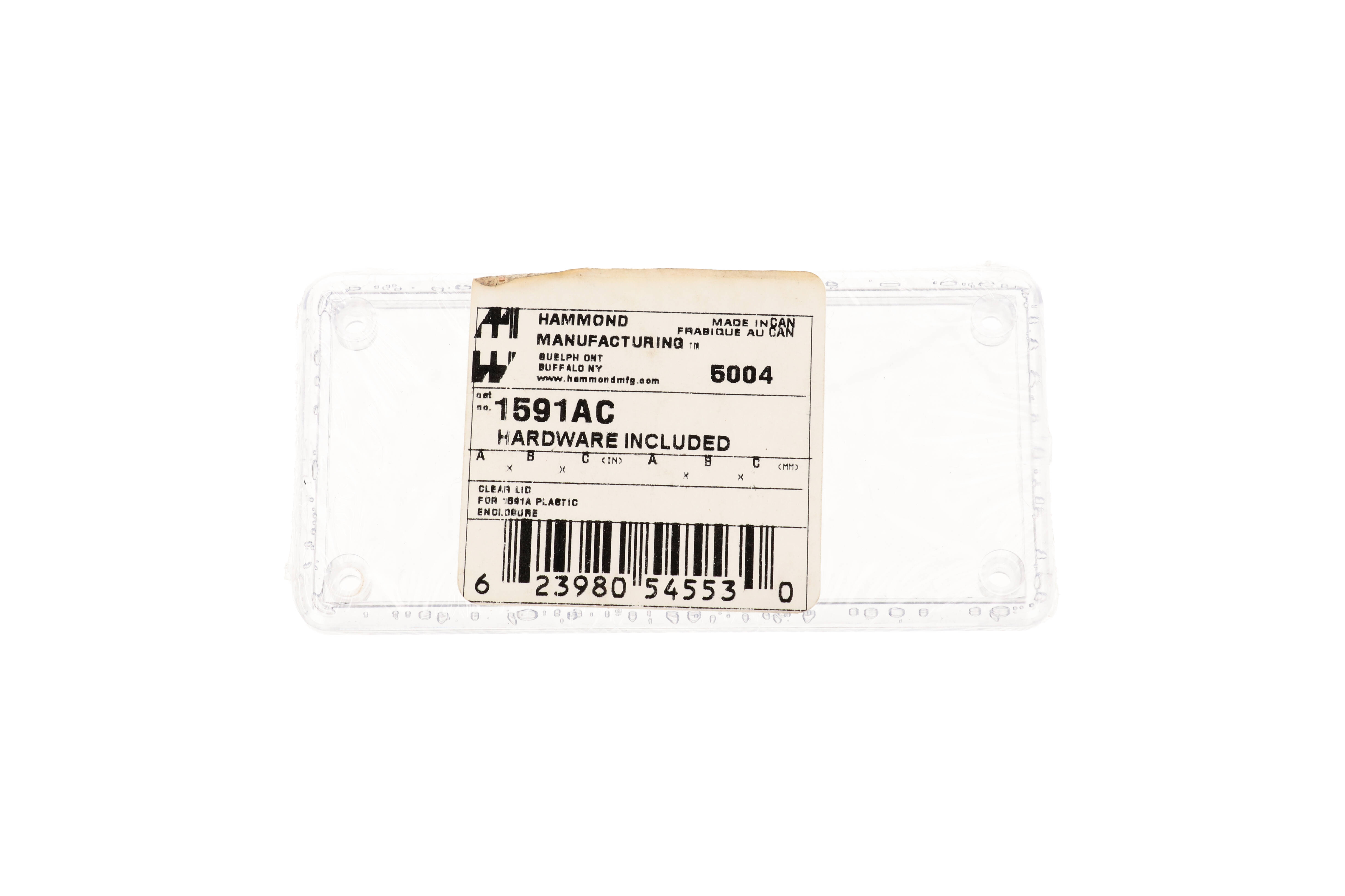

The 1591AC is a clear polycarbonate lid made to fit the 1591A size of the 1591 series ABS multipurpose enclosures. Swapping it onto a 100 x 50 mm enclosure lets designers and builders see the contents without opening the box.
It is supplied as the lid only. The manufacturer's ordering tables list it as the clear lid accessory for the non-flanged 1591ABK, 1591AGY, 1591ASBK and 1591ASGY, and for the flanged 1591AFLBK, 1591AFLGY, 1591ASFLBK, 1591AF2BK, 1591AF2GY, 1591AF2SBK and 1591AF2SGY. Those enclosures measure 100 x 50 x 25 mm (3.94 x 1.97 x 0.98 in).
The lid itself measures 3.94 x 1.97 x 0.23 in (100 x 50 x 6 mm) and is molded from clear polycarbonate. The enclosure drawings describe it as flame retardant, and the part data gives a UL94 V-0 flame rating and an IP54 rating.
The 1591AC is RoHS and REACH compliant, ships shrink wrapped and has a shipping weight of 0.04 lbs (0.02 kg). Its UPC is 623980545530. Hammond's chemical resistance guidance for polycarbonate and ABS advises against acetone, ketones, strong solvents, thread locking compounds and cutting fluid, so use plastic-safe cleaners.
Ideal For
- Viewing the contents of a 1591A enclosure
- Replacing the lid on a 1591A box with a clear one
- Flanged or non-flanged 1591A builds
Overview
| Type | Clear Lid |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Description | Lid - clear polycarbonate, made to fit 1591A enclosures |
| Part Number | 1591AC |
| Supplied As | Lid only |
| Short Description | CLEAR LID |
Dimensions
| Size (L X W X H) | 3.94 in x 1.97 in x 0.23 in (100 mm x 50 mm x 6 mm) |
Identifiers
| UPC | 623980545530 |
| UNSPSC | 39121301 |
Compatibility
| Enclosure Size | 3.94 in x 1.97 in x 0.98 in (100 mm x 50 mm x 25 mm) |
| Fits Enclosures (With Flanges) | 1591AFLBK, 1591AFLGY, 1591ASFLBK, 1591AF2BK, 1591AF2GY, 1591AF2SBK, 1591AF2SGY |
| Fits Enclosures (Without Flanges) | 1591ABK, 1591AGY, 1591ASBK, 1591ASGY |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Color | Clear |
| Material | Polycarbonate |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1591AC fit?▾
It is made to fit 1591A enclosures: 1591ABK, 1591AGY, 1591ASBK, 1591ASGY, 1591AFLBK, 1591AFLGY, 1591ASFLBK, 1591AF2BK, 1591AF2GY, 1591AF2SBK and 1591AF2SGY.
Does it include the enclosure base?▾
No. The 1591AC is supplied as the lid only.
What is it made of?▾
Clear polycarbonate with a UL94 V-0 flame rating.
How thick is the lid?▾
The listed size is 100 x 50 x 6 mm (3.94 x 1.97 x 0.23 in).
