Hammond 1591VF2SGY 120x120x94 mm Gray General Purpose Box, Bottom Flange

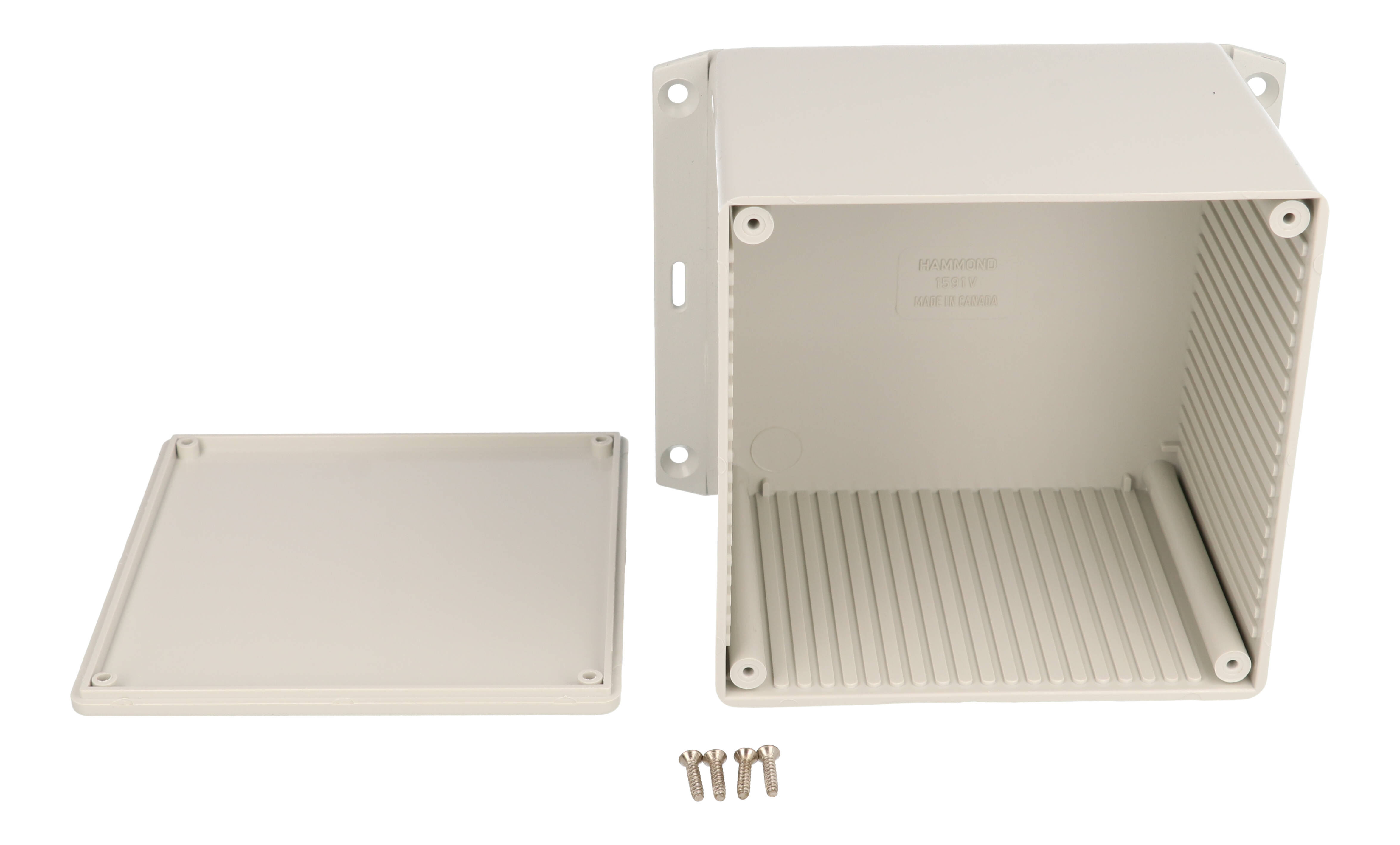

The 1591VF2SGY is a light gray general purpose ABS enclosure with a bottom flange, based on the 120 x 120 x 94 mm (4.72 x 4.72 x 3.7 in) 1591V body. It is intended for engineers and integrators who need a wall- or panel-mountable plastic housing with integral card guides for vertically mounted printed circuit boards.

It has an accessory mounting flange attached to the bottom of the box for surface mounting. With the flange the drawing shows an overall length of 145.20 mm (5.717 in) and an overall height of 95.50 mm (3.760 in).

The body is molded from general purpose ABS (GPABS) with a UL94 HB flame rating; this economy version is not flame retardant. It is designed to meet IP54, with lap joint construction that protects against dust and splashing water. Light gray 1591 enclosures include standard nickel finish screws. As an economy version it is assembled with #4 self-tapping screws into fully plastic posts, at a recommended torque of 42-57 ozf.in (30-40 cN.m). The purchased assembly includes the box, lid and 4 cover screws.

Inside, the box provides 113.23 x 113.23 mm (4.458 x 4.458 in) with 89.90 mm (3.539 in) of height. Card guides in all side walls accept 1.5 mm (0.062 in) boards with a guide height of 84.90 mm (3.343 in). Listed accessories include the 1591VC clear polycarbonate lid, 1591Z PC board card adaptors and 1599CLIP nylon belt/pocket clips. This configuration is offered as 1591VF2SBK (black) and 1591VF2SGY (grey).
