Hammond 1591TF2SBK Black 120x80x59mm General Purpose Flanged Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Bottom mounting flange, 147.00 mm (5.787 in) overall length, holes 135.00 mm (5.315 in) apart
- Black general purpose ABS, UL94 HB (not flame retardant)
- 4.72 x 3.16 x 2.32 in (120 x 80 x 59 mm) enclosure body
- Card guides accept 1.5 mm (0.062 in) PCBs vertically
- Lap joint construction, designed to meet IP54
- #4 self-tapping lid screws into plastic posts
- Inside space 113.54 x 73.74 x 54.80 mm (4.470 x 2.903 x 2.157 in)

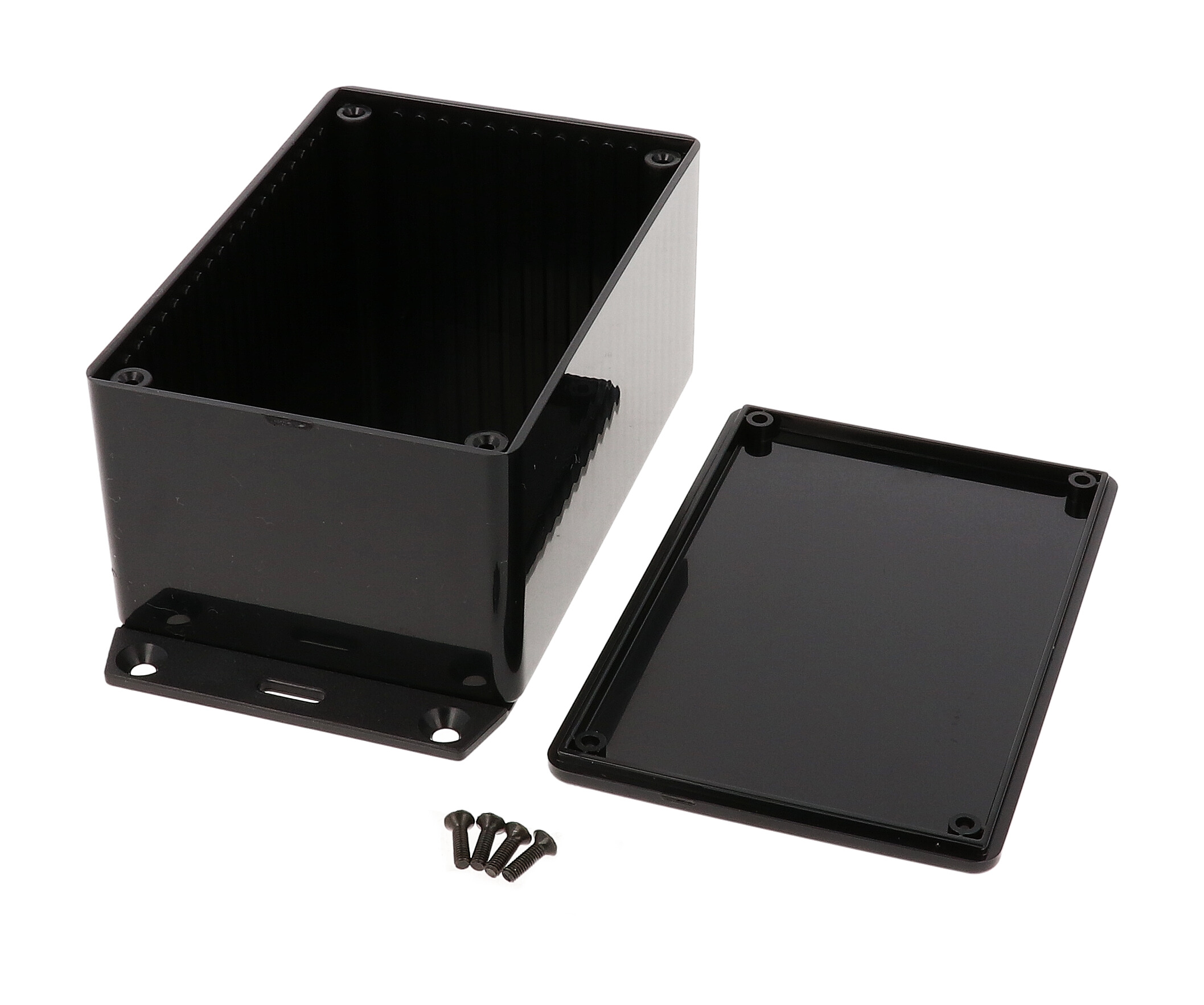

The 1591TF2SBK is a black general purpose ABS enclosure from the 1591T size of the 1591 Series, supplied with an accessory mounting flange attached to the bottom. Its body measures 4.72 x 3.16 x 2.32 in (120 x 80 x 59 mm), making it a practical housing for budget-conscious projects and prototypes that need to be fixed to a surface.
The bottom flange extends the overall length to 147.00 mm (5.787 in), with mounting holes spaced 135.00 mm (5.315 in) apart and a hole size of 4.50 mm (0.177 in). Overall height including the flange is 60.30 mm (2.374 in).
The box is molded from economy general purpose ABS that is not flame retardant (UL94 HB). Lap joint construction guards against dust and splashing water, and the enclosure is designed to meet IP54. Because it is a black enclosure, it ships with black lid screws. Internal space is 113.54 x 73.74 x 54.80 mm (4.470 x 2.903 x 2.157 in), and card guides molded into every side wall hold 1.5 mm (0.062 in) printed circuit boards vertically, with a guide height of 49.80 mm (1.961 in).
The lid attaches with #4 self-tapping screws into fully plastic posts, with a recommended torque of 42-57 ozf.in (30-40 cN.m). The purchased assembly includes box, lid and 4 cover screws. Optional accessories include the 1591TC clear polycarbonate lid and 1591Z adaptors for horizontal boards. RoHS and REACH compliant; shipping weight 0.27 lbs (0.12 kg).
Ideal For
- Surface or panel mounted electronics
- Vertical PCB mounting enclosures
- OEM circuit board housings
- Dust and splash protected installations
Mounting
| Mounting Method | Accessory mounting flange attached to the bottom |
Overview
| Series | 1591 Series ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Version | General purpose ABS (not flame retardant) with bottom mounting flange |
| Description | 1591T GPABS WITH FLANGE |
| Product Type | general purpose, flanged |
| Long Description | enclosure - plastic |
Dimensions
| Inside Width | 73.74 mm [2.903 in] |
| Inside Height | 54.80 mm [2.157 in] |
| Inside Length | 113.54 mm [4.470 in] |
| Flange Hole Size | 4.50 mm [0.177 in] |
| Size (L X W X H) | 4.72 in x 3.16 in x 2.32 in (120 mm x 80 mm x 59 mm) |
| Box Length X Width (Drawing) | 120.00 mm x 80.20 mm [4.724 in x 3.157 in] |
| Flange Mounting Hole Spacing | 135.00 mm [5.315 in] |
| Nominal Size (Ordering Table) | 4.72 in (120 mm) L x 3.15 in (80 mm) W x 2.32 in (59 mm) D |
| Length Including Bottom Flange | 147.00 mm [5.787 in] |
| Overall Height Including Flange | 60.30 mm [2.374 in] |
Accessories
| CAD Models | Solid models available in .stp or .x_t |
| Clear Lid Accessory | 1591TC (flame retardant polycarbonate, lid only) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on request |
| Replacement Lid Screws | 1591TS100 (nickel plated / silver) or 1591TS100BK (black), #4 x 1/2" self-tapping, packs of 100 |
| Nylon Belt / Pocket Clip | 1599CLIP (black) or 1599CLIPGY (grey) |
Identifiers
| UPC | 623980136998 |
| UNSPSC | 39121301 |
| Part Number | 1591TF2SBK |
| Drawing Revision | 07.01.2020 |
PCB Mounting
| Card Guides | Molded into all side walls for vertical PCB mounting |
| Card Guide Depth | 1.00 mm [0.039 in] |
| Card Guide Width | 3.00 mm [0.118 in] |
| Card Guide Height | 49.80 mm [1.961 in] |
| Card Guide Slot Width | 2.06 mm [0.081 in] |
| Card Guide Board Thickness | 1.5 mm (0.062 in) |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.27 lbs (0.12 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic |
| Flame Rating | UL94 HB |
| Lid Fastening | #4 self-tapping screws into fully plastic posts |
| Included Items | Box, lid and 4 cover screws |
| Joint Construction | Lap joint |
| Included Screw Finish | Black screws (black enclosures) |
| Lid Screw Holes Accept | #4 self-tapping screw |
| Enclosure Material (Drawing) | General purpose ABS (GPABS) |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1591TF2SBK mounted?▾
It has an accessory mounting flange attached to the bottom. The flange makes the overall length 147.00 mm (5.787 in), with mounting holes 135.00 mm (5.315 in) apart and a 4.50 mm (0.177 in) hole size.
What are the dimensions of the 1591TF2SBK?▾
The enclosure body is 4.72 x 3.16 x 2.32 in (120 x 80 x 59 mm); overall height including the flange is 60.30 mm (2.374 in). Inside dimensions are 113.54 x 73.74 x 54.80 mm (4.470 x 2.903 x 2.157 in).
Is it flame retardant?▾
No. This general purpose ABS version is not flame retardant; its flame rating is UL94 HB.
What is included?▾
Box, lid and 4 cover screws.
Which clear lid fits?▾
The 1591TC clear polycarbonate lid is listed as the clear lid accessory for this size.
