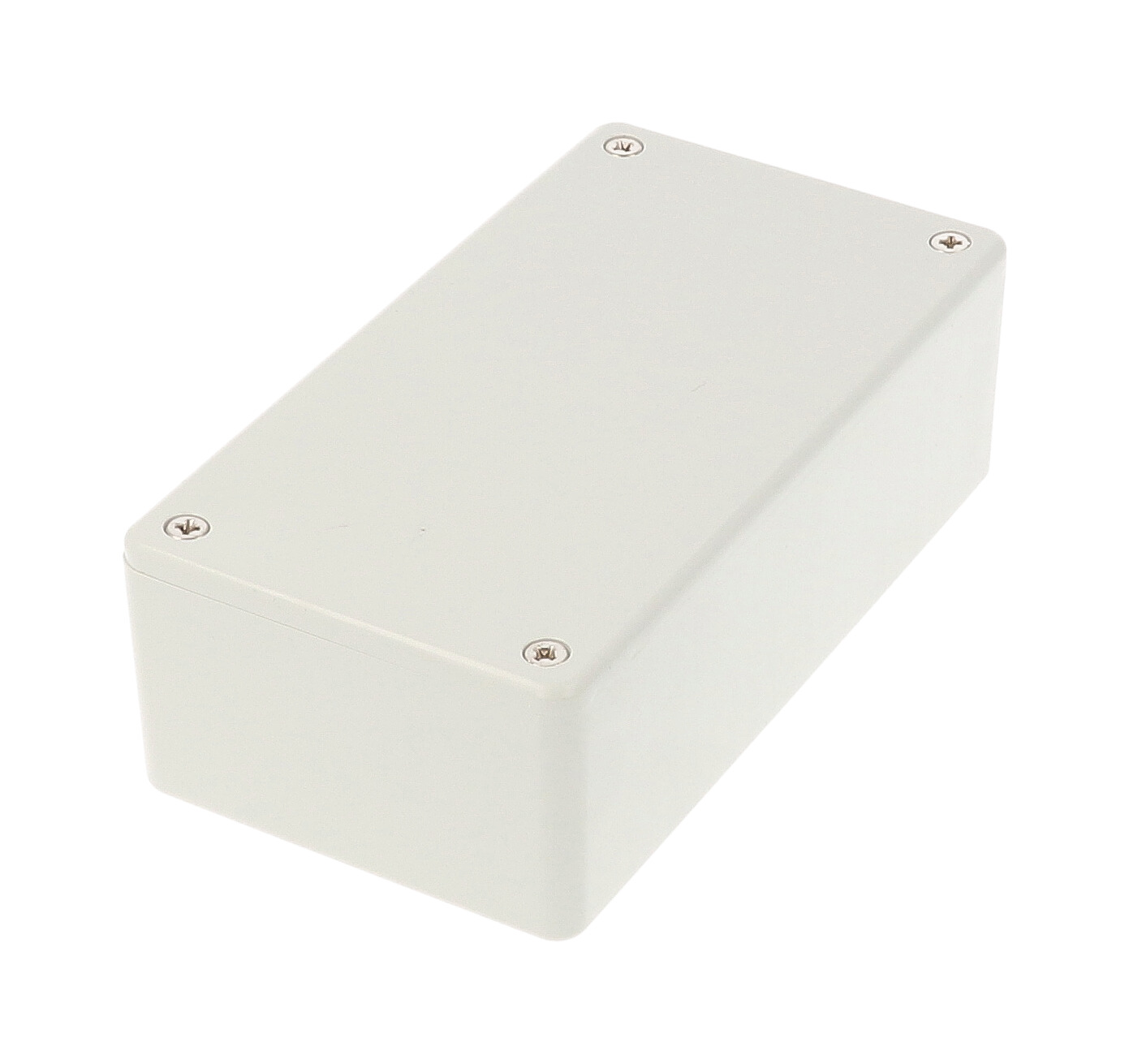

Hammond 1591CGY 120x65x40mm Light Gray Flame Retardant ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray flame retardant ABS, UL94 V-0
- 4.72 x 2.56 x 1.57 in (120 x 65 x 40 mm) outside size
- Card guides in all side walls for 1.5 mm (0.062”) vertical PCBs
- Nickel finish M3 machine screws into pre-installed brass inserts
- IP54 rated lap joint lid
- Easy-to-machine ABS for connector and switch cut-outs
The 1591CGY is the light gray, flame retardant ABS version of the 1591C enclosure. At 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) it provides a neutral, UL94 V-0 rated housing for electronics builders, panel shops and OEM designers.
The enclosure is ideally suited for vertical mounting of printed circuit boards: card guides molded into all side walls accept 1.5 mm (0.062”) thick boards. Inside it offers 113.53 mm x 58.53 mm x 35.90 mm of space, and the guides are 30.91 mm high with a 3.01 mm guide width.
The lid is secured with M3 x 10 mm Phillips machine screws into integral brass bushings, a setup designed for applications where repetitive assembly and disassembly are required. Light gray enclosures include standard nickel finish screws, and the purchased assembly includes box, lid, 4 cover screws and pre-installed brass inserts. The drawing specifies a recommended torque of 35.5-42.5 ozf.in (25-30 cN.m).
Lap joint construction provides IP54 protection. The 1591CGY is RoHS and REACH compliant, ships in shrink wrap at 0.19 lbs (0.09 kg) and carries UPC 623980547008. Replacement 1591MS100 nickel plated machine screws are available in packs of 100.
Ideal For
- Flame retardant enclosures for vertical circuit boards
- Instrument and control electronics housings
- Serviceable OEM modules needing repeated lid removal
- IP54 electronics in dusty indoor areas
Overview
| Type | project box, general purpose |
| Color | Light Gray |
| Series | 1591 Series, ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Material | ABS Plastic |
| Description | ABS PLSTC CASE & LID |
| Long Description | enclosure - plastic |
| Colour Options On Drawing | FR ABS UL94 -V0: Black 1591CBK, Blue 1591CBU, Grey 1591CGY; Translucent Polycarbonate: Ice Blue 1591CTBU, IR Red 1591CTRD, Crystal Clear 1591CTCL |
Dimensions
| Inside Width | 58.53 mm [2.304 in] |
| Inside Height | 35.90 mm [1.413 in] |
| Inside Length | 113.53 mm [4.469 in] |
| Size L X W X H | 4.72 in x 2.56 in x 1.57 in (120 mm x 65 mm x 40 mm) |
| Overall Width (Drawing) | 65.00 mm [2.559 in] |
| Overall Height (Drawing) | 39.80 mm [1.567 in] |
| Overall Length (Drawing) | 120.00 mm [4.724 in] |
| Nominal Size (Ordering Table L X W X D) | 4.72 in (120 mm) x 2.56 in (65 mm) x 1.57 in (40 mm) |
Accessories
| Clear Lid Accessory | 1591CC |
| PC Board Card Adapters | 1591Z6 (6Pkg) / 1591Z50 (50 Pkg) / 1591Z100 (100Pkg) |
| Replacement Cover Screws | 1591MS100 (Silver) / 1591MS100BK (Black), M3 - 0.5 X 10mm (100Pkg) plated cover screw |
Identifiers
| UPC | 623980547008 |
| UNSPSC | 39121301 |
| Part Number | 1591CGY |
Documentation
| Drawing | 1591C, REV: 06.16.2023 |
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
PCB Card Guides
| Slot Width | 2.08 mm [.082 in] |
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062”) thick boards |
| Guide Depth | 1.00 mm [.039 in] |
| Guide Width | 3.01 mm [.119 in] |
| Guide Height | 30.91 mm [1.217 in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Lid Fastening | Accepts M3 - 0.5 machine screw |
| Screw Inserts | Pre-installed brass inserts |
| Sealing Construction | Lap joint construction provides protection against access of dust and splashing water |

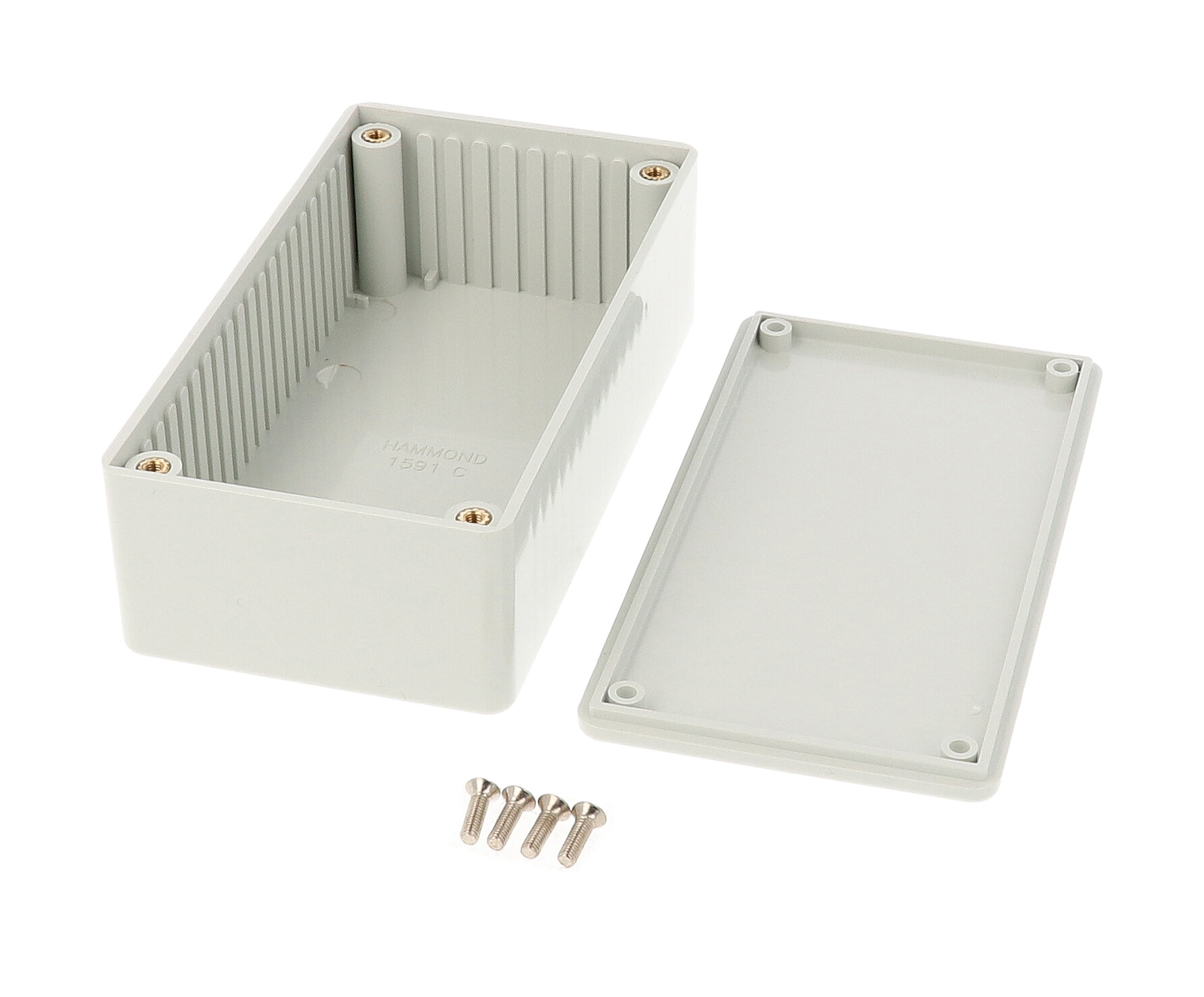

| Purchased Assembly Includes | Box, lid, 4 cover screws, and pre-installed brass inserts |
| Enclosure Material (Drawing) | FRABS or Polycarbonate (drawing shared with 1591C translucent versions) |
| Recommended Cover Screw Torque | 35.5-42.5 ozf.in (25-30 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents; use only plastic safe cleaners |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What screws come with the 1591CGY?▾
Light gray enclosures include standard nickel finish screws; the lid uses M3 x 10 mm Phillips machine screws into brass bushings.
Is the 1591CGY flame retardant?▾
Yes. It is flame retardant ABS with a UL94 V-0 flame rating.
What is the economy equivalent?▾
The ordering table lists 1591CSGY as the general purpose ABS gray enclosure of the same size.
What is the recommended screw torque?▾
The drawing recommends 35.5-42.5 ozf.in (25-30 cN.m).
Is the enclosure sealed?▾
It uses lap joint construction for protection against access of dust and splashing water and is rated IP54.
