Hammond 1591LC Clear Polycarbonate Lid Accessory, 85x56 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid made to fit 1591L enclosures
- Also listed as the clear lid for 1591M enclosures
- 3.34 x 2.2 x 0.24 in (85 x 56 x 6 mm)
- UL94 V-0 flame rating
- IP54 rating per part page
- RoHS and REACH compliant

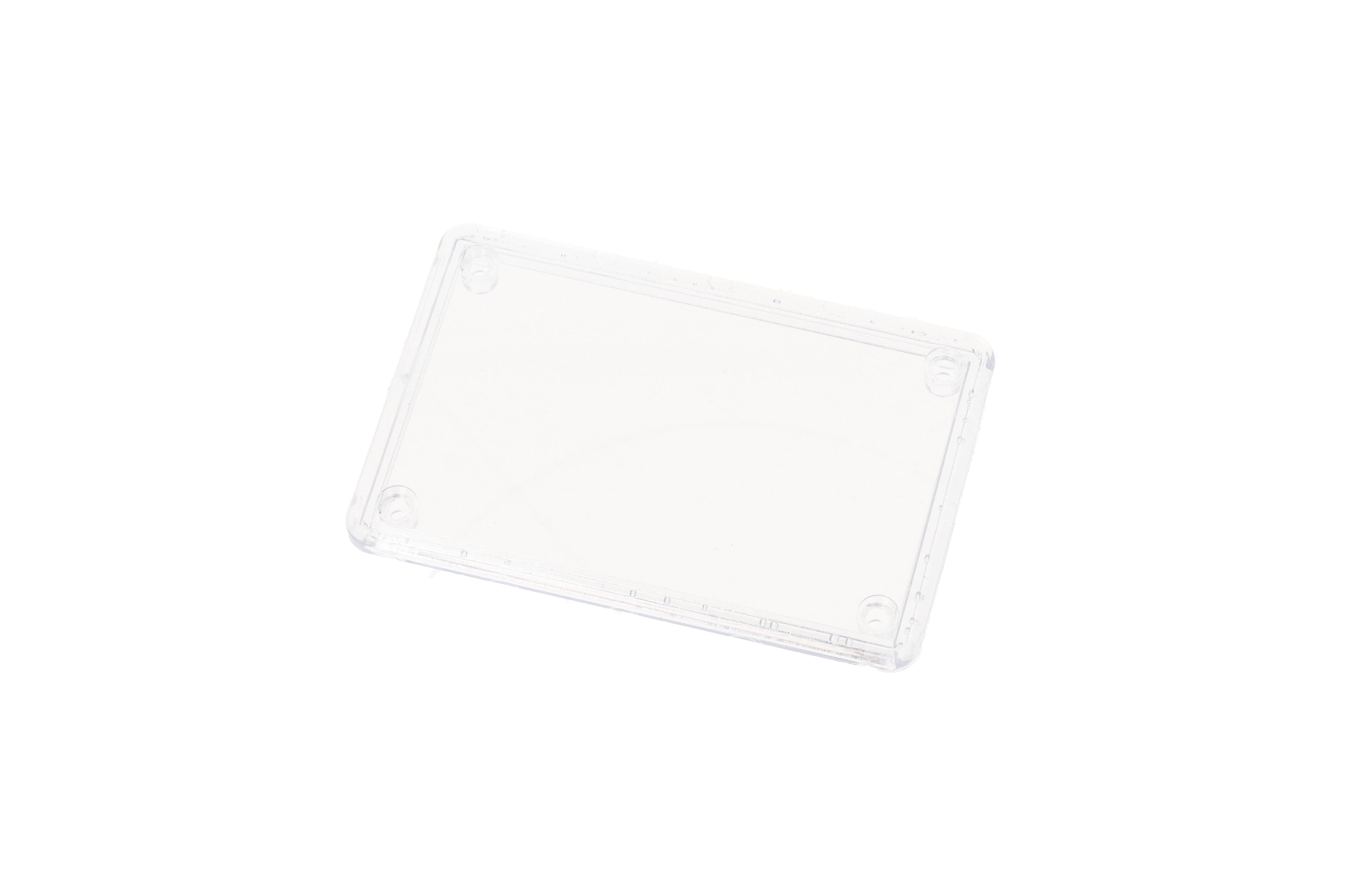

The 1591LC is a clear polycarbonate lid made to fit 1591L enclosures from the 1591 Series of ABS multipurpose enclosures with card guides. Swapping in a clear lid lets builders see displays, indicator LEDs or the board inside a compact box.
It measures 3.34 x 2.2 x 0.24 in (85 x 56 x 6 mm) and is molded from clear polycarbonate rated UL94 V-0. The part page lists IP54, and the lid is RoHS and REACH compliant. Avoid acetone, ketones, strong solvents and thread locking compounds, which can damage the plastic.
The series ordering tables list the 1591LC as the clear lid accessory for both enclosure depths that share the 3.35 x 2.20 in (85 x 56 mm) footprint:
- 1591L, 1.54 in (39 mm) deep: 1591LBK, 1591LGY, 1591LSBK, 1591LSGY, 1591LFLBK, 1591LFLGY, 1591LSFLBK, 1591LF2BK, 1591LF2GY, 1591LF2SBK, 1591LF2SGY
- 1591M, 1.02 in (26 mm) deep: 1591MBK, 1591MGY, 1591MSBK, 1591MSGY, 1591MFLBK, 1591MFLGY, 1591MSFLBK, 1591MF2BK, 1591MF2GY, 1591MF2SBK, 1591MF2SGY

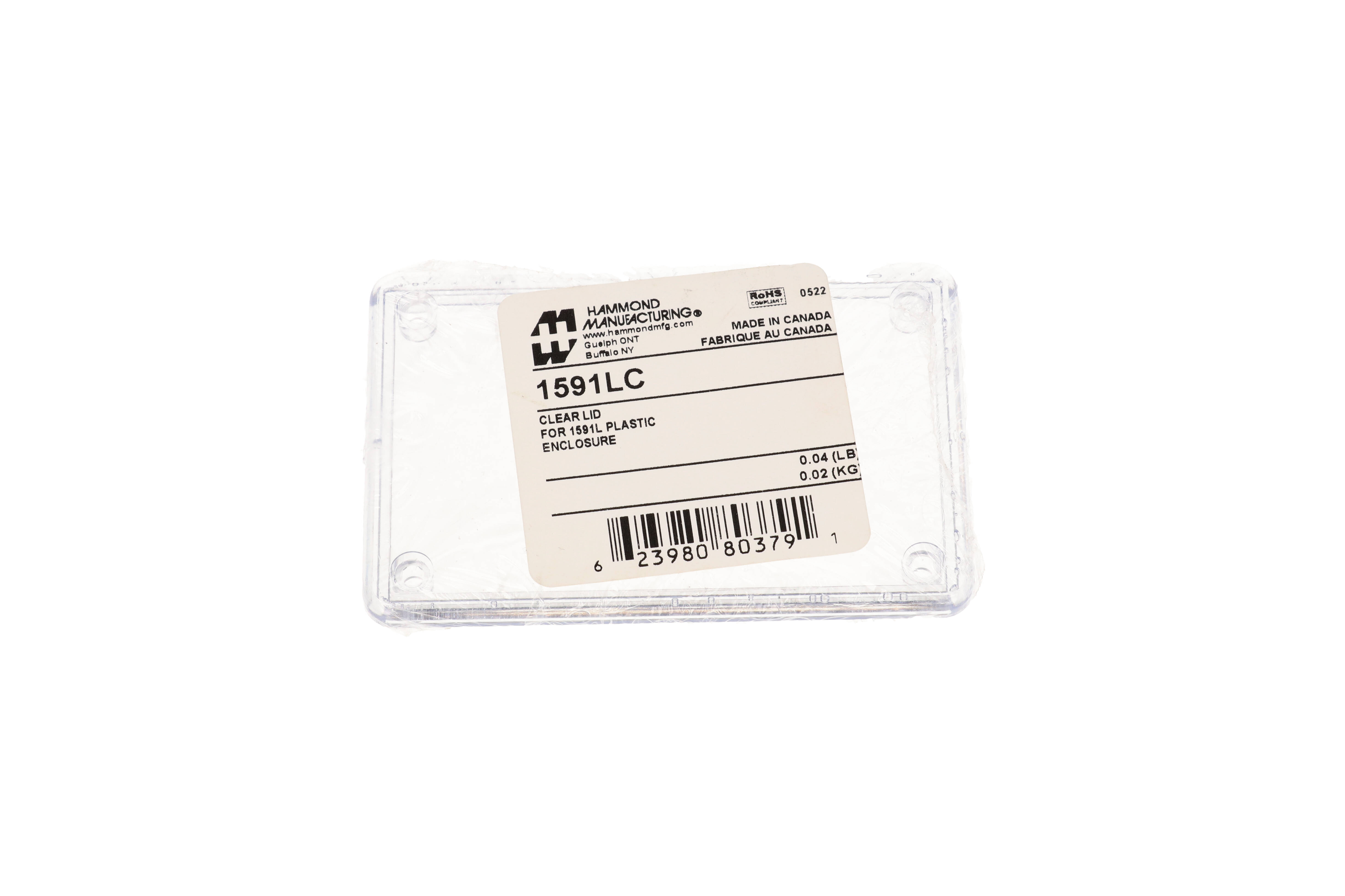

The 1591LC ships as a lid only in shrink wrap, with a shipping weight of 0.04 lbs (0.02 kg), and carries UNSPSC code 39121301. One clear lid part therefore serves flame retardant and general purpose versions of both depths.
Ideal For
- Viewing indicators or displays in 1591L and 1591M enclosures
- Replacing an opaque lid with a transparent one
- Inspecting enclosed circuit boards without opening
Overview
| Type | Clear Lid |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591LC |
| Product Description | lid - clear polycarbonate, made to fit 1591L enclosures |
| Manufacturer Description | CLEAR LID |
Dimensions
| Size L X W X H | 3.34 in x 2.2 in x 0.24 in (85 mm x 56 mm x 6 mm) |
Identifiers
| UPC | 623980803791 |
| UNSPSC | 39121301 |
Compatibility
| Matching Enclosure Footprint | 3.35 in (85 mm) x 2.20 in (56 mm) |
| Clear Lid Accessory For 1591L (39 Mm Deep) | 1591LBK, 1591LGY, 1591LSBK, 1591LSGY, 1591LFLBK, 1591LFLGY, 1591LSFLBK, 1591LF2BK, 1591LF2GY, 1591LF2SBK, 1591LF2SGY |
| Clear Lid Accessory For 1591M (26 Mm Deep) | 1591MBK, 1591MGY, 1591MSBK, 1591MSGY, 1591MFLBK, 1591MFLGY, 1591MSFLBK, 1591MF2BK, 1591MF2GY, 1591MF2SBK, 1591MF2SGY |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Color | Clear |
| Material | Polycarbonate |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1591LC fit?▾
It is made to fit 1591L enclosures, and the ordering tables also list it as the clear lid accessory for the 1591M enclosures, which share the 85 x 56 mm footprint.
What material is it?▾
Clear polycarbonate with a UL94 V-0 flame rating.
What size is it?▾
3.34 x 2.2 x 0.24 in (85 x 56 x 6 mm).
Does it include an enclosure body?▾
No, the 1591LC is a lid only.
What does it weigh?▾
0.04 lbs (0.02 kg) shipping weight.
Related Products
Save 52%1591LBK — enclosure - plastic
Hammond Manufacturing · 1591LBK

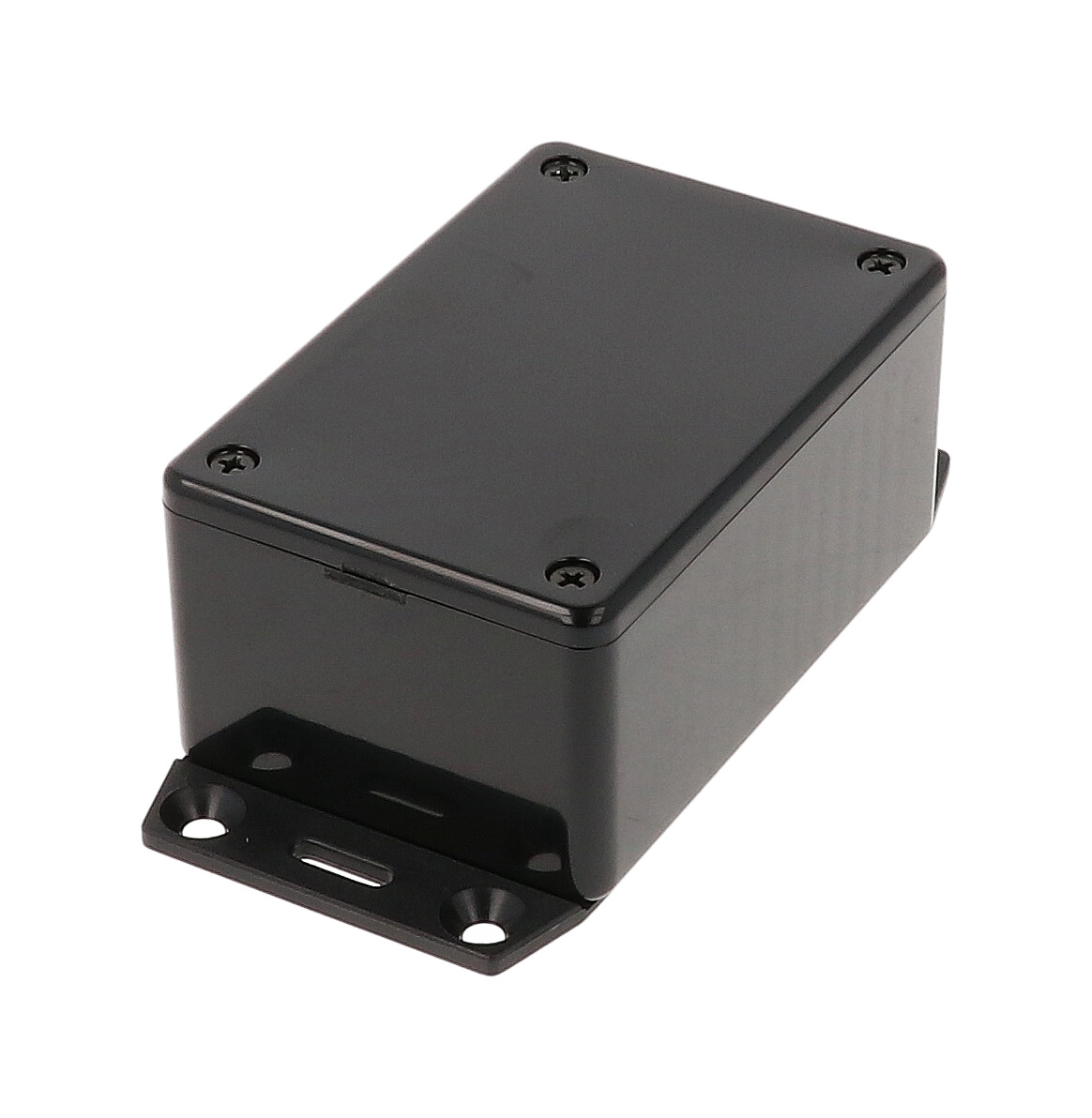

Save 52%1591LF2BK — enclosure - plastic
