Hammond 1591ESFLBK 190x111x61 mm Flanged Lid GP Abs Enclosure, Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall mounting flanges molded into the lid; 204.00 mm hole spacing
- Nominal 190 x 111 x 61 mm black enclosure, 215.40 mm long over flanges
- General purpose ABS, UL94 HB (not flame retardant)
- Lap joint construction designed to meet IP54
- Card guides accept 1.5 mm (0.062 in) PCBs for vertical mounting
- #4 self-tapping lid screws into plastic posts; 6 included
- RoHS and REACH compliant

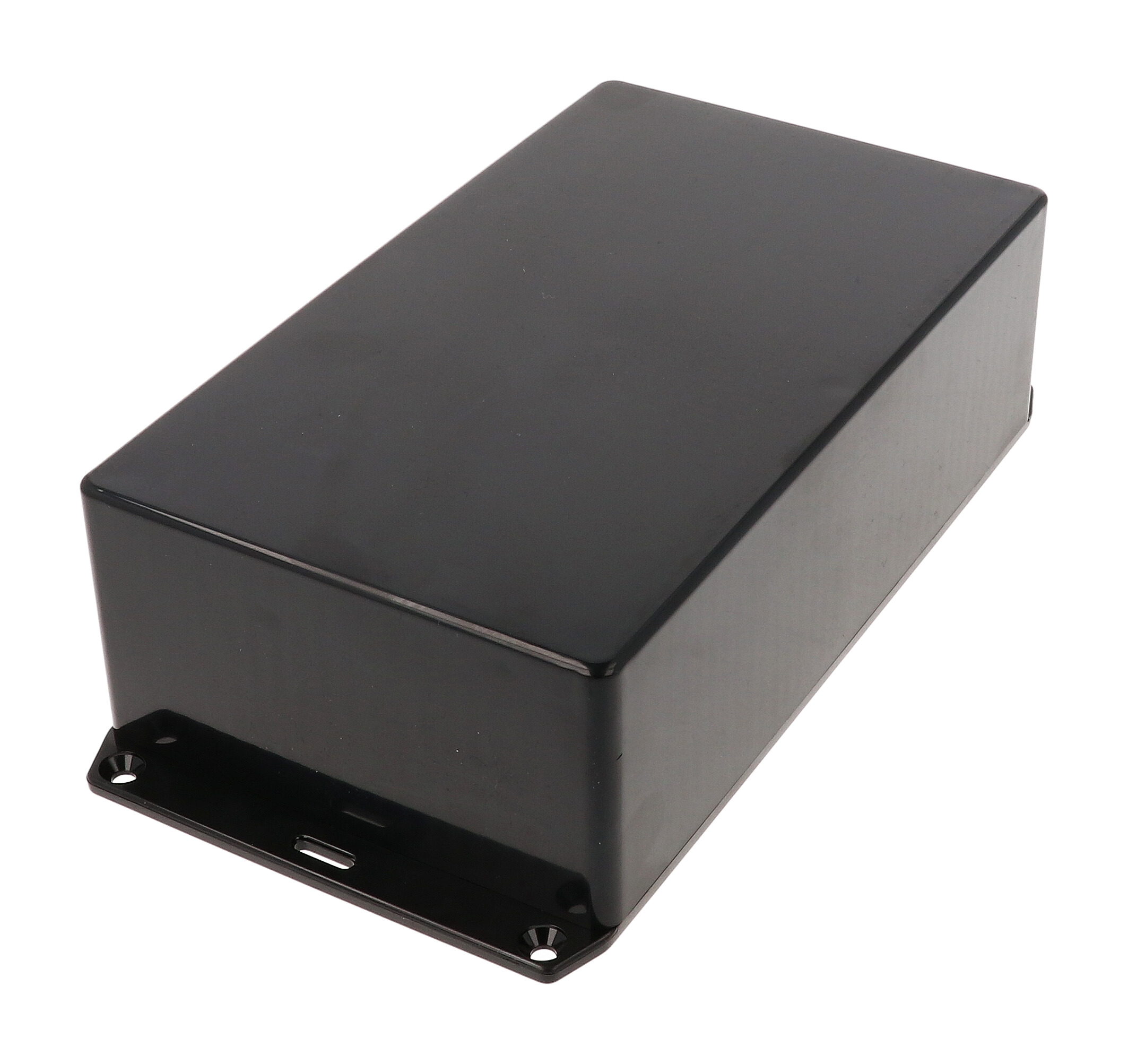

The 1591ESFLBK is a black general purpose ABS enclosure from the 1591 series with wall mounting flanges molded into the lid. The box measures 7.5 in x 4.35 in x 2.39 in (191 mm x 110 mm x 61 mm) and is intended for wall- or panel-mounted electronics where a flame retardant grade is not needed.
Over its lid flanges the enclosure is 215.40 mm [8.480 in] long, and the flange mounting holes sit 204.00 mm [8.031 in] apart. Interior space is 183.52 mm [7.225 in] x 103.53 mm [4.076 in] x 56.60 mm [2.228 in], and card guides molded into all side walls accept 1.5 mm (0.062 in) PCBs for vertical mounting.
As an economy version it is molded from general purpose plastic that is not flame retardant (UL94 HB on the part page). Lap joint construction resists dust and splashing water, and the design is intended to meet IP54. The lid is assembled with #4 self-tapping screws into fully plastic posts at a recommended 42-57 ozf.in (30-40 cN.m). This black version ships with black screws. The lid also accepts #4 self-tapping screws for mounting a PC board (1593ATS50 / 1593ATS100).

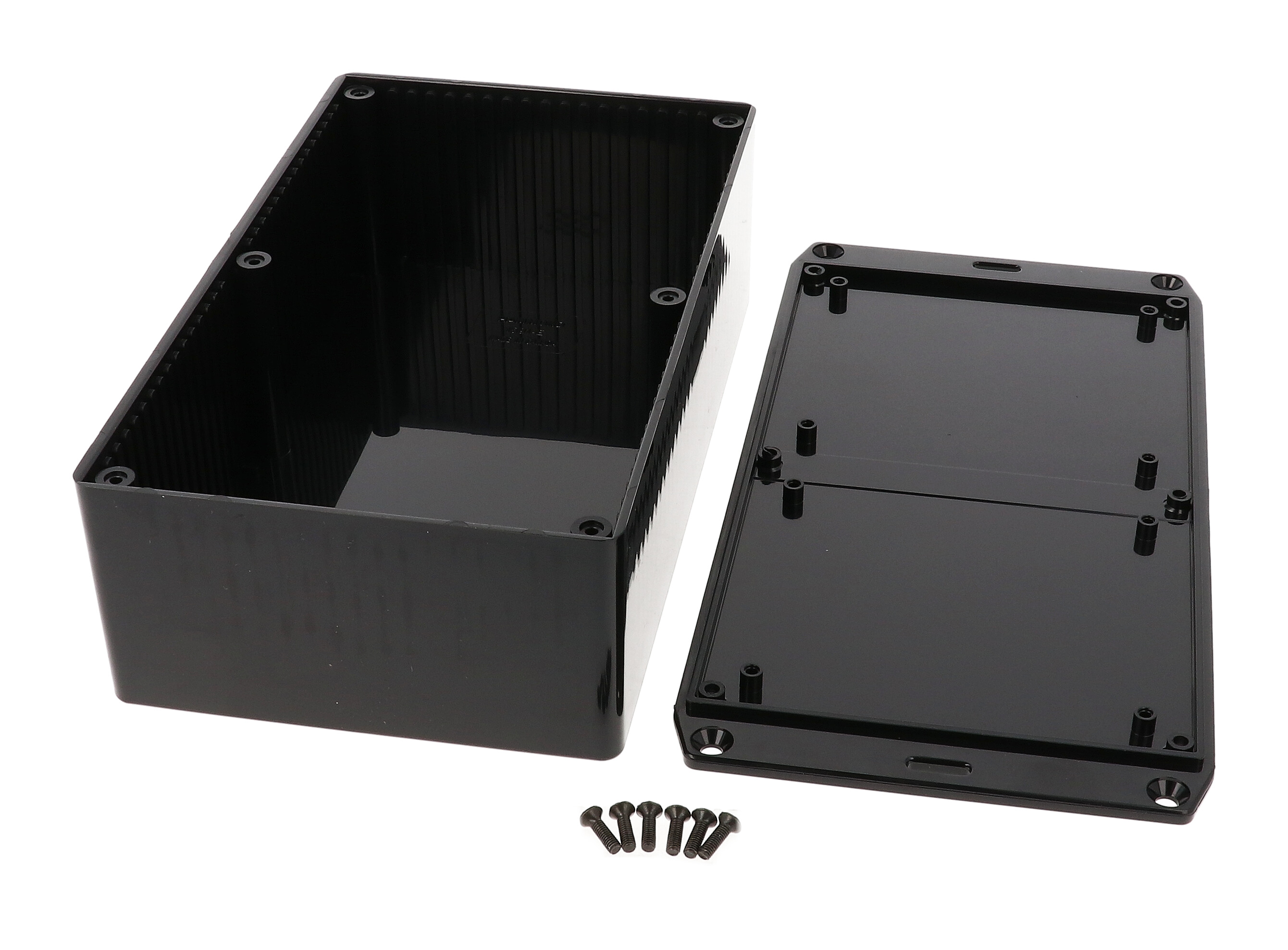

Supplied in shrink wrap with box, lid and 6 cover screws, the 1591ESFLBK has a shipping weight of 0.5 lbs (0.23 kg) and is RoHS and REACH compliant.
Ideal For
- Wall-mounted general purpose electronics
- Panel-mounted interface and sensor boxes
- Vertical PCB mounting on molded card guides
- Cost-sensitive builds without flame retardant requirement
Mounting
| Mounting Style | Wall mounting flanges molded into the lid |
Overview
| Type | general purpose, flanged |
| Color | Black |
| Series | 1591 |
| Version | General Purpose ABS, flanged lid |
| Description | 1591E GPABS FLANGED LID BK |
| Product Type | ABS plastic multipurpose enclosure with card guides |
Dimensions
| Inside Width | 103.53 mm [4.076 in] |
| Inside Height | 56.60 mm [2.228 in] |
| Inside Length | 183.52 mm [7.225 in] |
| Size (L X W X H) | 7.5 in x 4.35 in x 2.39 in (191 mm x 110 mm x 61 mm) |
| Overall Width (Drawing) | 110.60 mm [4.354 in] |
| Nominal Size (L X W X D) | 7.48 in (190 mm) x 4.37 in (111 mm) x 2.40 in (61 mm) |
| Overall Height (Drawing) | 60.80 mm [2.394 in] |
| Overall Length (Drawing) | 190.40 mm [7.496 in] |
| Flange Mounting Hole Spacing | 204.00 mm [8.031 in] |
| Overall Length Incl. Lid Flanges | 215.40 mm [8.480 in] |
Accessories
| PCB Screws For Lid | 1593ATS50 (50 pack) / 1593ATS100 (100 pack), #4 x 1/4" (6.4 mm) self-tapping |
| Clear Lid Accessory | 1591EC (flame retardant polycarbonate, lid only) |
| Nylon Belt / Pocket Clip | 1599CLIP (black) / 1599CLIPGY (grey) |
| Replacement Cover Screws | 1591TS100 (silver) / 1591TS100BK (black), #4 x 1/2" self-tapping, 100 pack |
Identifiers
| UPC | 623980544373 |
| UNSPSC | 39121301 |
| Drawing | 1591ESFL REV: 07.01.2020 |
| Part Number | 1591ESFLBK |
PCB Mounting
| Card Guides | Molded into all side walls |
| Guide Depth | 1.00 mm [0.039 in] |
| Guide Width | 2.99 mm [0.118 in] |
| Guide Height | 51.60 mm [2.032 in] |
| Guide Slot Width | 2.06 mm [0.081 in] |
| Accepted Board Thickness | 1.5 mm (0.062 in) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
| Horizontal PCB Card Adaptors (Optional) | 1591Z6 (6 pack), 1591Z50 (50 pack), 1591Z100 (100 pack) |
Packaging & Shipping
| Included | Box, lid, 6 cover screws |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Material | ABS Plastic |
| 3D Models | Solid models available in .stp or .x_t |
| Screw Finish | Black screws |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Material Grade | GP ABS (general purpose ABS) |
| Lid Screw Thread | Accepts #4 self-tapping screw |
| Joint Construction | Lap joint |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Lid PCB Screw Bosses | Accept #4 self-tapping screws |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Flame Retardant | No (general purpose plastic) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1591ESFLBK mounted?▾
Using the wall mounting flanges molded into its lid; the mounting holes are 204.00 mm [8.031 in] apart and overall length over the flanges is 215.40 mm [8.480 in].
Is this flanged enclosure flame retardant?▾
No. It is the general purpose (economy) version, listed as UL94 HB.
What are the inside dimensions?▾
183.52 mm [7.225 in] long, 103.53 mm [4.076 in] wide and 56.60 mm [2.228 in] high.
What is included?▾
The box, lid and 6 cover screws. Replacement #4 x 1/2 in self-tapping screws are 1591TS100 (silver) or 1591TS100BK (black).
Is a clear lid available?▾
The 1591EC flame retardant polycarbonate lid is the clear lid accessory for the 1591E size.
