Hammond 1591HSFLBK Black Economy ABS Flanged Lid Box, 166x71x29 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall mounting flanges molded into the lid
- Black general purpose ABS, UL94 HB
- 166 x 71 x 29 mm body; 190.90 mm [7.516 in] across flanges
- IP54 lap joint construction
- Card guides for 1.5 mm (0.062") PCBs; lid bosses take #4 screws
- 6 black #4 self-tapping cover screws included

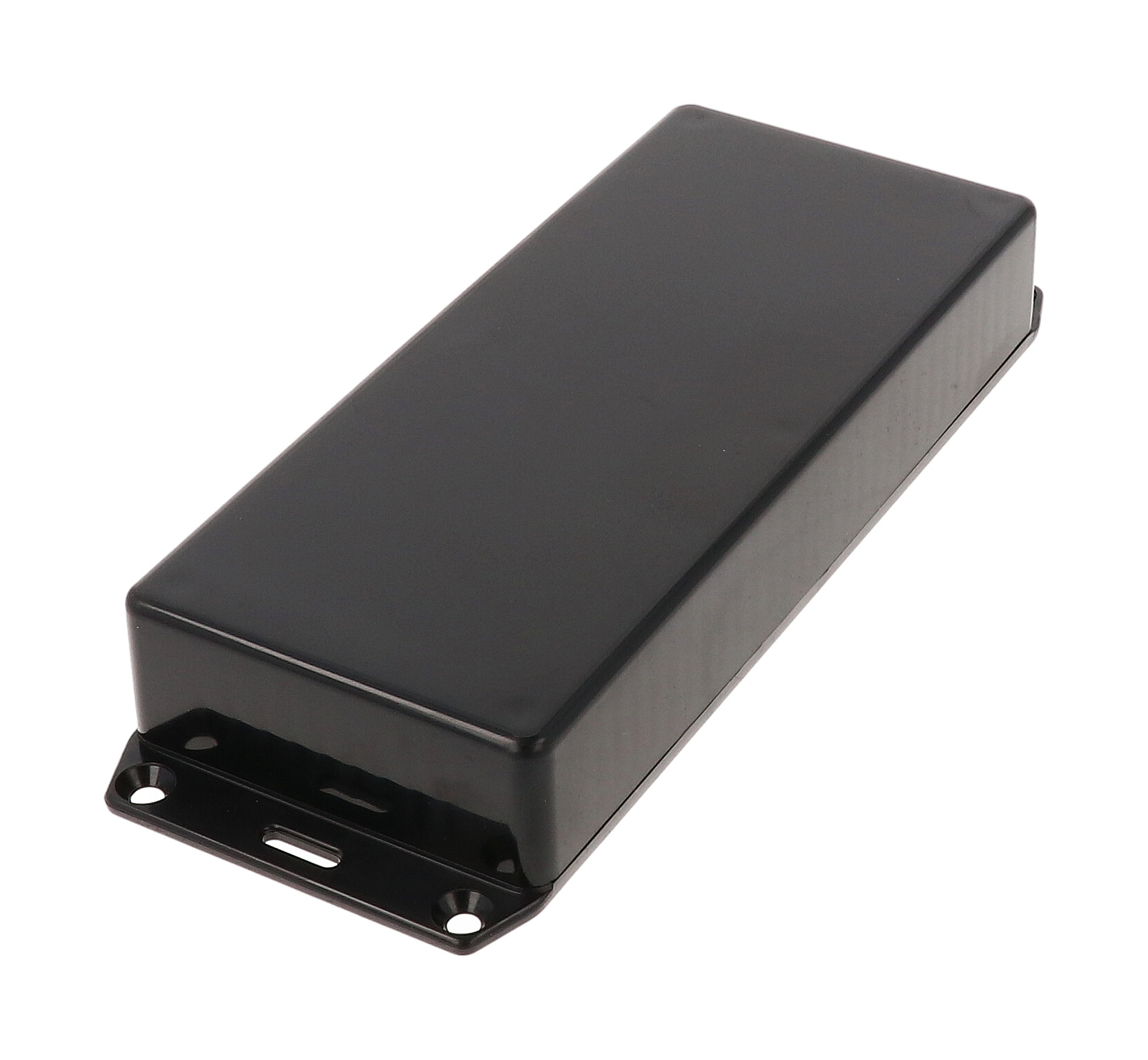

The 1591HSFLBK is the black general purpose ABS version of the 1591H flanged lid enclosure. The 6.52 x 2.79 x 1.14 in (166 x 71 x 29 mm) box has wall mounting flanges molded into the lid and is an economical choice when flame retardancy is not a requirement.
General purpose economy versions are not flame retardant, and this part is rated UL94 HB. It is IP54 rated with lap joint construction. The lid is assembled with #4 self-tapping screws into fully plastic posts, and black enclosures include black screws.
The 1591HSFL drawing shows 190.90 mm [7.516 in] overall length across the lid flanges and 28.80 mm [1.134 in] overall height, with interior space of 159.70 x 64.80 x 25.00 mm. Card guides on all side walls accept 1.5 mm (0.062") boards, and bosses inside the lid accept #4 self-tapping screws, with 1593ATS50 and 1593ATS100 PC board screws available for the lid.

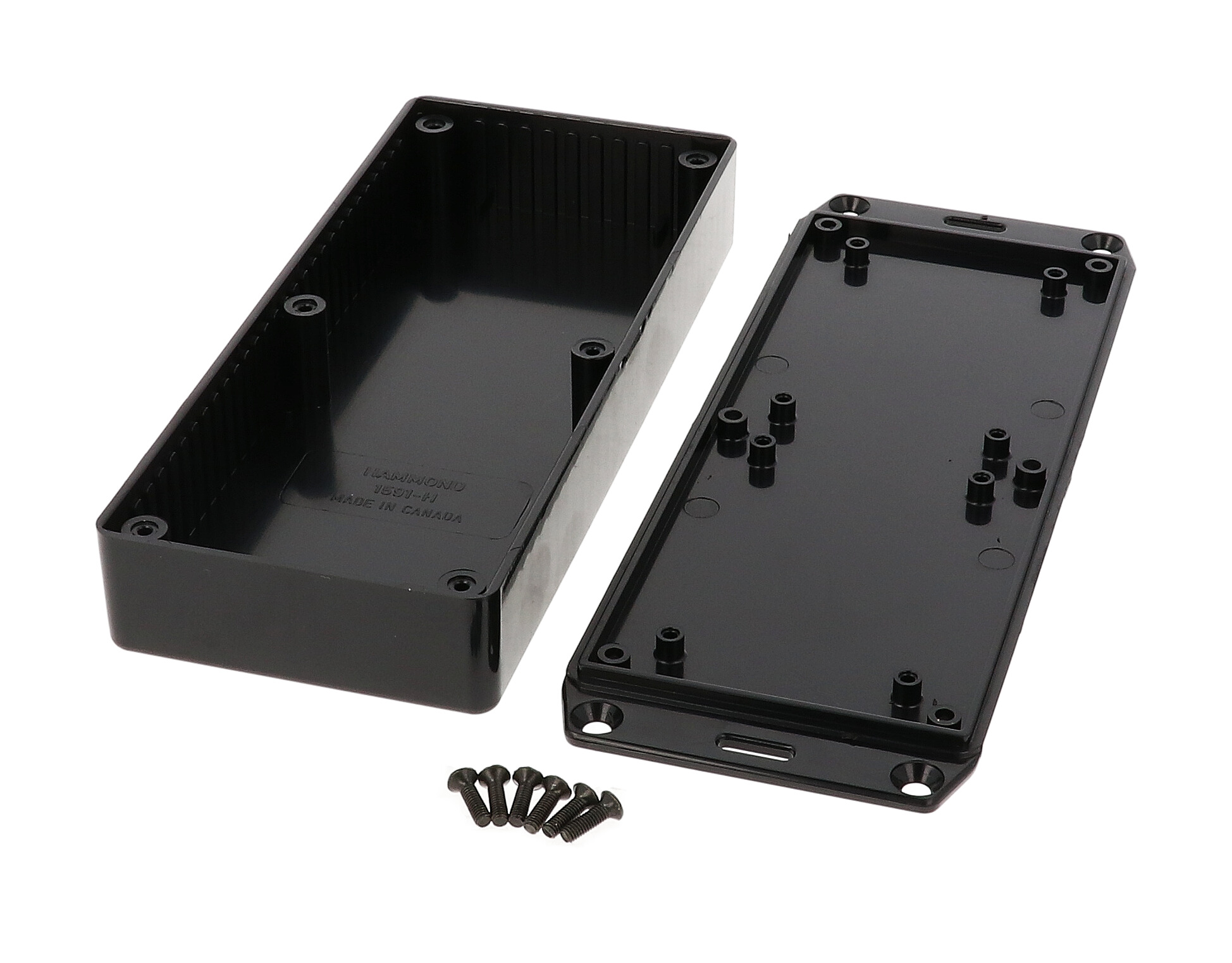

The 1591HSFLBK includes box, lid and 6 cover screws; recommended torque is 42-57 ozf.in (30-40 cN.m). It ships in shrink wrap at 0.21 lbs (0.10 kg) and is RoHS and REACH compliant.
Ideal For
- Economy wall mounted electronics
- Lid-mounted PCB assemblies
- Low-cost sensor and interface boxes
- Prototype panel installations
Hardware
| Included | Box, lid and 6 cover screws |
| Cover Screw | #4 x 1/2" self-tapping screw |
| Screw Finish | Black enclosures include black screws |
| Clear Lid Accessory | 1591HC (clear flame retardant polycarbonate, lid only) |
| Replacement Cover Screws | 1591TS100 (silver / nickel plated) or 1591TS100BK (black), 100 pkg |
| Belt / Pocket Clip Accessory | 1599CLIP (black), 1599CLIPGY (grey) nylon belt / pocket clip |
| Recommended Cover Screw Torque | 42-57 ozf.in (30-40 cN.m) |
Overview
| Type | general purpose, flanged |
| Series | 1591 Series - ABS Plastic Multipurpose Enclosures w/ Card Guides |
| Part Number | 1591HSFLBK |
| Mounting Flange | Wall mounting flanges molded into the lid |
| Product Description | enclosure - plastic |
| Ordering Table Version | General Purpose ABS, Flanged Lid, Black (Enclosures With Mounting Flanges) |
| Manufacturer Description | 1591H PLASTIC FLANGED LID BK |
Dimensions
| Inside Width | 64.80 mm [2.551 in] |
| Inside Height | 25.00 mm [.984 in] |
| Inside Length | 159.70 mm [6.287 in] |
| Size L X W X H | 6.52 in x 2.79 in x 1.14 in (166 mm x 71 mm x 29 mm) |
| Nominal Size - Depth | 1.14 in (29 mm) |
| Nominal Size - Width | 2.80 in (71 mm) |
| Body Length (Drawing) | 165.70 mm [6.524 in] |
| Nominal Size - Length | 6.54 in (166 mm) |
| Overall Width (Drawing) | 70.80 mm [2.787 in] |
| Overall Height (Drawing) | 28.80 mm [1.134 in] |
| Overall Length Incl. Lid Flange (Drawing) | 190.90 mm [7.516 in] |
Identifiers
| UPC | 623980544397 |
| UNSPSC | 39121301 |
| Drawing | 1591HSFL, REV: 07.01.2020 |
Modification
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact factory for quotes |
PCB Mounting
| Card Guides | Molded into all side walls; accept 1.5 mm (0.062") thick boards |
| Card Guide Depth | 1.00 mm [.039 in] |
| Card Guide Width | 3.00 mm [.118 in] |
| Board Orientation | Ideally suited for vertical mounting of printed circuit boards |
| Card Guide Height | 20.00 mm [.788 in] |
| Inside Lid Bosses | Accept #4 self-tapping screw |
| Card Guide Slot Width | 2.00 mm [.079 in] |
| Horizontal PCB Adaptors (Optional) | 1591Z6 (6 pkg), 1591Z50 (50 pkg), 1591Z100 (100 pkg) |
| PC Board Screws For Lid (Optional) | #4 x 1/4" (6.4 mm) self-tapping: 1593ATS50 (50 pkg), 1593ATS100 (100 pkg) |
| Card Adaptor Recommended PCB Thickness | 1.5 mm - 1.75 mm |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.21 lbs (0.10 kg) |
Construction & Finish
| Color | Black |
| Material | ABS Plastic |
| Construction | Lap joint construction protects against access of dust and splashing water |
| Lid Fastening | Self-tapping screws into fully plastic posts |
| Drawing Material Note | Enclosure made from GPABS. |
| Material Grade (Drawing) | General purpose ABS (GPABS) |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Flame Retardancy | General purpose plastic, not flame retardant |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1591HSFLBK flame retardant?▾
No. It is the general purpose ABS version, rated UL94 HB. The flame retardant flanged lid version is the 1591HFLBK.
How is it mounted?▾
Using the wall mounting flanges molded into the lid; overall length across them is 190.90 mm [7.516 in].
What screws hold the lid?▾
#4 x 1/2" self-tapping screws into plastic posts; replacements are 1591TS100BK (black).
What torque is recommended?▾
42-57 ozf.in (30-40 cN.m).
Is it only available in black?▾
The series ordering table lists the general purpose flanged lid version of this size in black only (1591HSFLBK).
Related Products
Save 52%1591HSBK — enclosure - plastic
Hammond Manufacturing · 1591HSBK
Save 52%1591HSGY — enclosure - plastic
Hammond Manufacturing · 1591HSGY

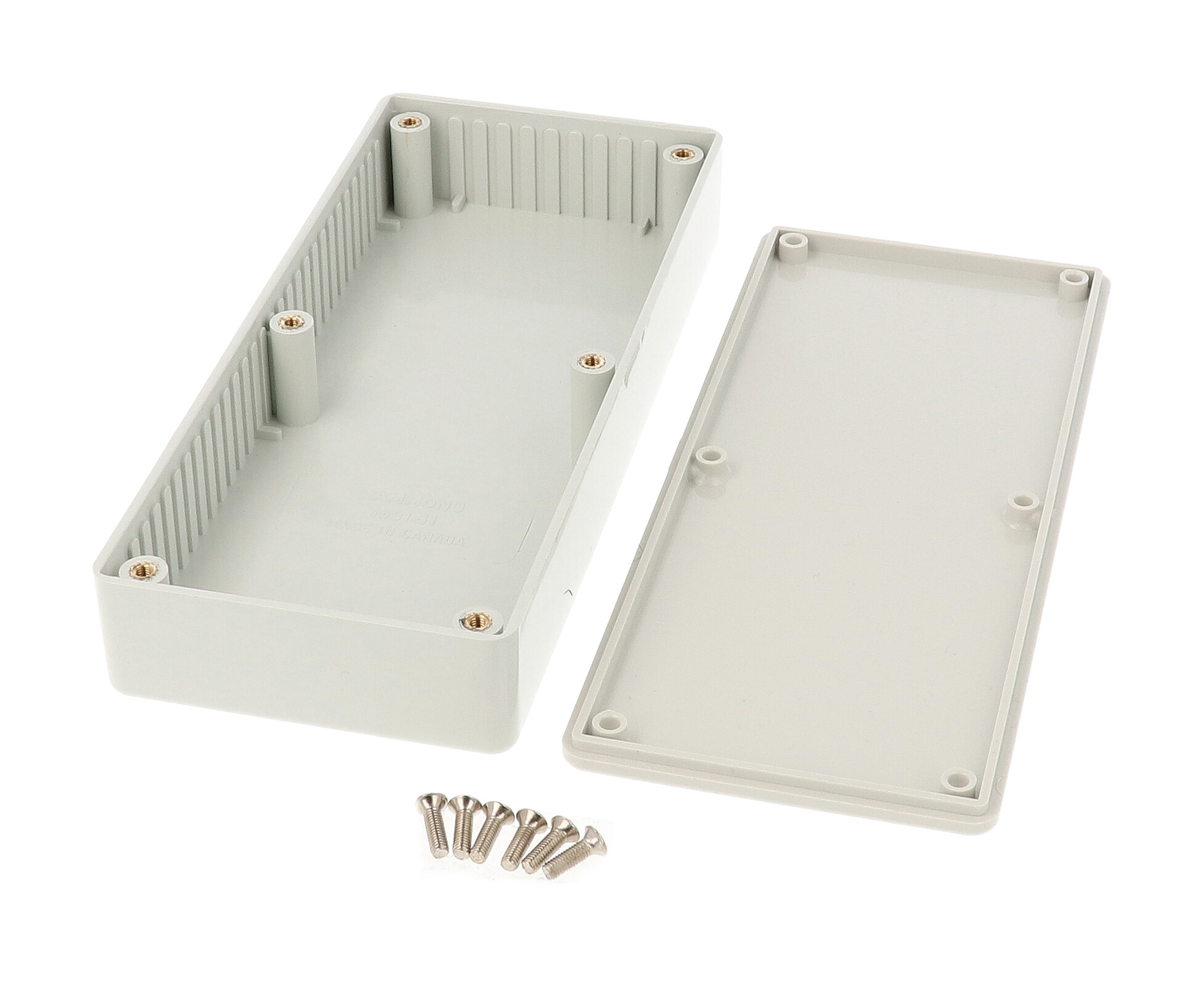

Save 52%1591HGY — enclosure - plastic
Hammond Manufacturing · 1591HGY
Save 52%1591LBK — enclosure - plastic
Hammond Manufacturing · 1591LBK

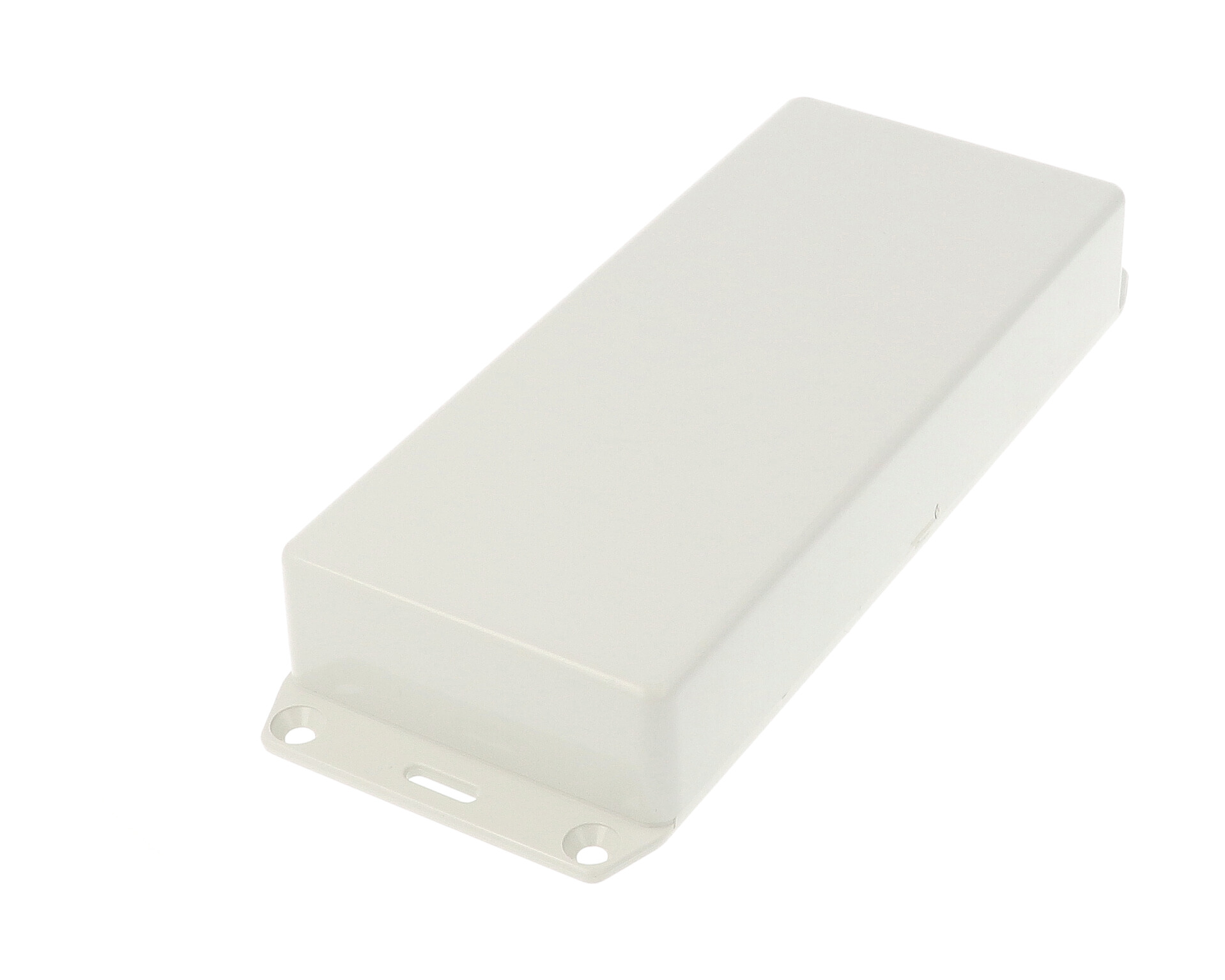

Save 52%1591HFLGY — enclosure - plastic
