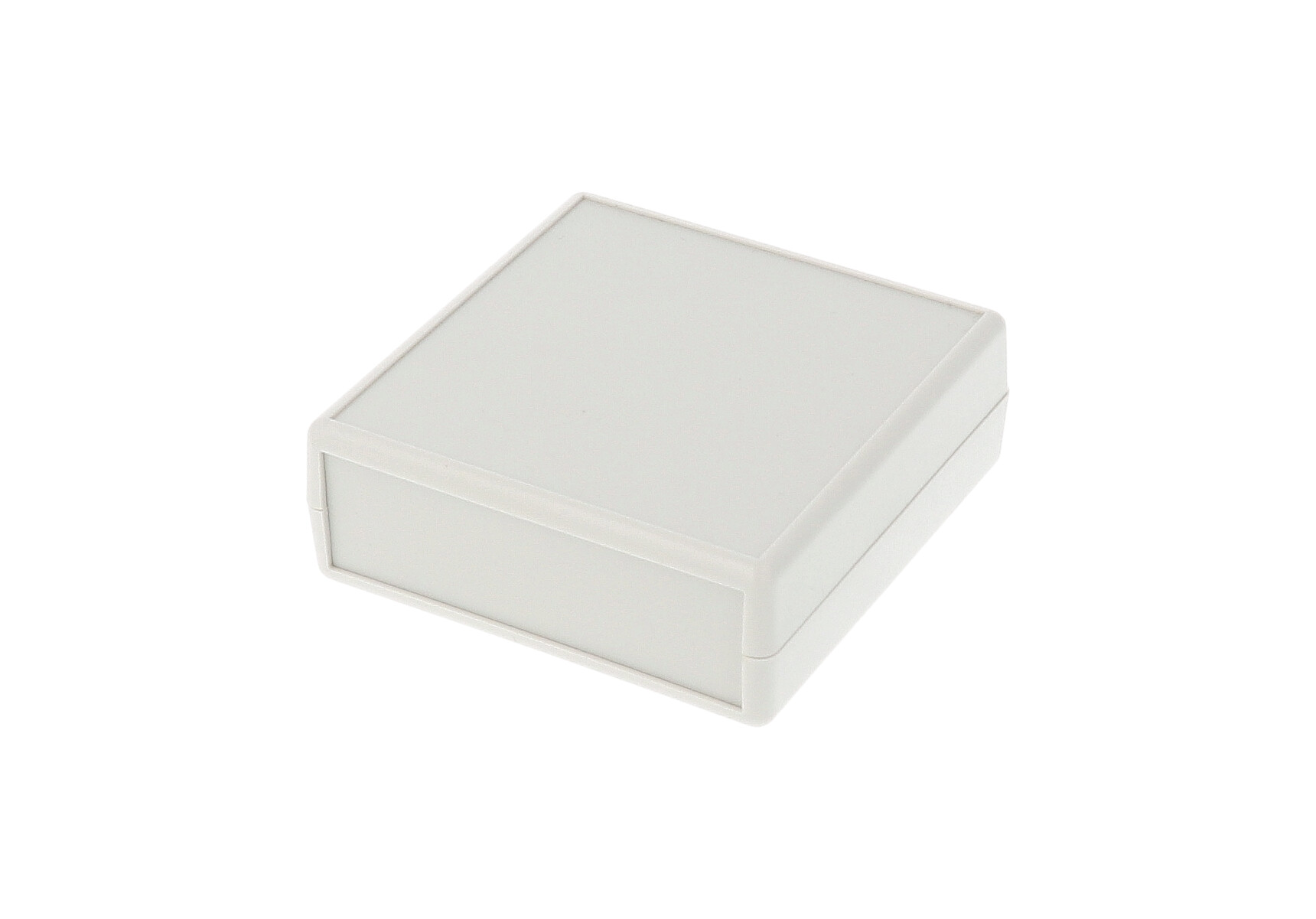

ABS Plastic Hand Held/Instrument Enclosures · 1593 Series

Key Features:

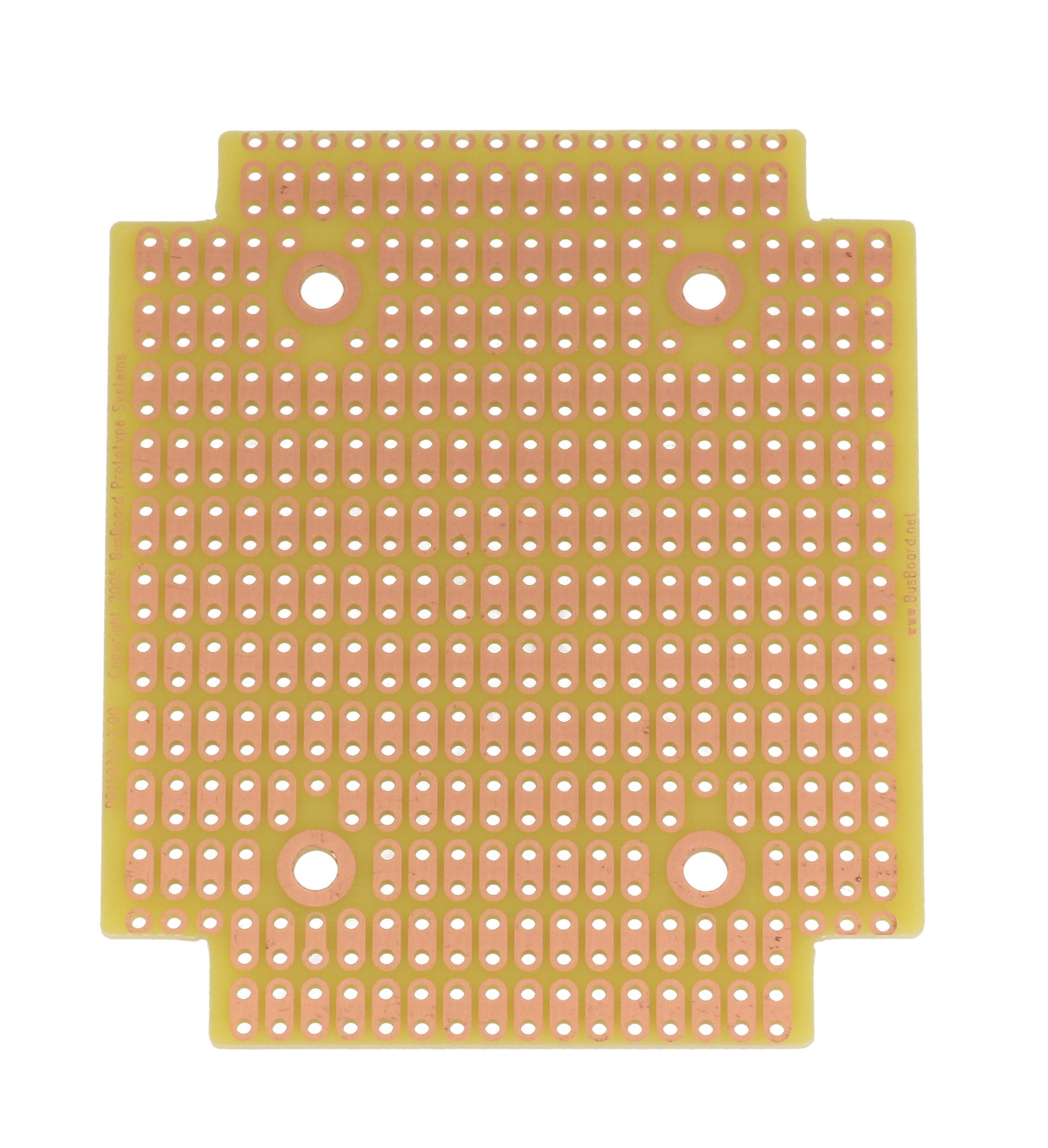

• ■Electronic instrument enclosures, ideally suited for mounting printed circuit boards.
• ■Ergonomically designed for a comfortable fit into the user’s hand.
• ■Versions without a battery door are designed to meet IP54 ratings.
• ■Recessed top for membrane display or pad.
• ■"Three snap" battery door designed for long life.

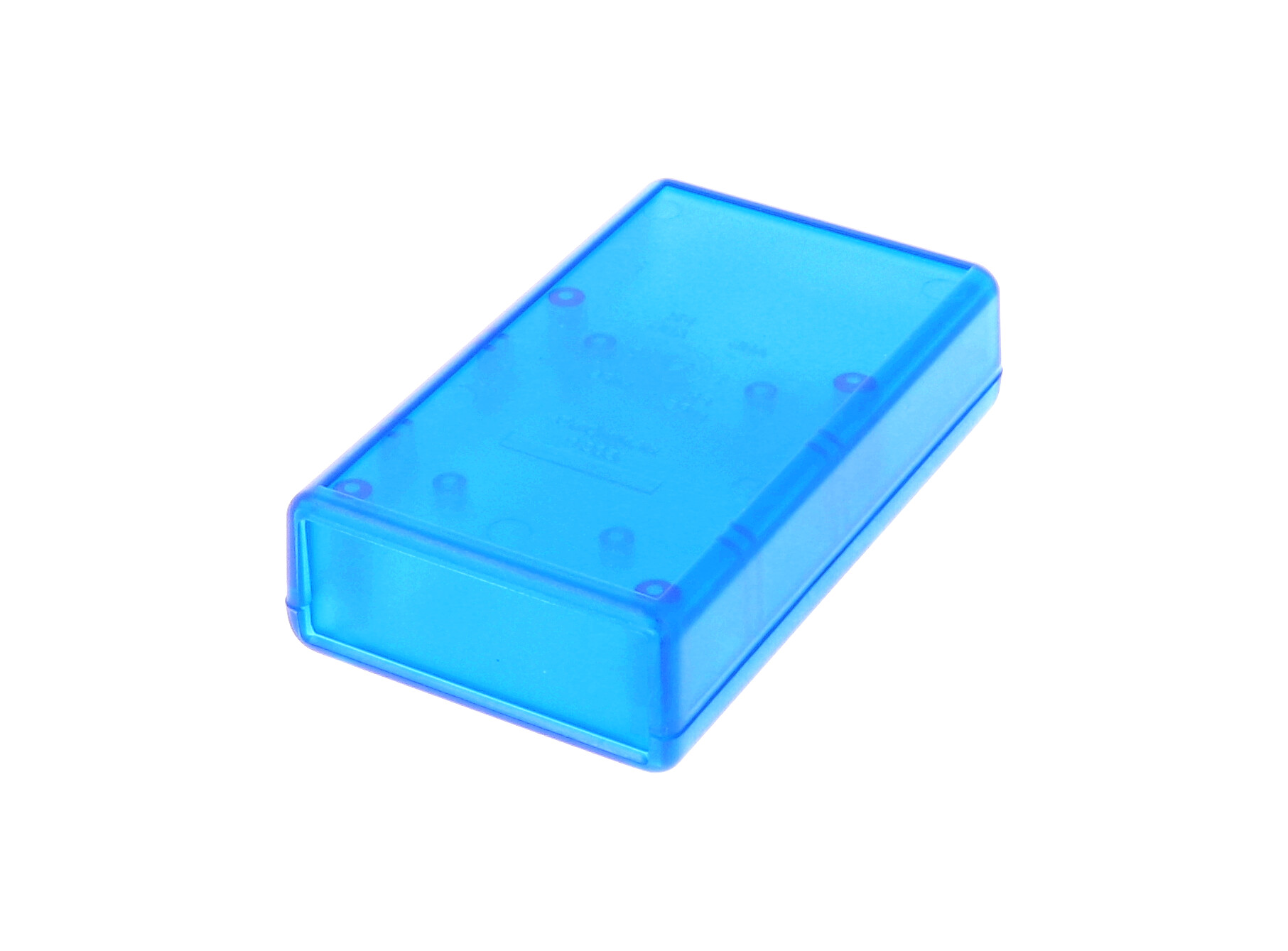

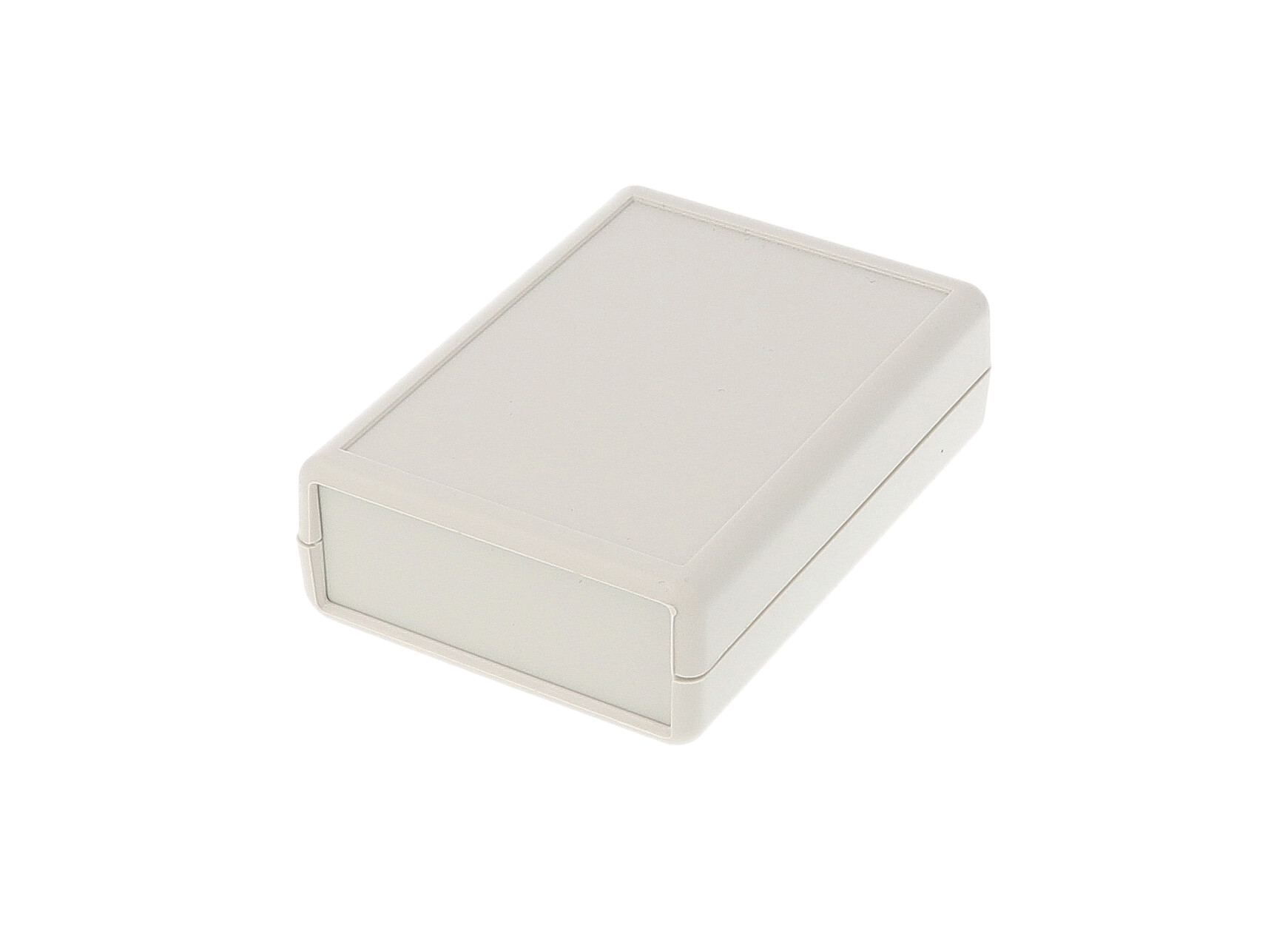

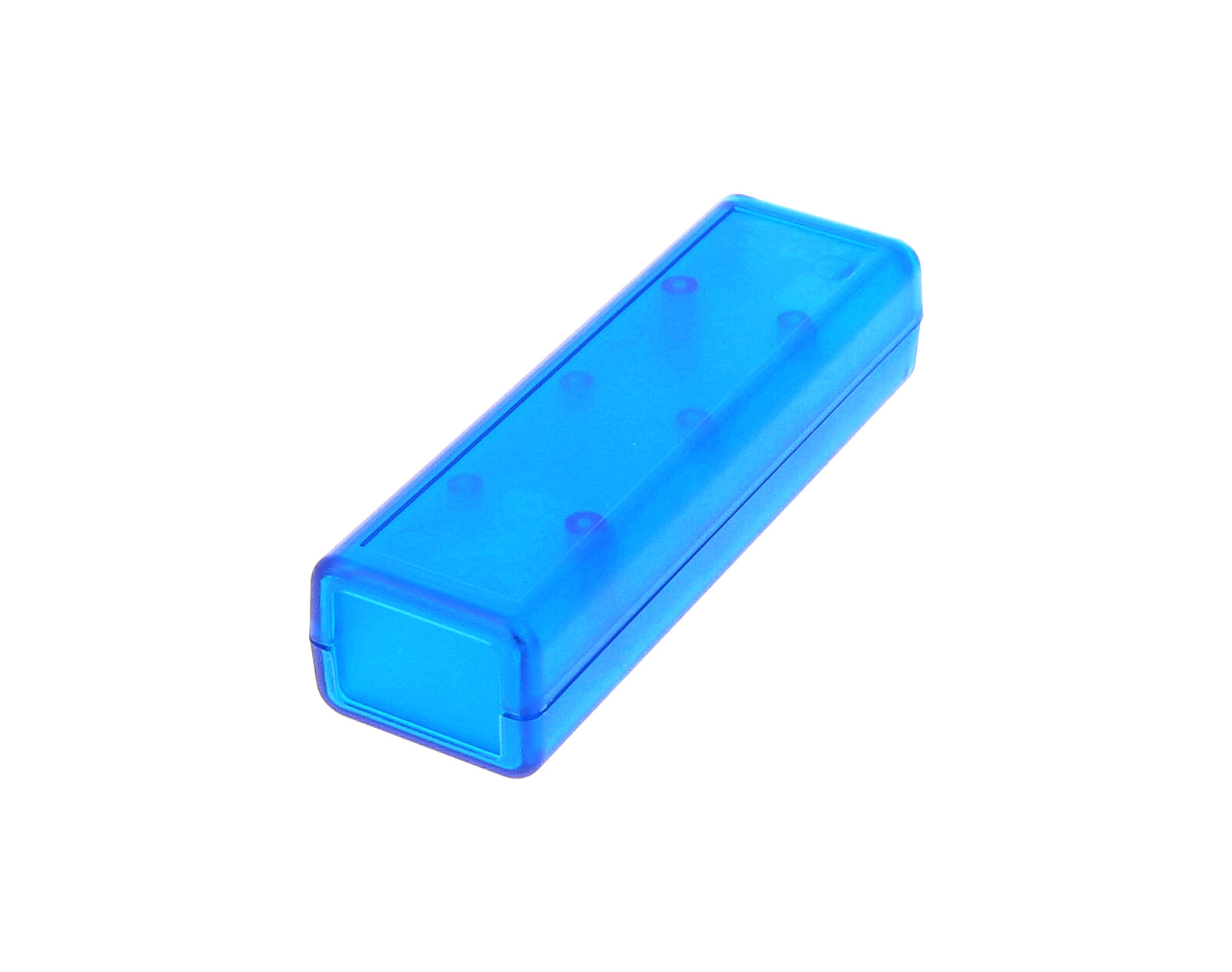

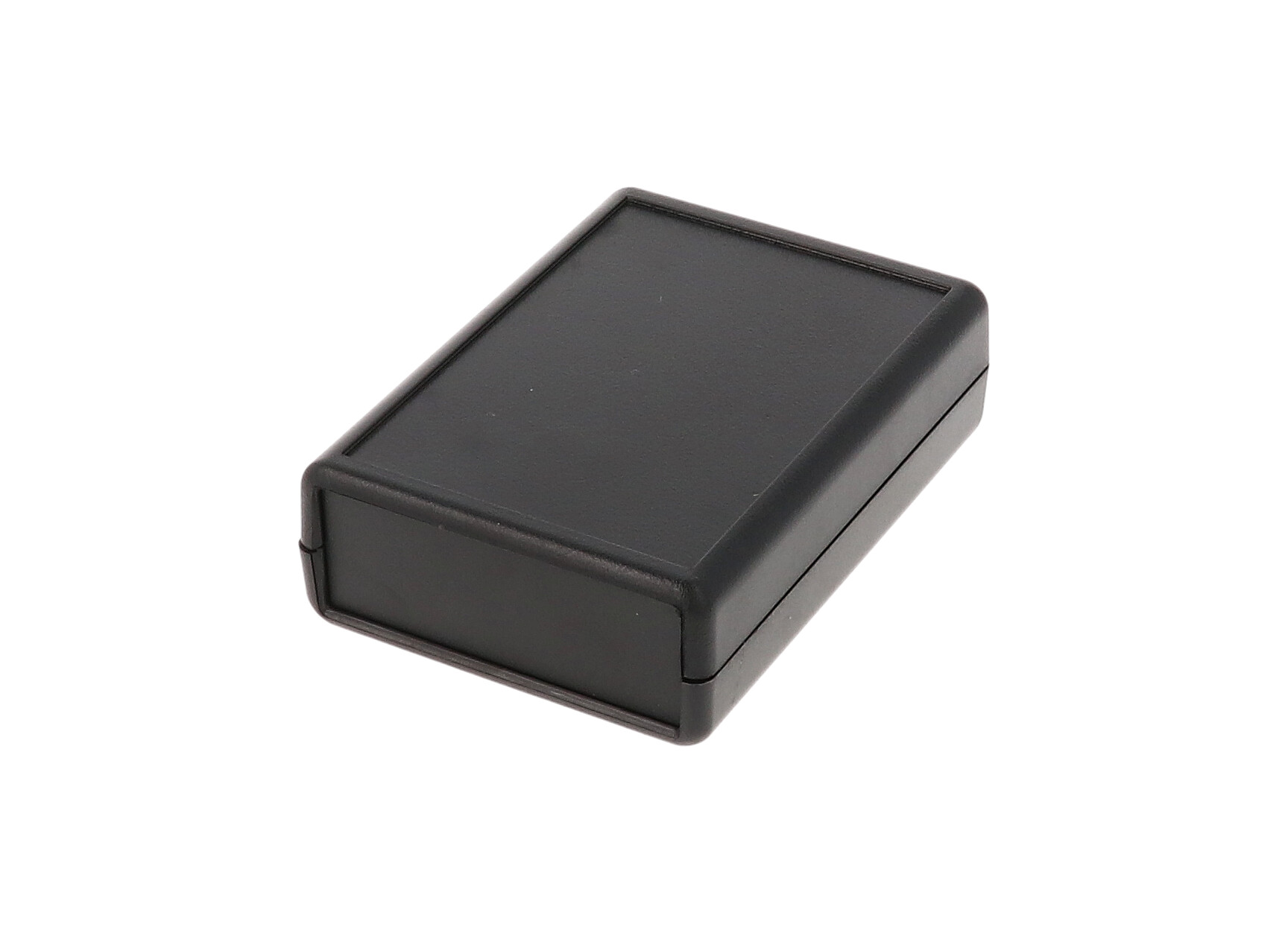

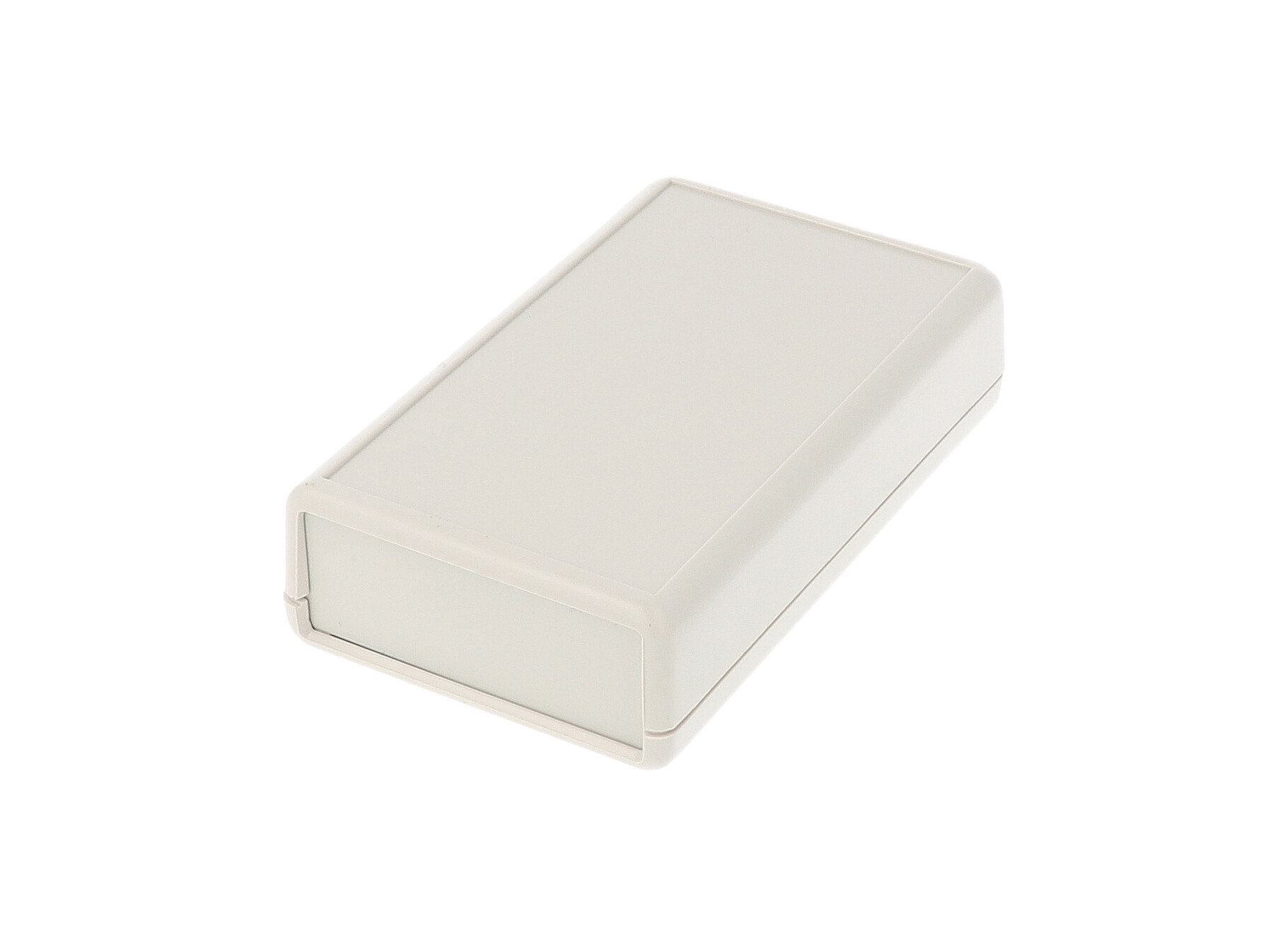

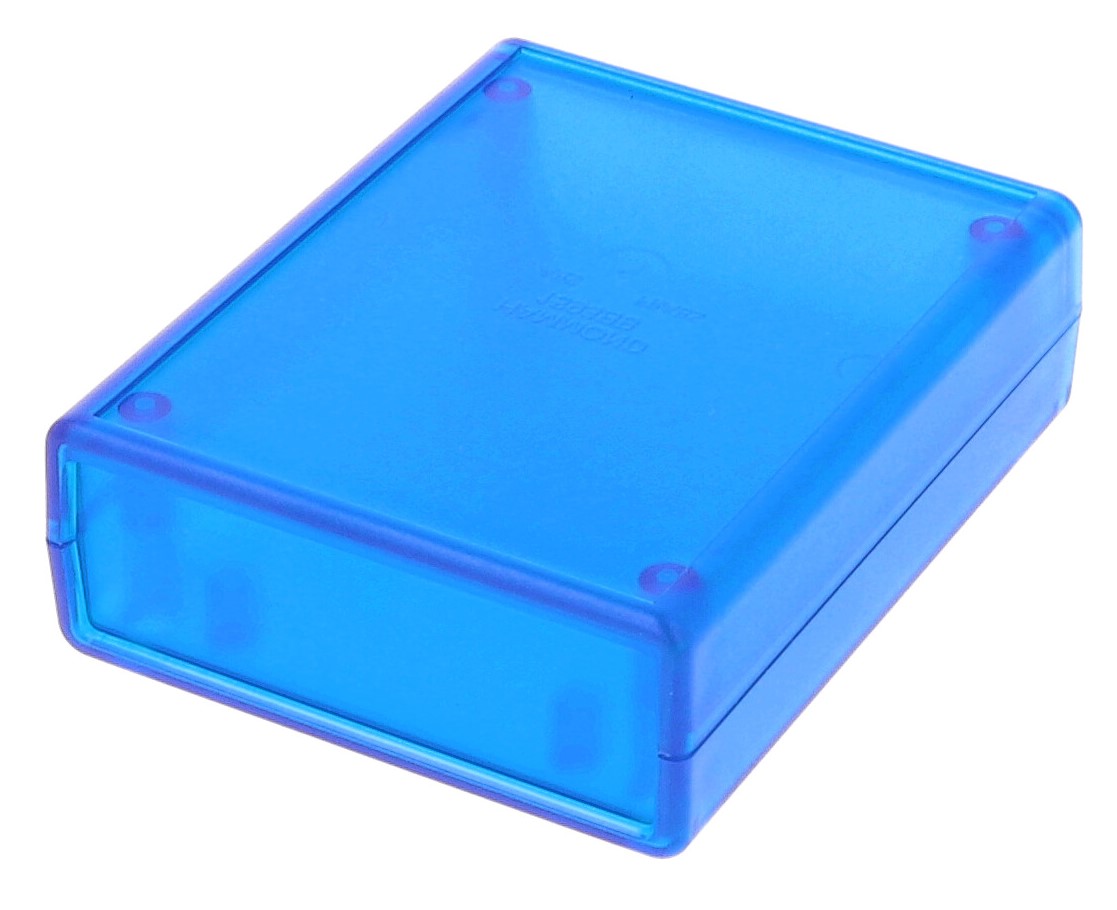

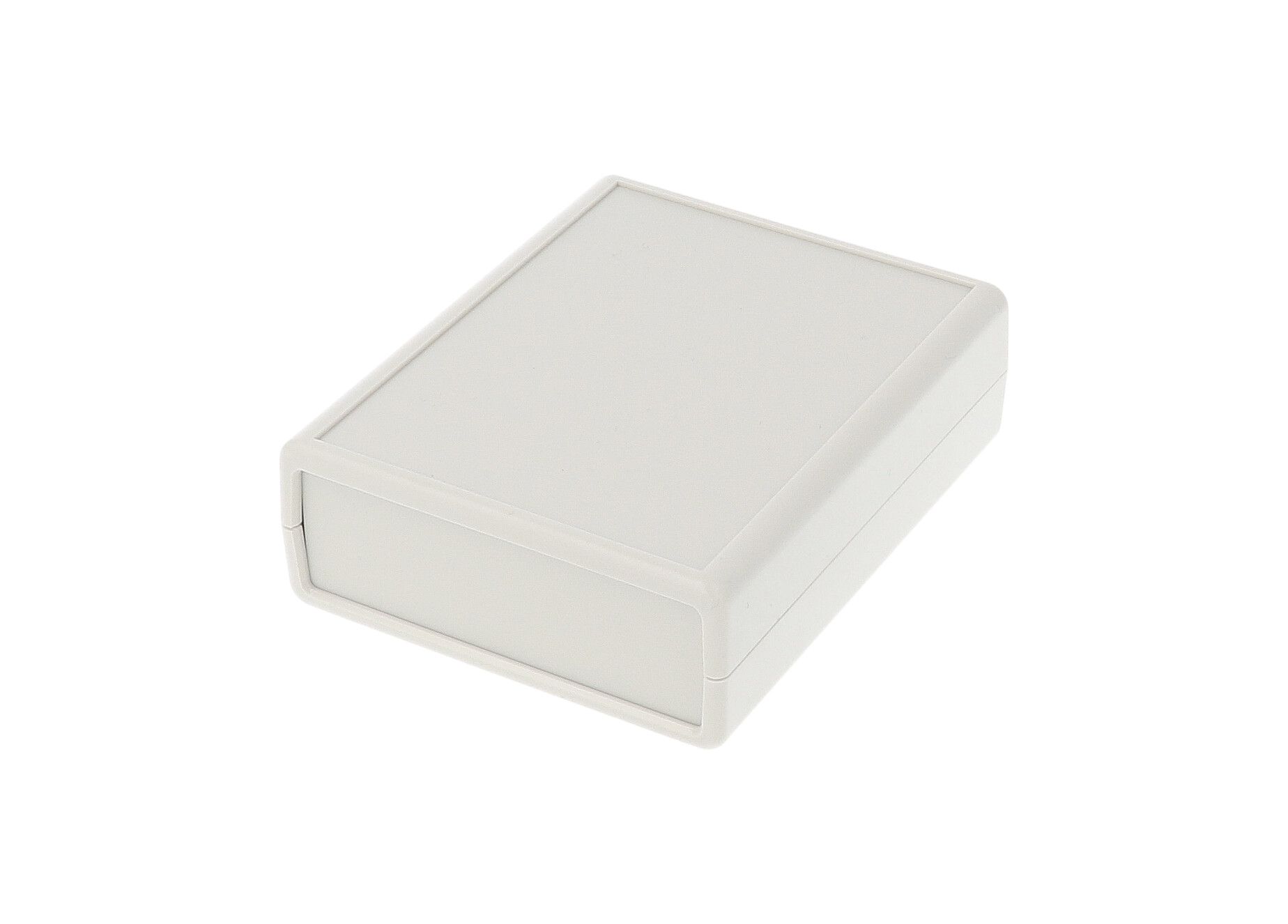

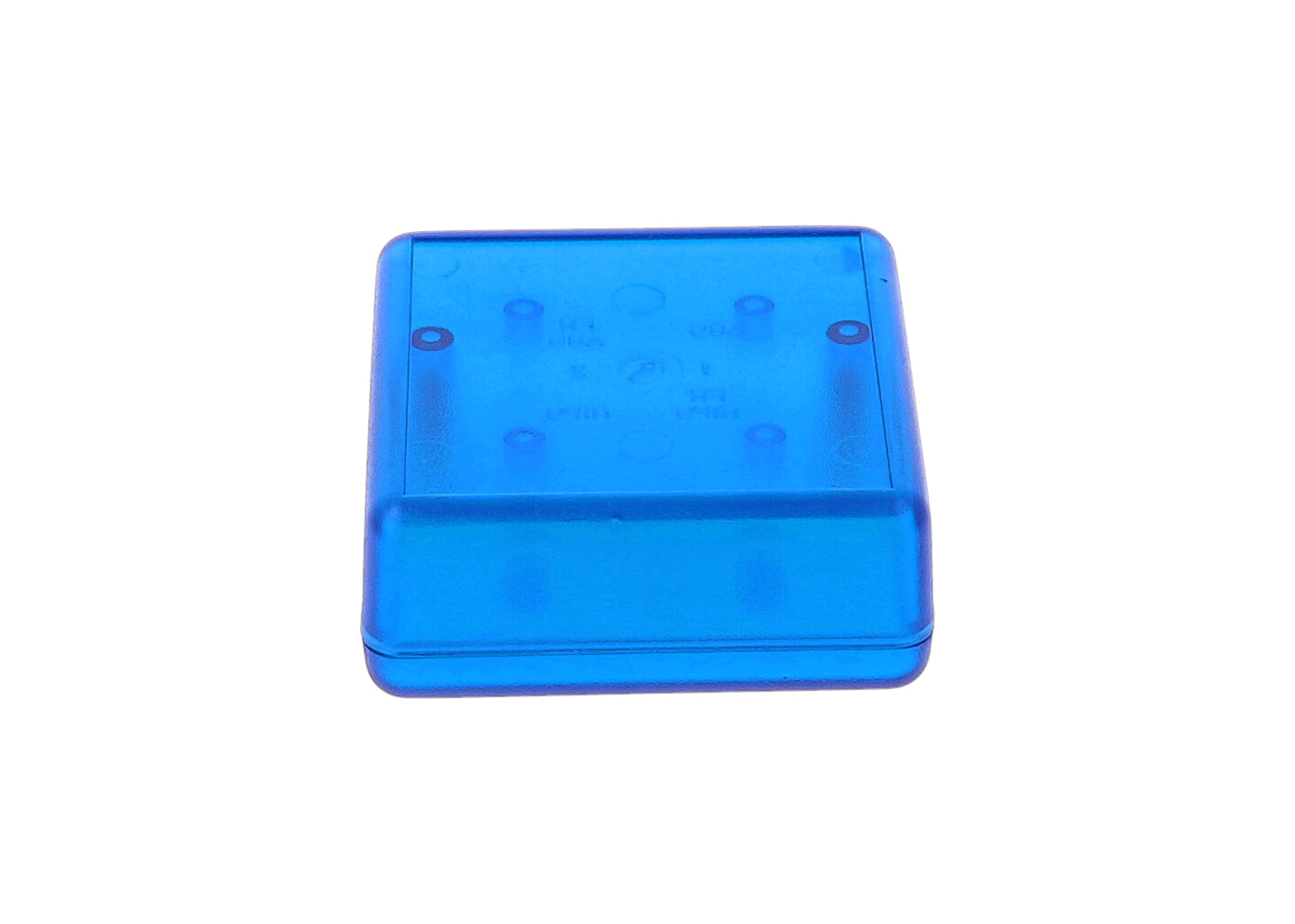

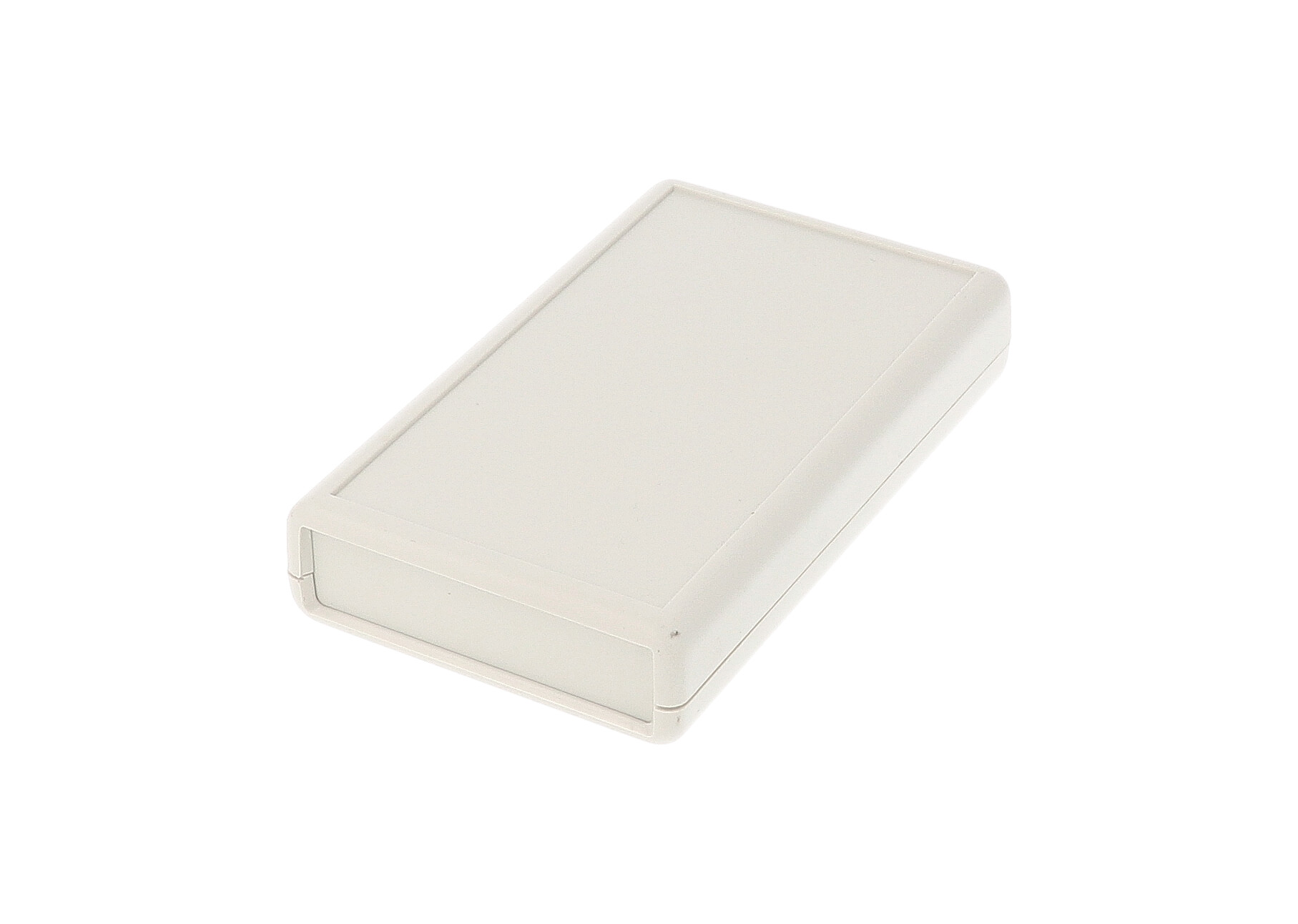

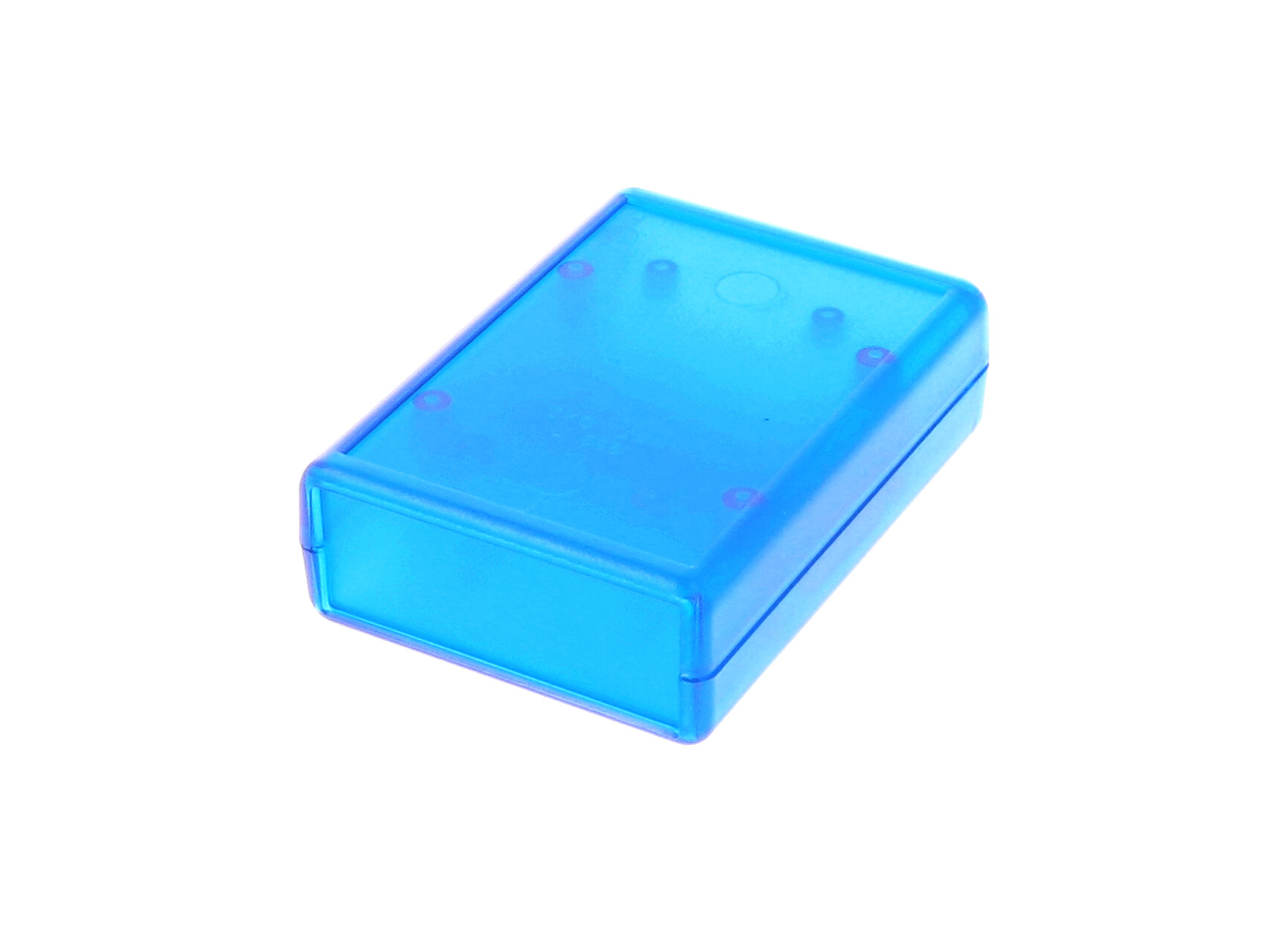

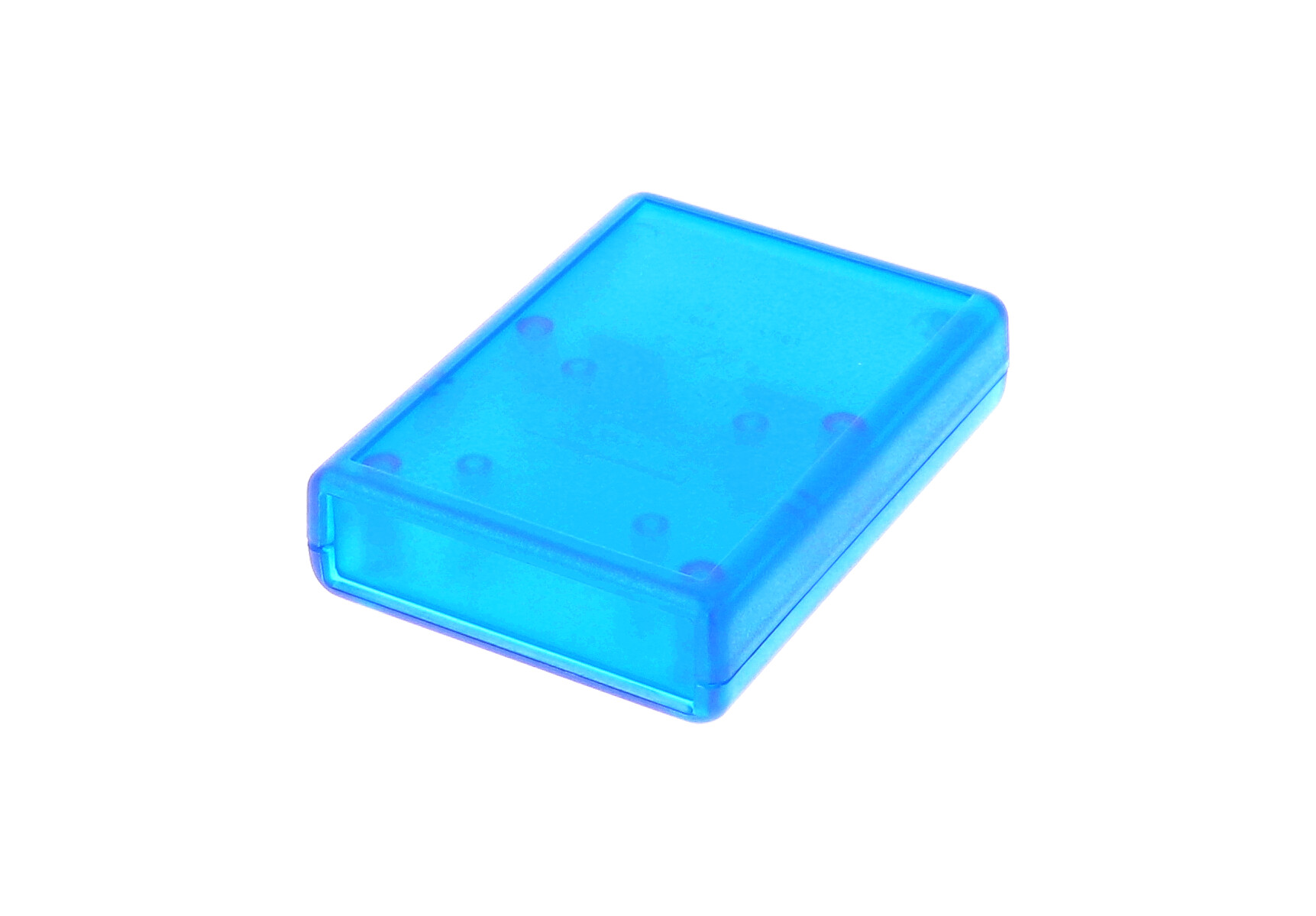

• ■Molded in a choice of black, grey, or transparent blue general purpose ABS plastic with a satin texture.

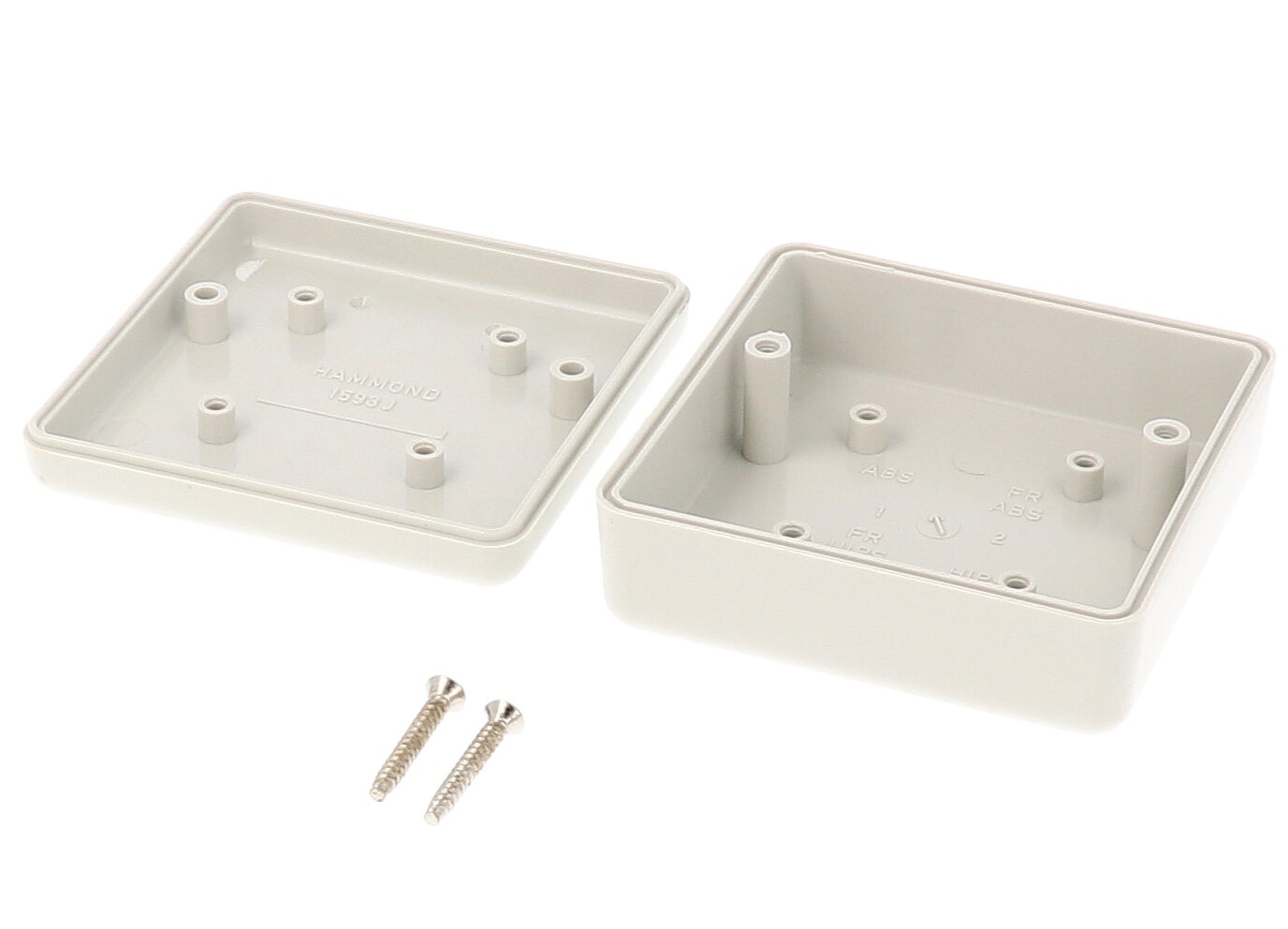

• ■Unit is secured with self-tapping screws.
• ■Black and transparent blue enclosures include black finish screws. Grey enclosures include nickel finish screws.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

Notes:

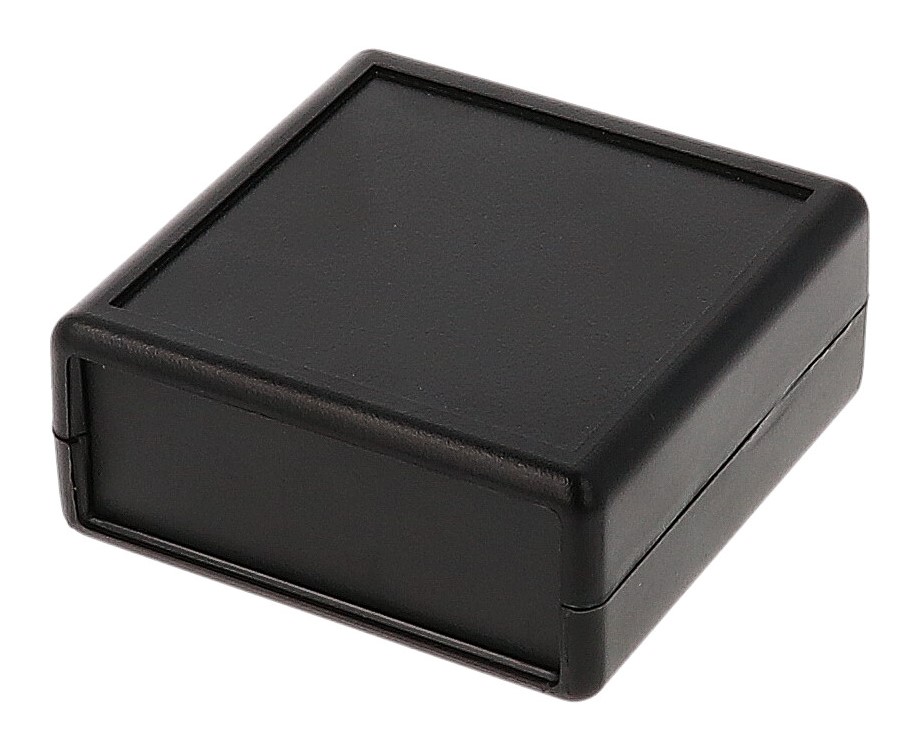

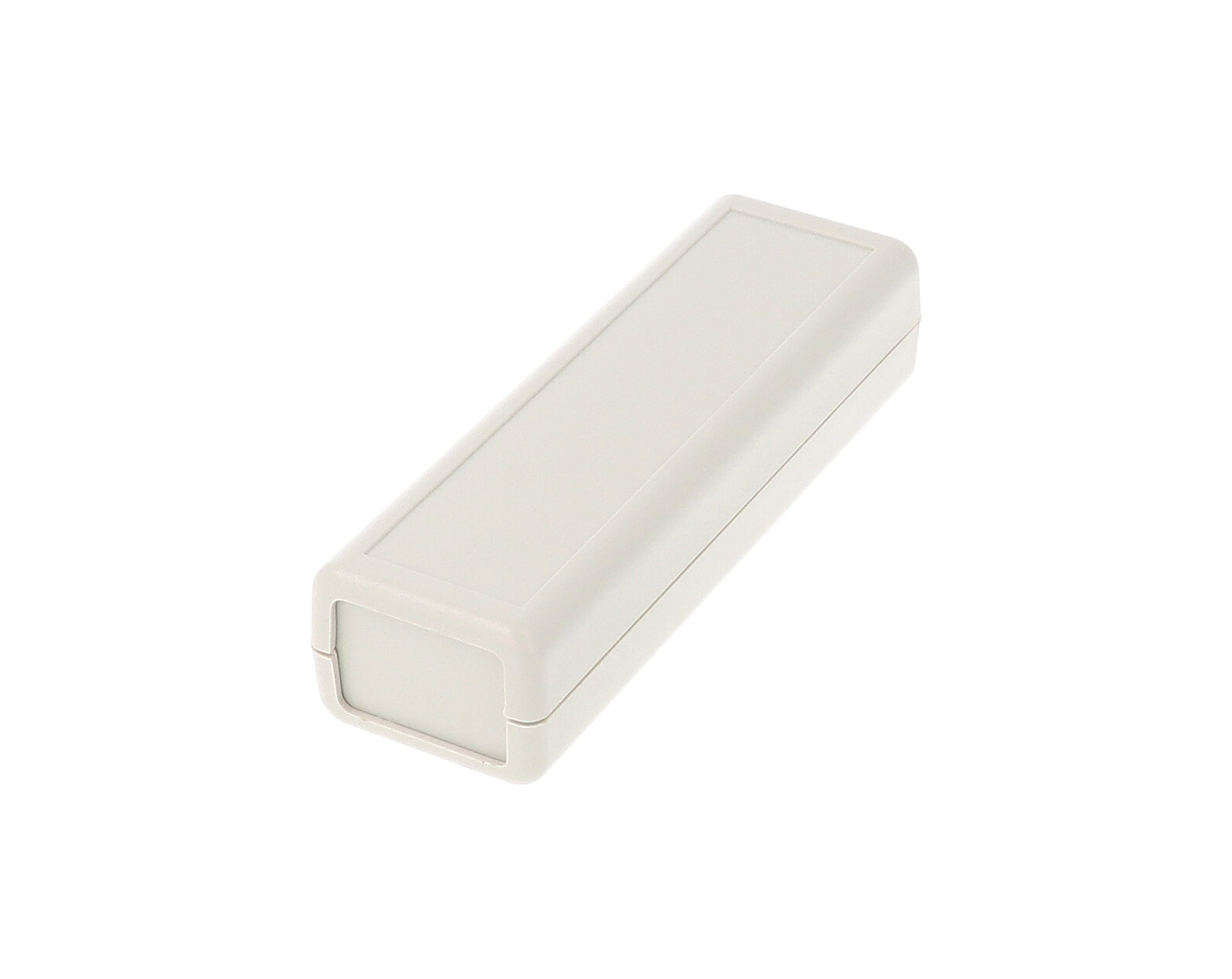

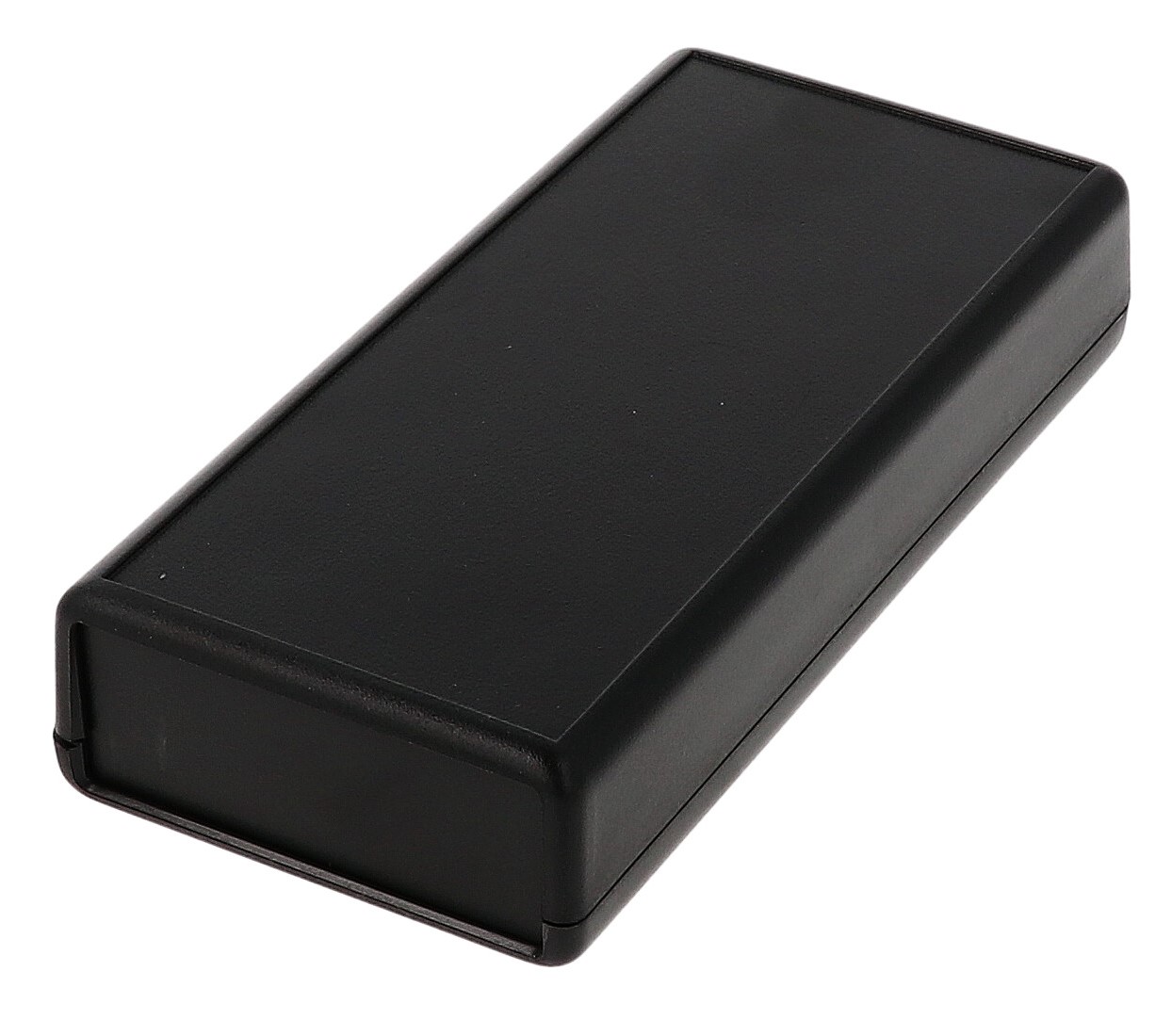

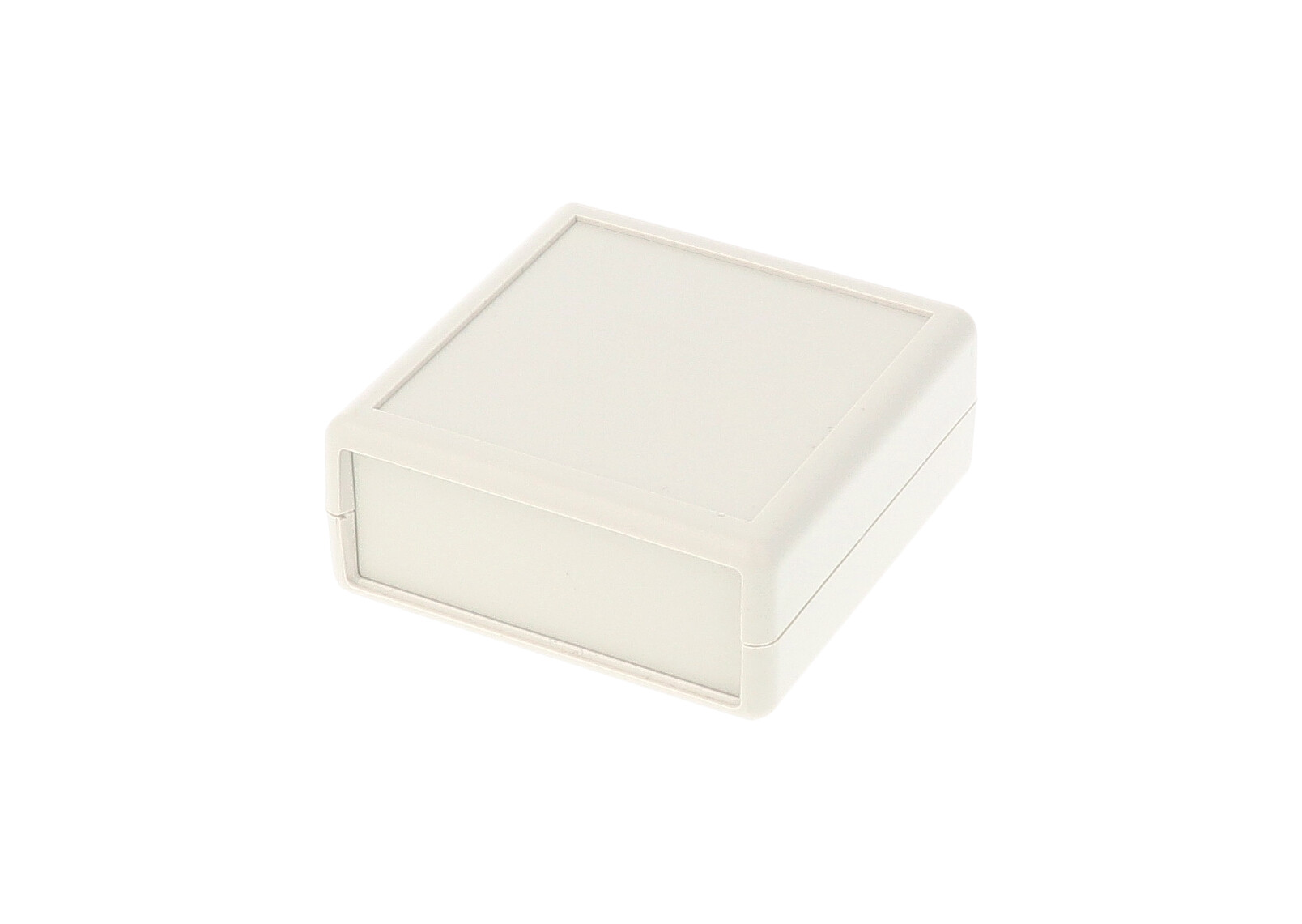

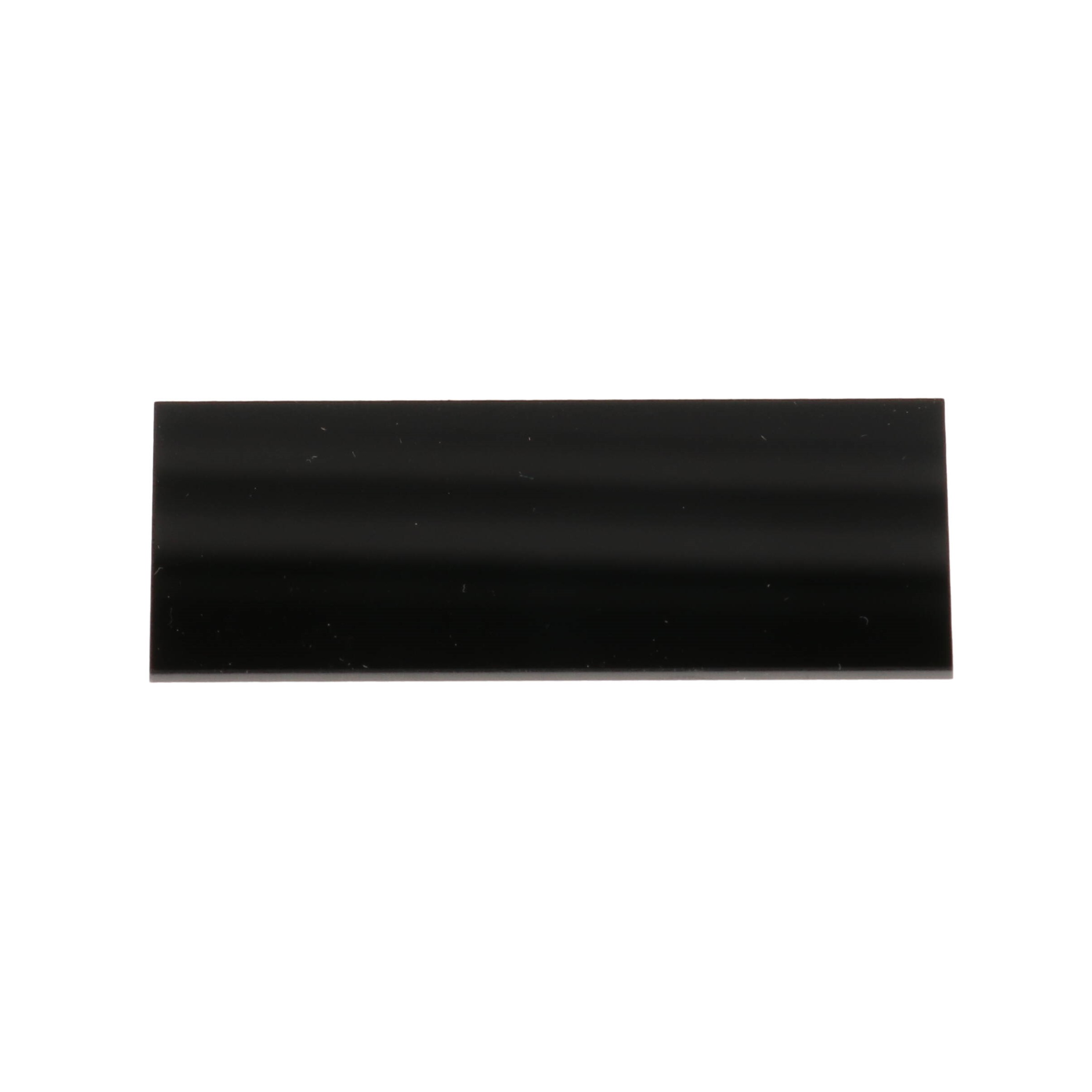

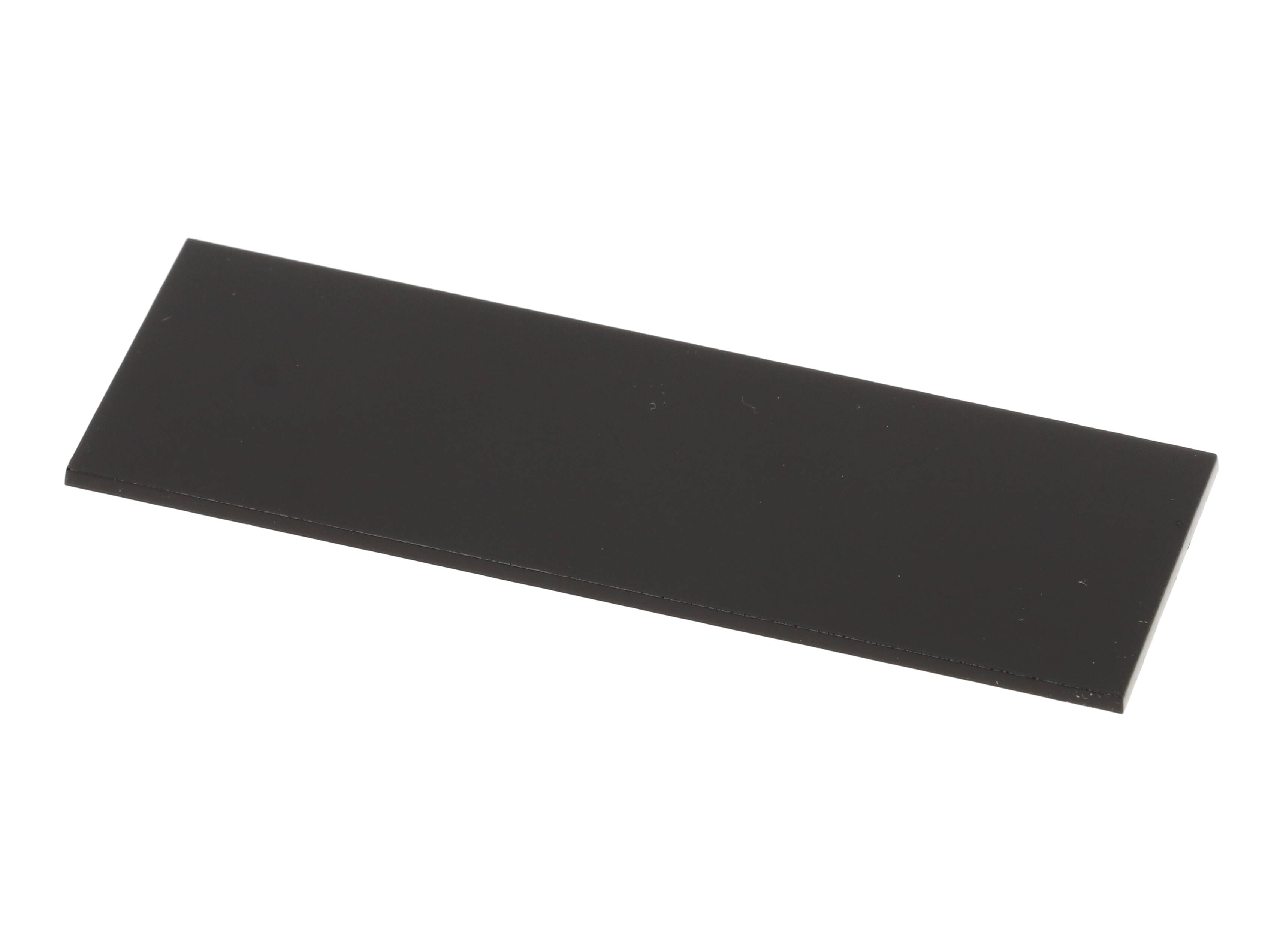

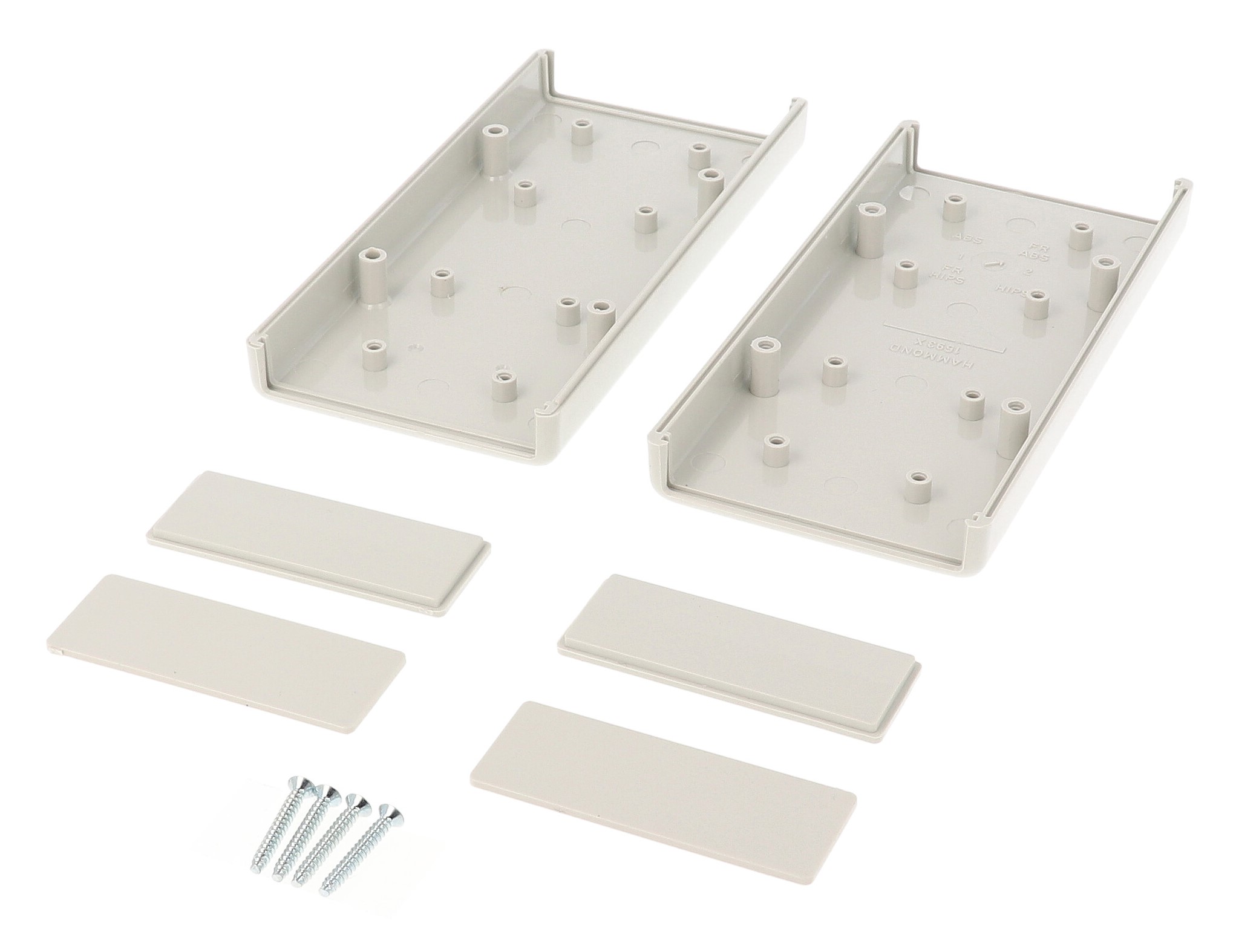

Sizes K, L, N, D, and X come with flat and contoured panels to match the profile of the case.

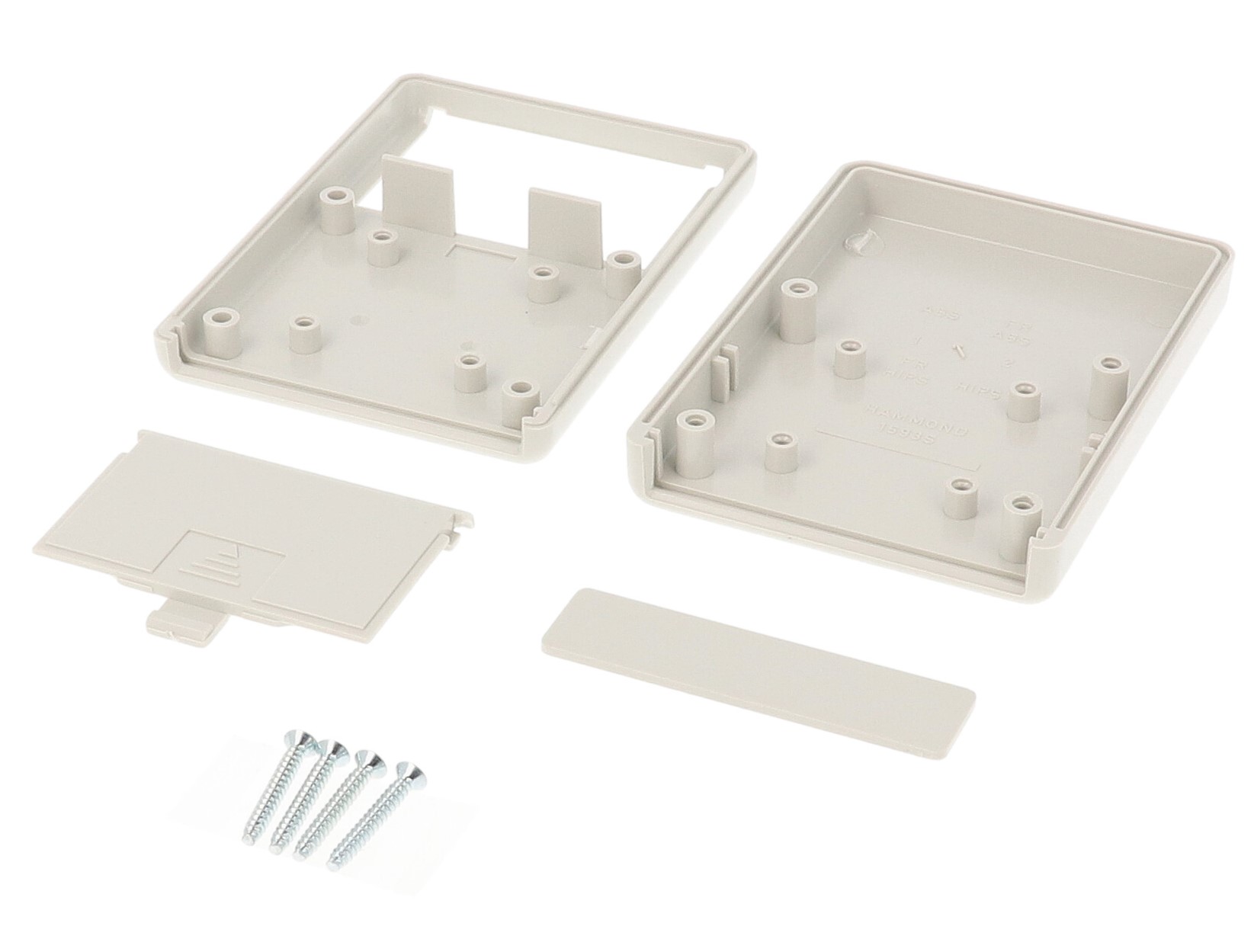

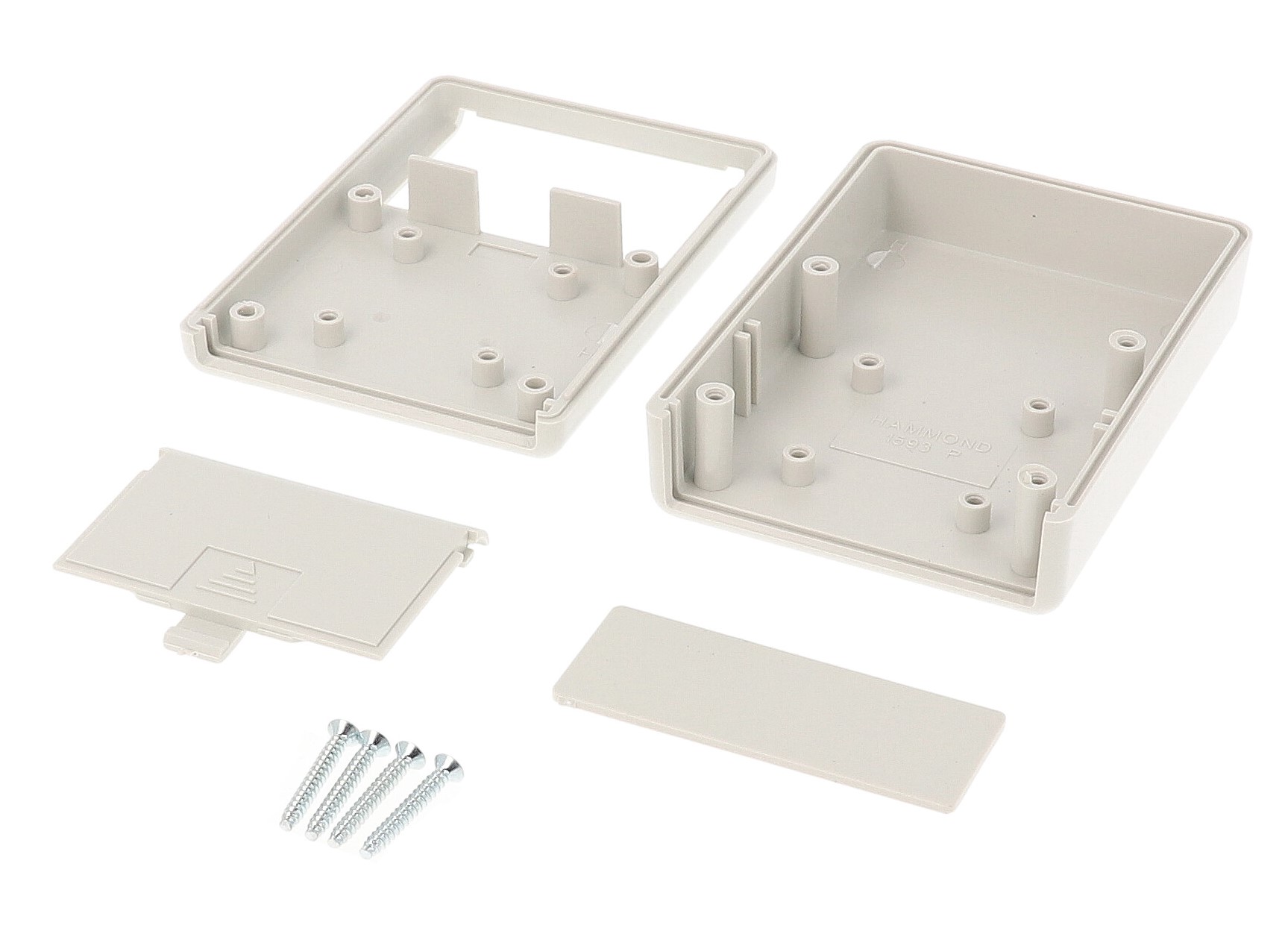

Sizes S, P, T, Q, and Y come with an integrated battery compartment and door.

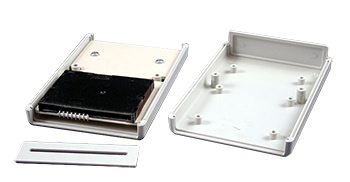

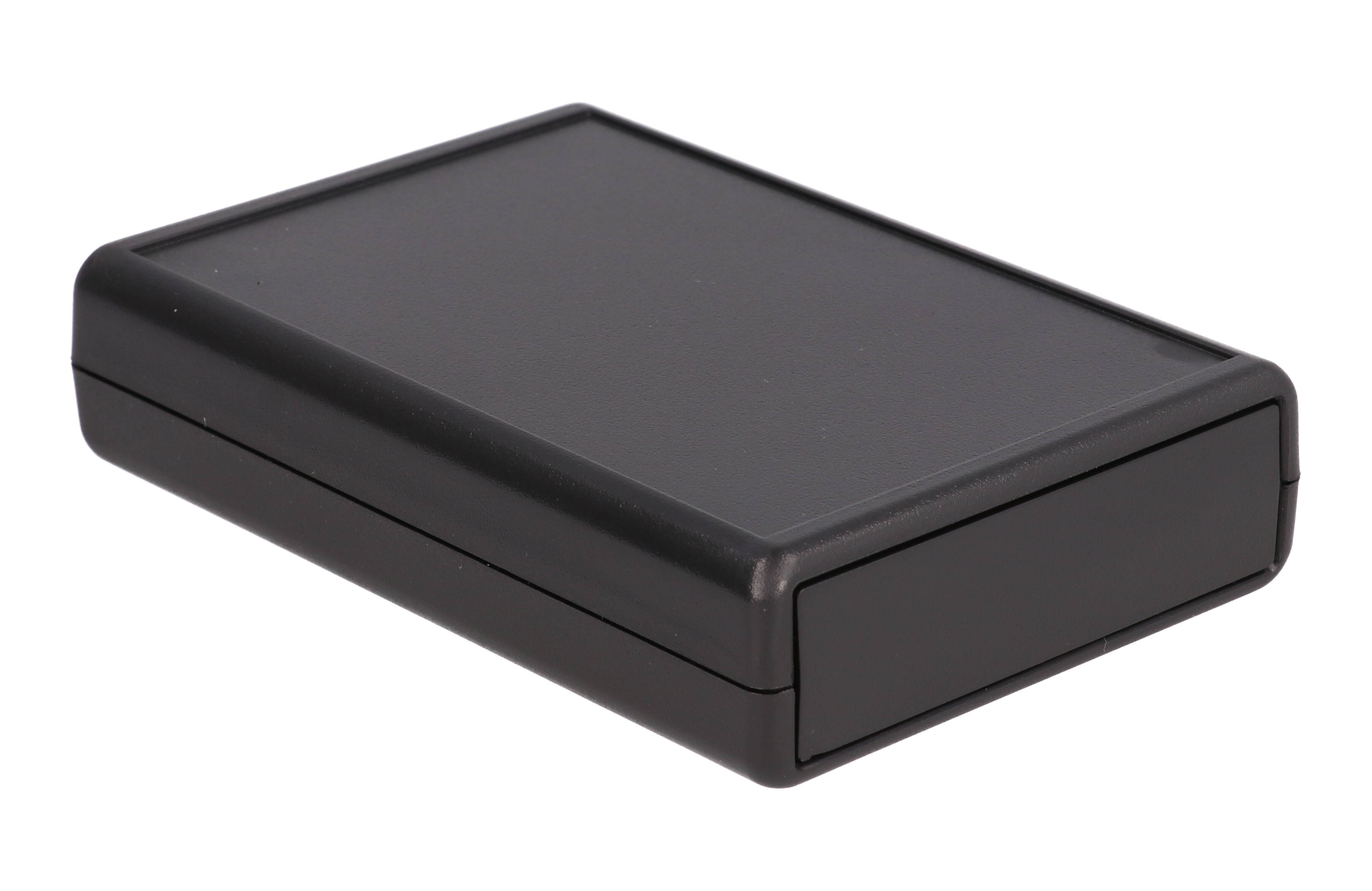

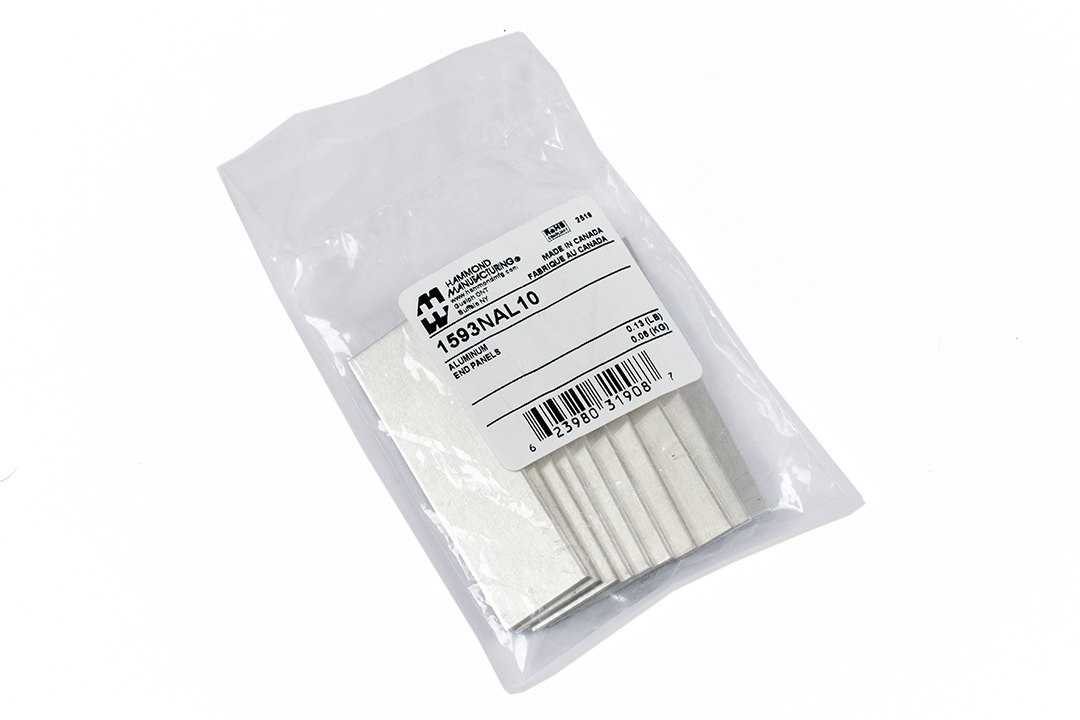

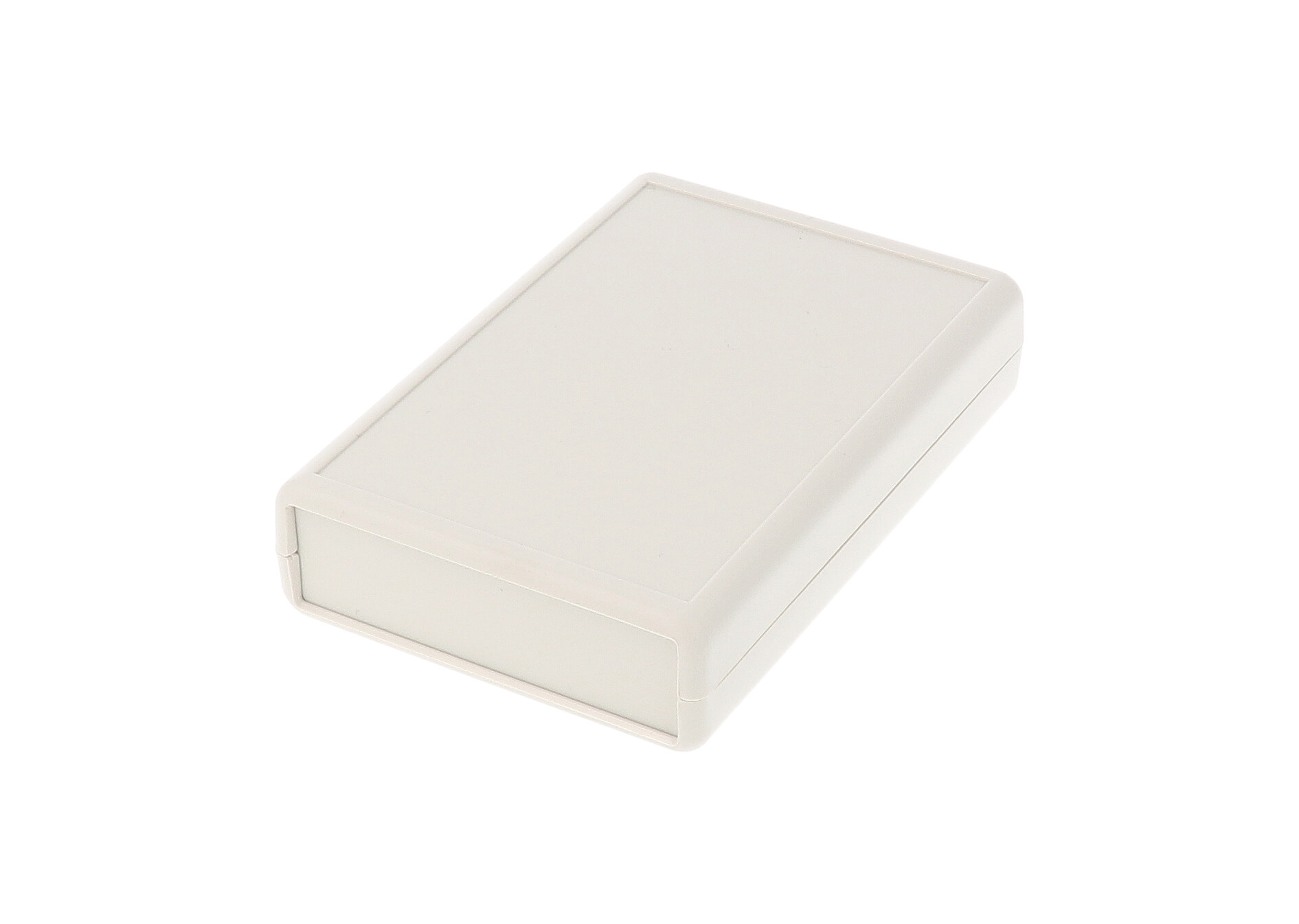

1593N sizes are designed to house smart card readers (shown with modified end panel).

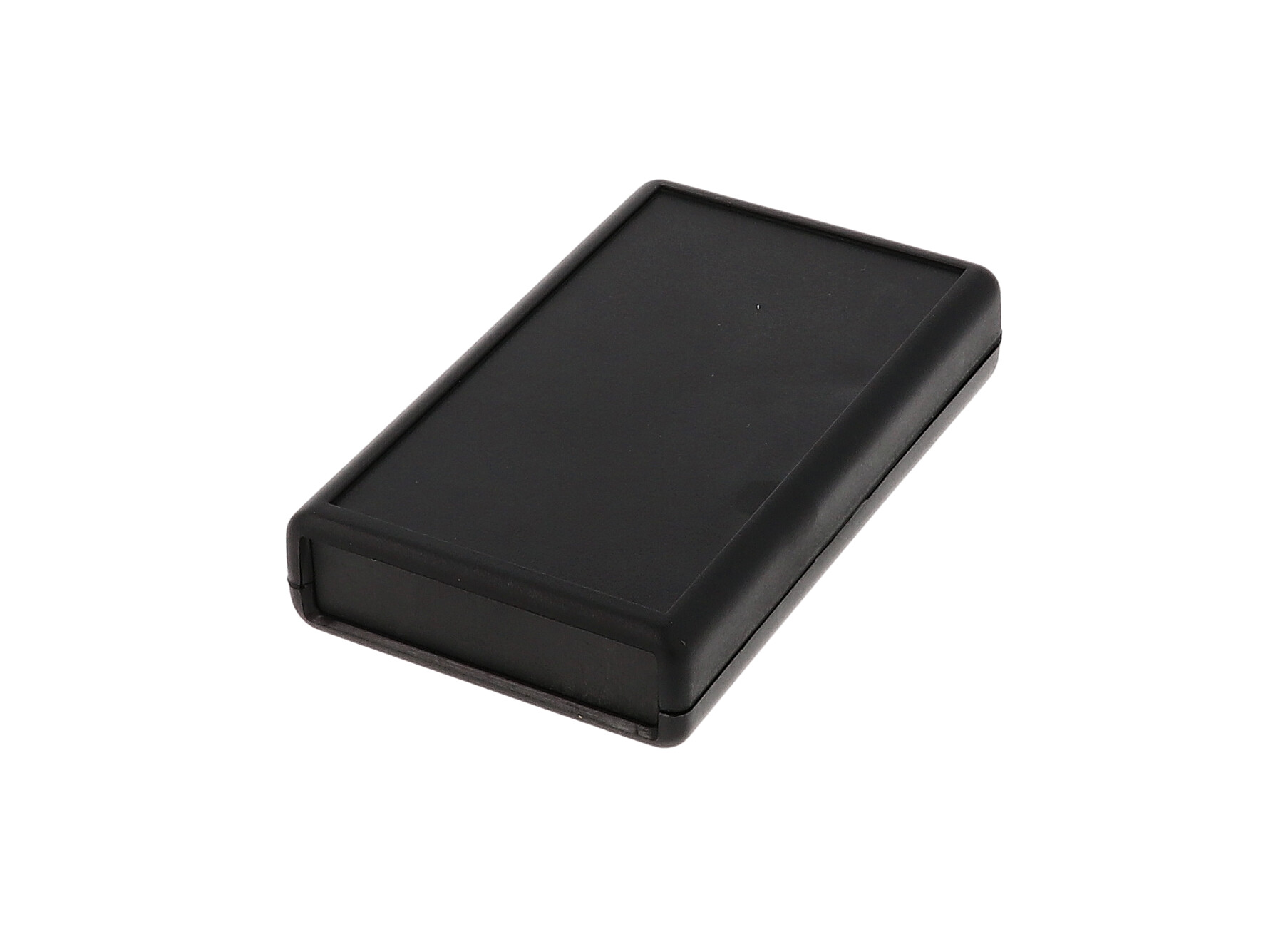

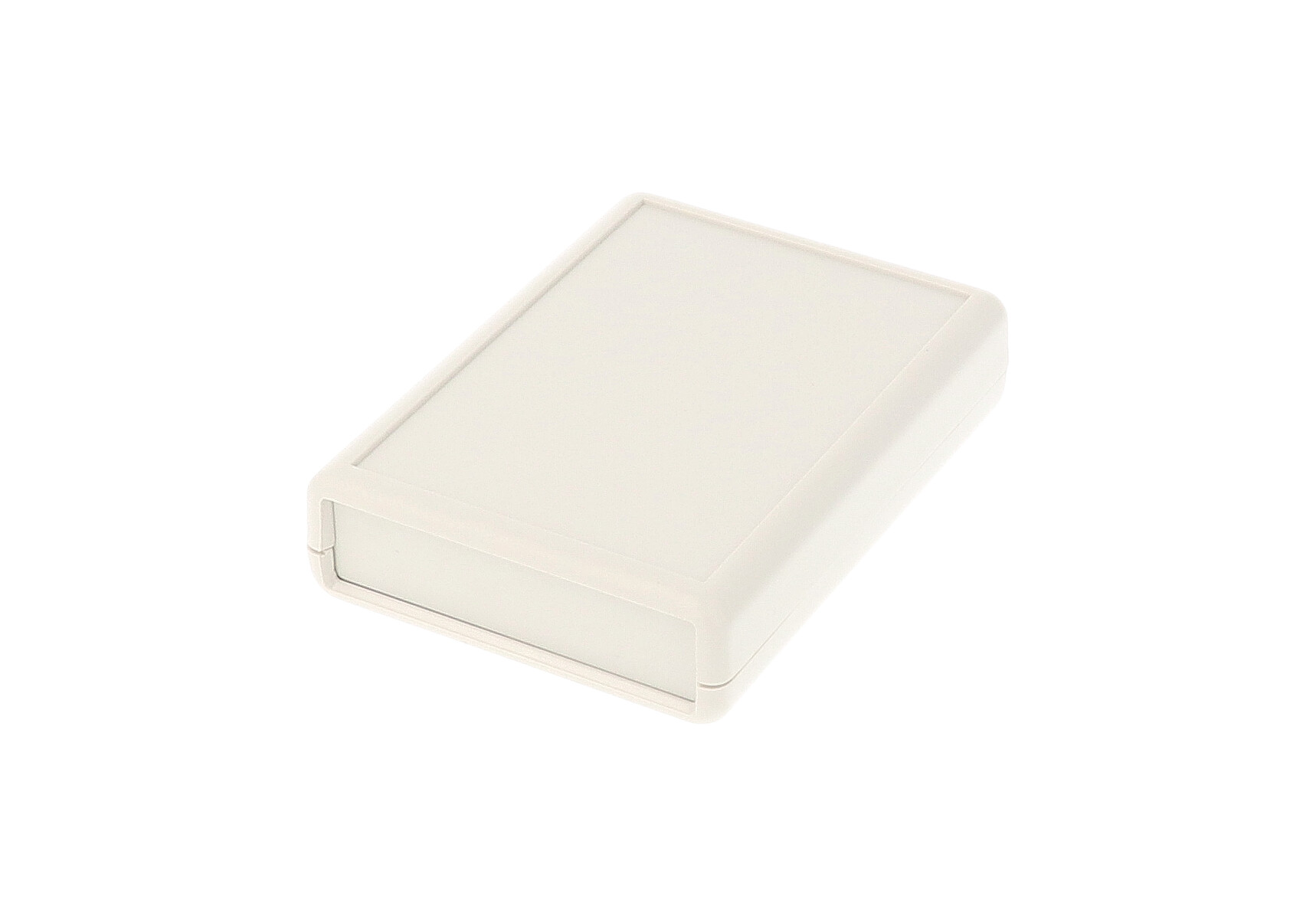

• ■Due to their low profile design, the 1593S and 1593T models will only accept AAA batteries. The two AAA battery holder kit (below) is the largest holder that will fit.
