Hammond 1593VTBU IP54 Transparent Blue ABS Enclosure, 105x60x35mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP54 rated transparent blue ABS enclosure
- 105 x 60 x 35 mm (4.13 x 2.36 x 1.38 in)
- Two removable end panels, no battery door
- PC boards up to 98 x 48 mm
- Recessed top for membrane overlay
- Black finish cover screws included (2 pcs)
- UL94 HB; RoHS and REACH compliant

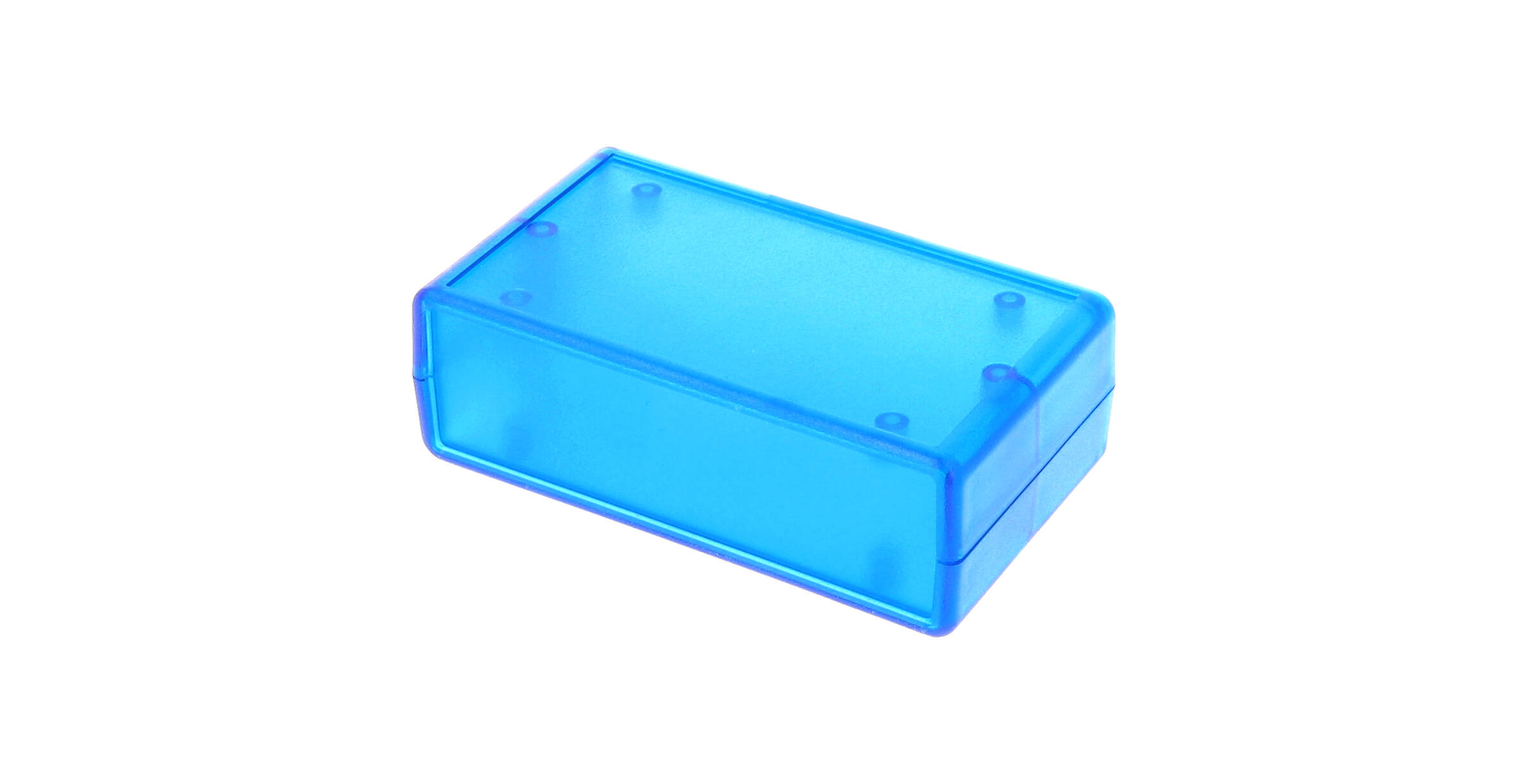

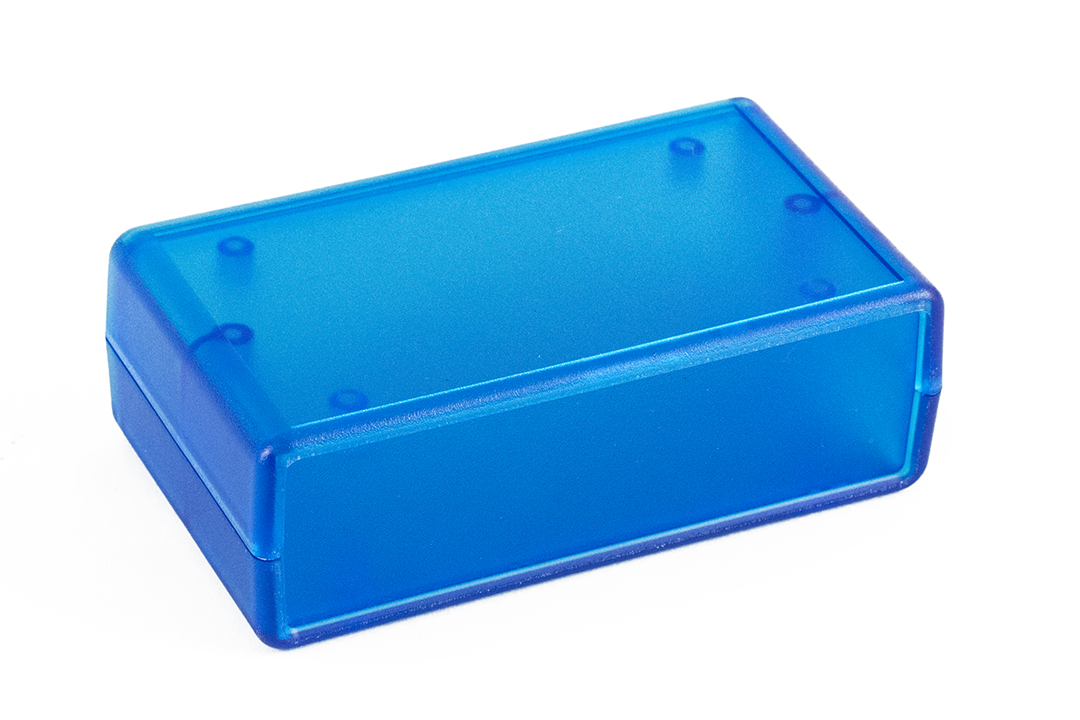

The 1593VTBU is the transparent blue version of the 1593V instrument enclosure, 4.13 x 2.36 x 1.38 in (105 x 60 x 35 mm). The translucent satin-texture ABS lets indicator lights show through, while the IP54 rating and absence of a battery door suit sealed-style PCB housings.
It has two removable end panels for front and rear access and a recessed top (92.00 x 51.00 mm inlay) for a membrane display. The shell is UL94 HB general purpose ABS secured with self-tapping screws; transparent blue enclosures include black finish screws.

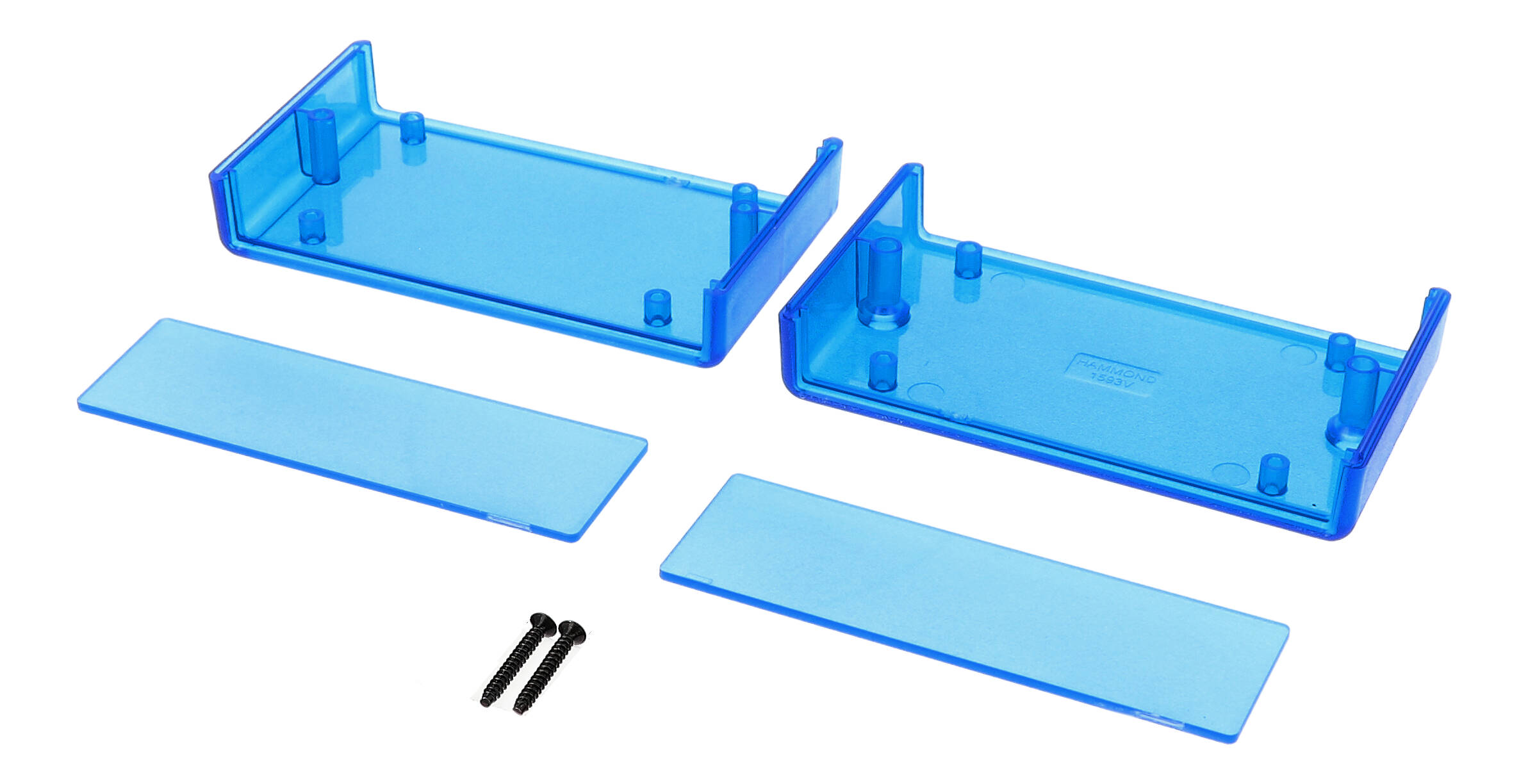

The part page lists a maximum PC board of 98 x 48 mm, and the drawing gives 29.70 mm inside height and 48.67 mm inside length. Internal bosses accept #4 self-tapping screws. Supplied with top and bottom cover, 2 flat panels and 2 cover screws, shrink wrapped at 0.12 lbs (0.05 kg).
Recommended torque is 40 cN-m [57 ozf-in] for cover screws and 20-30 cN-m [29-42 ozf-in] for internal mounting screws. PC board screws are #4 x 1/4" self-tapping (1593ATS50 or 1593ATS100), and a nylon belt clip (1599CLIP black, 1599CLIPGY grey) is listed as an accessory.
The 1593VTBU is RoHS and REACH compliant. Translucent blue replacement panels are 1593VLTBU-10; aluminum end panels are 1593VAL10. Solid models are available in .stp or .x_t, and the enclosure can be factory modified (milling, drilling, printing etc.).
Ideal For
- Indicator and status-light housings
- PCB assemblies needing IP54
- Prototype electronics with visible internals
Overview
| Type | General purpose |
| Color | Trans. Blue |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593VTBU |
| Short Description | 105X60X35MM ABS ENCL TBU |
| Color Variants (Black / Gray / Trans Blue) | 1593VBK / 1593VGY / 1593VTBU |
Dimensions
| Inside Height | 29.70 mm [1.17 in] |
| Inside Length | 48.67 mm [1.92 in] |
| Top Inlay Width | 92.00 mm [3.62 in] |
| Size (L X W X H) | 4.13 in x 2.36 in x 1.38 in (105 mm x 60 mm x 35 mm) |
| Top Inlay Length | 51.00 mm [2.01 in] |
| Depth (Series Table) | 1.38 in (35 mm) |
| Width (Series Table) | 2.36 in (60 mm) |
| Length (Series Table) | 4.13 in (105 mm) |
| Max. P.C. Board Width | 48 mm |
| Max. P.C. Board Length | 98 mm |
| Overall Dimensions (Drawing) | 105.00 x 60.00 x 35.00 mm [4.13 x 2.36 x 1.38 in] |
Accessories
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593VLBK-10 (black), 1593VLGY-10 (grey), 1593VLTBU-10 (translucent blue), pack of 10 |
| Replacement Cover Screws | #4 x 3/4" self-tapping: 1593QS100 (silver) / 1593QS100BK (black), 100-pack |
| Aluminum End Panels (10-pack) | 1593VAL10 |
Identifiers
| UPC | 623980513553 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:29.06.2023 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | No |
| Included Items | Top and bottom cover, 2 flat panels for front and rear and 2 cover screws |
| Removable Panels | 2 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included Screw Finish | Black finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1593VTBU transparent?▾
Yes, it is molded in transparent blue general purpose ABS with a satin texture.
Is it weather resistant?▾
It is rated IP54.
What is included?▾
Top and bottom cover, 2 flat panels for front and rear and 2 black finish cover screws.
What torque should be used?▾
Cover screws 40 cN-m [57 ozf-in]; internal mounting screws 20-30 cN-m [29-42 ozf-in].
