Hammond 1593QPCB Prototype PC Board for 1593Q Handheld Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to fit 1593Q hand-held enclosures; no cutting required
- Single sided, 1 oz/ft2 copper; FR4 glass epoxy per datasheet
- 0.042 in holes on 0.1 in centers, 2-hole strip pattern
- Four 1/8 in mounting holes; four 4-40 screws provided
- Lead-free etched copper with anti-tarnish coating
- RoHS and REACH compliant

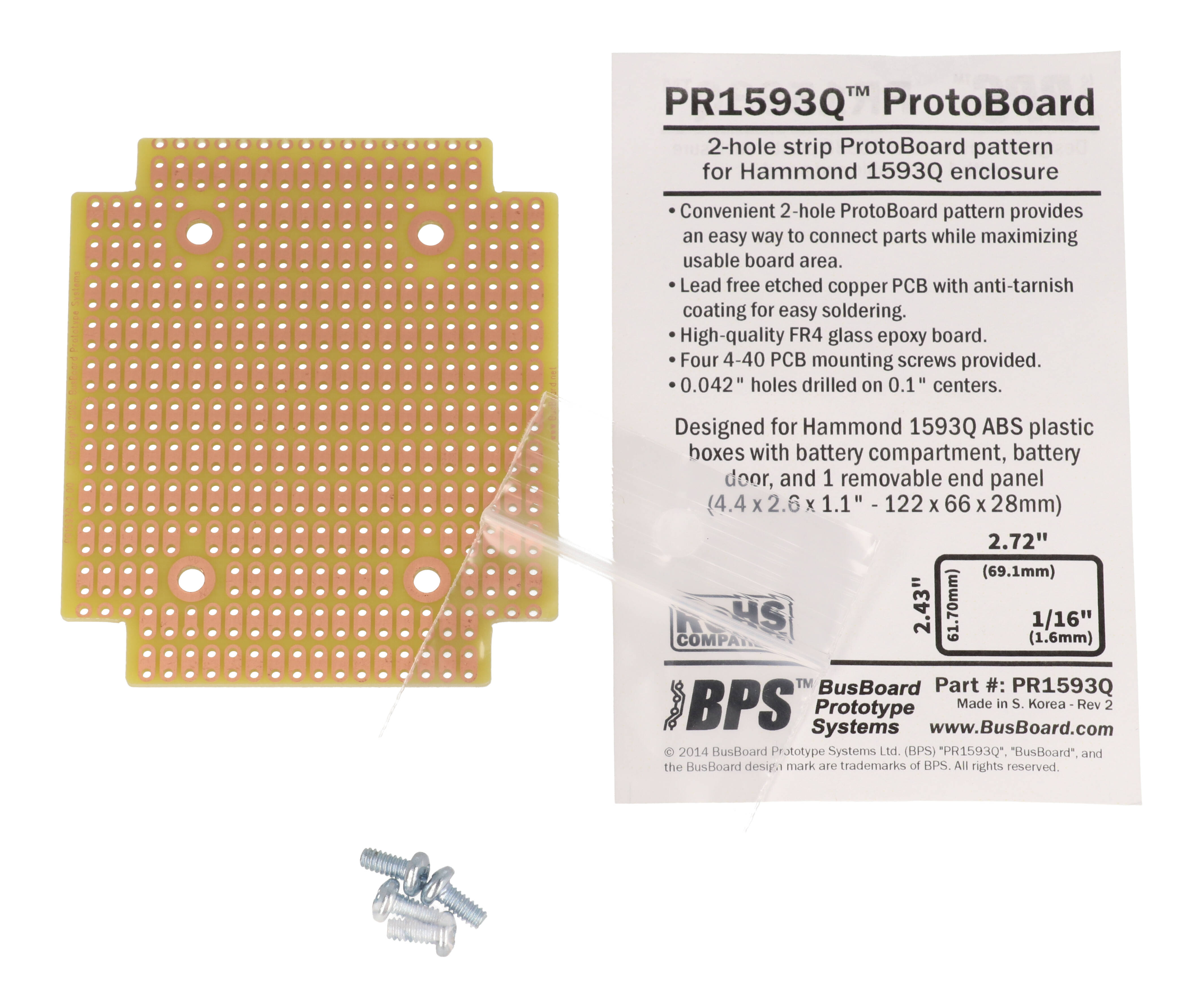

The 1593QPCB is a prototyping printed circuit board designed for the 1593Q hand-held enclosure with battery compartment. Built to drop into the 112 mm long 1593Q case, it saves design time: the mounting holes are already in the right places and no cutting is required.
The datasheet describes a high-quality FR4 glass epoxy board, single sided with 1 oz/ft2 copper, with 0.042 in holes drilled on 0.1 in centers in a 2-hole strip pattern. The lead-free etched copper carries an anti-tarnish coating for easy soldering.
The datasheet gives a PCB size of 2.4 x 2.7 in (62 x 69 mm); the part page lists 2.68 x 2.33 x 0.06 in (68 x 59 x 2 mm). Four 0.125 in (1/8 in) mounting holes are provided, along with four 4-40 PCB mounting screws.
The enclosure is sold separately: 1593QBK (black), 1593QGY (gray) or 1593QTBU (translucent blue). The 1593QPCB is RoHS and REACH compliant and ships shrink wrapped at 0.04 lbs (0.02 kg).
The 1593Q case it is made for is a hand-held electronic instrument enclosure with built-in PCB standoffs, one removable end panel, a long-life "three snap" battery door and a recessed top for a membrane overlay or keypad.
Ideal For
- Prototyping circuits for 1593Q hand-held enclosures
- Battery-powered hand-held device builds
- Through-hole prototype assemblies
Overview
| Type | Printed Circuit Board |
| Description | printed circuit board designed to fit 1593Q enclosures |
| Part Number | 1593QPCB |
| Short Description | 1593Q PROTO PCB |
| Compatible Enclosures | 1593QBK (black), 1593QGY (gray), 1593QTBU (translucent blue); enclosure sold separately |
Dimensions
| Size (L X W X H) | 2.68 in x 2.33 in x 0.06 in (68 mm x 59 mm x 2 mm) |
| PCB Size (Datasheet) | 2.4 x 2.7 in (62 x 69 mm) |
Identifiers
| UPC | 623980132273 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Copper | Single sided, 1oz/ft2 copper |
| Hole Pattern | 0.042" holes drilled on 0.1" centers, 2-hole pattern |
| Copper Finish | Lead free etched copper with anti-tarnish coating |
| Mounting Holes | Four 0.125" (1/8") mounting holes |
| Included Hardware | Four 4-40 PCB mounting screws |
| Material (Part Page) | ABS Plastic |
| Board Material (Datasheet) | FR4 glass epoxy |
Environmental & Protection
| IP Rating | N/A |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosure does the 1593QPCB fit?▾
It is designed to fit 1593Q enclosures: 1593QBK, 1593QGY and 1593QTBU, sold separately.
What size is the board?▾
The datasheet gives 2.4 x 2.7 in (62 x 69 mm); the part page lists 2.68 x 2.33 x 0.06 in (68 x 59 x 2 mm).
What hole spacing does it use?▾
0.042 in holes on 0.1 in centers, single sided with 1 oz/ft2 copper.
Are screws included?▾
Yes, four 4-40 PCB mounting screws are provided.
