Hammond 1593PGY Light Gray Handheld ABS Case with Battery Door, 92mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Integrated battery compartment with long-life "three snap" battery door
- Size 3.6 x 2.6 x 1.1 in (91 x 66 x 28 mm), light gray ABS with satin texture
- Accepts PC boards up to 48.89 x 59.73 mm
- Recessed top inlay (80.00 x 55.00 mm) for a membrane display or keypad
- One removable end panel; flat and contoured replacement panels available
- Nickel finish self-tapping cover screws included (4 pcs)
- UL94 HB flame rating; RoHS and REACH compliant
The 1593PGY is a light gray, general purpose ABS hand-held instrument enclosure from the 1593 Series, shaped for a comfortable fit in the user's hand and intended for mounting printed circuit boards. It suits design engineers and OEMs building portable meters, remotes and small battery-powered devices.
This 1593P size has an integrated battery compartment closed by a long-life "three snap" battery door, plus one removable end panel. The top is recessed for a membrane display or keypad, with an inlay area of 80.00 x 55.00 mm and 1.00 mm deep. The case is molded from GP ABS rated UL94 HB with a satin texture, and gray versions ship with nickel finish self-tapping screws.
Listed size is 3.6 x 2.6 x 1.1 in (91 x 66 x 28 mm); the series table gives 92 x 67 x 28 mm. Inside, the drawing shows 49.86 mm length, 60.89 mm width and 21.80 mm height, and the maximum recommended PC board is 48.89 x 59.73 mm. Internal bosses accept #4 self-tapping screws.

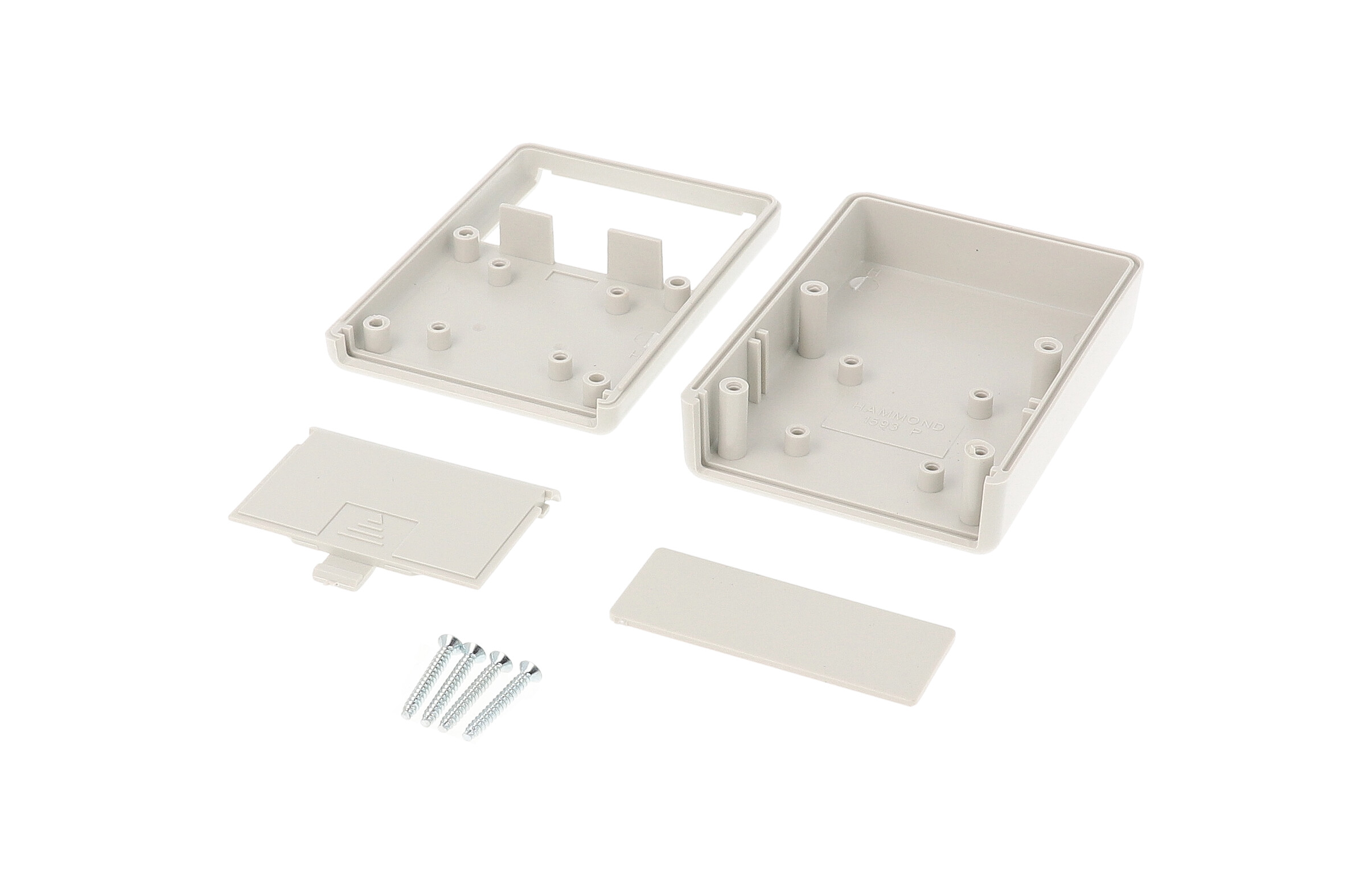

- Included: top and bottom cover, 1 plastic flat panel for the front, battery door and 4 cover screws
- Recommended torque: cover screws 40 cN-m, internal mounting screws 20-30 cN-m
- Shipping weight 0.13 lbs (0.06 kg), shrink wrapped
The 1593PGY is RoHS and REACH compliant. Matching accessories include 1593PIR10 infrared and 1593PAL10 aluminum end panels, the 1593PPCB prototype board and AAA, AA or 9V battery holders.
Ideal For
- Hand-held electronic instruments
- Battery-powered test and measurement devices
- Membrane keypad or display controllers
- Printed circuit board prototypes and small production runs
Overview
| Type | General purpose |
| Color | Light Gray |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593PGY |
| Short Description | ABS HAND HELD 65X90MM |
| Color Variants (Black / Gray / Trans Blue) | 1593PBK / 1593PGY / 1593PTBU |
Dimensions
| Inside Width | 60.89 mm [2.40 in] |
| Inside Height | 21.80 mm [.86 in] |
| Inside Length | 49.86 mm [1.96 in] |
| Top Inlay Depth | 1.00 mm [.04 in] |
| Top Inlay Width | 55.00 mm [2.17 in] |
| Size (L X W X H) | 3.6 in x 2.6 in x 1.1 in (91 mm x 66 mm x 28 mm) |
| Top Inlay Length | 80.00 mm [3.15 in] |
| Depth (Series Table) | 1.10 in (28 mm) |
| Width (Series Table) | 2.64 in (67 mm) |
| Length (Series Table) | 3.62 in (92 mm) |
| Max. P.C. Board Width | 59.73 mm |
| Max. P.C. Board Length | 48.89 mm |
| End Panel Size (Drawing) | 60.00 x 22.70 x 1.70 mm [2.36 x .89 x .07 in] |
| Overall Dimensions (Drawing) | 92.00 x 66.50 x 27.90 mm [3.62 x 2.62 x 1.10 in] |
Accessories
| Battery Holders | BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA), BS61 (1-9V) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593PL1BK-10 (black), 1593PL1GY-10 (grey), 1593PL1TBU-10 (translucent blue) |
| Replacement Cover Screws | #4 x 3/4" self-tapping: 1593QS100 (silver) / 1593QS100BK (black), 100-pack |
| Standard Contoured Panel | 1593PL2BK-10 (black), 1593PL2GY-10 (grey), 1593PL2TBU-10 (translucent blue) |
| Aluminum End Panels (10-pack) | 1593PAL10 |
| Infrared End Panels (10-pack) | 1593PIR10 |
| Prototype PC Board (Enclosure Sold Separately) | 1593PPCB |
Identifiers
| UPC | 623980561387 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:25.04.2023 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.13 lbs (0.06 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | Yes |
| Included Items | Top and bottom cover, 1 plastic flat panel for front, battery door and 4 cover screws |
| Removable Panels | 1 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Battery Door Design | "Three snap" battery door designed for long life |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included Screw Finish | Nickel finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What comes with the 1593PGY?▾
The purchased assembly includes the top and bottom cover, 1 plastic flat panel for the front, the battery door and 4 cover screws. Gray enclosures include nickel finish screws.
What batteries can I fit?▾
The 1593P drawing lists compatible battery holders BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA) and BS61 (1-9V). Holders are sold separately.
What is the largest circuit board that fits?▾
The maximum recommended PC board size is 48.89 mm x 59.73 mm. A matching prototype board, 1593PPCB, is available separately.
Is the 1593PGY IP rated?▾
The series states that versions without a battery door are designed to meet IP54. The 1593PGY has a battery door, and no IP rating is listed for this part.
Which replacement screws does it use?▾
Cover screws are #4 x 3/4" self-tapping: 1593QS100 (silver) or 1593QS100BK (black), 100-pack. PC board screws are #4 x 1/4" self-tapping, 1593ATS50 or 1593ATS100.
