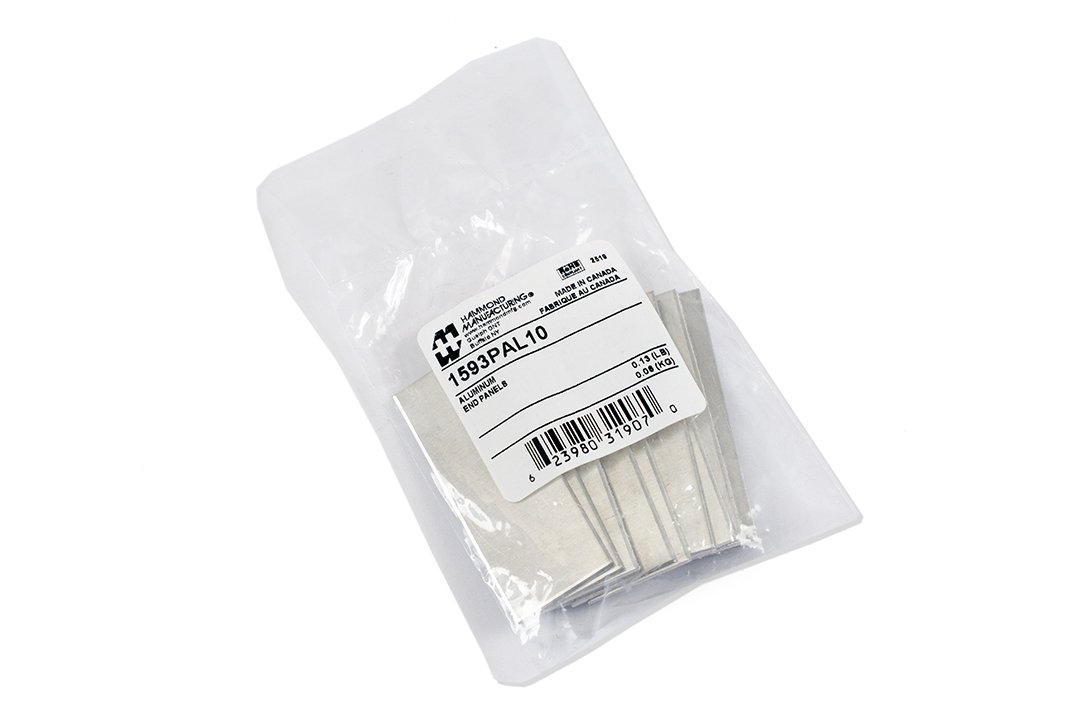

Hammond 1593PAL10 Aluminum End Panels for 1593K/P/L/Q/X/Y, 10-Pack

The 1593PAL10 is a 10-pack of aluminum end panels shared across several 1593 handheld enclosure sizes. The series accessory table lists it as the aluminum panel for enclosures beginning with 1593K, 1593P, 1593L, 1593Q, 1593Y and 1593X, so one part number covers many builds and can be stocked as a common spare across those sizes of the handheld family.

According to the series spec sheet, the aluminum end panels are supplied with a plastic protective covering. The part record gives the colour as Natural Aluminum, the material as ABS Plastic and the long description as enclosure - end panel.

• Fits: 1593K, 1593P, 1593L, 1593Q, 1593Y, 1593X
• Pack quantity: 10 panels
• Shipping weight: 0.13 lbs (0.06 kg)
• RoHS and REACH compliant

On the matching enclosures the same size family also uses 1593PIR10 infrared panels, 1593QS100 or 1593QS100BK assembly screws and 1593ATS50 PC board mounting screws. The PC boards listed for these rows are 1593KPCB, 1593PPCB, 1593LPCB and 1593QPCB. The 1593PAL10 part page does not give a panel size; on the 1593K, 1593L and 1593P drawings the end panel is shown at 60.00 x 22.70 x 1.70 mm.
