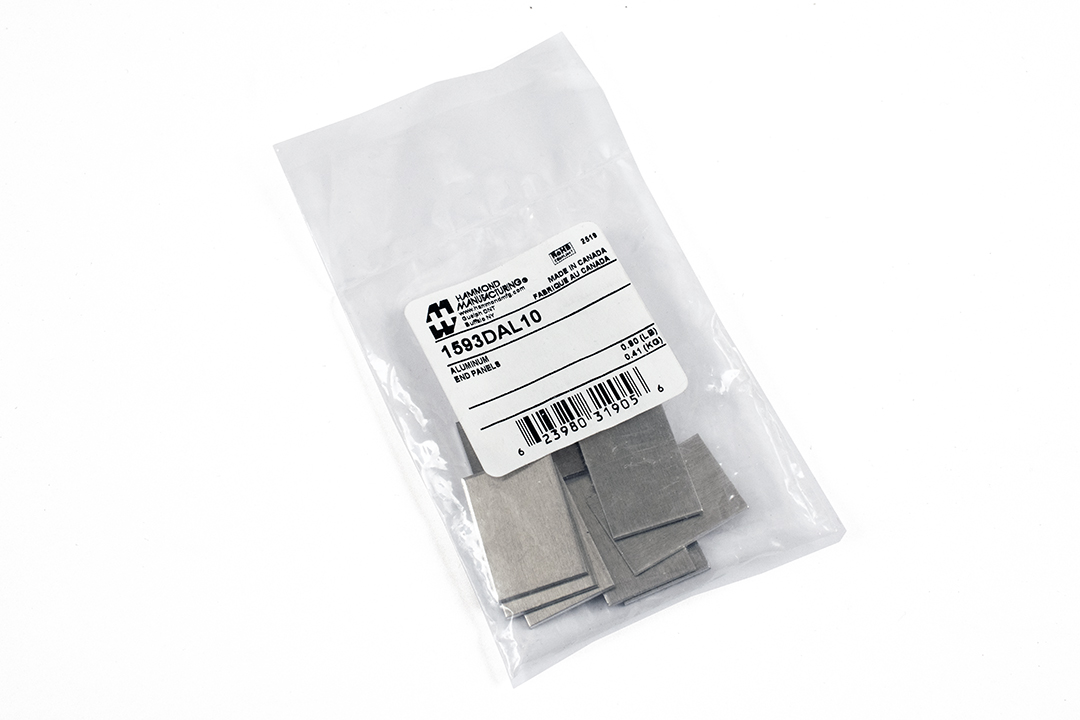

Hammond 1593DAL10 Natural Aluminum End Panel 10-Pack, Slim 114mm Case

The 1593DAL10 is a 10-pack of end panels for the 1593D size of the 1593 Series hand held instrument enclosures, the slim 114 mm long case. In the series compatibility table it is the aluminum panel 10-pack for enclosures beginning with 1593D, offering an alternative to the standard flat and contoured plastic end panels.

The part page lists the colour as natural aluminum and the material as ABS plastic. Shipping weight for the pack is 0.05 lbs (0.02 kg).

The 1593D enclosures (1593DBK, 1593DGY and 1593DTBU) use two removable end panels. The compatibility table for this size also lists 1593QS100 silver and 1593QS100BK black assembly screws (100-packs), 1593ATS50 PC board mounting screws (50-pack) and 1593DIR10 infrared panels (10-pack).

The 1593D case itself is listed at 114 mm x 36 mm x 25 mm and, like sizes K, L, N and X, comes with flat and contoured panels to match the profile of the case. It is molded from satin-textured general purpose ABS with a recessed top for a membrane display or pad, and is designed to meet IP54. The listed 1593QS100 and 1593QS100BK assembly screws are self-tapping oval head #4 x 0.75" (19.1 mm), and 1593ATS50 is a #4 x 1/4" pan head PC board screw, also offered as 1593ATS100 in packs of 100.

The 1593DAL10 is RoHS and REACH compliant and carries UPC 623980319056 and UNSPSC 39121301. Enclosures are sold separately.
