Hammond 1593LBK 92mm Black Handheld ABS Enclosure, Two End Panels
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 92 x 66 x 28 mm black satin ABS handheld enclosure
- Holds a PCB up to 82.66 x 56.61 mm
- IP54 rated; UL94 HB flame rating
- Two removable end panels with flat and contoured options included
- Four black finish cover screws included
- Recessed 80 x 55 mm top for membrane overlay or keypad
- Matching 1593LPCB prototyping board available

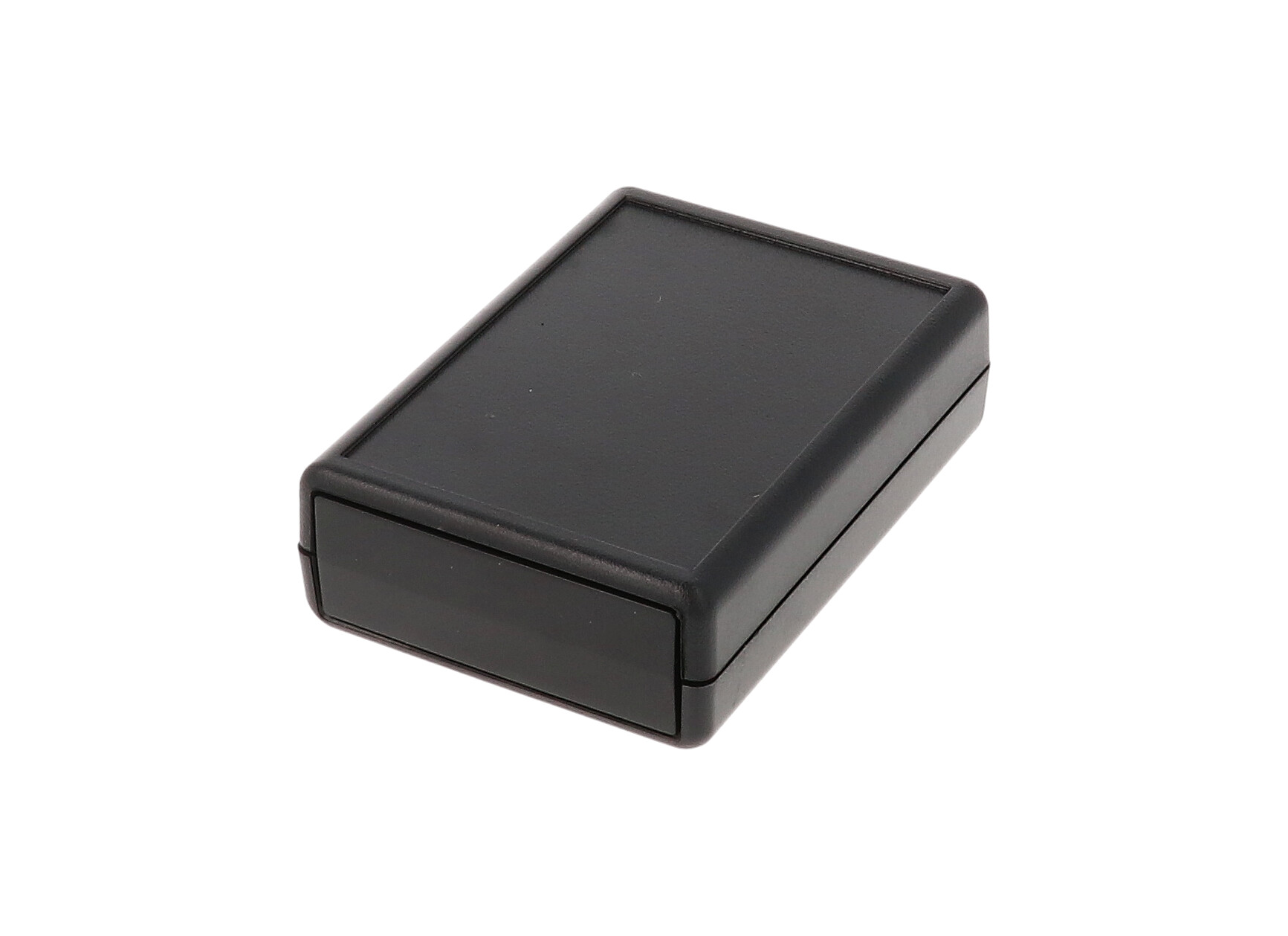

The 1593LBK is the black, mid-length enclosure in the 1593 handheld family: a 92 mm long ABS case with two removable end panels, built for handheld instruments that need more board area than the compact K size. It is molded in general purpose black ABS with a satin texture, rated UL94 HB and designed to meet IP54.
The series table lists 92 x 66 x 28 mm (3.62 x 2.60 x 1.10 in), the part page gives 3.6 x 2.6 x 1.1 in (91 x 66 x 28 mm) and the drawing shows 92.22 x 66.22 x 28.00 mm overall. Inside there is 84.37 mm of length, 59.39 mm of width and 22.00 mm of height. The maximum recommended PCB is 82.66 x 56.61 mm, secured with #4 self-tapping screws.

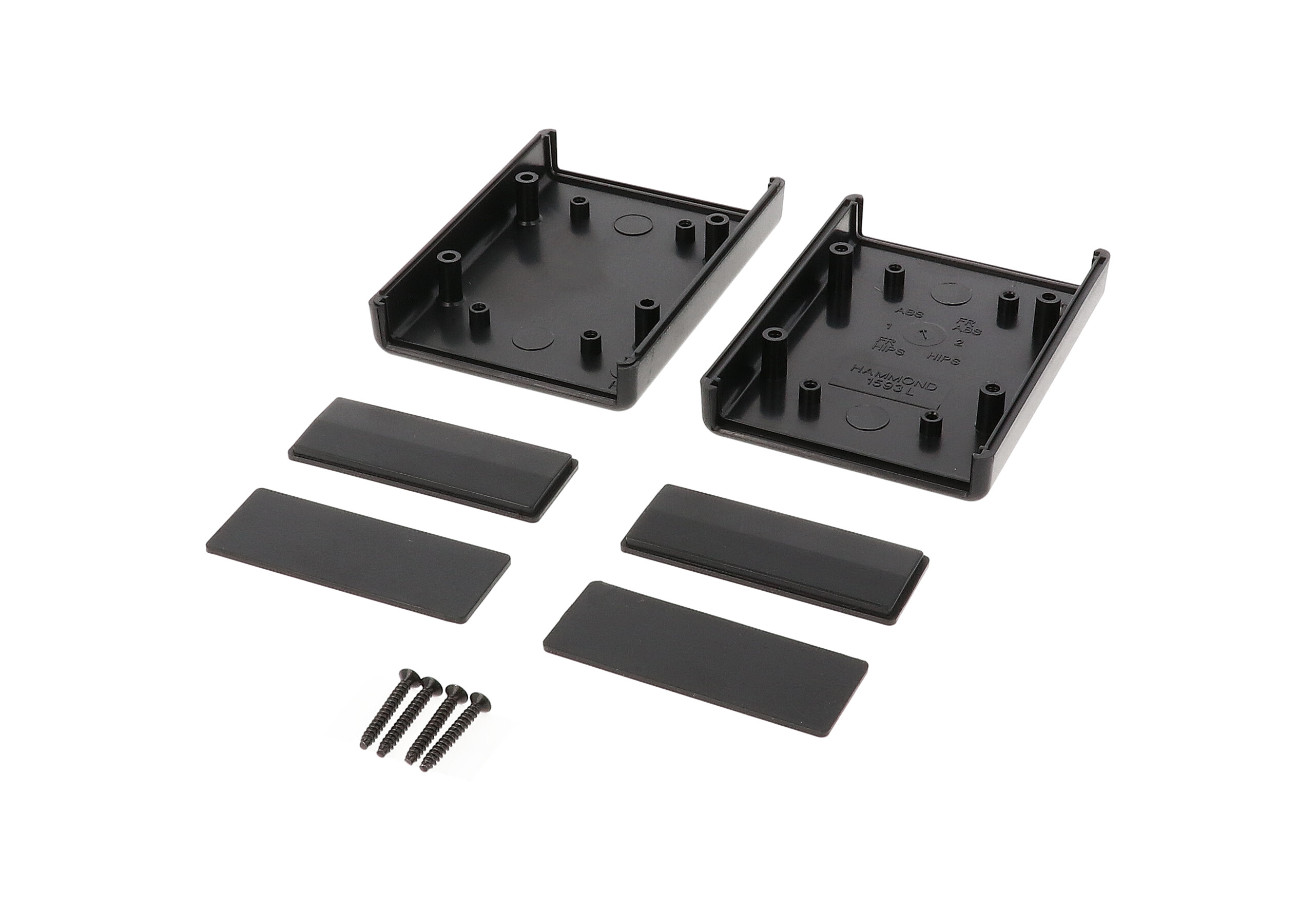

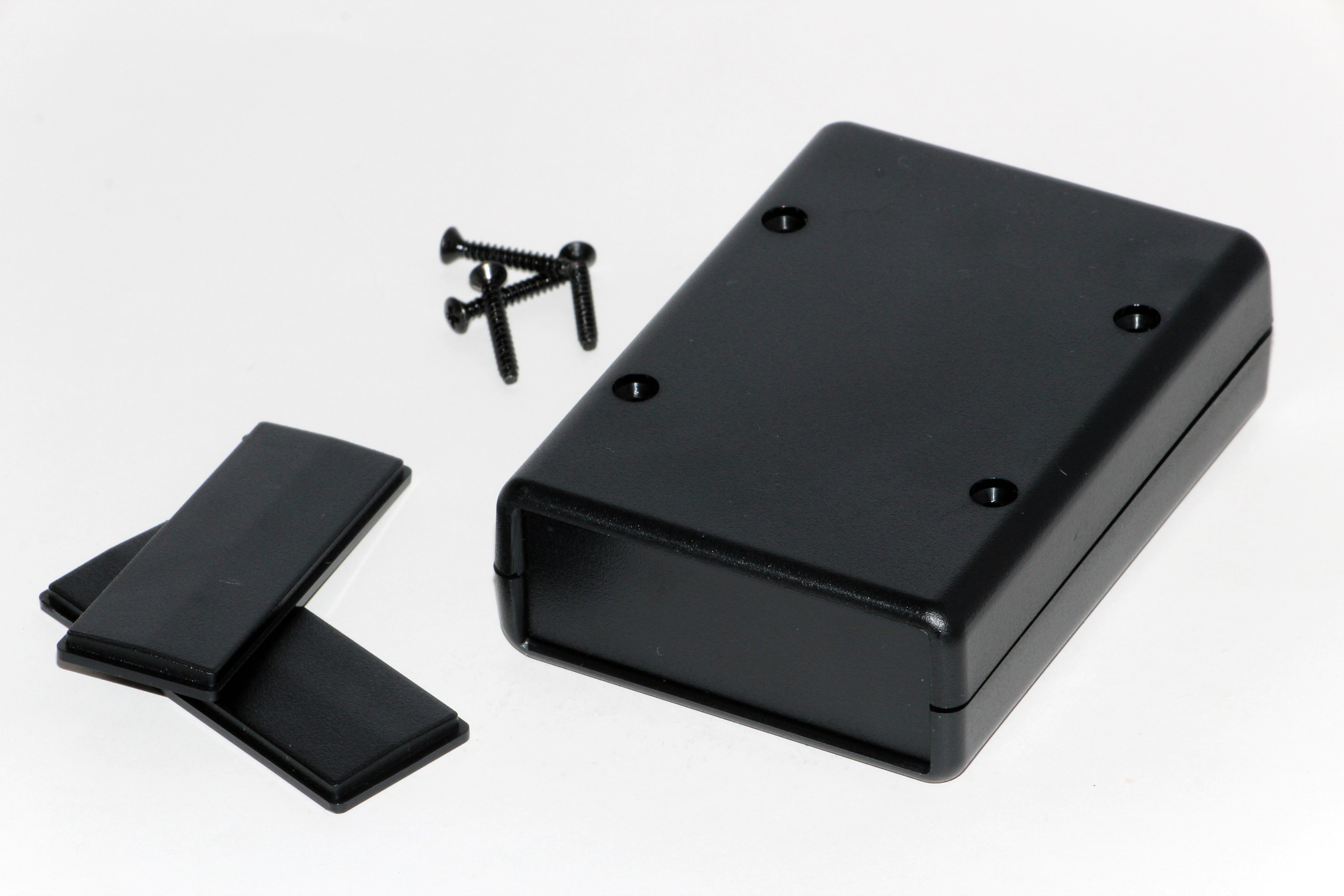

The 1593L assembly uses four cover screws: the package holds the top and bottom cover, four plastic end panels (two flat, two contoured) and four black finish cover screws. The top recess is 80.00 x 55.00 mm and 1.00 mm deep, ready for a membrane display or keypad.
End panels are shared with the 1593P and 1593K sizes, so 1593PIR10 infrared and 1593PAL10 aluminum packs fit, and a 1593LPCB prototyping board is listed for this size. The 1593LBK is RoHS and REACH compliant, shrink wrapped, and ships at 0.13 lbs (0.06 kg).
Ideal For
- Handheld electronic instruments
- PCB assemblies up to 82.66 x 56.61 mm
- Instruments with a membrane display or keypad
- Prototyping with the 1593LPCB board
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Battery Door | No |
| Enclosure Size | 1593L |
| Long Description | enclosure - plastic |
| Removable Panels | 2 |
| Short Description | 92 X 66 X 28 HAND HELD |
| Included In Assembly | Top and bottom cover, 4 plastic panels for front and rear (2 types - flat and contoured) and 4 cover screws |
Dimensions
| Inside Width | 59.39 mm [2.34 in] |
| Inside Height | 22.00 mm [.87 in] |
| Inside Length | 84.37 mm [3.32 in] |
| End Panel Size | 60.00 x 22.70 x 1.70 mm [2.36 x .89 x .07 in] |
| Top Inlay Depth | 1.00 mm [.04 in] |
| Top Inlay Width | 55.00 mm [2.17 in] |
| Top Inlay Length | 80.00 mm [3.15 in] |
| Depth (Series Table) | 1.10 in (28 mm) |
| Width (Series Table) | 2.60 in (66 mm) |
| Length (Series Table) | 3.62 in (92 mm) |
| Overall Width (Drawing) | 66.22 mm [2.61 in] |
| Overall Height (Drawing) | 28.00 mm [1.10 in] |
| Overall Length (Drawing) | 92.22 mm [3.63 in] |
| Size L X W X H (Part Page) | 3.6 in x 2.6 in x 1.1 in (91 mm x 66 mm x 28 mm) |
Accessories
| Solid Models | .stp or .x_t |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Aluminum End Panels (10-pack) | 1593PAL10 |
| Infrared End Panels (10-pack) | 1593PIR10 |
| Flat End Panel (Single) – Black / Grey / Translucent Blue | 1593PL1BK-10 / 1593PL1GY-10 / 1593PL1TBU-10 |
| Contoured End Panel (Single) – Black / Grey / Translucent Blue | 1593PL2BK-10 / 1593PL2GY-10 / 1593PL2TBU-10 |
Identifiers
| UPC | 623980808611 |
| UNSPSC | 39121301 |
| Part Number | 1593LBK |
PCB Mounting
| P.C. Board Screws | #4 x 1/4" self-tapping – 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| PCB Mounting Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 82.66 mm |
| Max. P.C. Board Length | 56.61 mm |
| Max. Recommended PCB Size (Drawing) | 82.66 x 56.61 mm [3.25 x 2.23 in] (PCB not supplied with enclosure) |
| Matching PC Board (Enclosure Sold Separately) | 1593LPCB |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.13 lbs (0.06 kg) |
Construction & Finish
| Color | Black |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose ABS, UL94-HB) |
| Recessed Top | For membrane display or pad |
| Surface Texture | Satin |
| Included Screw Finish | Black finish screws |
| Cover Screws (Replacement) | #4 x 3/4" (19.1 mm) self-tapping oval head – 1593QS100 (silver, 100-pack), 1593QS100BK (black, 100-pack) |
| Recommended Torque – Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque – Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the maximum PCB size for the 1593LBK?▾
82.66 x 56.61 mm [3.25 x 2.23 in]; the PCB is not supplied.
How many cover screws come with it?▾
Four cover screws, along with the top and bottom cover and 4 plastic end panels.
What are the inside dimensions?▾
84.37 mm long, 59.39 mm wide and 22.00 mm high per the drawing.
Which infrared panels fit size L?▾
1593PIR10, a 10-pack listed for enclosures beginning with 1593L.
Is the 1593LBK IP rated?▾
Yes, IP54.
