Hammond 1593QTBU Transparent Blue 112mm Handheld Case with Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Transparent blue satin-texture ABS shell
- 112 x 66 x 28 mm (4.4 x 2.6 x 1.1 in) hand-held form
- Integrated battery compartment, "three snap" door
- Accepts PC boards up to 59.14 x 68.12 mm
- Recessed top for membrane overlay or keypad
- Black finish cover screws included (4 pcs)
- UL94 HB; RoHS and REACH compliant

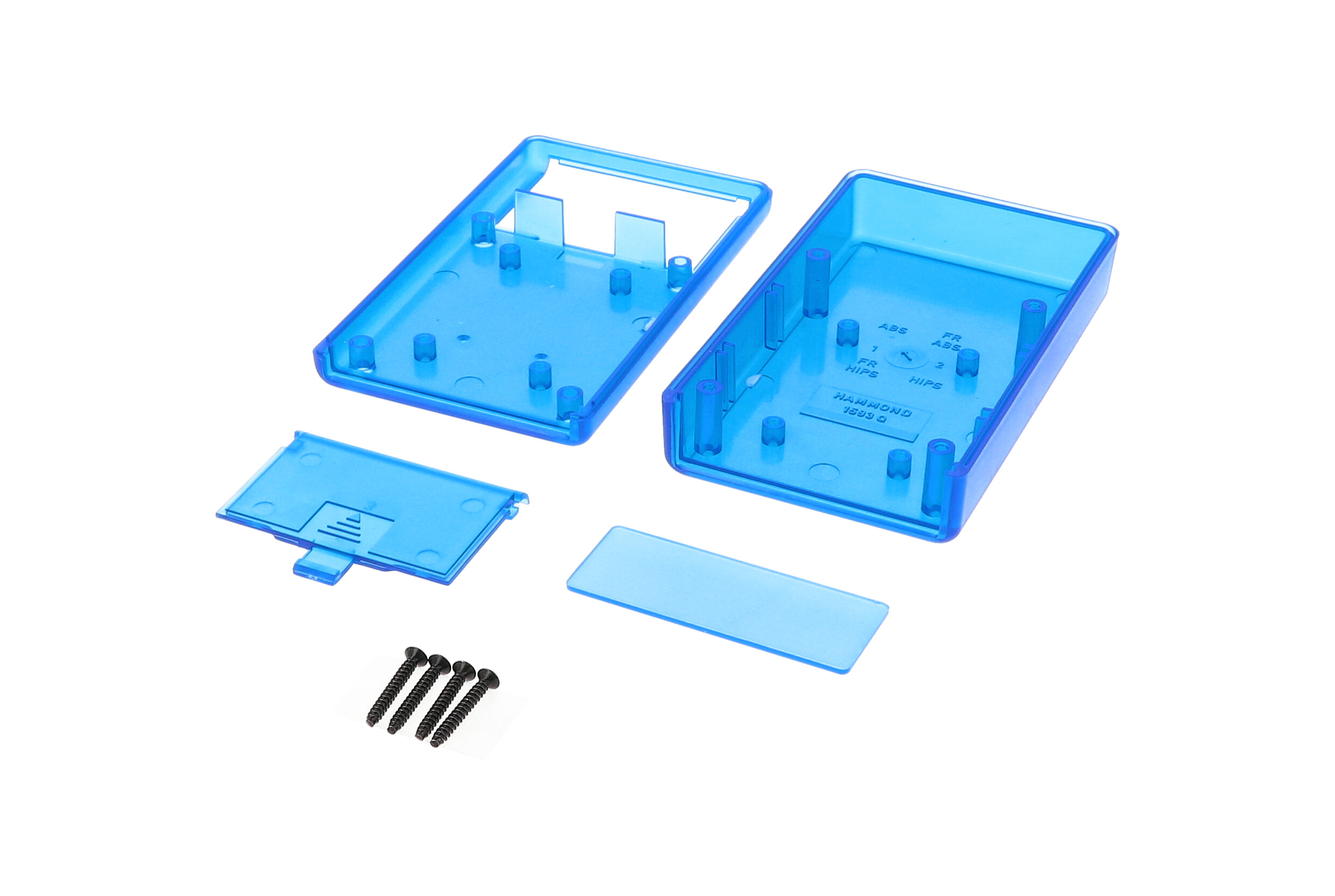

The 1593QTBU is the transparent blue version of the 112 mm long 1593Q hand-held instrument enclosure. The translucent general purpose ABS shell, with a satin texture, suits products where status LEDs or the circuit itself should be visible, such as demonstrators, educational kits and portable prototypes.
An integrated battery compartment with a long-life "three snap" door keeps cells accessible, while one removable end panel provides an I/O face. The top is recessed (100.00 x 55.00 mm inlay) for a membrane display or pad. Transparent blue enclosures are supplied with black finish self-tapping screws.
The part page lists 4.4 x 2.6 x 1.1 in (112 x 66 x 28 mm); the series table gives 112 x 67 x 28 mm. The drawing shows 69.93 x 60.79 mm inside with 21.70 mm inside height, and the maximum PC board is 59.14 x 68.12 mm. The 1593QPCB prototype board is designed for this size.
Supplied shrink wrapped at 0.15 lbs (0.07 kg) with top and bottom cover, 1 flat front panel, battery door and 4 cover screws. UL94 HB, RoHS and REACH compliant.
Ideal For
- Demonstration and educational electronics
- Portable devices with visible status LEDs
- Battery-powered hand-held prototypes
Overview
| Type | General purpose |
| Color | Trans. Blue |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593QTBU |
| Short Description | 1593Q TRANSPARENT BLUE |
| Color Variants (Black / Gray / Trans Blue) | 1593QBK / 1593QGY / 1593QTBU |
Dimensions
| Inside Width | 60.79 mm [2.39 in] |
| Inside Height | 21.70 mm [.85 in] |
| Inside Length | 69.93 mm [2.75 in] |
| Top Inlay Width | 55.00 mm [2.17 in] |
| Size (L X W X H) | 4.4 in x 2.6 in x 1.1 in (112 mm x 66 mm x 28 mm) |
| Top Inlay Length | 100.00 mm [3.94 in] |
| Depth (Series Table) | 1.10 in (28 mm) |
| Width (Series Table) | 2.64 in (67 mm) |
| Length (Series Table) | 4.41 in (112 mm) |
| Max. P.C. Board Width | 68.12 mm |
| Max. P.C. Board Length | 59.14 mm |
| End Panel Size (Drawing) | 60.00 x 22.80 x 1.70 mm [2.36 x .90 x .07 in] |
| Overall Dimensions (Drawing) | 112.00 x 66.50 x 28.00 mm [4.41 x 2.62 x 1.10 in] |
Accessories
| Battery Holders | BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA), BS61 (1-9V) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593PL1BK-10 (black), 1593PL1GY-10 (grey), 1593PL1TBU-10 (translucent blue) |
| Replacement Cover Screws | #4 x 3/4" self-tapping: 1593QS100 (silver) / 1593QS100BK (black), 100-pack |
| Standard Contoured Panel | 1593PL2BK-10 (black), 1593PL2GY-10 (grey), 1593PL2TBU-10 (translucent blue) |
| Aluminum End Panels (10-pack) | 1593PAL10 |
| Infrared End Panels (10-pack) | 1593PIR10 |
| Prototype PC Board (Enclosure Sold Separately) | 1593QPCB |
Identifiers
| UPC | 623980809748 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:18.08.2026 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | Yes |
| Included Items | Top and bottom cover, 1 plastic flat panel for front, battery door and 4 cover screws |
| Removable Panels | 1 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Battery Door Design | "Three snap" battery door designed for long life |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included Screw Finish | Black finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1593QTBU see-through?▾
It is molded in transparent blue general purpose ABS plastic with a satin texture.
What screws are included?▾
4 cover screws with black finish, which is standard for transparent blue enclosures in this series.
Which battery holders are compatible?▾
BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA) and BS61 (1-9V) are listed on the 1593Q drawing.
Is there a matching translucent end panel?▾
Yes, flat 1593PL1TBU-10 and contoured 1593PL2TBU-10 translucent blue panels are listed as accessories.
Is it IP rated?▾
No IP rating is listed for this part. The series notes that only versions without a battery door are designed to meet IP54.
