Hammond 1593QBK 112mm Black Handheld ABS Case with Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 112 x 66 x 28 mm (4.4 x 2.6 x 1.1 in) black ABS hand-held case
- Integrated battery compartment with "three snap" door
- Max PC board 59.14 x 68.12 mm; accepts #4 self-tapping screws
- Recessed top inlay 100.00 x 55.00 mm for membrane display or pad
- One removable end panel; flat and contoured replacements available
- Black finish cover screws included (4 pcs)
- UL94 HB; RoHS and REACH compliant

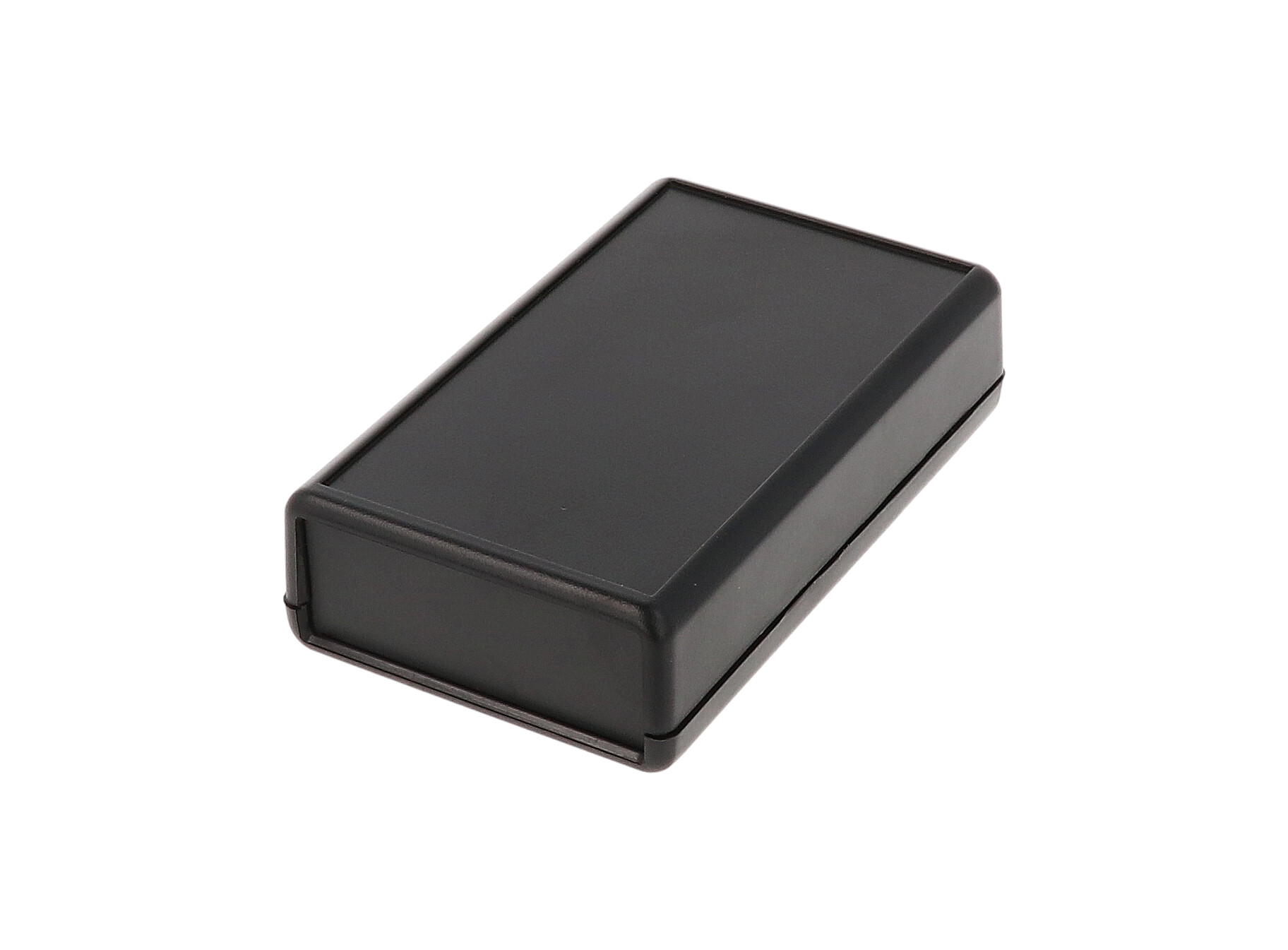

The 1593QBK is a black ABS hand-held instrument enclosure in the 1593 Series, the longer 112 mm companion to the 1593P. It is built for printed circuit board based devices that are carried in the hand: meters, remotes, data loggers and control pendants.
Its integrated battery compartment closes with a "three snap" battery door designed for long life, and a single removable end panel gives access for cables or connectors. The recessed top has a 100.00 x 55.00 mm inlay for a membrane display or keypad. The shell is general purpose ABS rated UL94 HB with a satin texture; black enclosures include black finish screws.
Listed dimensions are 4.4 x 2.6 x 1.1 in (112 x 66 x 28 mm); the series table lists 112 x 67 x 28 mm. Inside, the drawing gives 69.93 mm length, 60.79 mm width and 21.70 mm height, and the maximum PC board is 59.14 x 68.12 mm, mounted with #4 self-tapping screws.

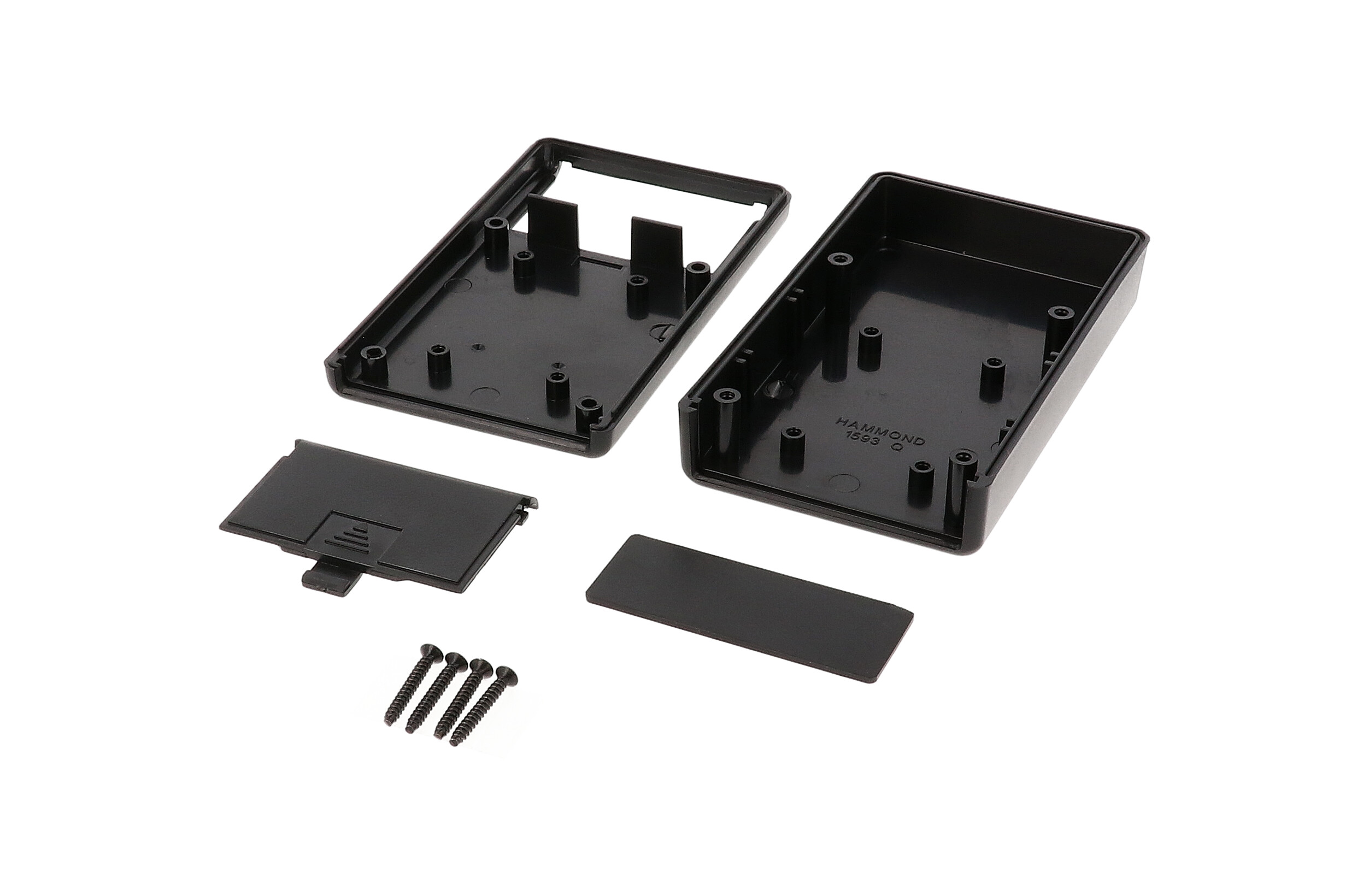

The 1593QBK ships shrink wrapped (0.15 lbs / 0.07 kg) with top and bottom cover, 1 plastic flat front panel, battery door and 4 cover screws. It is RoHS and REACH compliant. Accessories include the 1593QPCB prototype board, 1593PIR10 infrared and 1593PAL10 aluminum end panels and AAA, AA or 9V battery holders.
Ideal For
- Hand-held meters and data loggers
- Battery-powered remote controls
- Keypad or membrane display pendants
- PCB-based portable instruments
Overview
| Type | General purpose |
| Color | Black |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593QBK |
| Short Description | ABS HAND HELD 65X110MM |
| Color Variants (Black / Gray / Trans Blue) | 1593QBK / 1593QGY / 1593QTBU |
Dimensions
| Inside Width | 60.79 mm [2.39 in] |
| Inside Height | 21.70 mm [.85 in] |
| Inside Length | 69.93 mm [2.75 in] |
| Top Inlay Width | 55.00 mm [2.17 in] |
| Size (L X W X H) | 4.4 in x 2.6 in x 1.1 in (112 mm x 66 mm x 28 mm) |
| Top Inlay Length | 100.00 mm [3.94 in] |
| Depth (Series Table) | 1.10 in (28 mm) |
| Width (Series Table) | 2.64 in (67 mm) |
| Length (Series Table) | 4.41 in (112 mm) |
| Max. P.C. Board Width | 68.12 mm |
| Max. P.C. Board Length | 59.14 mm |
| End Panel Size (Drawing) | 60.00 x 22.80 x 1.70 mm [2.36 x .90 x .07 in] |
| Overall Dimensions (Drawing) | 112.00 x 66.50 x 28.00 mm [4.41 x 2.62 x 1.10 in] |
Accessories
| Battery Holders | BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA), BS61 (1-9V) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593PL1BK-10 (black), 1593PL1GY-10 (grey), 1593PL1TBU-10 (translucent blue) |
| Replacement Cover Screws | #4 x 3/4" self-tapping: 1593QS100 (silver) / 1593QS100BK (black), 100-pack |
| Standard Contoured Panel | 1593PL2BK-10 (black), 1593PL2GY-10 (grey), 1593PL2TBU-10 (translucent blue) |
| Aluminum End Panels (10-pack) | 1593PAL10 |
| Infrared End Panels (10-pack) | 1593PIR10 |
| Prototype PC Board (Enclosure Sold Separately) | 1593QPCB |
Identifiers
| UPC | 623980561394 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:18.08.2026 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.15 lbs (0.07 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | Yes |
| Included Items | Top and bottom cover, 1 plastic flat panel for front, battery door and 4 cover screws |
| Removable Panels | 1 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Battery Door Design | "Three snap" battery door designed for long life |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included Screw Finish | Black finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1593QBK differ from the 1593PBK?▾
The 1593Q is 112 mm long versus 92 mm for the 1593P; both are 28 mm deep with a battery door and one removable panel. The 1593QBK accepts a larger PC board, up to 59.14 x 68.12 mm.
Which battery holders fit?▾
The 1593Q drawing lists BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA) and BS61 (1-9V) battery holders, sold separately.
Is a PC board available for it?▾
Yes, 1593QPCB is a prototype PC board designed to fit 1593Q enclosures; it is sold separately from the enclosure.
What torque should I use on the screws?▾
Cover screws 40 cN-m [57 ozf-in]; internal mounting screws 20-30 cN-m [29-42 ozf-in].
What replacement screws does it take?▾
#4 x 3/4" self-tapping cover screws, 1593QS100 (silver) or 1593QS100BK (black) in 100-packs, and #4 x 1/4" PC board screws 1593ATS50 or 1593ATS100.
