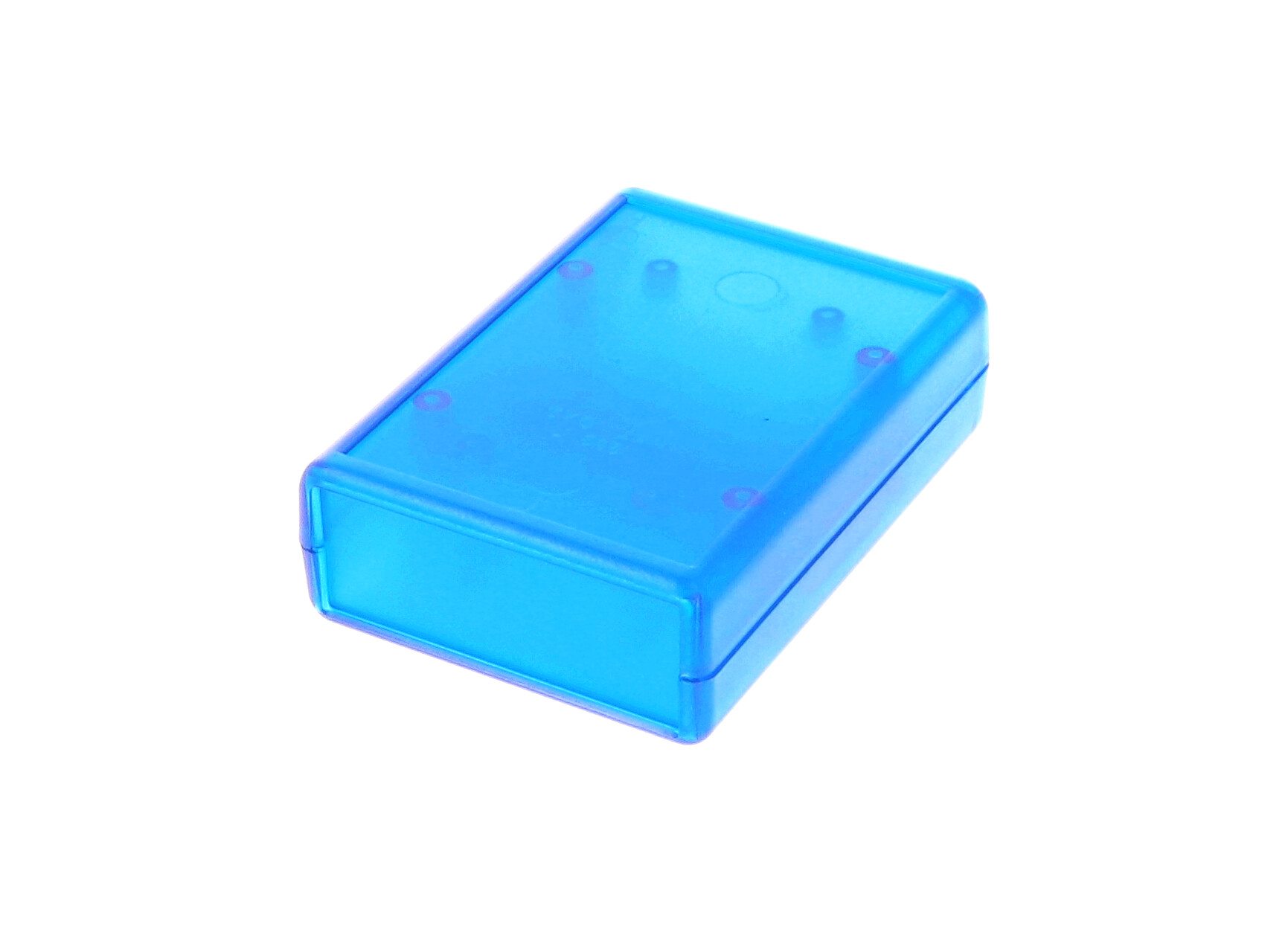

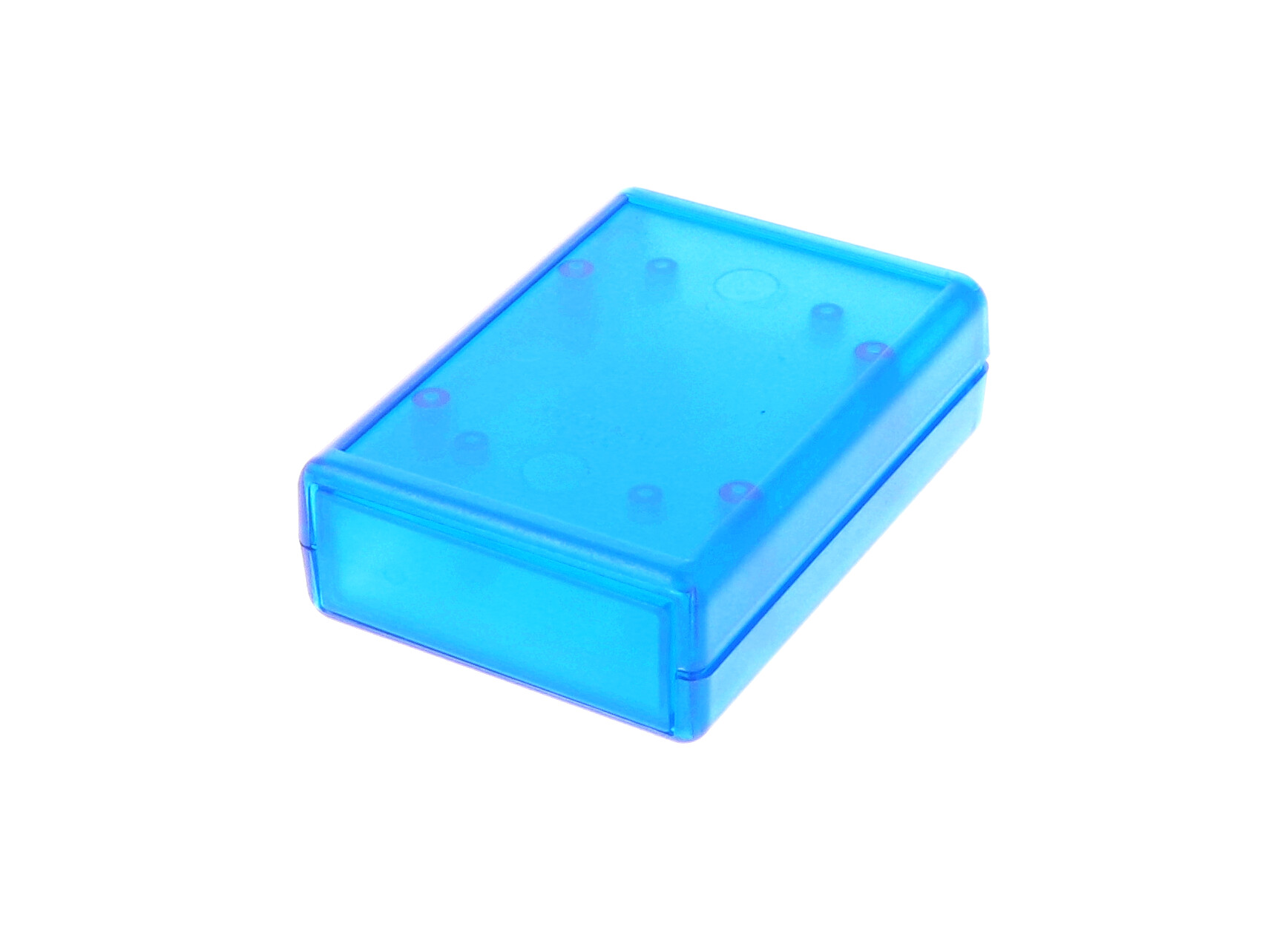

Hammond 1593LTBU Transparent Blue Handheld Enclosure, 92 x 66 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Transparent blue satin ABS, 92 x 66 x 28 mm
- PCB space up to 82.66 x 56.61 mm
- IP54 and UL94 HB rated
- Four end panels (flat and contoured) and 4 black finish cover screws
- Shipping weight 0.14 lbs (0.06 kg)
- Fits 1593PIR10 infrared and 1593PAL10 aluminum panels
The 1593LTBU brings the 92 mm long 1593L handheld enclosure in transparent blue ABS. It has two removable end panels, a recessed top for a membrane display or pad, and space for a mid-size PCB, giving handheld instruments a see-through coloured shell.
- Size: 92 x 66 x 28 mm (3.62 x 2.60 x 1.10 in) per the series table; 3.6 x 2.6 x 1.1 in (91 x 66 x 28 mm) per the part page
- Inside: 84.37 x 59.39 x 22.00 mm
- Maximum recommended PCB: 82.66 x 56.61 mm
- Top inlay: 80.00 x 55.00 mm, 1.00 mm deep

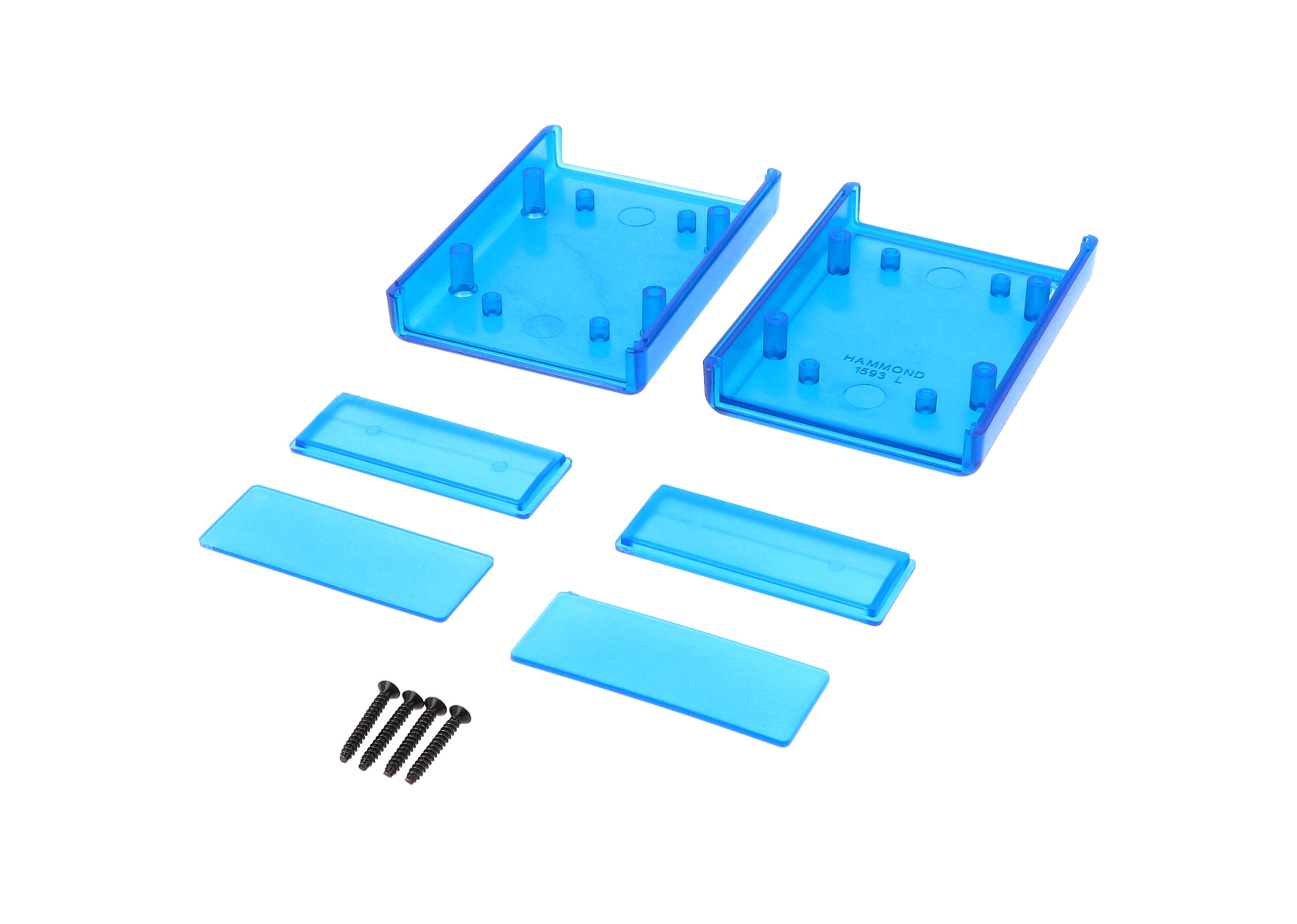

The general purpose ABS has a satin texture and a UL94 HB flame rating, and the case is designed to meet IP54. As a transparent blue enclosure, the 1593LTBU includes black finish screws. The assembly consists of the top and bottom cover, four plastic end panels (two flat, two contoured) and four cover screws, with internal bosses that accept #4 self-tapping screws.
The 1593LTBU is RoHS and REACH compliant, shrink wrapped, and has a shipping weight of 0.14 lbs (0.06 kg). It shares the 1593PIR10 infrared and 1593PAL10 aluminum end panel packs with sizes K and P, and the factory can mill, drill or print the enclosure on quote.
Ideal For
- Handheld electronic instruments
- Transparent-shell PCB enclosures
- Membrane keypad devices
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Battery Door | No |
| Enclosure Size | 1593L |
| Long Description | enclosure - plastic |
| Removable Panels | 2 |
| Short Description | 1593L TRANSPARENT BLUE |
| Included In Assembly | Top and bottom cover, 4 plastic panels for front and rear (2 types - flat and contoured) and 4 cover screws |
Dimensions
| Inside Width | 59.39 mm [2.34 in] |
| Inside Height | 22.00 mm [.87 in] |
| Inside Length | 84.37 mm [3.32 in] |
| End Panel Size | 60.00 x 22.70 x 1.70 mm [2.36 x .89 x .07 in] |
| Top Inlay Depth | 1.00 mm [.04 in] |
| Top Inlay Width | 55.00 mm [2.17 in] |
| Top Inlay Length | 80.00 mm [3.15 in] |
| Depth (Series Table) | 1.10 in (28 mm) |
| Width (Series Table) | 2.60 in (66 mm) |
| Length (Series Table) | 3.62 in (92 mm) |
| Overall Width (Drawing) | 66.22 mm [2.61 in] |
| Overall Height (Drawing) | 28.00 mm [1.10 in] |
| Overall Length (Drawing) | 92.22 mm [3.63 in] |
| Size L X W X H (Part Page) | 3.6 in x 2.6 in x 1.1 in (91 mm x 66 mm x 28 mm) |
Accessories
| Solid Models | .stp or .x_t |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Aluminum End Panels (10-pack) | 1593PAL10 |
| Infrared End Panels (10-pack) | 1593PIR10 |
| Flat End Panel (Single) – Black / Grey / Translucent Blue | 1593PL1BK-10 / 1593PL1GY-10 / 1593PL1TBU-10 |
| Contoured End Panel (Single) – Black / Grey / Translucent Blue | 1593PL2BK-10 / 1593PL2GY-10 / 1593PL2TBU-10 |
Identifiers
| UPC | 623980809724 |
| UNSPSC | 39121301 |
| Part Number | 1593LTBU |
PCB Mounting
| P.C. Board Screws | #4 x 1/4" self-tapping – 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| PCB Mounting Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 82.66 mm |
| Max. P.C. Board Length | 56.61 mm |
| Max. Recommended PCB Size (Drawing) | 82.66 x 56.61 mm [3.25 x 2.23 in] (PCB not supplied with enclosure) |
| Matching PC Board (Enclosure Sold Separately) | 1593LPCB |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Color | Trans. Blue |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose ABS, UL94-HB) |
| Recessed Top | For membrane display or pad |
| Surface Texture | Satin |
| Included Screw Finish | Black finish screws |
| Cover Screws (Replacement) | #4 x 3/4" (19.1 mm) self-tapping oval head – 1593QS100 (silver, 100-pack), 1593QS100BK (black, 100-pack) |
| Recommended Torque – Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque – Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour is the 1593LTBU?▾
Transparent blue general purpose ABS with a satin texture.
How many cover screws are supplied?▾
Four, in black finish.
What is the inside height?▾
22.00 mm [.87 in].
Can the case be factory modified?▾
Yes. The drawing notes milling, drilling, printing etc. on quote, and solid models are available in .stp or .x_t.
