Hammond 1593JTBU Closed-End 66mm Square Transparent Blue Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Transparent blue ABS shell with satin texture
- Closed-end 1593J design with no removable panels
- 66 x 66 x 28 mm nominal size
- IP54 and UL94 HB rated
- Holds a 59.07 x 59.07 mm PCB on #4 screw bosses
- Includes 2 black finish cover screws

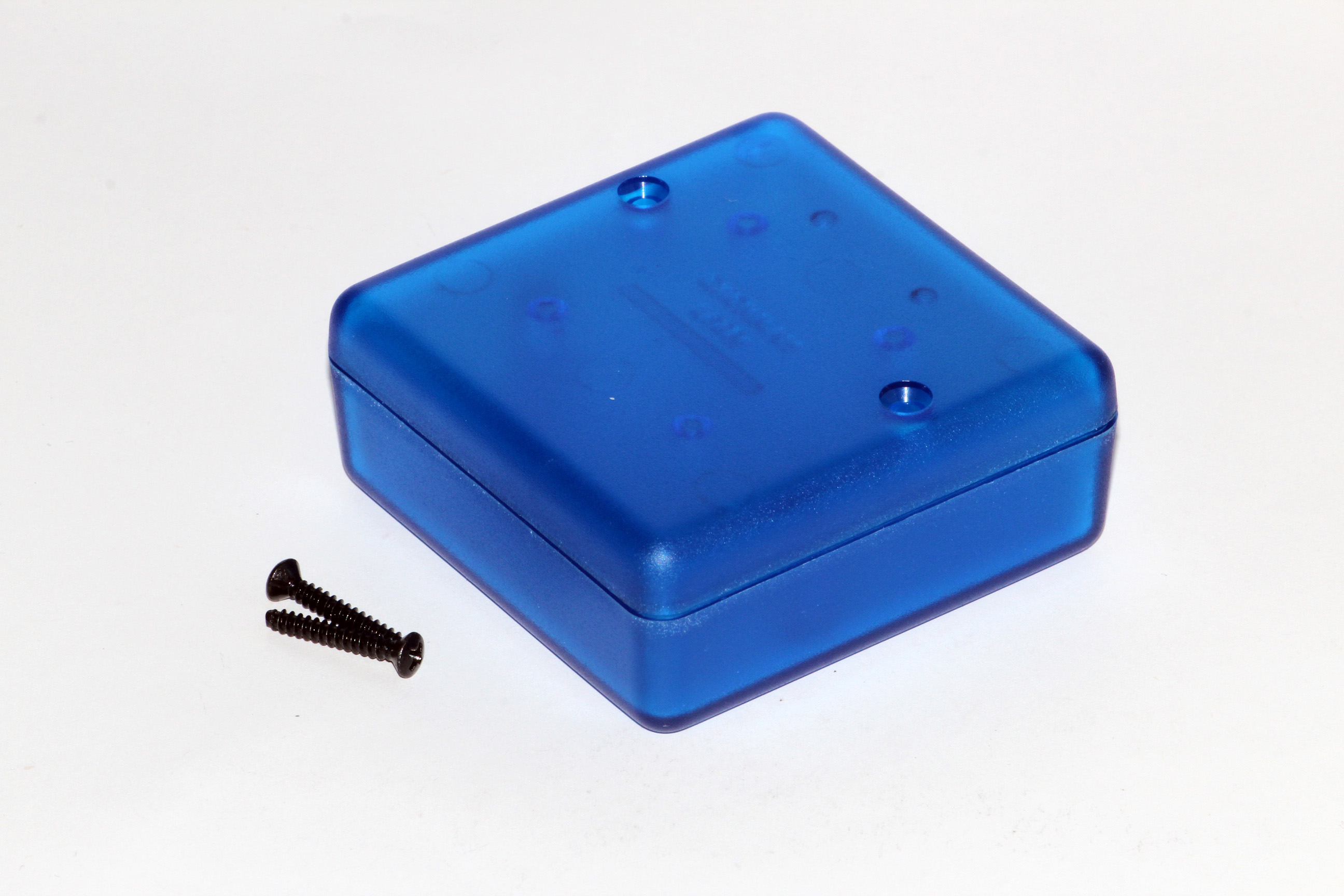

The 1593JTBU puts the closed-end 1593J handheld body in transparent blue ABS. With no end panels and a see-through shell, it suits compact handheld electronics where a transparent coloured case is wanted and no openings are needed through the ends of the case.

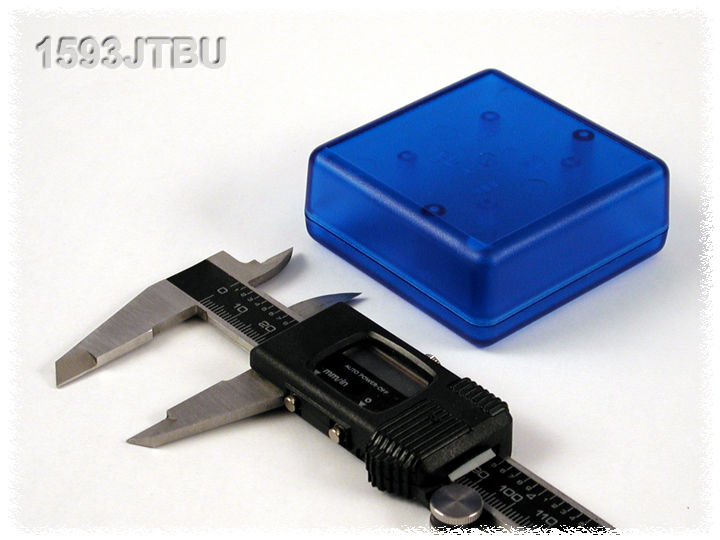

The enclosure measures 66 x 66 x 28 mm (2.60 x 2.60 x 1.10 in) nominally; the drawing's overall footprint is 66.25 x 66.23 mm. Inside you get 60.07 mm of length and 22.00 mm of height, with a maximum recommended PCB of 59.07 x 59.07 mm fixed by #4 self-tapping screws.

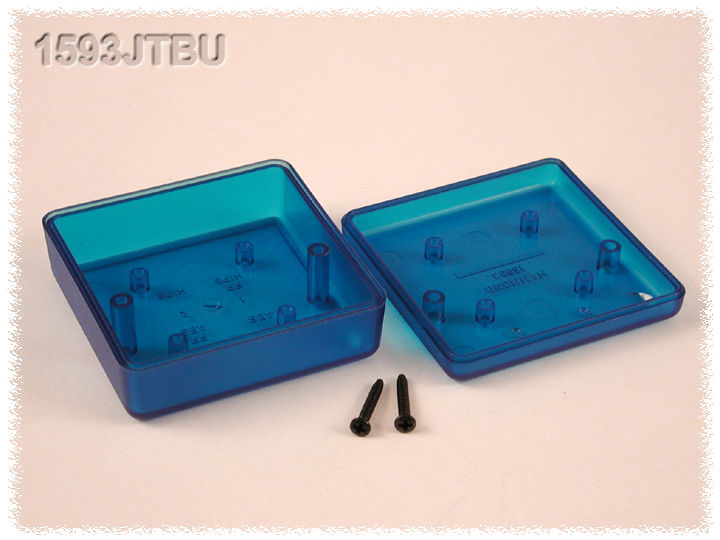

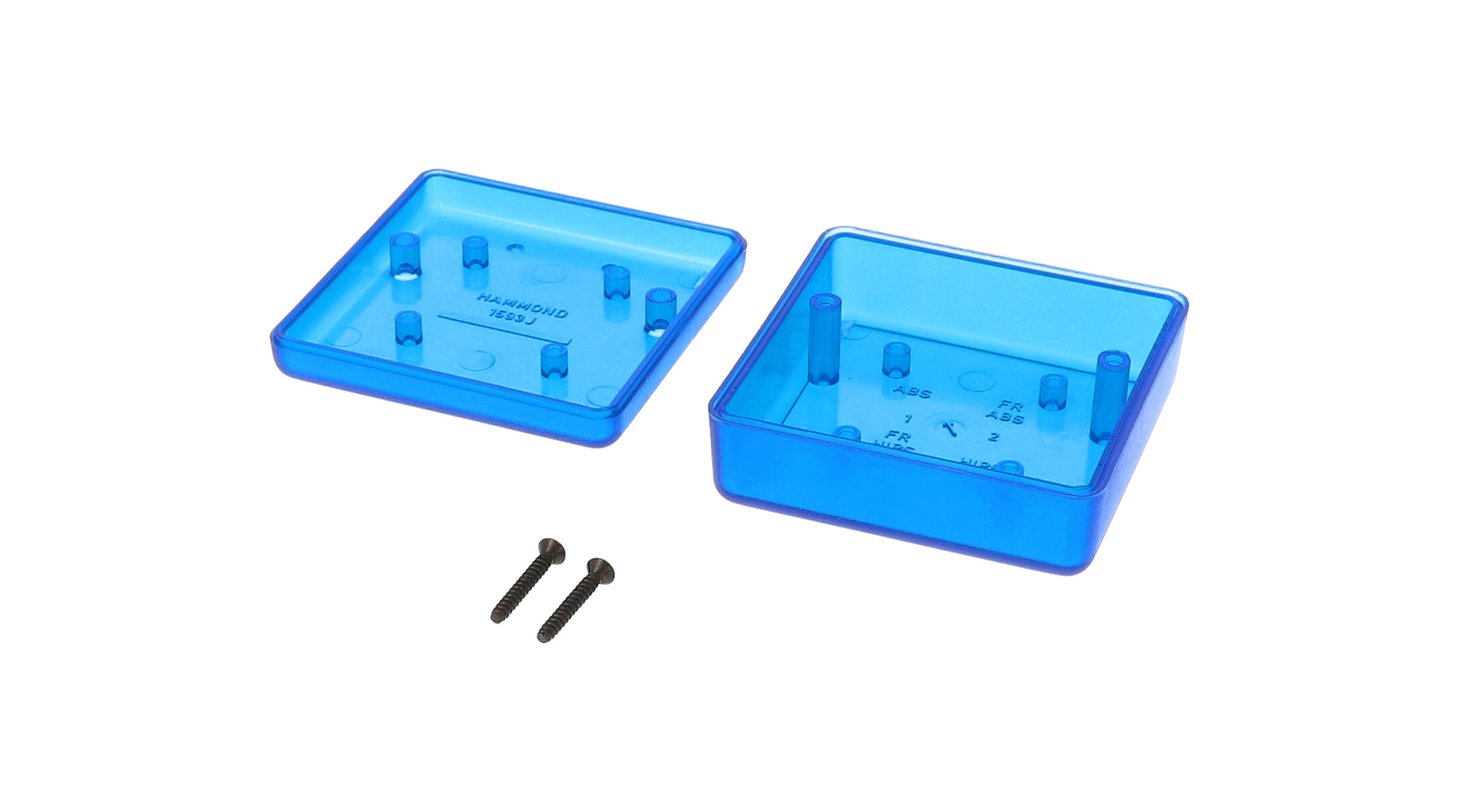

The assembly consists of top and bottom cover plus 2 cover screws in black finish, as supplied with transparent blue enclosures. The top is recessed 0.75 mm over a 55.06 x 55.06 mm area to take a membrane overlay or keypad. The 1593JTBU is rated IP54 and UL94 HB, and the enclosure is secured with self-tapping screws.
It is RoHS and REACH compliant and is shrink wrapped at 0.1 lbs (0.05 kg). Replacement 1593QS100BK black cover screws and 1593ATS50/1593ATS100 PC board screws are listed for size J, and the factory offers milling, drilling and printing on quote.
Ideal For
- Compact handheld electronic instruments
- Closed-end PCB enclosures in a transparent colour
- Small devices with a membrane keypad on top
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Battery Door | No |
| Enclosure Size | 1593J |
| Long Description | enclosure - plastic |
| Removable Panels | 0 |
| Short Description | 1593J TRANSPARENT BLUE |
| Included In Assembly | Top and bottom cover, and 2 cover screws |
Dimensions
| Inside Height | 22.00 mm [.87 in] |
| Inside Length | 60.07 mm [2.36 in] |
| Top Inlay Depth | .75 mm [.03 in] |
| Top Inlay Width | 55.06 mm [2.17 in] |
| Top Inlay Length | 55.06 mm [2.17 in] |
| Depth (Series Table) | 1.10 in (28 mm) |
| Width (Series Table) | 2.60 in (66 mm) |
| Length (Series Table) | 2.60 in (66 mm) |
| Overall Width (Drawing) | 66.23 mm [2.61 in] |
| Overall Length (Drawing) | 66.25 mm [2.61 in] |
| Size L X W X H (Part Page) | 2.6 in x 2.6 in x 1.1 in (66 mm x 66 mm x 28 mm) |
Accessories
| Solid Models | .stp or .x_t |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Identifiers
| UPC | 623980809700 |
| UNSPSC | 39121301 |
| Part Number | 1593JTBU |
PCB Mounting
| P.C. Board Screws | #4 x 1/4" self-tapping – 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| PCB Mounting Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 59.07 mm |
| Max. P.C. Board Length | 59.07 mm |
| Max. Recommended PCB Size (Drawing) | 59.07 x 59.07 mm [2.33 x 2.33 in] (PCB not supplied with enclosure) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Color | Trans. Blue |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose ABS, UL94-HB) |
| Recessed Top | For membrane display or pad |
| Surface Texture | Satin |
| Included Screw Finish | Black finish screws |
| Cover Screws (Replacement) | #4 x 3/4" (19.1 mm) self-tapping oval head – 1593QS100 (silver, 100-pack), 1593QS100BK (black, 100-pack) |
| Recommended Torque – Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque – Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Can I see inside the 1593JTBU?▾
It is molded in transparent blue general purpose ABS plastic.
Does it have openings on the ends?▾
No. Size J has 0 removable panels; the ends are closed.
What PCB size fits?▾
Up to 59.07 x 59.07 mm [2.33 x 2.33 in].
What finish are the included screws?▾
Black finish; the assembly includes 2 cover screws.
