Hammond 1593ARGY 76mm Gray Handheld ABS Instrument Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray satin ABS hand held case, 75 x 74 x 27 mm
- Designed to meet IP54 with no battery door
- Two removable end panels with flat, contoured, IR and aluminum options
- Recessed top for a membrane display or pad
- Inside 69.38 x 67.89 x 22.00 mm; max PCB 67.5 x 68.5 mm
- Nickel finish self-tapping cover screws included
- Gray nylon belt clip 1599CLIPGY available

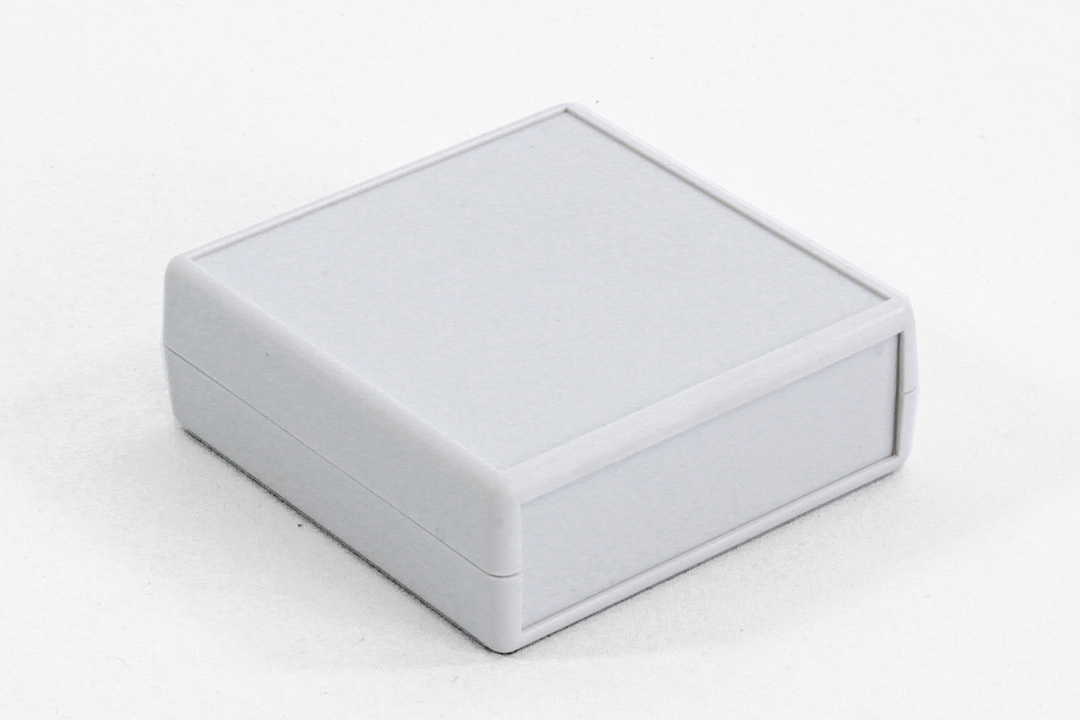

The 1593ARGY is the light gray version of the 1593AR hand held instrument enclosure. At 2.95 in x 2.91 in x 1.06 in (75 mm x 74 mm x 27 mm) it provides a small, ergonomically designed housing that sits comfortably in the hand, for engineers packaging a compact circuit board into a portable device.
It is molded from general purpose ABS with a satin texture, rated UL94 HB. With two removable end panels and no battery door, it is designed to meet IP54. The recessed top offers an inlay area of 68.69 mm x 66.69 mm with 0.80 mm depth for a membrane display or pad. The halves are secured with self-tapping screws; gray enclosures include nickel finish screws.
Inside you have 69.38 mm of length, 67.89 mm of width and 22.00 mm of height. The maximum recommended PCB is 67.50 mm x 68.50 mm (not supplied), and the board bosses accept #2.6 self-tapping screws such as SC519-50. Recommended torque is 40 cN-m [57 ozf-in] for cover screws and 20-30 cN-m for internal mounting screws.

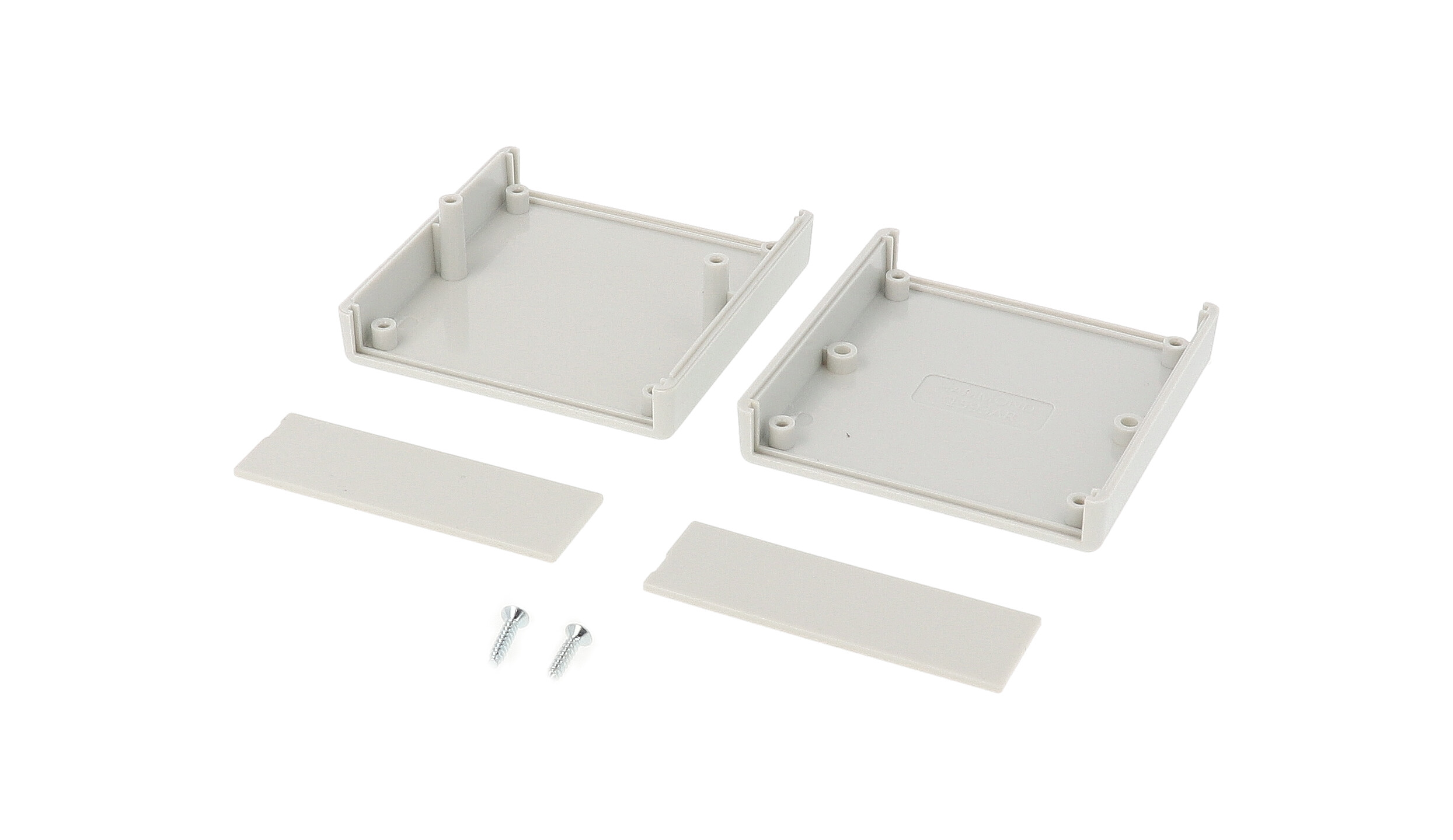

The 1593ARGY is supplied as top and bottom cover, two flat front and rear panels, and two cover screws. Replacement flat or contoured panels, infrared panels (1593ARIR10), aluminum panels (1593ARAL10) and a gray nylon belt clip (1599CLIPGY) are available. It is RoHS and REACH compliant and ships in shrink wrap.
Ideal For
- Hand held electronic instruments
- Compact PCB enclosures
- Devices with membrane keypads or overlays
- Belt-clip carried electronics
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593ARGY |
| Customization | Factory modification available (milling, drilling, printing); solid models in .stp or .x_t |
| Short Description | ABS HAND HELD 76 X 74MM |
Dimensions
| Inside Width | 67.89 mm [2.67 in] |
| Inside Height | 22.00 mm [0.87 in] |
| Inside Length | 69.38 mm [2.73 in] |
| Size (L X W X H) | 2.95 in x 2.91 in x 1.06 in (75 mm x 74 mm x 27 mm) |
| Overall Height (Drawing) | 27.00 mm [1.06 in] |
| Top Inlay (L X W X Depth) | 68.69 mm [2.70 in] x 66.69 mm [2.63 in] x 0.80 mm [0.03 in] |
| Overall Length / Width (Drawing) | 73.97 mm [2.91 in] x 76.00 mm [2.99 in] |
| Nominal Size (Series Table L X W X D) | 2.91 in (74 mm) x 2.99 in (76 mm) x 1.06 in (27 mm) |
Accessories
| Aluminum Panels | 1593ARAL10 |
| Infrared Panels | 1593ARIR10 |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Standard Flat Panel (Single Panel) | 1593ARL1BK-10 (black), 1593ARL1GY-10 (grey), 1593ARL1TBU-10 (translucent blue) |
| Standard Contoured Panel (Single Panel) | 1593ARL2BK-10 (black), 1593ARL2GY-10 (grey), 1593ARL2TBU-10 (translucent blue) |
| P.C. Board Screws M2.6 X 6 Mm Self-Tapping | SC519-50 (pkg 50) |
| Cover Screws #4 X 1/2" Self-Tapping (100 Pkg) | 1591TS100 (silver), 1591TS100BK (black) |
Identifiers
| UPC | 623980403090 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Bosses | Accept #2.6 self-tapping screw |
| Max. P.C. Board Width | 68.5 mm |
| Max. P.C. Board Length | 67.5 mm |
| Max Recommended PCB Size (Drawing) | 67.50 mm [2.66 in] x 68.50 mm [2.70 in]; PCB not supplied |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Color | Light Gray |
| Texture | Satin |
| Assembly | Secured with self-tapping screws |
| Included | Top and bottom cover, 2 flat panels for front and rear, and 2 cover screws |
| Material | ABS Plastic (GP ABS) |
| Flame Rating | UL94 HB |
| Screw Finish | Nickel |
| Removable Panels | 2 |
| Recommended Torque, Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque, Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Battery Door | No |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What screws come with the 1593ARGY?▾
Two self-tapping cover screws; gray 1593 enclosures include nickel finish screws. Replacements are 1591TS100 (#4 x 1/2" self-tapping, 100 pack).
What size PCB fits?▾
The maximum recommended PCB is 67.50 mm x 68.50 mm.
Does it have a battery compartment?▾
No. The 1593AR has two removable end panels and no battery door.
What is the IP rating?▾
IP54.
Is a belt clip available?▾
Yes, the nylon belt clip is 1599CLIPGY in gray or 1599CLIP in black.
