Hammond 1593JBK Closed-End 66mm Square Black Handheld ABS Case
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Closed-end design: 0 removable panels (size J only)
- 66 x 66 x 28 mm black satin ABS handheld case
- IP54 rated; UL94 HB flame rating
- Fits a PCB up to 59.07 x 59.07 mm on #4 self-tapping screw bosses
- Recessed 55.06 x 55.06 mm top for a membrane keypad
- Includes top, bottom and 2 black finish cover screws
- RoHS and REACH compliant

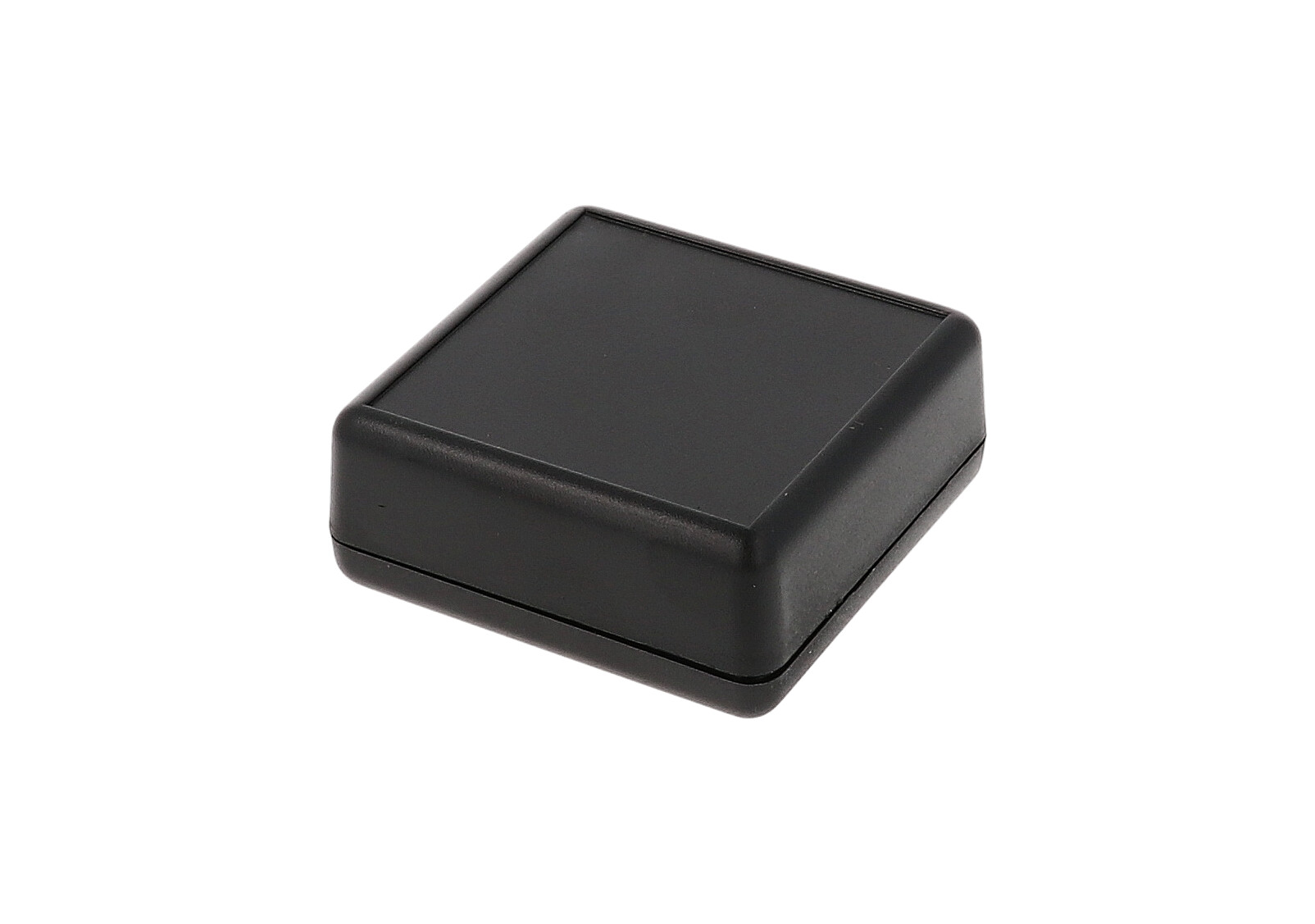

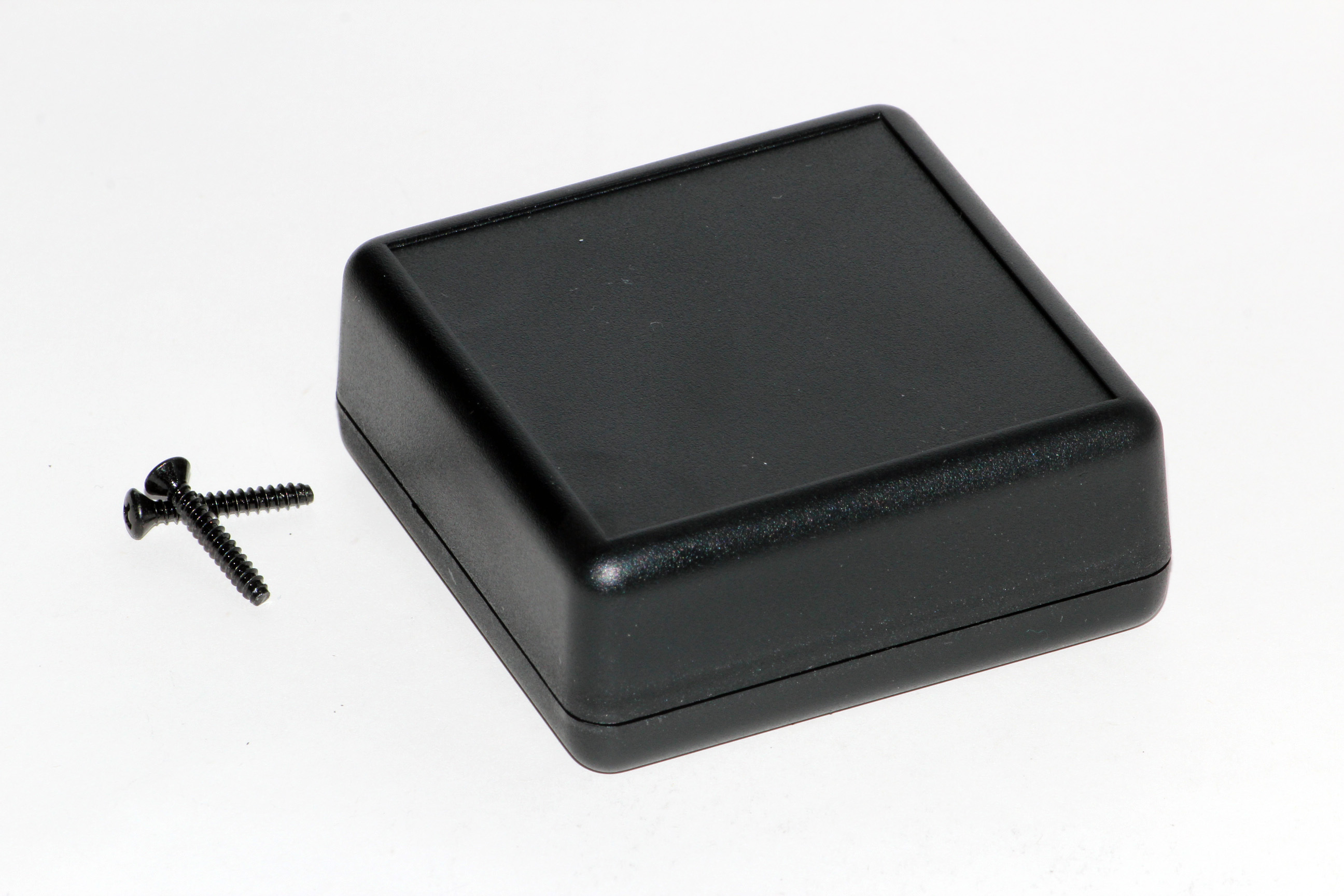

The 1593JBK is the black version of the 1593J, the only size in the 1593 handheld family with no end panels. The ends are closed, so it suits compact handheld electronics that need no openings or connectors through the ends of the case. It is molded in general purpose black ABS with a satin texture, rated UL94 HB and IP54.
Nominal size is 66 x 66 x 28 mm (2.60 x 2.60 x 1.10 in). The drawing shows an overall footprint of 66.25 x 66.23 mm, an inside length of 60.07 mm and an inside height of 22.00 mm. The maximum recommended PCB is 59.07 x 59.07 mm [2.33 x 2.33 in], fastened with #4 self-tapping screws into the internal bosses.

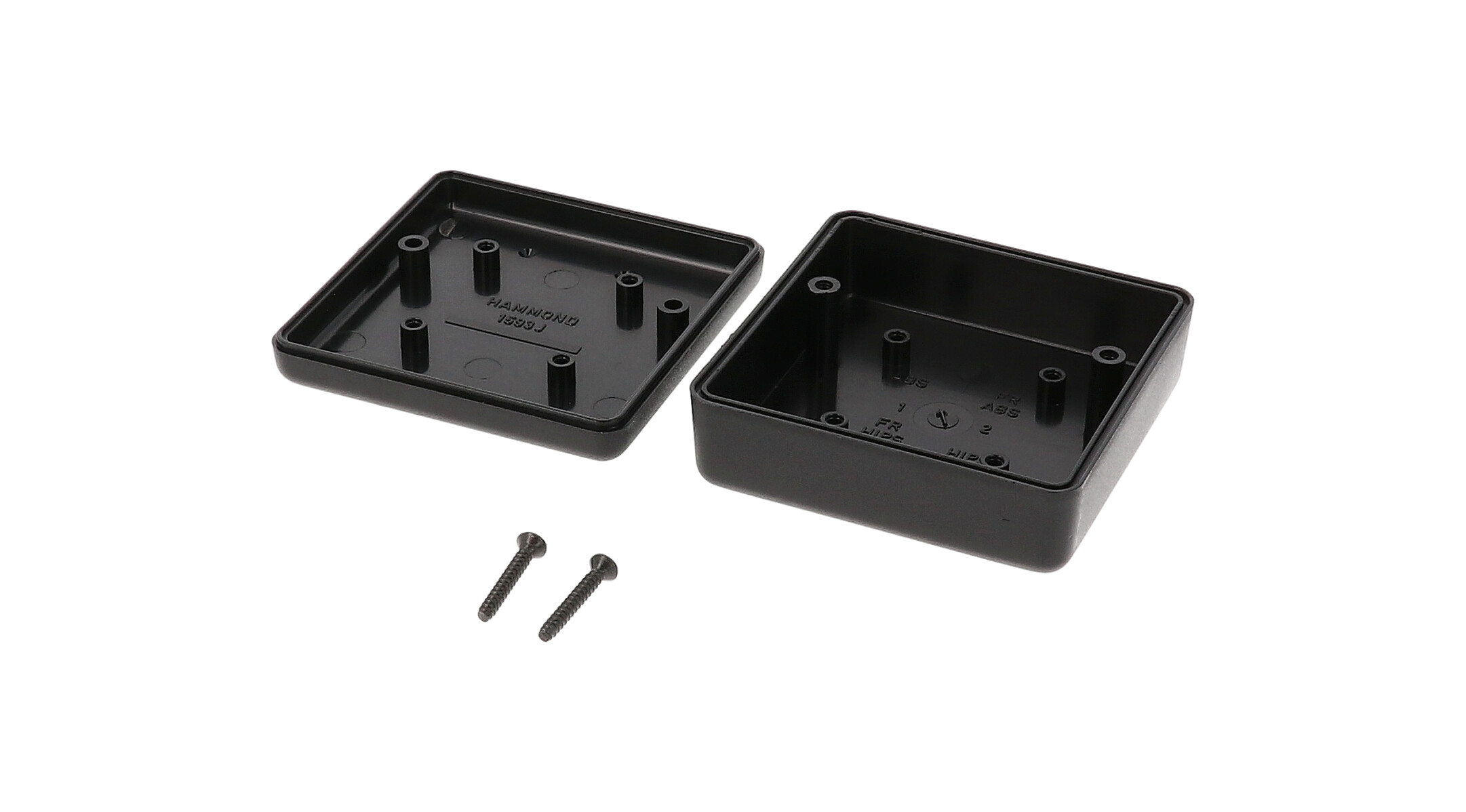

The assembly is simply the top and bottom cover plus two cover screws, which are black finish on black enclosures. A 55.06 x 55.06 mm recess, 0.75 mm deep, on the top is sized for a membrane display or keypad. Recommended torque is 40 cN-m for cover screws and 20-30 cN-m for internal mounting screws.
Replacement 1593QS100/1593QS100BK cover screws, 1593ATS50 board screws and the 1599CLIP belt clip are listed for this size. The 1593JBK is RoHS and REACH compliant, shrink wrapped, weighs 0.1 lbs (0.05 kg), and can be milled, drilled or printed by the factory.
Ideal For
- Compact handheld electronic instruments
- Closed-end PCB enclosures
- Small devices with a membrane keypad on top
- Belt-clip carried handheld units
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Battery Door | No |
| Enclosure Size | 1593J |
| Long Description | enclosure - plastic |
| Removable Panels | 0 |
| Short Description | 2.6 X 2.6 ENCL. NO CLOSED |
| Included In Assembly | Top and bottom cover, and 2 cover screws |
Dimensions
| Inside Height | 22.00 mm [.87 in] |
| Inside Length | 60.07 mm [2.36 in] |
| Top Inlay Depth | .75 mm [.03 in] |
| Top Inlay Width | 55.06 mm [2.17 in] |
| Top Inlay Length | 55.06 mm [2.17 in] |
| Depth (Series Table) | 1.10 in (28 mm) |
| Width (Series Table) | 2.60 in (66 mm) |
| Length (Series Table) | 2.60 in (66 mm) |
| Overall Width (Drawing) | 66.23 mm [2.61 in] |
| Overall Length (Drawing) | 66.25 mm [2.61 in] |
| Size L X W X H (Part Page) | 2.6 in x 2.6 in x 1.1 in (66 mm x 66 mm x 28 mm) |
Accessories
| Solid Models | .stp or .x_t |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
Identifiers
| UPC | 623980560205 |
| UNSPSC | 39121301 |
| Part Number | 1593JBK |
PCB Mounting
| P.C. Board Screws | #4 x 1/4" self-tapping – 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| PCB Mounting Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 59.07 mm |
| Max. P.C. Board Length | 59.07 mm |
| Max. Recommended PCB Size (Drawing) | 59.07 x 59.07 mm [2.33 x 2.33 in] (PCB not supplied with enclosure) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Color | Black |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose ABS, UL94-HB) |
| Recessed Top | For membrane display or pad |
| Surface Texture | Satin |
| Included Screw Finish | Black finish screws |
| Cover Screws (Replacement) | #4 x 3/4" (19.1 mm) self-tapping oval head – 1593QS100 (silver, 100-pack), 1593QS100BK (black, 100-pack) |
| Recommended Torque – Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque – Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1593JBK have end panels?▾
No. Size J is the only 1593 size with no panels; the assembly includes the top and bottom cover and 2 cover screws.
What is the largest PCB it takes?▾
59.07 x 59.07 mm [2.33 x 2.33 in]; the PCB is not supplied.
What IP rating does it have?▾
IP54.
Which screws do I reorder for the cover?▾
1593QS100 (silver) or 1593QS100BK (black), #4 x 3/4" self-tapping, 100 per pack.
Can I add a belt clip?▾
Yes, the 1599CLIP (black) or 1599CLIPGY (grey) nylon belt clip is listed as an accessory.
