Hammond 1593DTBU Slim Transparent Blue Handheld Case, 114 x 36 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Molded in transparent blue general purpose ABS
- Slim 114 x 36 x 26 mm handheld footprint
- IP54 rated; UL94 HB flame rating
- Max recommended PCB 105.80 x 25.98 mm; bosses accept #4 self-tapping screws
- Ships with 2 flat and 2 contoured end panels and 2 black finish cover screws
- Recessed top for a membrane display or pad
- RoHS and REACH compliant

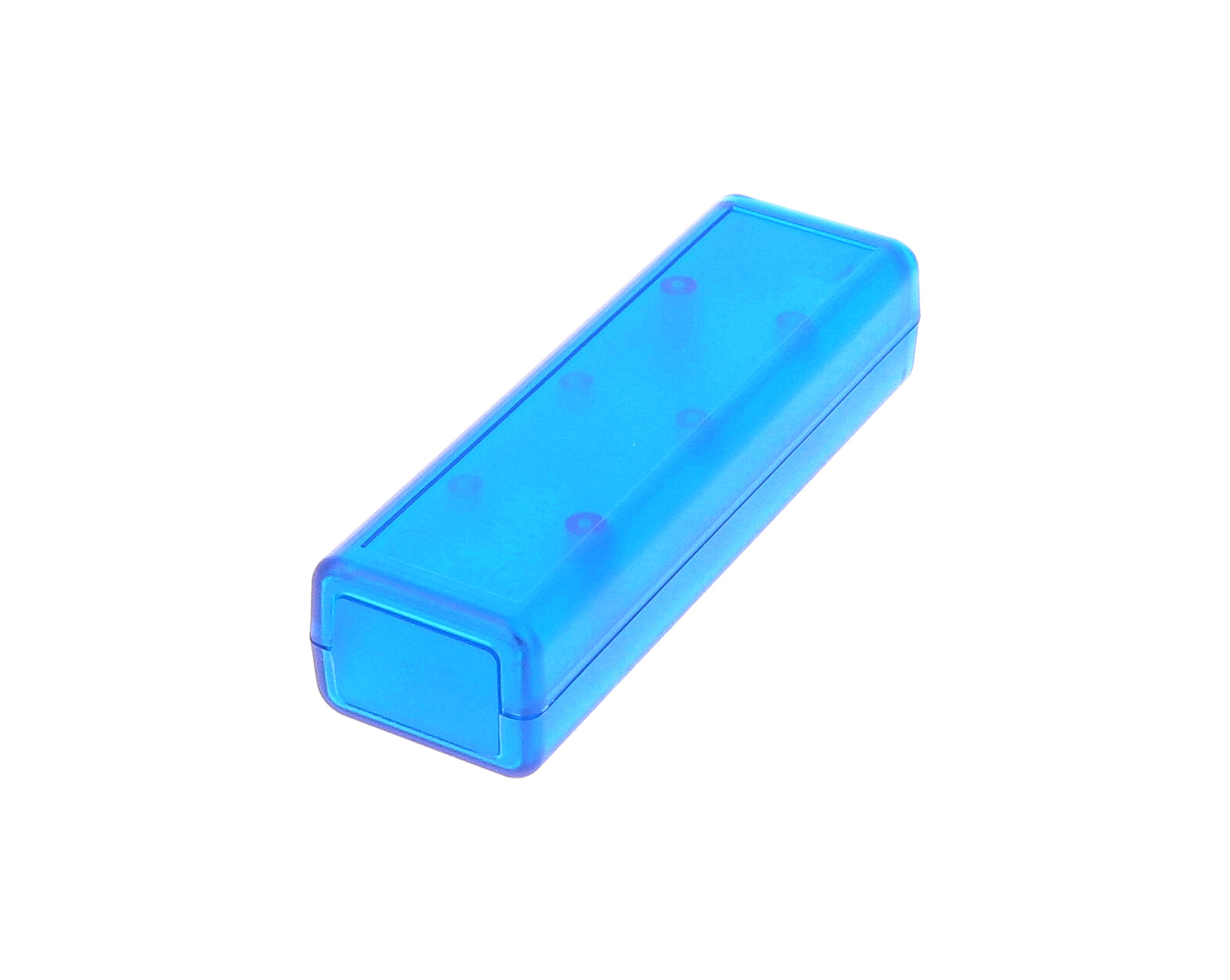

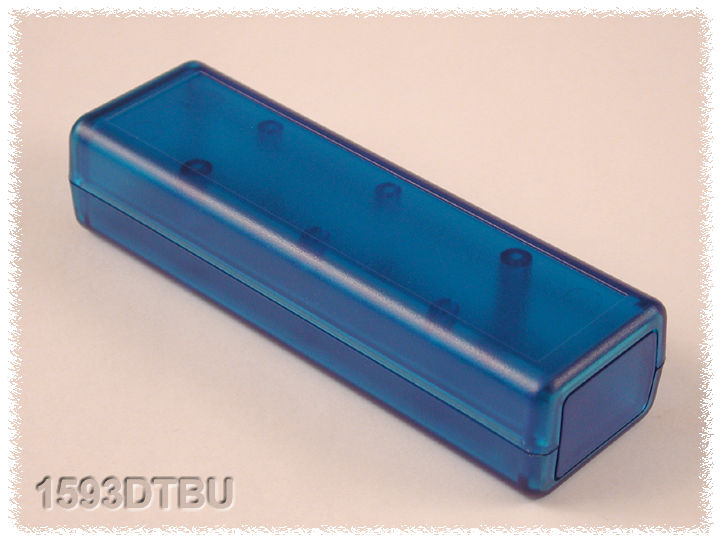

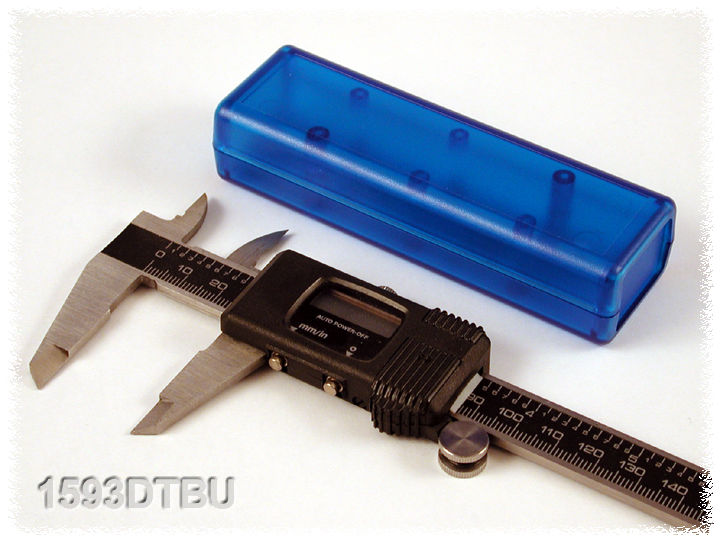

The 1593DTBU is the transparent blue edition of the 1593D, the narrowest enclosure in the 1593 handheld family. The transparent blue ABS gives a slim handheld instrument a distinctive, see-through shell. Like the other 1593D colours it is designed to meet IP54, carries a UL94 HB flame rating and has a satin texture.
Outside, the series table gives 114 x 36 x 26 mm (4.49 x 1.42 x 1.02 in), while the part page lists 4.5 x 1.4 x 1 in (114 x 36 x 25 mm). The cavity measures 103.80 mm long, 29.76 mm wide and 19.80 mm high according to the drawing, and a board up to 105.80 x 25.98 mm can be mounted on the #4 self-tapping screw bosses.

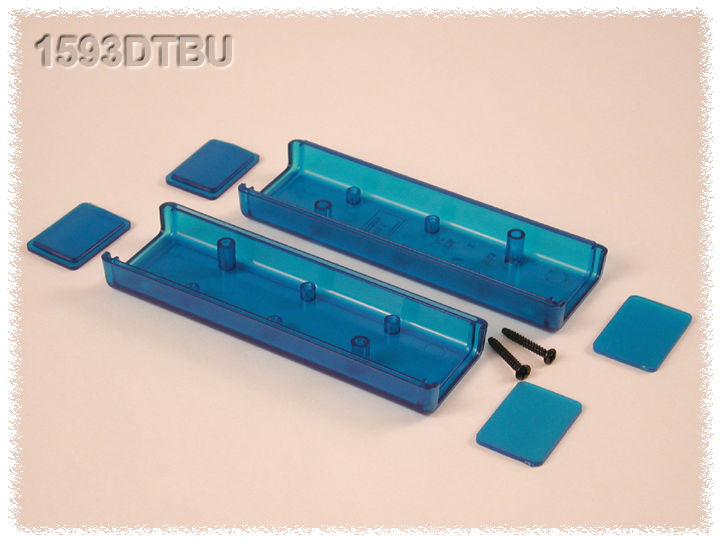

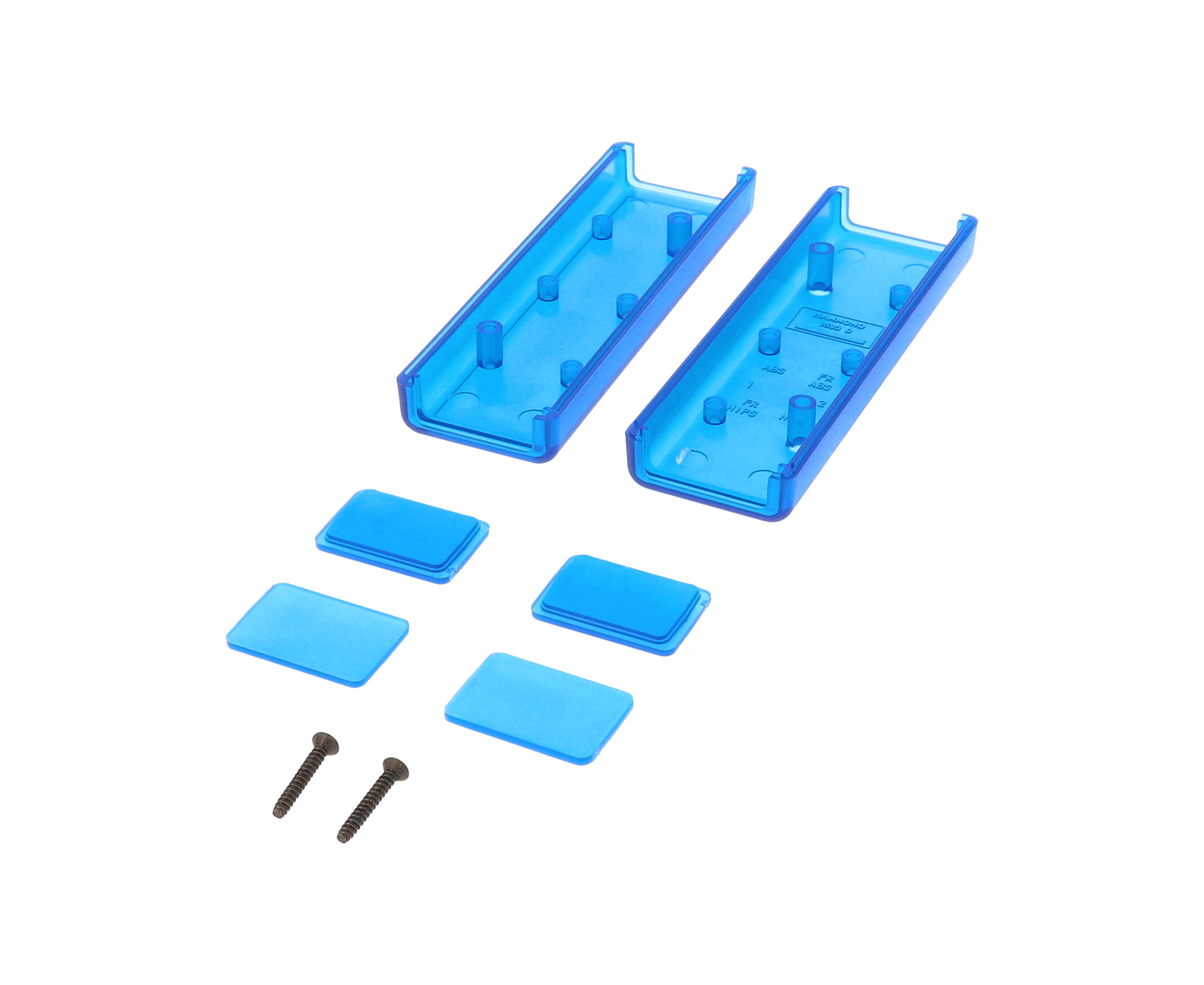

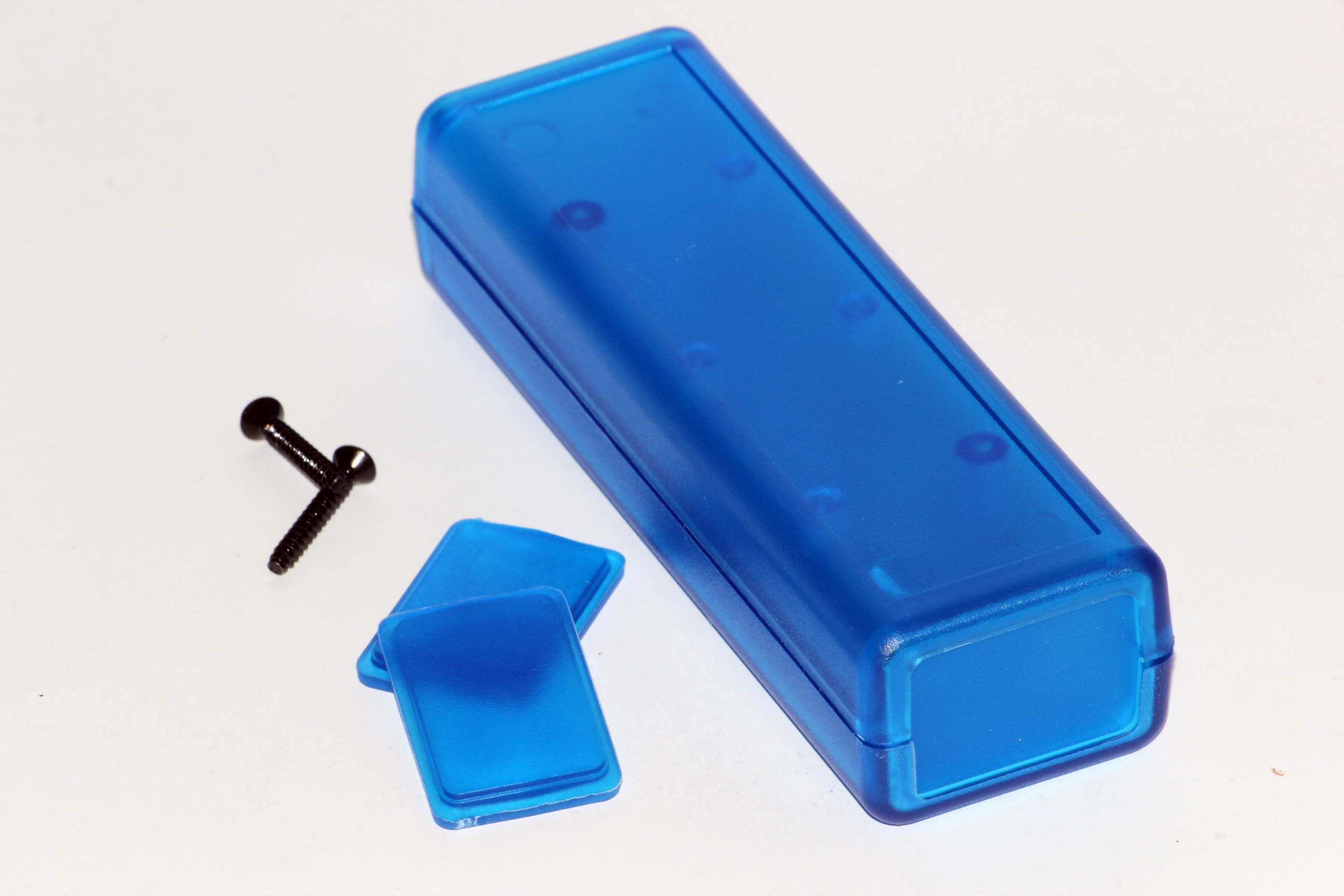

- Top and bottom cover
- Four plastic end panels: two flat, two contoured to the case profile
- Two cover screws in black finish, as supplied with transparent blue enclosures
The recessed top (100.70 x 23.90 mm, 0.50 mm deep) takes a membrane overlay or keypad. For the 1593DTBU, replacement cover screws are 1593QS100 or 1593QS100BK, board screws are 1593ATS50/1593ATS100, and 1593DIR10 infrared or 1593DAL10 aluminum end panels are available. The part is RoHS and REACH compliant, shrink wrapped and weighs 0.1 lbs (0.05 kg).
Ideal For
- Slim handheld electronic instruments
- Narrow PCB enclosures in a transparent colour
- Instruments with a membrane display or keypad
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Battery Door | No |
| Enclosure Size | 1593D |
| Long Description | enclosure - plastic |
| Removable Panels | 2 |
| Short Description | 1593D TRANSPARENT BLUE |
| Included In Assembly | Top and bottom cover, 4 plastic panels for front and rear (2 types - flat and contoured) and 2 cover screws |
Dimensions
| Inside Width | 29.76 mm [1.17 in] |
| Inside Height | 19.80 mm [.78 in] |
| Inside Length | 103.80 mm [4.09 in] |
| End Panel Size | 29.00 x 20.00 x 1.70 mm [1.14 x .79 x .07 in] |
| Top Inlay Depth | .50 mm [.02 in] |
| Top Inlay Width | 23.90 mm [.94 in] |
| Top Inlay Length | 100.70 mm [3.96 in] |
| Depth (Series Table) | 1.02 in (26 mm) |
| Width (Series Table) | 1.42 in (36 mm) |
| Length (Series Table) | 4.49 in (114 mm) |
| Overall Width (Drawing) | 35.70 mm [1.41 in] |
| Overall Height (Drawing) | 25.80 mm [1.02 in] |
| Overall Length (Drawing) | 114.00 mm [4.49 in] |
| Size L X W X H (Part Page) | 4.5 in x 1.4 in x 1 in (114 mm x 36 mm x 25 mm) |
Accessories
| Solid Models | .stp or .x_t |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Aluminum End Panels (10-pack) | 1593DAL10 |
| Infrared End Panels (10-pack) | 1593DIR10 |
| Flat End Panel (Single) – Black / Grey / Translucent Blue | 1593DLBK-10 / 1593DLGY-10 / 1593DLTBU-10 |
| Contoured End Panel (Single) – Black / Grey / Translucent Blue | 1593DCLBK-10 / 1593DCLGY-10 / 1593DCLTBU-10 |
Identifiers
| UPC | 623980809694 |
| UNSPSC | 39121301 |
| Part Number | 1593DTBU |
PCB Mounting
| P.C. Board Screws | #4 x 1/4" self-tapping – 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| PCB Mounting Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 105.8 mm |
| Max. P.C. Board Length | 25.98 mm |
| Max. Recommended PCB Size (Drawing) | 105.80 x 25.98 mm [4.17 x 1.02 in] (PCB not supplied with enclosure) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Color | Trans. Blue |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose ABS, UL94-HB) |
| Recessed Top | For membrane display or pad |
| Surface Texture | Satin |
| Included Screw Finish | Black finish screws |
| Cover Screws (Replacement) | #4 x 3/4" (19.1 mm) self-tapping oval head – 1593QS100 (silver, 100-pack), 1593QS100BK (black, 100-pack) |
| Recommended Torque – Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque – Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1593DTBU see-through?▾
It is molded in transparent blue general purpose ABS plastic with a satin texture.
What are the inside dimensions?▾
The drawing gives an inside length of 103.80 mm [4.09 in], inside width of 29.76 mm [1.17 in] and inside height of 19.80 mm [.78 in].
Which screws come with the transparent blue version?▾
Black and transparent blue enclosures include black finish screws; the assembly includes 2 cover screws.
Does it have a battery compartment?▾
No. The 1593D has two removable end panels and no battery door.
Can the enclosure be machined for me?▾
The drawing states enclosures can be factory modified (milling, drilling, printing etc.) on quote, and solid models are available in .stp or .x_t.
