Hammond 1593VGY IP54 Light Gray Instrument Enclosure, 105x60x35mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP54 rated light gray ABS enclosure
- 105 x 60 x 35 mm (4.13 x 2.36 x 1.38 in)
- Two removable end panels (front and rear)
- Max PC board 98 x 48 mm
- Recessed top for membrane display or pad
- Nickel finish cover screws included (2 pcs)
- UL94 HB; RoHS and REACH compliant

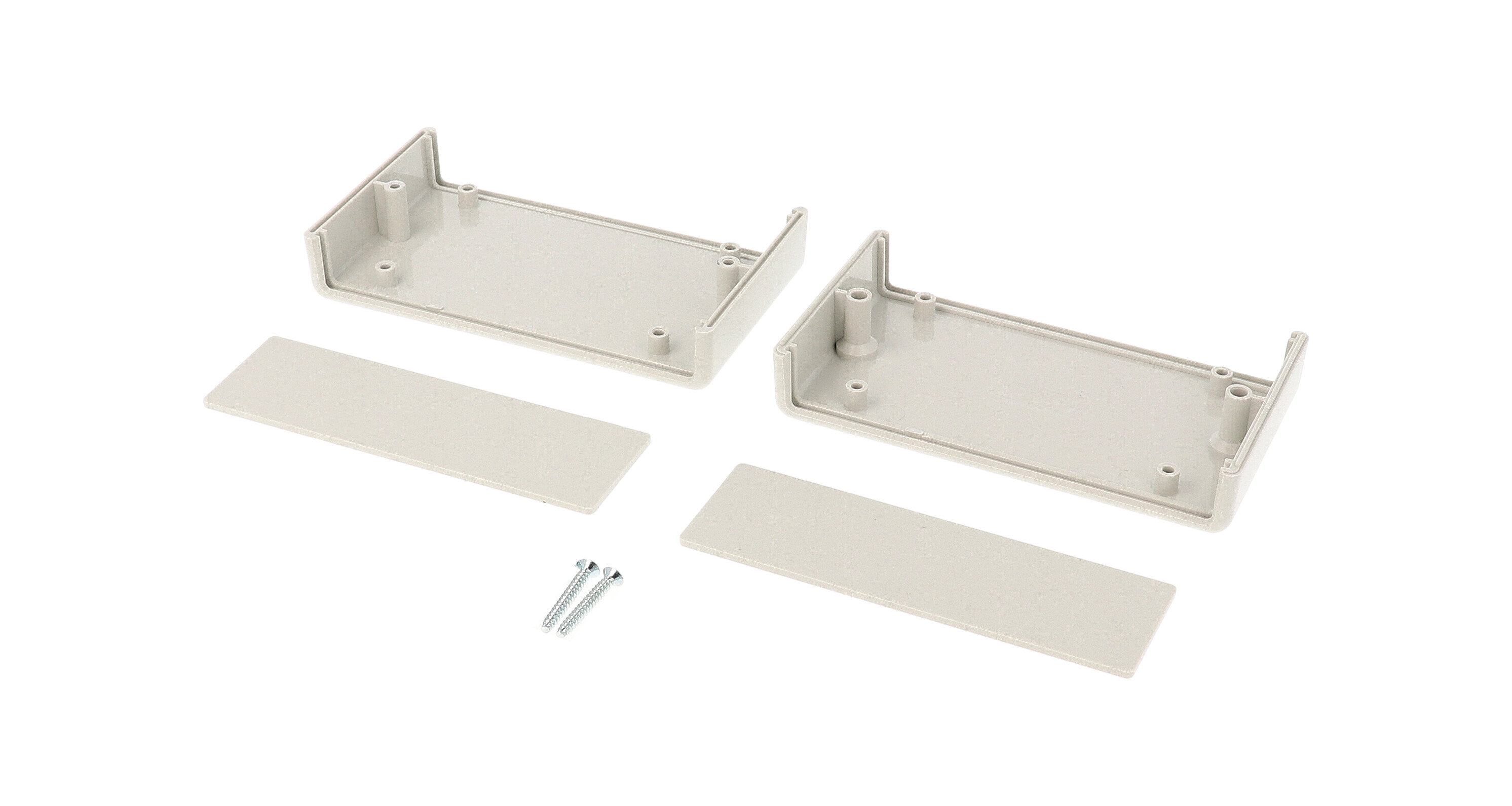

The 1593VGY is a light gray general purpose ABS instrument enclosure, 105 x 60 x 35 mm (4.13 x 2.36 x 1.38 in), for printed circuit board assemblies that need panel access at both ends. It has no battery door and is IP54 rated, making it a tidy housing for interface boxes, sensor nodes and control electronics.
Two removable end panels, one front and one rear, can be drilled for connectors, while a recessed top (92.00 x 51.00 mm inlay) takes a membrane display or pad. The satin-texture shell is UL94 HB and is secured by self-tapping screws; grey enclosures include nickel finish screws.
PC boards up to 98 x 48 mm are recommended, fixed with #4 self-tapping screws at 20-30 cN-m. The drawing shows 29.70 mm inside height and 48.67 mm inside length. The 1593VGY ships shrink wrapped at 0.12 lbs (0.05 kg) with top and bottom cover, 2 flat panels and 2 cover screws.
It is RoHS and REACH compliant. Grey replacement flat panels are 1593VLGY-10, and 1593VAL10 aluminum end panels also fit. Replacement cover screws are #4 x 3/4" self-tapping (1593QS100 silver or 1593QS100BK black), and the case can be factory modified (milling, drilling, printing etc.).
Ideal For
- Interface and connector boxes
- Sensor nodes
- Control electronics with front and rear panels
Overview
| Type | General purpose |
| Color | Light Gray |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593VGY |
| Short Description | 105X60X35MM ABS ENCL GY |
| Color Variants (Black / Gray / Trans Blue) | 1593VBK / 1593VGY / 1593VTBU |
Dimensions
| Inside Height | 29.70 mm [1.17 in] |
| Inside Length | 48.67 mm [1.92 in] |
| Top Inlay Width | 92.00 mm [3.62 in] |
| Size (L X W X H) | 4.13 in x 2.36 in x 1.38 in (105 mm x 60 mm x 35 mm) |
| Top Inlay Length | 51.00 mm [2.01 in] |
| Depth (Series Table) | 1.38 in (35 mm) |
| Width (Series Table) | 2.36 in (60 mm) |
| Length (Series Table) | 4.13 in (105 mm) |
| Max. P.C. Board Width | 48 mm |
| Max. P.C. Board Length | 98 mm |
| Overall Dimensions (Drawing) | 105.00 x 60.00 x 35.00 mm [4.13 x 2.36 x 1.38 in] |
Accessories
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593VLBK-10 (black), 1593VLGY-10 (grey), 1593VLTBU-10 (translucent blue), pack of 10 |
| Replacement Cover Screws | #4 x 3/4" self-tapping: 1593QS100 (silver) / 1593QS100BK (black), 100-pack |
| Aluminum End Panels (10-pack) | 1593VAL10 |
Identifiers
| UPC | 623980513546 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:29.06.2023 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | No |
| Included Items | Top and bottom cover, 2 flat panels for front and rear and 2 cover screws |
| Removable Panels | 2 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included Screw Finish | Nickel finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What IP rating does the 1593VGY have?▾
IP54.
What screws are included?▾
2 cover screws with nickel finish, standard for grey enclosures.
What is the maximum PC board size?▾
98 mm length by 48 mm width.
Are replacement end panels available?▾
Yes, grey flat panels 1593VLGY-10 (pack of 10) and aluminum end panels 1593VAL10.
