Hammond 1593NGY Grey Smart Card Reader Handheld Case, 111 x 75 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light grey 1593N case designed to house smart card readers
- 111 x 75 x 25 mm low-profile body
- PCB up to 102.50 x 66.14 mm
- IP54 and UL94 HB rated
- Nickel finish cover screws included
- Flat and contoured end panels included

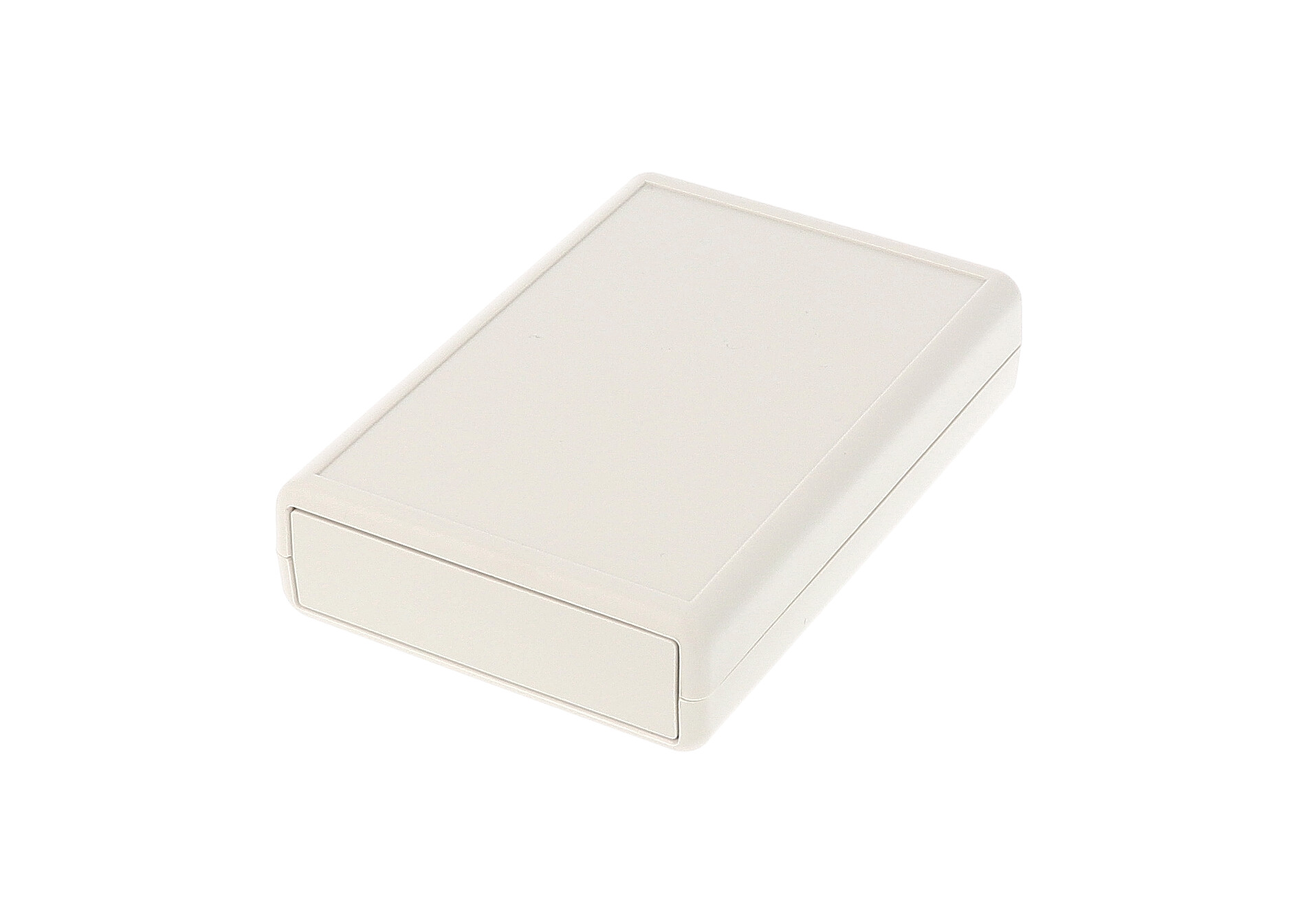

The 1593NGY is a light grey 1593N handheld enclosure. Hammond designed the 1593N sizes to house smart card readers, and the wide, shallow body also gives general handheld instruments plenty of board area in a case that fits comfortably in the hand.
Molded from general purpose ABS with a satin texture, the 1593NGY is UL94 HB rated and designed to meet IP54. Grey enclosures include nickel finish screws, and each assembly has the top and bottom cover, four plastic end panels (two flat, two contoured) and two cover screws.
Dimensions: 111 x 75 x 25 mm (4.37 x 2.95 x 0.98 in) in the series table; 4.3 x 2.9 x 1 in (109 x 74 x 25 mm) on the part page. The drawing shows inside length 103.50 mm, inside width 68.82 mm and inside height 19.70 mm. A PCB up to 102.50 x 66.14 mm mounts on bosses that accept #4 self-tapping screws, and the top has a 99.20 x 64.00 mm recess for a membrane overlay.
Recommended torque is 40 cN-m [57 ozf-in] on cover screws and 20-30 cN-m [29-42 ozf-in] on internal screws. Grey replacement panels are 1593NLGY1-10 (flat) and 1593NLGY2-10 (contoured), and 1593NIR10 and 1593NAL10 packs fit this size. The 1593NGY is RoHS and REACH compliant, shrink wrapped and weighs 0.17 lbs (0.08 kg).
Ideal For
- Smart card reader housings
- Wide handheld electronic instruments
- Membrane keypad devices
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Battery Door | No |
| Enclosure Size | 1593N |
| Long Description | enclosure - plastic |
| Removable Panels | 2 |
| Short Description | 110X75X25MM HAND HELD ENCL |

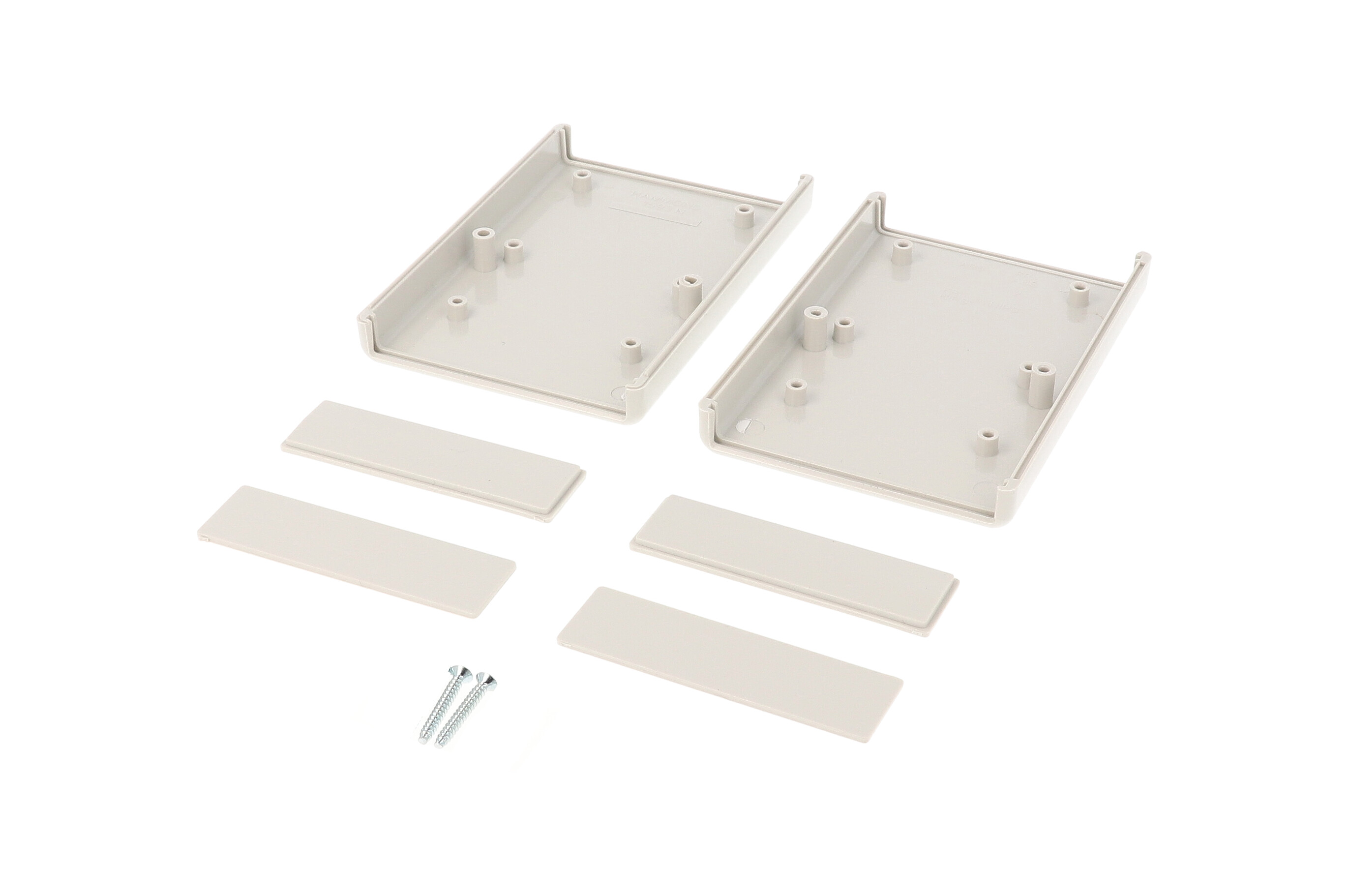

| Included In Assembly | Top and bottom cover, 4 plastic panels for front and rear (2 types - flat and contoured) and 2 cover screws |
Dimensions
| Inside Width | 68.82 mm [2.71 in] |
| Inside Height | 19.70 mm [.78 in] |
| Inside Length | 103.50 mm [4.07 in] |
| End Panel Size | 68.75 x 19.85 x 1.50 mm [2.71 x .78 x .06 in] |
| Top Inlay Depth | .75 mm [.03 in] |
| Top Inlay Width | 64.00 mm [2.52 in] |
| Top Inlay Length | 99.20 mm [3.91 in] |
| Depth (Series Table) | 0.98 in (25 mm) |
| Width (Series Table) | 2.95 in (75 mm) |
| Length (Series Table) | 4.37 in (111 mm) |
| Overall Width (Drawing) | 75.00 mm [2.95 in] |
| Overall Height (Drawing) | 25.20 mm [.99 in] |
| Overall Length (Drawing) | 111.25 mm [4.38 in] |
| Size L X W X H (Part Page) | 4.3 in x 2.9 in x 1 in (109 mm x 74 mm x 25 mm) |
Accessories
| Solid Models | .stp or .x_t |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Aluminum End Panels (10-pack) | 1593NAL10 |
| Infrared End Panels (10-pack) | 1593NIR10 |
| Flat End Panel (Single) – Black / Grey / Translucent Blue | 1593NLBK1-10 / 1593NLGY1-10 / 1593NLTBU1-10 |
| Contoured End Panel (Single) – Black / Grey / Translucent Blue | 1593NLBK2-10 / 1593NLGY2-10 / 1593NLTBU2-10 |
Identifiers
| UPC | 623980842899 |
| UNSPSC | 39121301 |
| Part Number | 1593NGY |
PCB Mounting
| P.C. Board Screws | #4 x 1/4" self-tapping – 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| PCB Mounting Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 102.5 mm |
| Max. P.C. Board Length | 66.14 mm |
| Max. Recommended PCB Size (Drawing) | 102.50 x 66.14 mm [4.04 x 2.60 in] (PCB not supplied with enclosure) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.17 lbs (0.08 kg) |
Construction & Finish
| Color | Light Gray |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose ABS, UL94-HB) |
| Recessed Top | For membrane display or pad |
| Surface Texture | Satin |
| Included Screw Finish | Nickel finish screws |
| Cover Screws (Replacement) | #4 x 3/4" (19.1 mm) self-tapping oval head – 1593QS100 (silver, 100-pack), 1593QS100BK (black, 100-pack) |
| Recommended Torque – Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque – Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1593NGY designed for?▾
1593N sizes are designed to house smart card readers; it is also a general handheld PCB enclosure.
What screws are included?▾
Two cover screws; grey enclosures include nickel finish screws.
What grey replacement panels are available?▾
1593NLGY1-10 flat and 1593NLGY2-10 contoured panels are listed on the drawing.
Is it IP54?▾
Yes, it carries an IP54 rating.
