Hammond 1593ARTBU 76mm Transparent Blue Handheld ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Translucent blue satin ABS hand held case, 75 x 74 x 27 mm
- Designed to meet IP54; no battery door
- Two removable end panels, matching translucent blue replacements available
- Recessed top inlay for membrane display or pad
- Max recommended PCB 67.5 x 68.5 mm
- Black finish self-tapping cover screws included
- UL94 HB general purpose ABS

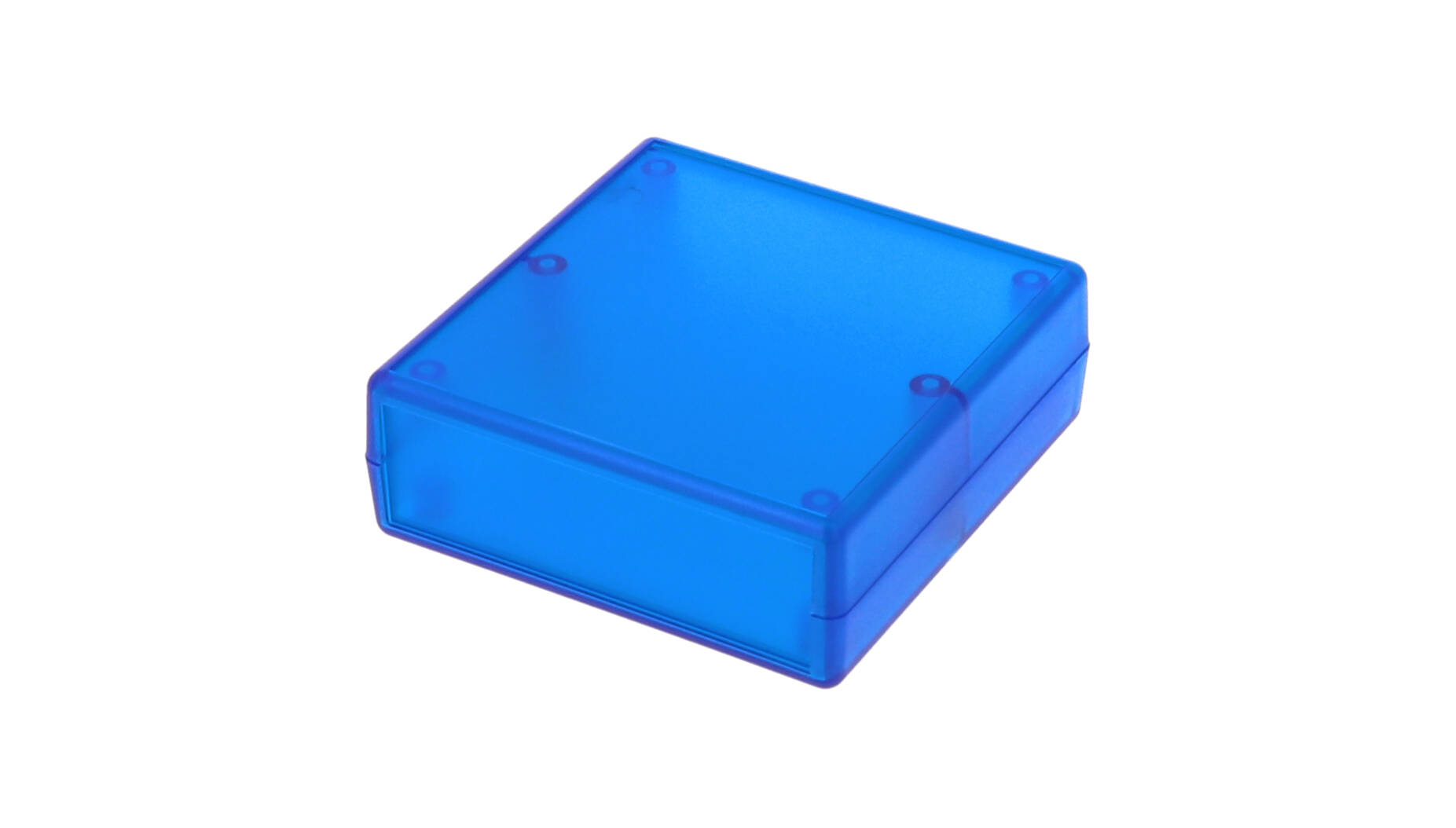

The 1593ARTBU is the translucent blue edition of the 1593AR hand held instrument enclosure, measuring 2.95 in x 2.91 in x 1.06 in (75 mm x 74 mm x 27 mm). Its ergonomic shape is designed for a comfortable fit in the user's hand.
Like the rest of the 1593 Series, it is molded from general purpose ABS with a satin texture, here rated UL94 HB. There are two removable end panels and no battery door, so the enclosure is designed to meet IP54. A recessed top with a 68.69 mm x 66.69 mm inlay accepts a membrane display or pad. Self-tapping screws secure the case, and transparent blue enclosures include black finish screws.
Internal space measures 69.38 mm x 67.89 mm x 22.00 mm. Circuit boards up to 67.50 mm x 68.50 mm are recommended (not supplied) and mount on bosses that accept #2.6 self-tapping screws. Recommended torque is 40 cN-m [57 ozf-in] for cover screws and 20-30 cN-m [29-42 ozf-in] for internal mounting screws.

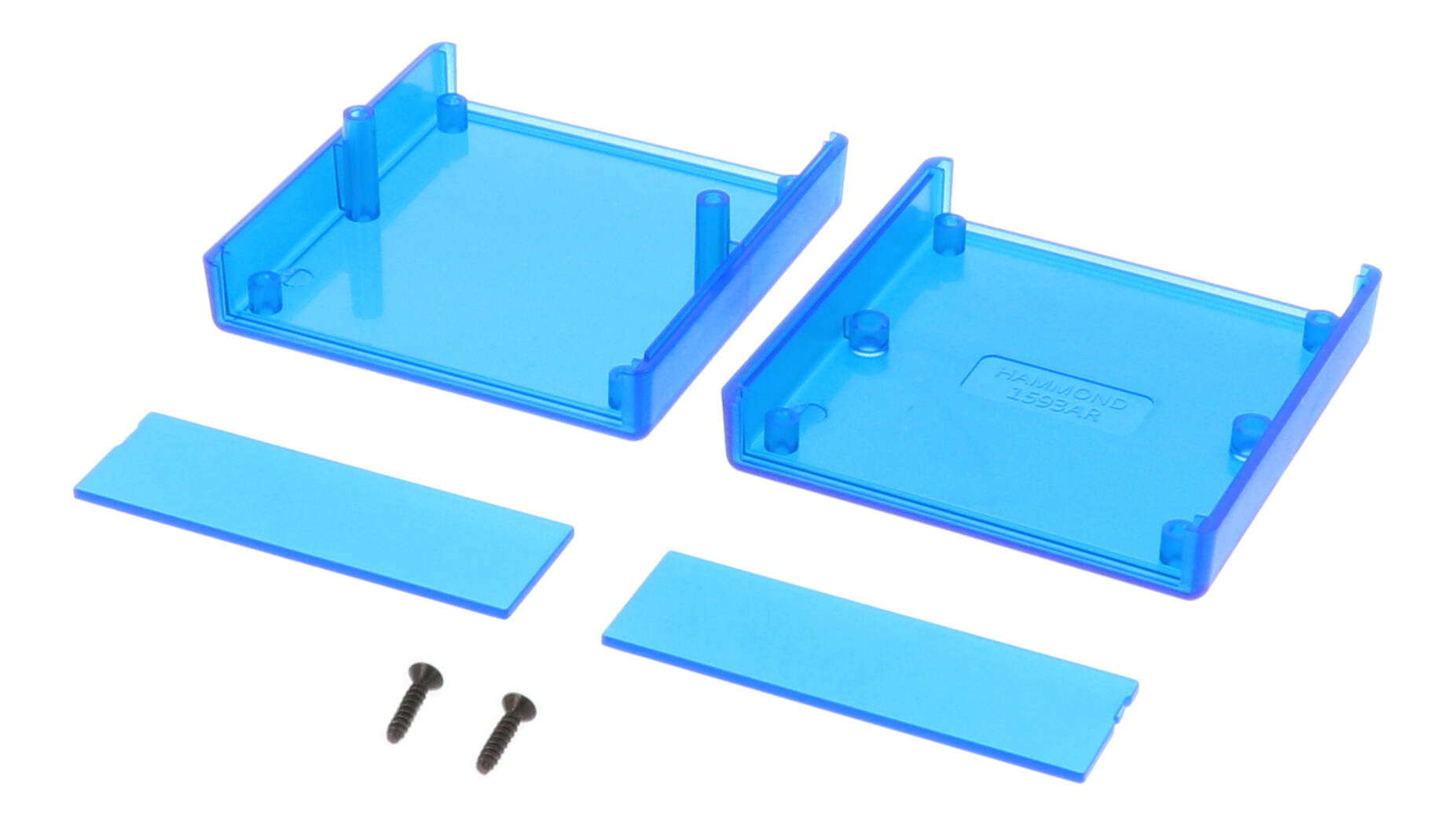

Each 1593ARTBU ships in shrink wrap with top and bottom cover, two flat front and rear panels and two cover screws. Translucent blue replacement panels (1593ARL1TBU-10 flat, 1593ARL2TBU-10 contoured), IR and aluminum panels, and belt clips are listed. RoHS and REACH compliant.
Ideal For
- Hand held electronic instruments
- Compact PCB enclosures
- Devices with membrane keypads or overlays
- Belt-clip carried electronics
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593ARTBU |
| Customization | Factory modification available (milling, drilling, printing); solid models in .stp or .x_t |
| Short Description | ABS HAND HELD 76 X 74MM |
Dimensions
| Inside Width | 67.89 mm [2.67 in] |
| Inside Height | 22.00 mm [0.87 in] |
| Inside Length | 69.38 mm [2.73 in] |
| Size (L X W X H) | 2.95 in x 2.91 in x 1.06 in (75 mm x 74 mm x 27 mm) |
| Overall Height (Drawing) | 27.00 mm [1.06 in] |
| Top Inlay (L X W X Depth) | 68.69 mm [2.70 in] x 66.69 mm [2.63 in] x 0.80 mm [0.03 in] |
| Overall Length / Width (Drawing) | 73.97 mm [2.91 in] x 76.00 mm [2.99 in] |
| Nominal Size (Series Table L X W X D) | 2.91 in (74 mm) x 2.99 in (76 mm) x 1.06 in (27 mm) |
Accessories
| Aluminum Panels | 1593ARAL10 |
| Infrared Panels | 1593ARIR10 |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Standard Flat Panel (Single Panel) | 1593ARL1BK-10 (black), 1593ARL1GY-10 (grey), 1593ARL1TBU-10 (translucent blue) |
| Standard Contoured Panel (Single Panel) | 1593ARL2BK-10 (black), 1593ARL2GY-10 (grey), 1593ARL2TBU-10 (translucent blue) |
| P.C. Board Screws M2.6 X 6 Mm Self-Tapping | SC519-50 (pkg 50) |
| Cover Screws #4 X 1/2" Self-Tapping (100 Pkg) | 1591TS100 (silver), 1591TS100BK (black) |
Identifiers
| UPC | 623980403106 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Bosses | Accept #2.6 self-tapping screw |
| Max. P.C. Board Width | 68.5 mm |
| Max. P.C. Board Length | 67.5 mm |
| Max Recommended PCB Size (Drawing) | 67.50 mm [2.66 in] x 68.50 mm [2.70 in]; PCB not supplied |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Color | Trans. Blue |
| Texture | Satin |
| Assembly | Secured with self-tapping screws |
| Included | Top and bottom cover, 2 flat panels for front and rear, and 2 cover screws |
| Material | ABS Plastic (GP ABS) |
| Flame Rating | UL94 HB |
| Screw Finish | Black |
| Removable Panels | 2 |
| Recommended Torque, Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque, Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Battery Door | No |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1593ARTBU see-through?▾
It is molded in translucent (transparent) blue general purpose ABS.
What finish are the screws?▾
Transparent blue enclosures include black finish screws.
What are the outside dimensions?▾
Listed at 75 mm x 74 mm x 27 mm (2.95 in x 2.91 in x 1.06 in); the drawing shows 73.97 mm x 76.00 mm x 27.00 mm.
What panels are included?▾
Two flat panels for the front and rear.
What IP rating does it meet?▾
It is designed to meet IP54.
