Hammond 1593BBBK 95mm Black Handheld ABS Instrument Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black satin ABS hand held case, 95 x 76 x 30 mm
- Designed to meet IP54 (no battery door)
- Two removable end panels; IR and aluminum-colour panel options
- Recessed top inlay 88 x 66 mm for membrane display or pad
- Inside 87.20 x 71.43 x 23.90 mm; max PCB 86 x 70 mm
- 4 black finish self-tapping cover screws included
- Optional nylon belt clip

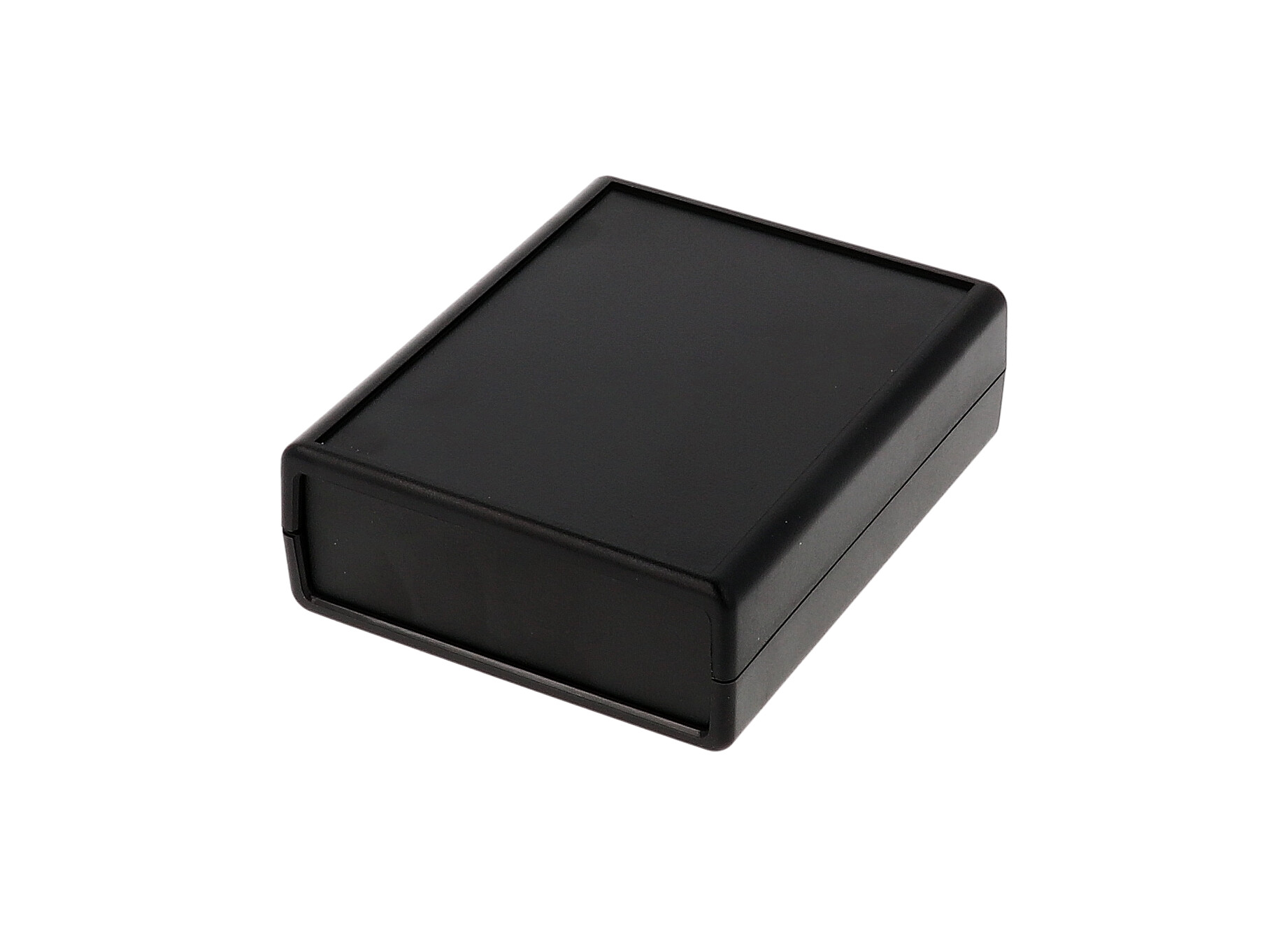

The 1593BBBK is a black hand held instrument enclosure in the 1593BB size, listed at 3.75 in x 3 in x 1.18 in (95 mm x 76 mm x 30 mm). It is aimed at product designers building portable electronic instruments around a printed circuit board, with an ergonomic shape designed for a comfortable fit in the user's hand.
The enclosure is molded from general purpose ABS with a satin texture and is rated UL94 HB. It has two removable end panels and no battery door, and is designed to meet IP54. A recessed top with an 88.00 mm x 66.00 mm inlay, 1.00 mm deep, is provided for a membrane display or pad. The case is secured with self-tapping screws; black enclosures include black finish screws.
Internal dimensions are 87.20 mm long, 71.43 mm wide and 23.90 mm high. The maximum recommended PCB is 86.00 mm x 70.00 mm (not supplied), and the bosses accept #4 self-tapping screws such as 1593ATS50. Recommended torque is 40 cN-m [57 ozf-in] for cover screws and 20-30 cN-m [29-42 ozf-in] for internal mounting screws.

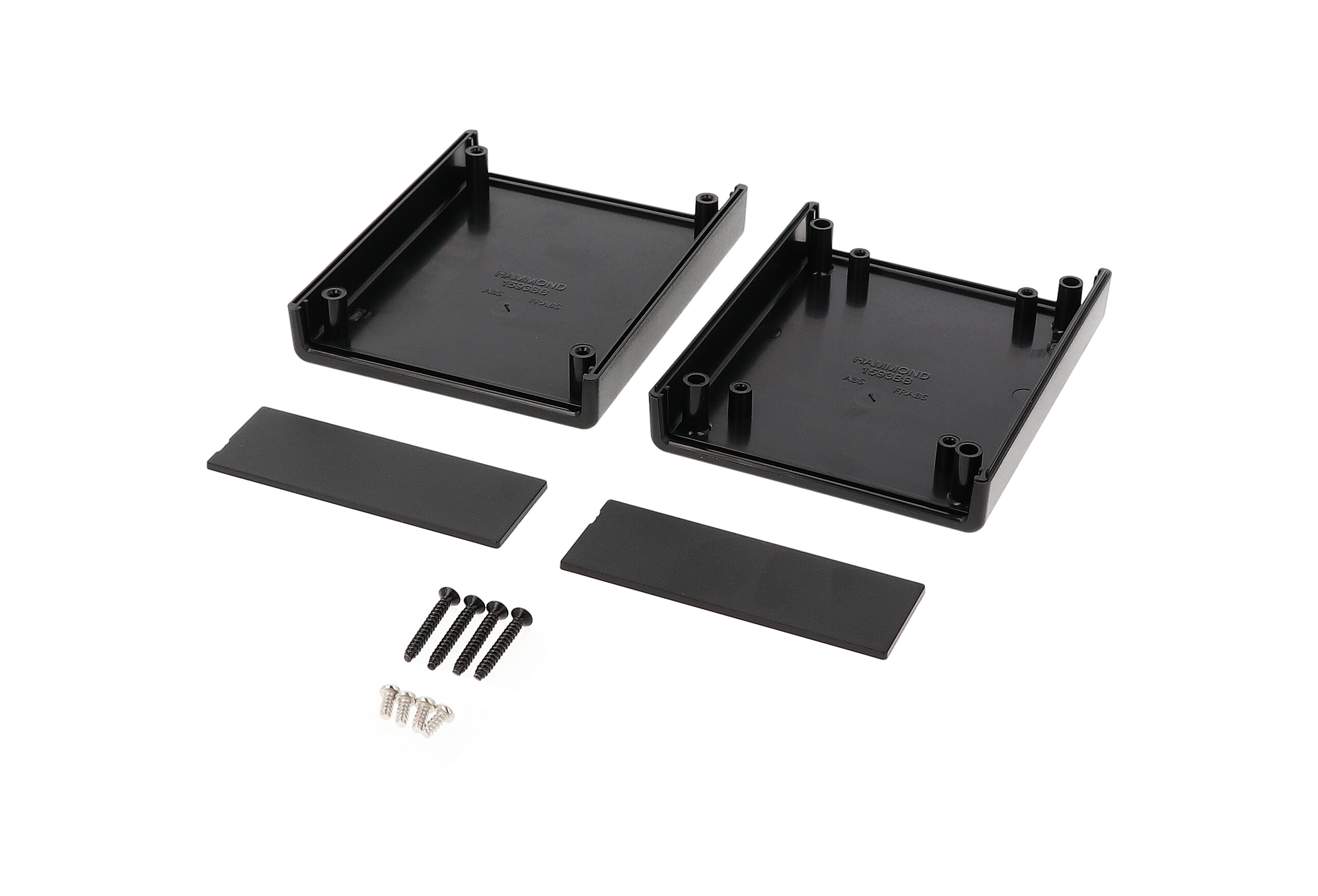

Each 1593BBBK is supplied with top and bottom cover, two flat plastic panels for the front and rear, and four cover screws, packed in shrink wrap. Replacement flat panels, infrared panels (1593BBIR10), aluminum-colour panels (1593BBAL10) and nylon belt clips (1599CLIP, 1599CLIPGY) are listed. RoHS and REACH compliant.
Ideal For
- Hand held test and measurement instruments
- Portable PCB enclosures
- Membrane keypad devices
- Belt-clip carried electronics
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593BBBK |
| Customization | Factory modification available (milling, drilling, printing); solid models in .stp or .x_t |
| Short Description | ABS HAND HELD 95 X 77MM |
Dimensions
| Inside Width | 71.43 mm [2.81 in] |
| Inside Height | 23.90 mm [0.94 in] |
| Inside Length | 87.20 mm [3.43 in] |
| Panel Thickness | 1.52 mm [0.06 in] |
| Size (L X W X H) | 3.75 in x 3 in x 1.18 in (95 mm x 76 mm x 30 mm) |
| End Panel Size (Drawing) | 71.00 mm [2.80 in] x 24.30 mm [0.96 in] |
| Overall Height (Drawing) | 30.00 mm [1.18 in] |
| Top Inlay (L X W X Depth) | 88.00 mm [3.46 in] x 66.00 mm [2.60 in] x 1.00 mm [0.04 in] |
| Overall Length / Width (Drawing) | 95.31 mm [3.75 in] x 77.31 mm [3.04 in] |
| Nominal Size (Series Table L X W X D) | 3.74 in (95 mm) x 3.03 in (77 mm) x 1.18 in (30 mm) |
Accessories
| Aluminum Panels | 1593BBAL10 |
| Infrared Panels | 1593BBIR10 |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Standard Flat Panel (Single Panel) | 1593BBLBK-10 (black), 1593BBLGY-10 (grey), 1593BBLTBU-10 (translucent blue) |
| P.C. Board Screws #4 X 1/4" Self-Tapping | 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| Cover Screws #4 X 3/4" Self-Tapping (100 Pkg) | 1593QS100 (silver), 1593QS100BK (black) |
Identifiers
| UPC | 623980401225 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 86 mm |
| Max. P.C. Board Length | 70 mm |
| Max Recommended PCB Size (Drawing) | 86.00 mm [3.39 in] x 70.00 mm [2.76 in]; PCB not supplied |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Color | Black |
| Texture | Satin |
| Assembly | Secured with self-tapping screws |
| Included | Top and bottom cover, 2 flat plastic panels for front and rear, and 4 cover screws |
| Material | ABS Plastic (GP ABS) |
| Flame Rating | UL94 HB |
| Screw Finish | Black |
| Removable Panels | 2 |
| Recommended Torque, Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque, Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Battery Door | No |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1593BBBK?▾
87.20 mm long, 71.43 mm wide and 23.90 mm high.
What size circuit board fits?▾
The maximum recommended PCB is 86.00 mm x 70.00 mm, listed on the part page as 70 mm x 86 mm.
What comes with it?▾
Top and bottom cover, 2 flat plastic panels for front and rear, and 4 cover screws.
What replacement cover screws does it use?▾
#4 x 3/4" self-tapping screws: 1593QS100 (silver) or 1593QS100BK (black), 100 per pack.
What is the IP rating?▾
It is designed to meet IP54.
