Hammond 1593STBU Transparent Blue Slim Handheld Case, AAA Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Transparent blue ABS, 21 mm (0.83 in) low profile
- AAA battery compartment with "three snap" door
- 91 x 66 x 21 mm hand-held shape
- Max PCB 48.89 x 59.73 mm; 14.90 mm inside height
- Black finish cover screws included (4 pcs)
- Matching 1593SLTBU-10 translucent blue flat panels
- UL94 HB; RoHS and REACH compliant
The 1593STBU is the transparent blue version of the low-profile 1593S hand-held case. Its translucent satin-texture ABS shell lets indicator LEDs glow through, making it a good choice for slim remotes, beacons and demonstration hardware that should look light and compact.
The integrated battery compartment, closed by a long-life "three snap" door, accepts AAA batteries only; the BH2AAAW two AAA holder is the largest that fits. One end panel is removable and the recessed top inlay (80.25 x 55.06 mm) takes a membrane display. Transparent blue enclosures come with black finish self-tapping screws.
The 1593STBU measures 3.6 x 2.6 x 0.83 in (91 x 66 x 21 mm) per the part page and 92 x 67 x 21 mm per the series table. Inside, the drawing gives 49.86 mm length, 60.89 mm width and 14.90 mm height, with a maximum PC board of 48.89 x 59.73 mm.

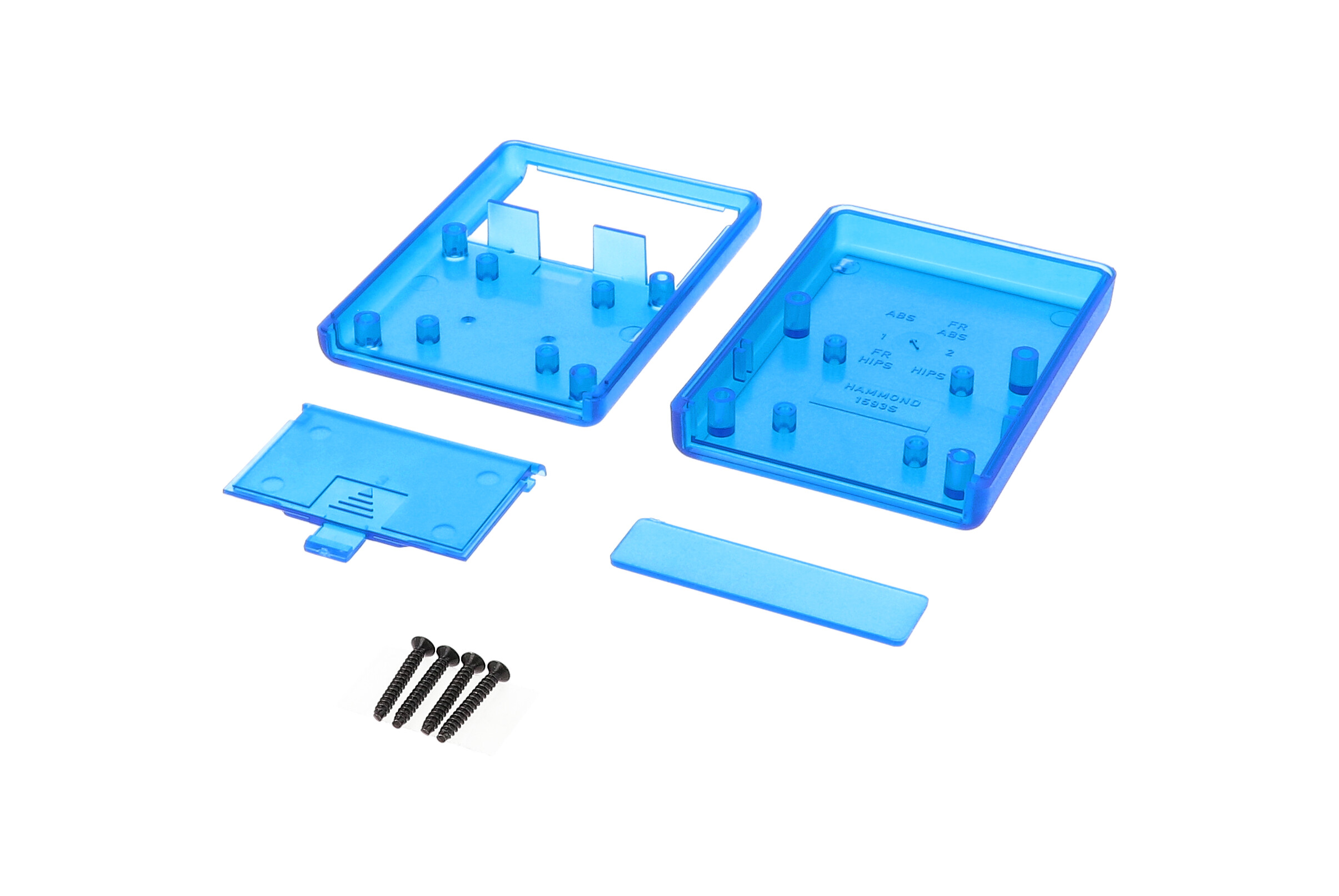

Included are top and bottom cover, 1 plastic flat front panel, battery door and 4 cover screws; shipping weight 0.12 lbs (0.05 kg) in shrink wrap. Recommended torque is 40 cN-m for cover screws and 20-30 cN-m for internal mounting screws. UL94 HB, RoHS and REACH compliant.
Ideal For
- Slim remotes and beacons with visible LEDs
- Demonstration hardware
- AAA-powered hand-held devices
Overview
| Type | General purpose |
| Color | Trans. Blue |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593STBU |
| Short Description | 1593S TRANSPARENT BLUE |
| Color Variants (Black / Gray / Trans Blue) | 1593SBK / 1593SGY / 1593STBU |
Dimensions
| Inside Width | 60.89 mm [2.40 in] |
| Inside Height | 14.90 mm [.59 in] |
| Inside Length | 49.86 mm [1.96 in] |
| Top Inlay Depth | 1.00 mm [.04 in] |
| Top Inlay Width | 55.06 mm [2.17 in] |
| Size (L X W X H) | 3.6 in x 2.6 in x 0.83 in (91 mm x 66 mm x 21 mm) |
| Top Inlay Length | 80.25 mm [3.16 in] |
| Depth (Series Table) | 0.83 in (21 mm) |
| Width (Series Table) | 2.64 in (67 mm) |
| Length (Series Table) | 3.62 in (92 mm) |
| Max. P.C. Board Width | 59.73 mm |
| Max. P.C. Board Length | 48.89 mm |
| End Panel Size (Drawing) | 59.50 x 15.00 x 1.70 mm [2.34 x .59 x .07 in] |
| Overall Dimensions (Drawing) | 92.00 x 66.50 x 21.00 mm [3.62 x 2.62 x .83 in] |
Accessories
| Battery Holders | BH1AAAW (1-AAA), BH2AAAW (2-AAA) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593SLBK-10 (black), 1593SLGY-10 (grey), 1593SLTBU-10 (translucent blue) |
| Replacement Cover Screws | #4 x 5/8" self-tapping: 1593MS100 (silver) / 1593MS100BK (black), 100-pack |
| Aluminum End Panels (10-pack) | 1593SAL10 |
| Infrared End Panels (10-pack) | 1593SIR10 |
Identifiers
| UPC | 623980809755 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:25.04.2023 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | Yes |
| Included Items | Top and bottom cover, 1 plastic flat panel for front, battery door and 4 cover screws |
| Removable Panels | 1 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Battery Door Design | "Three snap" battery door designed for long life |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Battery Compatibility | Accepts AAA batteries only; the two AAA battery holder is the largest holder that will fit |
| Included Screw Finish | Black finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What batteries does the 1593STBU take?▾
AAA only, due to the low profile. The two AAA battery holder is the largest holder that will fit.
Are replacement blue end panels available?▾
Yes, the 1593SLTBU-10 translucent blue flat panel. Infrared (1593SIR10) and aluminum (1593SAL10) panels also fit.
What color are the screws?▾
Transparent blue enclosures include black finish screws.
Can it be machined?▾
The drawing states the enclosure can be factory modified (milling, drilling, printing etc.); solid models are available in .stp or .x_t.
