Hammond 1593KGY Compact Grey Handheld ABS Enclosure, 66 x 67 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light grey satin ABS, 66 x 67 x 28 mm
- IP54 rated; UL94 HB flame rating
- Flat and contoured end panels included (4 total)
- Nickel finish cover screws included
- PCB up to 56.61 x 57.66 mm; #4 self-tapping bosses
- Recessed 55 x 55 mm top for membrane overlay
- Grey 1599CLIPGY belt clip available

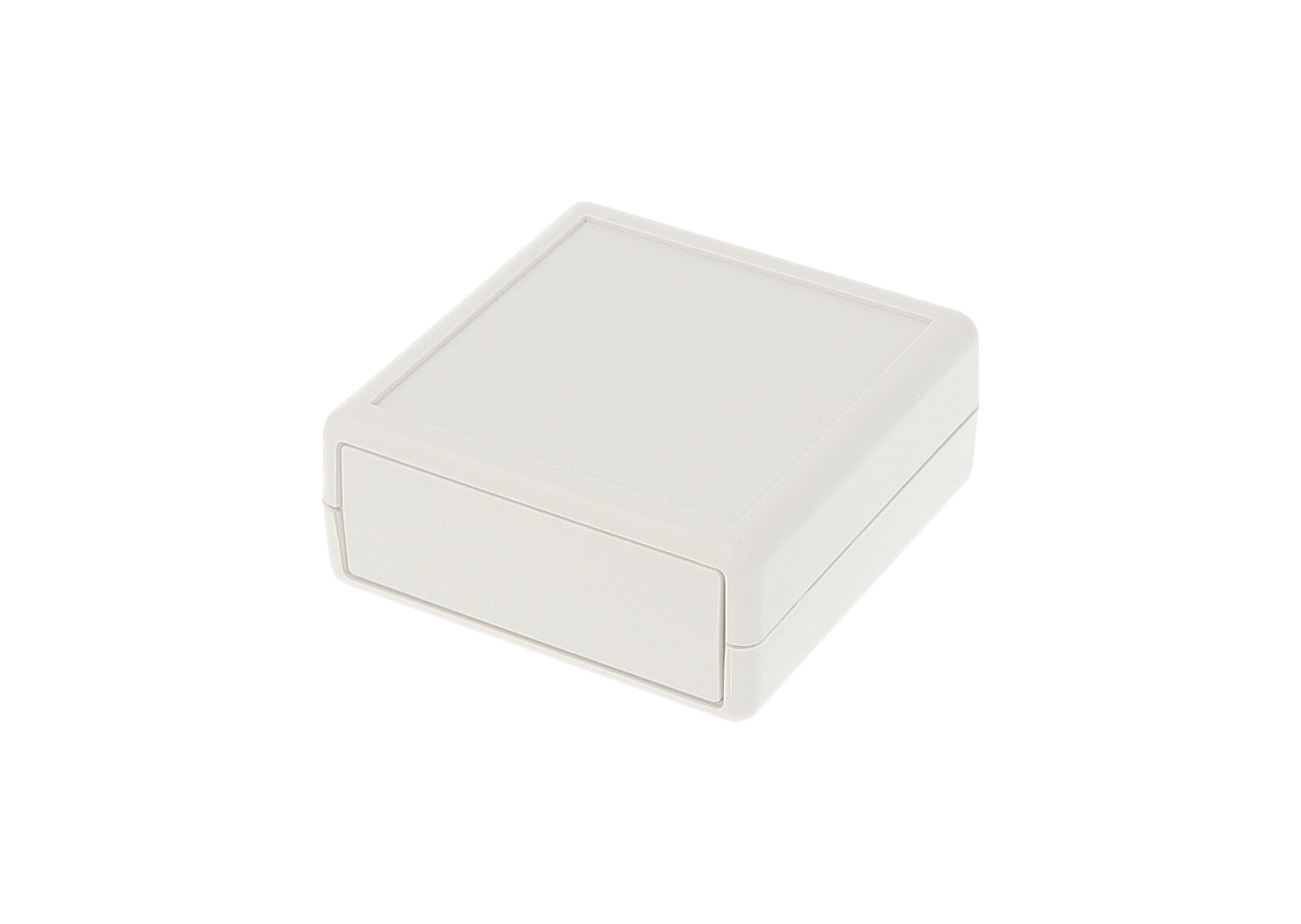

The 1593KGY is the light grey version of the compact 1593K handheld enclosure. It is aimed at engineers packaging a small printed circuit board into an ergonomic, hand-held instrument case with two removable end panels and a recessed top for a membrane display or pad.

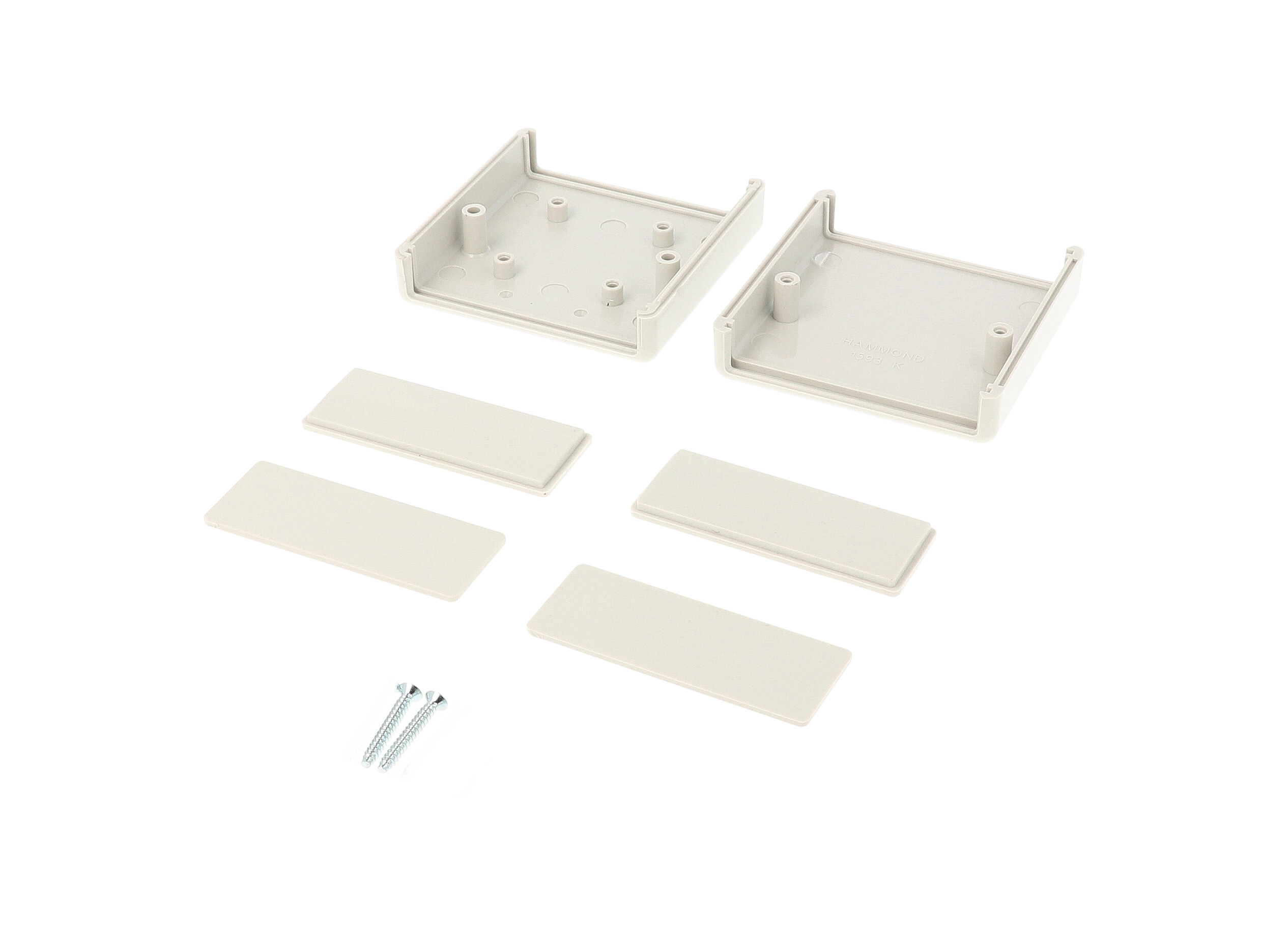

Molded from general purpose ABS (UL94 HB) with a satin texture, the 1593KGY is designed to meet IP54. Grey enclosures ship with nickel finish screws, and the assembly contains the top and bottom cover, four end panels (two flat and two contoured to match the case profile) and two cover screws.
Dimensions from the series table are 66 x 67 x 28 mm (2.60 x 2.64 x 1.10 in); the part page gives 2.6 x 2.6 x 1.1 in (66 x 66 x 28 mm). The drawing lists inside length 58.66 mm, inside width 59.39 mm and inside height 22.00 mm, plus a 55.00 mm square top inlay, 1.00 mm deep, for a membrane overlay. The largest recommended PCB is 56.61 x 57.66 mm, fixed with #4 self-tapping screws.
Tighten cover screws to 40 cN-m [57 ozf-in] and internal screws to 20-30 cN-m [29-42 ozf-in]. Compatible accessories include 1593PIR10 infrared panels, 1593PAL10 aluminum panels, the 1593KPCB board and the 1599CLIPGY grey belt clip. The 1593KGY is RoHS and REACH compliant, shrink wrapped and weighs 0.11 lbs (0.05 kg).
Ideal For
- Compact handheld electronic instruments
- Small PCB assemblies with end-panel connectors
- Membrane keypad handheld devices
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Battery Door | No |
| Enclosure Size | 1593K |
| Long Description | enclosure - plastic |
| Removable Panels | 2 |
| Short Description | ABS HAND HELD 65X65MM |
| Included In Assembly | Top and bottom cover, 4 plastic panels for front and rear (2 types - flat and contoured) and 2 cover screws |
Dimensions
| Inside Width | 59.39 mm [2.34 in] |
| Inside Height | 22.00 mm [.87 in] |
| Inside Length | 58.66 mm [2.31 in] |
| End Panel Size | 60.00 x 22.70 x 1.70 mm [2.36 x .89 x .07 in] |
| Top Inlay Depth | 1.00 mm [.04 in] |
| Top Inlay Width | 55.00 mm [2.17 in] |
| Top Inlay Length | 55.00 mm [2.17 in] |
| Depth (Series Table) | 1.10 in (28 mm) |
| Width (Series Table) | 2.64 in (67 mm) |
| Length (Series Table) | 2.60 in (66 mm) |
| Overall Width (Drawing) | 66.22 mm [2.61 in] |
| Overall Height (Drawing) | 28.00 mm [1.10 in] |
| Overall Length (Drawing) | 67.22 mm [2.65 in] |
| Size L X W X H (Part Page) | 2.6 in x 2.6 in x 1.1 in (66 mm x 66 mm x 28 mm) |
Accessories
| Solid Models | .stp or .x_t |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quote |
| Aluminum End Panels (10-pack) | 1593PAL10 |
| Infrared End Panels (10-pack) | 1593PIR10 |
| Flat End Panel (Single) – Black / Grey / Translucent Blue | 1593PL1BK-10 / 1593PL1GY-10 / 1593PL1TBU-10 |
| Contoured End Panel (Single) – Black / Grey / Translucent Blue | 1593PL2BK-10 / 1593PL2GY-10 / 1593PL2TBU-10 |
Identifiers
| UPC | 623980561363 |
| UNSPSC | 39121301 |
| Part Number | 1593KGY |
PCB Mounting
| P.C. Board Screws | #4 x 1/4" self-tapping – 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| PCB Mounting Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 57.66 mm |
| Max. P.C. Board Length | 56.61 mm |
| Max. Recommended PCB Size (Drawing) | 56.61 x 57.66 mm [2.23 x 2.27 in] (PCB not supplied with enclosure) |
| Matching PC Board (Enclosure Sold Separately) | 1593KPCB |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.11 lbs (0.05 kg) |
Construction & Finish
| Color | Light Gray |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose ABS, UL94-HB) |
| Recessed Top | For membrane display or pad |
| Surface Texture | Satin |
| Included Screw Finish | Nickel finish screws |
| Cover Screws (Replacement) | #4 x 3/4" (19.1 mm) self-tapping oval head – 1593QS100 (silver, 100-pack), 1593QS100BK (black, 100-pack) |
| Recommended Torque – Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque – Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour screws come with the 1593KGY?▾
Grey enclosures include nickel finish screws.
What PCB size fits?▾
The maximum recommended PCB is 56.61 x 57.66 mm; the board is not supplied with the enclosure.
How many end panels are included?▾
Four: two flat and two contoured, for the front and rear openings.
Which aluminum panels fit?▾
The series accessory table lists 1593PAL10 (10-pack) for 1593K enclosures.
What recommended torque applies?▾
Cover screws 40 cN-m [57 ozf-in]; internal mounting screws 20-30 cN-m [29-42 ozf-in].
