Hammond 1593DIR10 Infrared End Panels for 1593D Cases, 10-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 10 infrared end panels for 1593D enclosures
- Transparent red polycarbonate
- 29 x 20 x 2 mm (1.14 x 0.79 x 0.07 in) per panel
- UL94 HB flame rating
- RoHS and REACH compliant
- Bagged; 0.04 lbs (0.02 kg) shipping weight

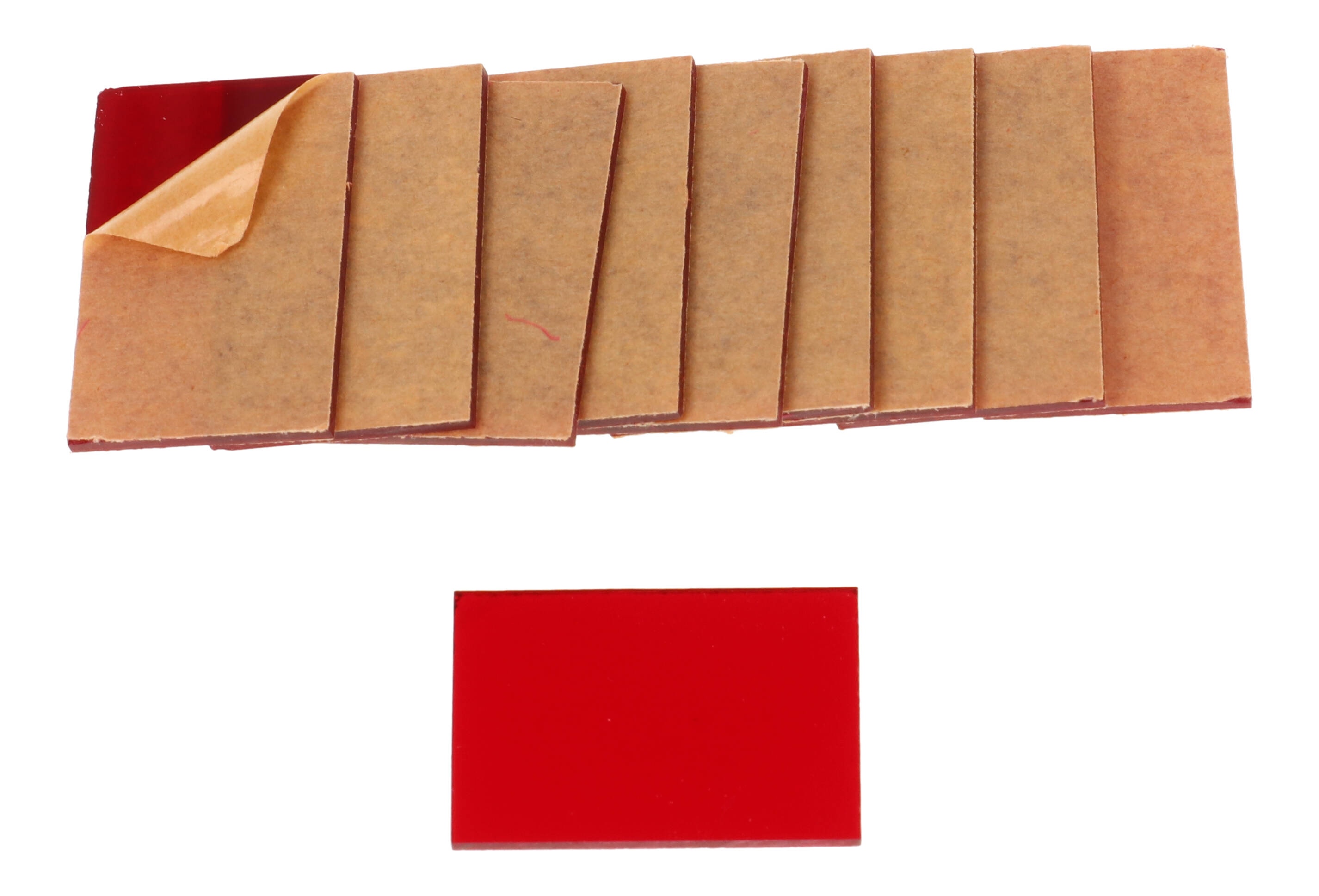

The 1593DIR10 is a pack of ten infrared end panels for the slim 1593D handheld enclosures (1593DBK, 1593DGY and 1593DTBU). They let a designer fit an infrared panel in place of one of the standard flat or contoured plastic end panels that come with the case, which is designed as an electronic instrument enclosure ideally suited for mounting printed circuit boards.

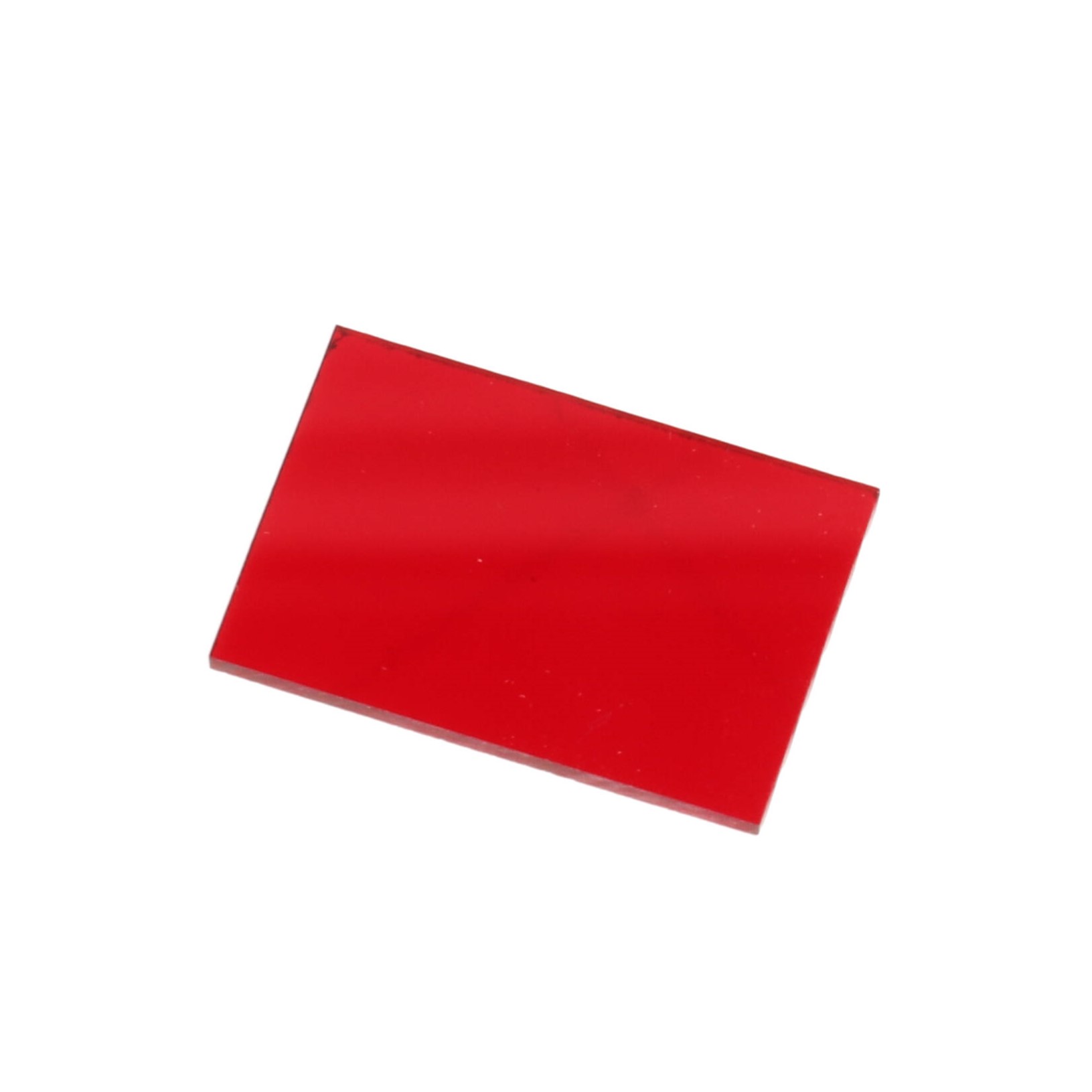

Each panel is molded from polycarbonate in transparent red and carries a UL94 HB flame rating. The part page lists the size as 1.14 x 0.79 x 0.07 in (29 x 20 x 2 mm), which matches the 29.00 x 20.00 x 1.70 mm end panel on the 1593D drawing.
The panels are RoHS and REACH compliant, packed in a bag, and the pack has a shipping weight of 0.04 lbs (0.02 kg). In the series accessory table the 1593DIR10 sits alongside the 1593DAL10 aluminum panels, 1593QS100/1593QS100BK assembly screws and 1593ATS50 PC board mounting screws for enclosures beginning with 1593D.
The series spec sheet warns that some chemicals can damage plastics, including acetone, ketones, ethers, aromatic and chlorinated hydrocarbons and thread locking compounds. Clean the 1593DIR10 panels only with cleaners listed as plastic safe.
Ideal For
- Replacing standard end panels on 1593D enclosures
- Handheld instruments needing infrared end panels
- Spare end panels for 1593D production runs
Overview
| Type | End panels, infrared |
| Pack Quantity | 10 panels |
| Long Description | infrared panels for 1593 enclosures, 10-pack |
| Short Description | IR ENDPANELS 1593D 10 PCS |
| Compatible Enclosures | Part numbers beginning with 1593D (1593DBK, 1593DGY, 1593DTBU) |
Dimensions
| Size L X W X H | 1.14 in x 0.79 in x 0.07 in (29 mm x 20 mm x 2 mm) |
Identifiers
| UPC | 623980966168 |
| UNSPSC | 39121301 |
| Part Number | 1593DIR10 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Color | Trans. Red |
| Material | Polycarbonate |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, strong solvents and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does 1593DIR10 fit?▾
The series accessory table lists it as the IR panel for enclosure part numbers beginning with 1593D (1593DBK, 1593DGY, 1593DTBU).
How many panels are in the pack?▾
Ten panels.
What material are the panels?▾
Polycarbonate, colour transparent red, with a UL94 HB flame rating.
What size is each panel?▾
1.14 x 0.79 x 0.07 in (29 x 20 x 2 mm).
