Hammond 1593BBTBU 95mm Transparent Blue Handheld ABS Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Translucent blue satin ABS hand held case, 95 x 76 x 30 mm
- Designed to meet IP54 with no battery door
- Two removable end panels; translucent blue replacements available
- Recessed 88 x 66 mm top inlay for membrane display or pad
- Inside 87.20 x 71.43 x 23.90 mm
- 4 black finish self-tapping cover screws included
- UL94 HB general purpose ABS

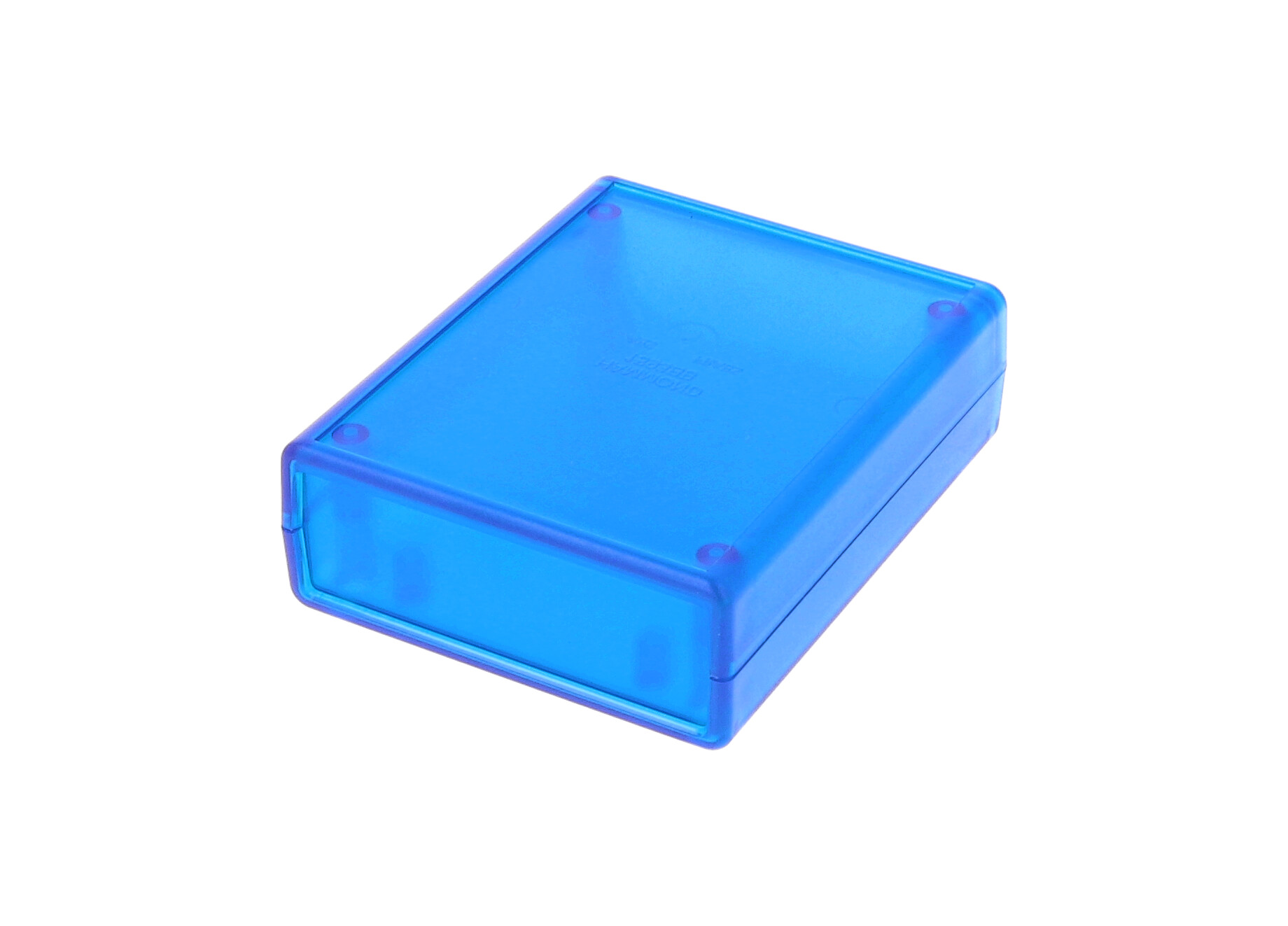

The 1593BBTBU is the translucent blue model of the 1593BB hand held instrument enclosure. Listed at 3.75 in x 3 in x 1.18 in (95 mm x 76 mm x 30 mm), it is shaped for a comfortable fit in the hand and intended for portable electronic instruments built on a printed circuit board.
Construction is general purpose ABS with a satin texture, UL94 HB rated, molded in transparent blue. The enclosure has two removable end panels and no battery door, and is designed to meet IP54. Its recessed top features an 88.00 mm x 66.00 mm inlay for a membrane display or pad. Self-tapping screws hold the halves together, and transparent blue enclosures include black finish screws.
Available internal space is 87.20 mm long, 71.43 mm wide and 23.90 mm high, with a maximum recommended PCB of 86.00 mm x 70.00 mm (not supplied). PCB bosses accept #4 self-tapping screws. Recommended torque is 40 cN-m [57 ozf-in] for cover screws and 20-30 cN-m [29-42 ozf-in] for internal mounting screws.
The 1593BBTBU is supplied with top and bottom cover, two flat plastic front and rear panels and four cover screws in shrink wrap. Translucent blue flat panels (1593BBLTBU-10), infrared panels (1593BBIR10), 1593BBAL10 panels and belt clips are listed accessories. RoHS and REACH compliant.
Ideal For
- Hand held test and measurement instruments
- Portable PCB enclosures
- Membrane keypad devices
- Belt-clip carried electronics
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593BBTBU |
| Customization | Factory modification available (milling, drilling, printing); solid models in .stp or .x_t |
| Short Description | ABS HAND HELD 95 X 77MM |
Dimensions
| Inside Width | 71.43 mm [2.81 in] |
| Inside Height | 23.90 mm [0.94 in] |
| Inside Length | 87.20 mm [3.43 in] |
| Panel Thickness | 1.52 mm [0.06 in] |
| Size (L X W X H) | 3.75 in x 3 in x 1.18 in (95 mm x 76 mm x 30 mm) |
| End Panel Size (Drawing) | 71.00 mm [2.80 in] x 24.30 mm [0.96 in] |
| Overall Height (Drawing) | 30.00 mm [1.18 in] |
| Top Inlay (L X W X Depth) | 88.00 mm [3.46 in] x 66.00 mm [2.60 in] x 1.00 mm [0.04 in] |
| Overall Length / Width (Drawing) | 95.31 mm [3.75 in] x 77.31 mm [3.04 in] |
| Nominal Size (Series Table L X W X D) | 3.74 in (95 mm) x 3.03 in (77 mm) x 1.18 in (30 mm) |
Accessories
| Aluminum Panels | 1593BBAL10 |
| Infrared Panels | 1593BBIR10 |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Standard Flat Panel (Single Panel) | 1593BBLBK-10 (black), 1593BBLGY-10 (grey), 1593BBLTBU-10 (translucent blue) |
| P.C. Board Screws #4 X 1/4" Self-Tapping | 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| Cover Screws #4 X 3/4" Self-Tapping (100 Pkg) | 1593QS100 (silver), 1593QS100BK (black) |
Identifiers
| UPC | 623980401249 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 86 mm |
| Max. P.C. Board Length | 70 mm |
| Max Recommended PCB Size (Drawing) | 86.00 mm [3.39 in] x 70.00 mm [2.76 in]; PCB not supplied |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Color | Trans. Blue |
| Texture | Satin |
| Assembly | Secured with self-tapping screws |

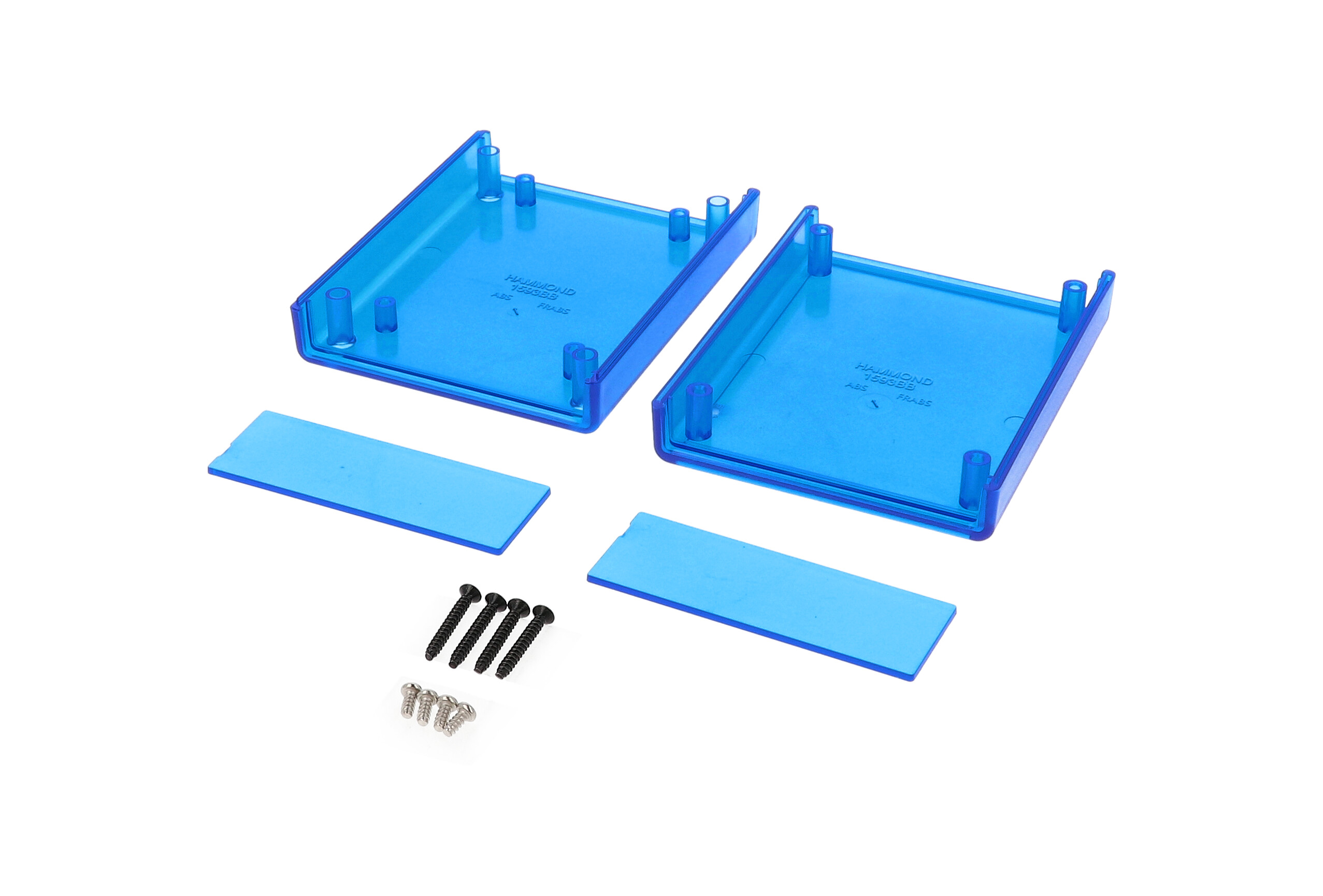

| Included | Top and bottom cover, 2 flat plastic panels for front and rear, and 4 cover screws |
| Material | ABS Plastic (GP ABS) |
| Flame Rating | UL94 HB |
| Screw Finish | Black |
| Removable Panels | 2 |
| Recommended Torque, Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque, Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Battery Door | No |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour is the 1593BBTBU?▾
Translucent (transparent) blue general purpose ABS with a satin texture.
Which screws are included?▾
Four cover screws in black finish, as transparent blue enclosures include black finish screws.
What are the outside dimensions?▾
Listed at 95 mm x 76 mm x 30 mm; the drawing shows 95.31 mm x 77.31 mm x 30.00 mm.
What is the maximum PCB size?▾
86.00 mm x 70.00 mm.
Is it IP rated?▾
It is designed to meet IP54.
