Hammond 1593YTBU 140x66x28mm Transparent Blue Enclosure, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Integrated battery compartment with "three snap" battery door
- 140 x 66 x 28 mm (5.5 x 2.6 x 1.1 in) hand held enclosure
- Max recommended P.C. board 96.89 x 57.23 mm
- Includes 1 flat plastic front panel, battery door and 4 cover screws
- Transparent Blue general purpose ABS with a satin texture; black finish screws
- Listed battery holders: 1-AAA, 2-AAA, 2-AA and 1-9V
- Recessed top for a membrane display or pad
- UL94 HB flame rating; RoHS and REACH compliant

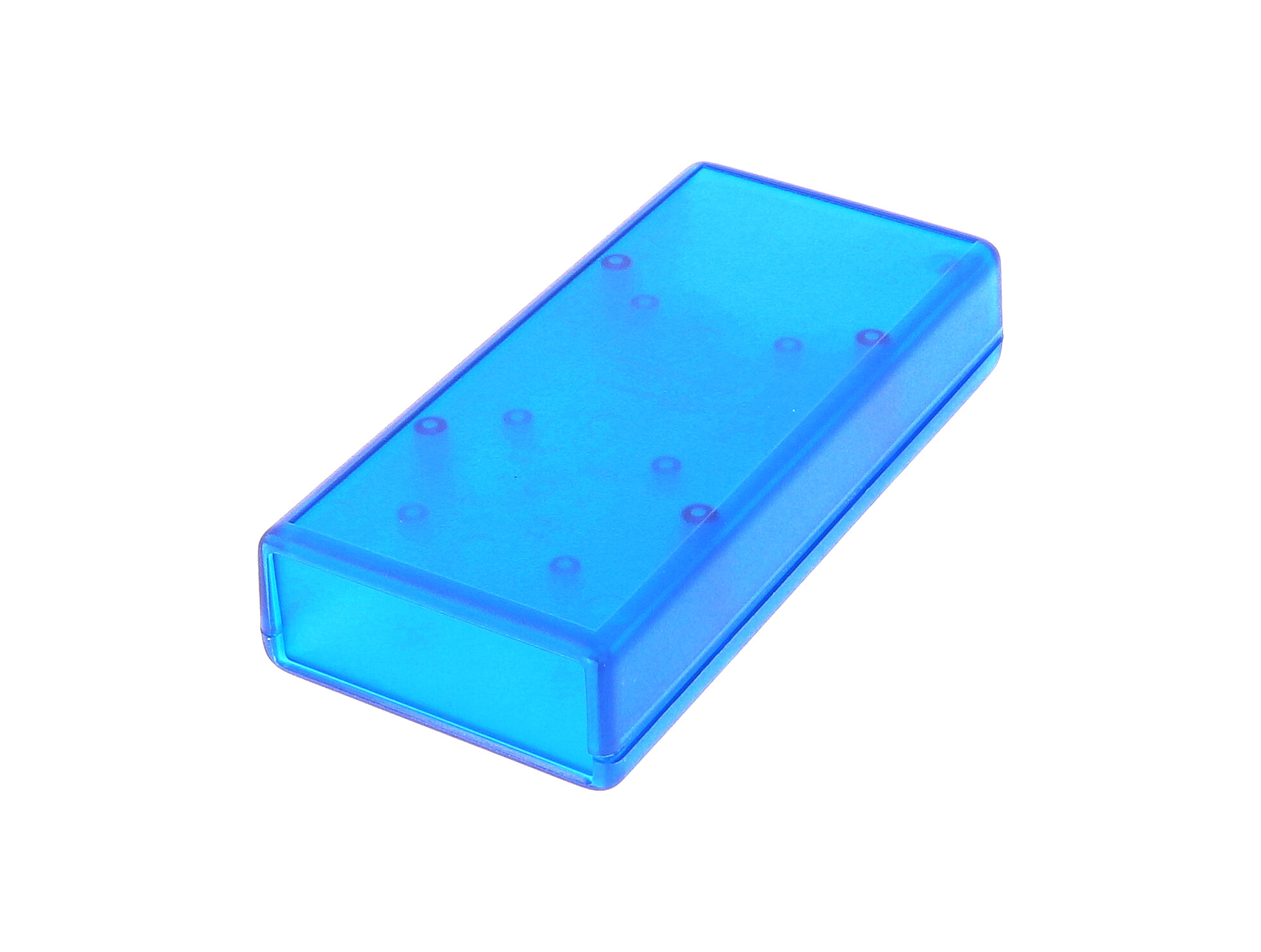

The 1593YTBU is a 1593 series hand held instrument enclosure with an integrated battery compartment and door, molded in transparent blue general purpose ABS with a satin texture. It is intended for battery-powered portable electronics: the front end takes a removable panel, the rear holds the batteries behind a long-life "three snap" battery door, and the recessed top accepts a membrane display or pad.
The listed size is 5.5 x 2.6 x 1.1 in (140 x 66 x 28 mm). Because the battery compartment occupies part of the length, the drawing gives an inside length of 97.80 mm, with an inside width of 59.08 mm and inside height of 21.90 mm. The maximum recommended P.C. board is 96.89 x 57.23 mm, fixed with #4 self-tapping screws.

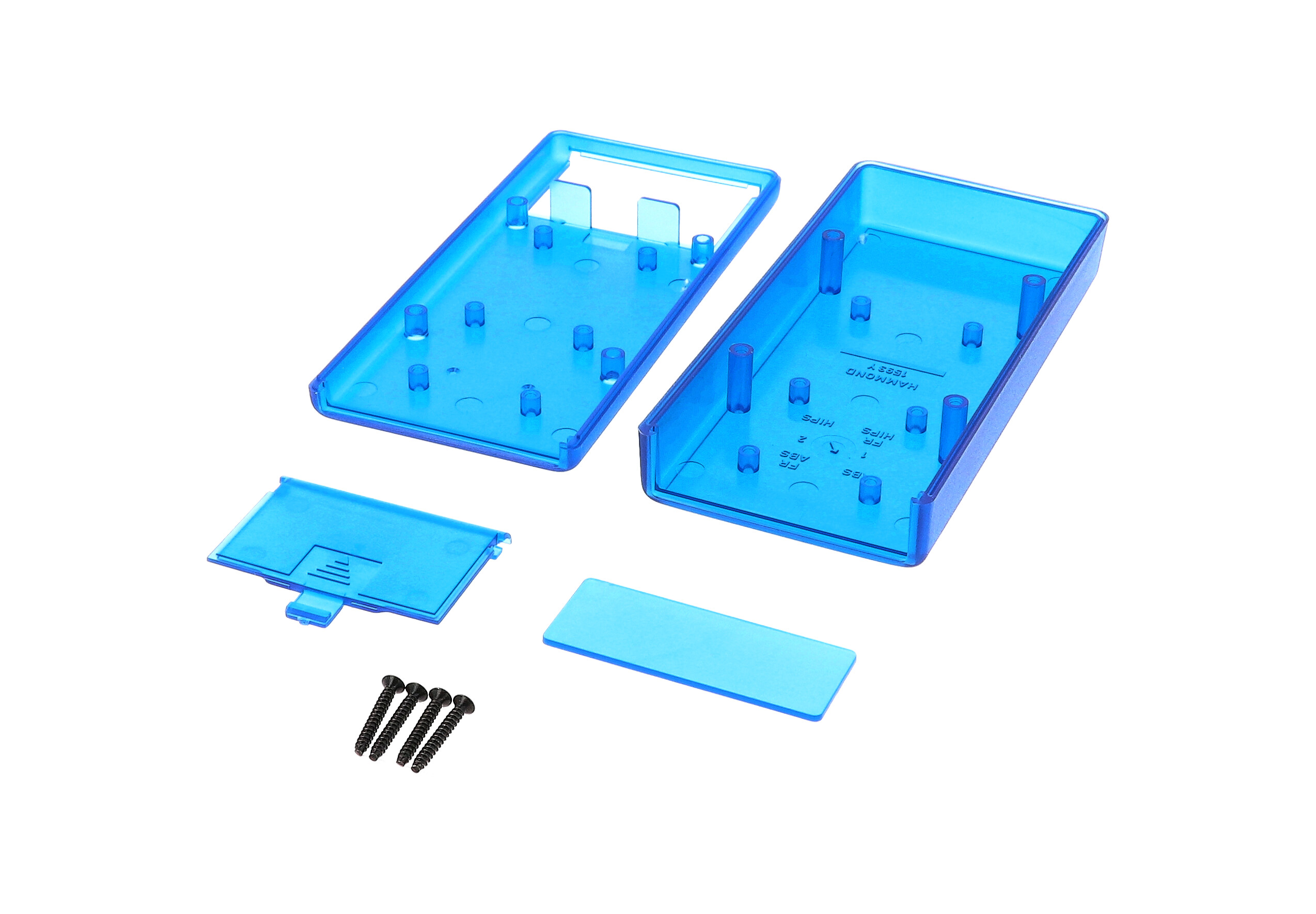

The purchased assembly includes the top and bottom cover, 1 plastic flat panel for the front, the battery door and 4 cover screws; transparent blue enclosures come with black finish screws. Recommended torque is 40 cN-m for cover screws and 20-30 cN-m for internal mounting screws. Battery holders listed on the drawing include BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA) and BS61 (1-9V).
The 1593YTBU is UL94 HB flame rated and RoHS and REACH compliant, and ships in shrink wrap at 0.19 lbs (0.09 kg). Flat and contoured replacement panels, infrared (1593PIR10) and aluminum (1593PAL10) panels and a nylon belt clip are available, and the factory offers milling, drilling and printing.
Ideal For
- Battery-powered hand held instruments
- Portable meters and testers
- Remote controls and handheld controllers
- PCB enclosures with a membrane keypad
Overview
| Type | General purpose |
| Series | 1593 Series, ABS Plastic Hand Held/Instrument Enclosures |
| Description | 1593Y TRANSPARENT BLUE |
| Part Number | 1593YTBU |
| Battery Door | Yes |
| Product Type | Enclosure - plastic |
| Removable Panels | 1 |
Dimensions
| Inlay Depth | 1.00 mm [0.04 in] |
| Inlay Width | 55.00 mm [2.17 in] |
| Inlay Length | 128.50 mm [5.06 in] |
| Inside Width | 59.08 mm [2.33 in] |
| Inside Height | 21.90 mm [0.86 in] |
| Inside Length | 97.80 mm [3.85 in] |
| Size (L X W X H) | 5.5 in x 2.6 in x 1.1 in (140 mm x 66 mm x 28 mm) |
| Depth (Ordering Table) | 1.10 in (28 mm) |
| Width (Ordering Table) | 2.60 in (66 mm) |
| Length (Ordering Table) | 5.51 in (140 mm) |
| Overall Width (Drawing) | 66.00 mm [2.60 in] |
| Overall Height (Drawing) | 28.00 mm [1.10 in] |
| Overall Length (Drawing) | 140.00 mm [5.51 in] |
Identifiers
| UPC | 623980809786 |
| UNSPSC | 39121301 |
PCB Mounting
| P.C. Board | Not supplied with enclosure |
| PCB Mounting Bosses | Accepts #4 self-tapping screw |
| Max. P.C. Board Width | 96.89 mm |
| Max. P.C. Board Length | 57.23 mm |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.19 lbs (0.09 kg) |
Construction & Finish
| Top | Recessed for membrane display or pad |
| Color | Trans. Blue |
| Texture | Satin |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose ABS, GP ABS) |
| CAD Models | Solid models available in .stp or .x_t |
| End Panels | 1 flat plastic front panel |
| Battery Compartment | Integrated battery compartment with "three snap" battery door |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Included In Assembly | Top and bottom cover, 1 plastic flat panel for front, battery door, and 4 cover screws |
| Included Screw Finish | Black finish |
| Recommended Torque - Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque - Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Compatible Accessories
| Battery Holders | BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA), BS61 (1-9V) |
| Nylon Belt Clip | 1599CLIP (Black), 1599CLIPGY (Grey) |
| Aluminum Panels (10-pack) | 1593PAL10 |
| Infrared Panels (10-pack) | 1593PIR10 |
| 1593Y Standard Flat Panel (Single Panel) | 1593PL1BK-10 (Black), 1593PL1GY-10 (Grey), 1593PL1TBU-10 (Translucent Blue) |
| P.C. Board Screws, #4 X 1/4" Self-Tapping | 1593ATS50 (Pkg 50), 1593ATS100 (Pkg 100) |
| 1593Y Standard Contoured Panel (Single Panel) | 1593PL2BK-10 (Black), 1593PL2GY-10 (Grey), 1593PL2TBU-10 (Translucent Blue) |
| Cover Screws, #4 X 3/4" Self-Tapping (100 Pkg) | 1593QS100 (Silver), 1593QS100BK (Black) |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1593YTBU have a battery compartment?▾
Yes. The 1593Y size comes with an integrated battery compartment and a "three snap" battery door designed for long life.
Which battery holders are listed for the 1593YTBU?▾
The drawing lists BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA) and BS61 (1-9V) battery holders.
Is the 1593YTBU IP54 rated?▾
No IP rating is listed for this part. In the 1593 series, the versions without a battery door are the ones designed to meet IP54.
What PCB size fits the 1593YTBU?▾
The maximum recommended P.C. board is 96.89 mm x 57.23 mm. The inside length is 97.80 mm because the battery compartment takes up the rest of the case.
What is included with the 1593YTBU?▾
Top and bottom cover, 1 plastic flat panel for the front, the battery door and 4 cover screws.
Related Products
Save 52%1593YGY — enclosure - plastic
Hammond Manufacturing · 1593YGY
Save 52%SC519-50 — hardware - package of 50 replacement screws
Hammond Manufacturing · SC519-50
Save 52%1593YBK — enclosure - plastic
Hammond Manufacturing · 1593YBK
Save 52%1593XTBU — enclosure - plastic
Hammond Manufacturing · 1593XTBU

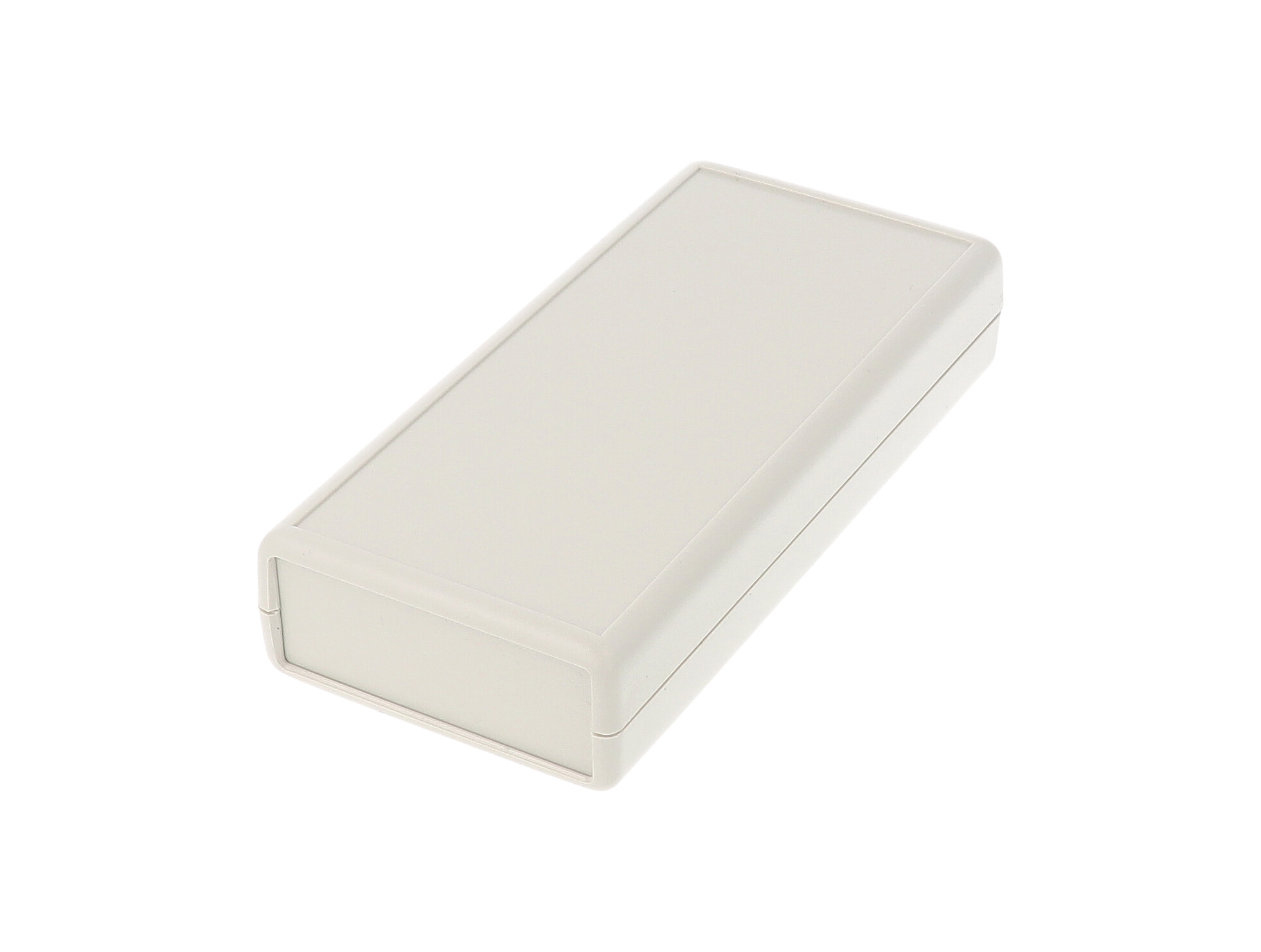

Save 52%1593XGY — enclosure - plastic
