Hammond 1593ARBK 76mm Black Handheld ABS Instrument Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Ergonomic hand held case, 75 x 74 x 27 mm, black satin ABS
- Designed to meet IP54 (no battery door)
- Two removable end panels; flat, contoured, infrared and aluminum panels available
- Recessed top inlay 68.69 x 66.69 mm for membrane display or pad
- Max recommended PCB 67.5 x 68.5 mm on bosses for #2.6 self-tapping screws
- Self-tapping cover screws in black finish included
- Optional nylon belt clip 1599CLIP

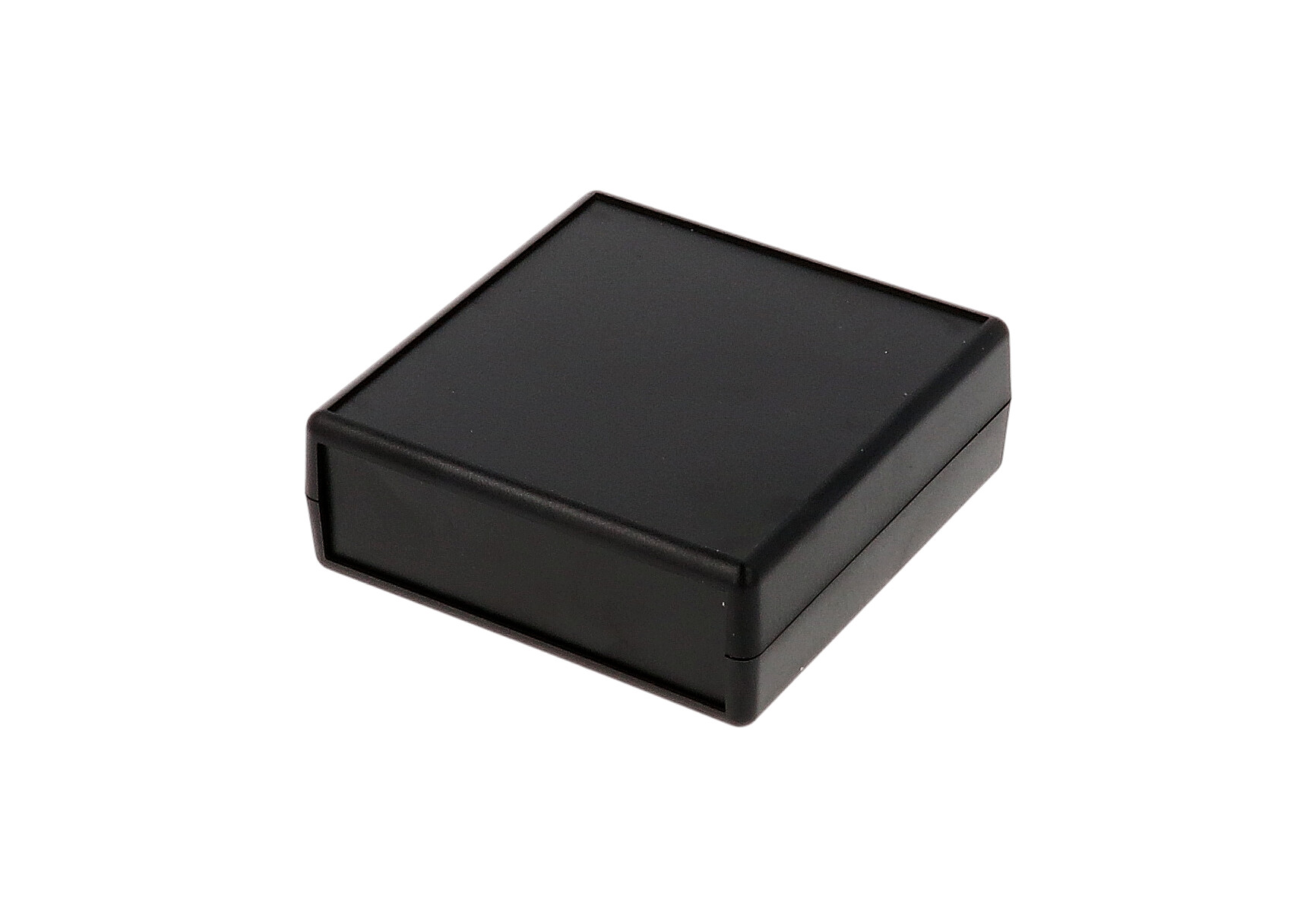

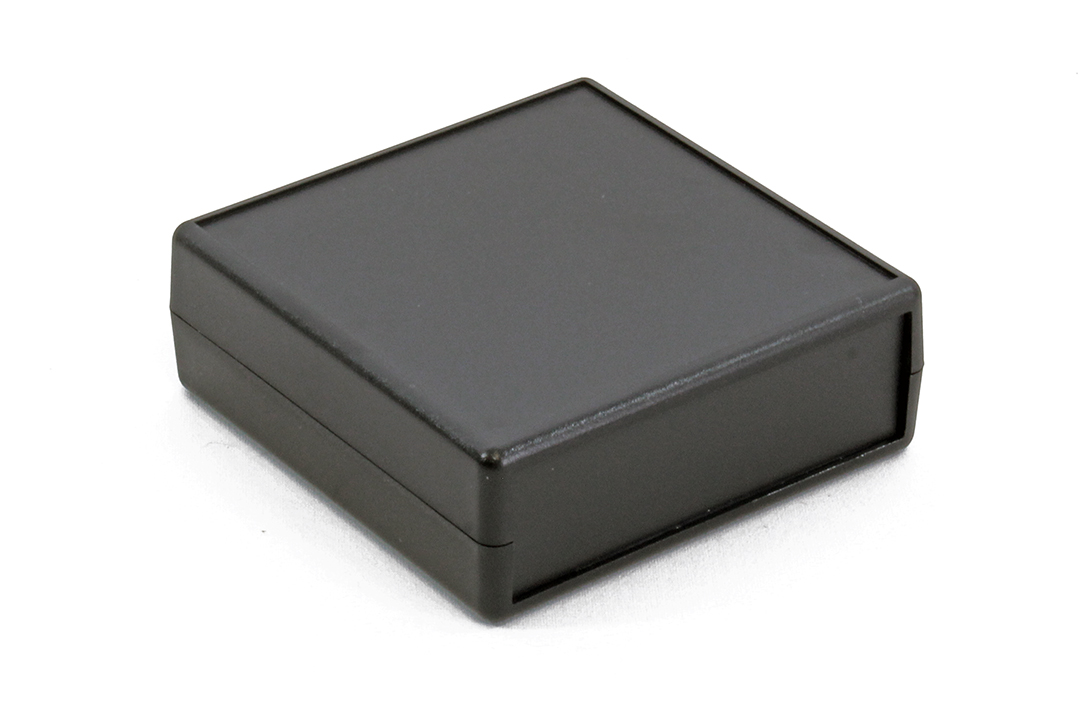

The 1593ARBK is a compact black hand held instrument enclosure from the 1593 Series, listed at 2.95 in x 2.91 in x 1.06 in (75 mm x 74 mm x 27 mm). It is designed for electronics developers who need a small, ergonomically shaped case that fits comfortably in the user's hand and holds a printed circuit board.
The case is molded from general purpose ABS with a satin texture and a UL94 HB flammability rating. It has two removable end panels and no battery door, and versions without a battery door are designed to meet IP54. The top is recessed, with a 68.69 mm x 66.69 mm inlay area for a membrane display or pad. The two halves are secured with self-tapping screws, and black enclosures include black finish screws.
- Inside dimensions: 69.38 mm long x 67.89 mm wide x 22.00 mm high
- Max recommended PCB: 67.50 mm x 68.50 mm (not supplied)
- PCB bosses accept #2.6 self-tapping screws (SC519-50)
- Recommended torque: 40 cN-m on cover screws, 20-30 cN-m on internal mounting screws

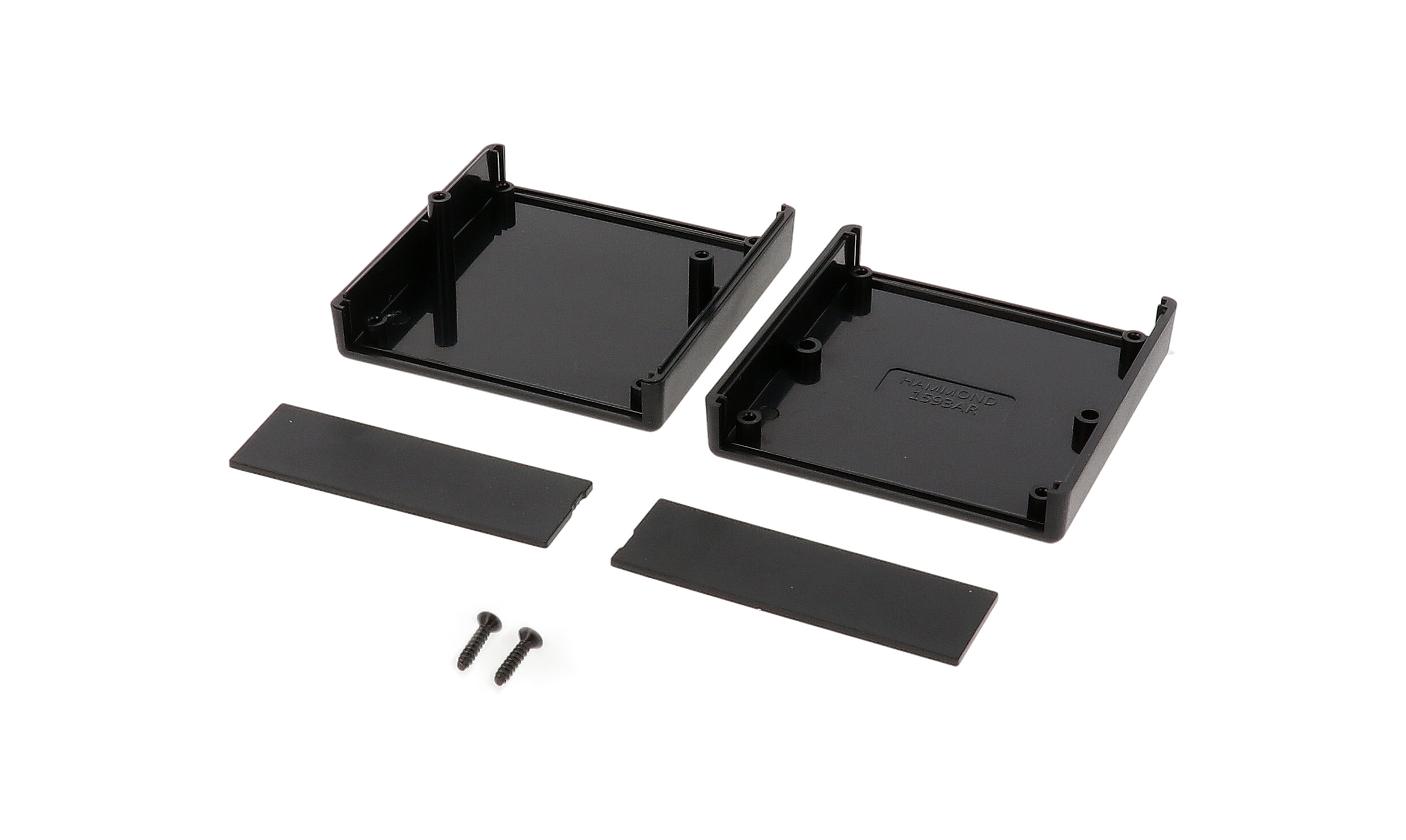

The purchased assembly includes the top and bottom cover, two flat panels for the front and rear, and two cover screws. Replacement panels are offered in flat and contoured styles, plus infrared (1593ARIR10) and aluminum (1593ARAL10) 10-packs, and a nylon belt clip (1599CLIP) is available. The 1593ARBK is RoHS and REACH compliant and ships in shrink wrap.
Ideal For
- Hand held electronic instruments
- Compact PCB enclosures
- Devices with membrane keypads or overlays
- Belt-clip carried electronics
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593ARBK |
| Customization | Factory modification available (milling, drilling, printing); solid models in .stp or .x_t |
| Short Description | ABS HAND HELD 76 X 74MM |
Dimensions
| Inside Width | 67.89 mm [2.67 in] |
| Inside Height | 22.00 mm [0.87 in] |
| Inside Length | 69.38 mm [2.73 in] |
| Size (L X W X H) | 2.95 in x 2.91 in x 1.06 in (75 mm x 74 mm x 27 mm) |
| Overall Height (Drawing) | 27.00 mm [1.06 in] |
| Top Inlay (L X W X Depth) | 68.69 mm [2.70 in] x 66.69 mm [2.63 in] x 0.80 mm [0.03 in] |
| Overall Length / Width (Drawing) | 73.97 mm [2.91 in] x 76.00 mm [2.99 in] |
| Nominal Size (Series Table L X W X D) | 2.91 in (74 mm) x 2.99 in (76 mm) x 1.06 in (27 mm) |
Accessories
| Aluminum Panels | 1593ARAL10 |
| Infrared Panels | 1593ARIR10 |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Standard Flat Panel (Single Panel) | 1593ARL1BK-10 (black), 1593ARL1GY-10 (grey), 1593ARL1TBU-10 (translucent blue) |
| Standard Contoured Panel (Single Panel) | 1593ARL2BK-10 (black), 1593ARL2GY-10 (grey), 1593ARL2TBU-10 (translucent blue) |
| P.C. Board Screws M2.6 X 6 Mm Self-Tapping | SC519-50 (pkg 50) |
| Cover Screws #4 X 1/2" Self-Tapping (100 Pkg) | 1591TS100 (silver), 1591TS100BK (black) |
Identifiers
| UPC | 623980403083 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Bosses | Accept #2.6 self-tapping screw |
| Max. P.C. Board Width | 68.5 mm |
| Max. P.C. Board Length | 67.5 mm |
| Max Recommended PCB Size (Drawing) | 67.50 mm [2.66 in] x 68.50 mm [2.70 in]; PCB not supplied |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Color | Black |
| Texture | Satin |
| Assembly | Secured with self-tapping screws |
| Included | Top and bottom cover, 2 flat panels for front and rear, and 2 cover screws |
| Material | ABS Plastic (GP ABS) |
| Flame Rating | UL94 HB |
| Screw Finish | Black |
| Removable Panels | 2 |
| Recommended Torque, Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque, Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Battery Door | No |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1593ARBK?▾
69.38 mm long, 67.89 mm wide and 22.00 mm high.
Is the 1593ARBK waterproof?▾
It has no battery door, and 1593 versions without a battery door are designed to meet IP54, which covers dust and splashing water rather than immersion.
What is included?▾
Top and bottom cover, 2 flat panels for front and rear, and 2 cover screws.
Which screws mount a circuit board?▾
The PCB bosses accept #2.6 self-tapping screws; SC519-50 (M2.6 x 6 mm self-tapping, pack of 50) is the listed PC board screw.
Is it flame retardant?▾
It is molded from general purpose ABS with a UL94 HB flammability rating.
Can I use infrared or aluminum end panels?▾
Yes, 1593ARIR10 (infrared) and 1593ARAL10 (aluminum) 10-packs are listed for 1593AR enclosures.
