Hammond 1593PTBU Transparent Blue Handheld Enclosure, Battery Door
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Transparent blue ABS shell with satin texture
- Battery compartment with "three snap" long-life door
- 3.6 x 2.6 x 1.1 in (91 x 66 x 28 mm) ergonomic hand-held shape
- Max recommended PCB 48.89 x 59.73 mm; #4 self-tapping mounting
- Recessed top for membrane display or pad
- Black finish cover screws included (4 pcs)
- UL94 HB, RoHS and REACH compliant

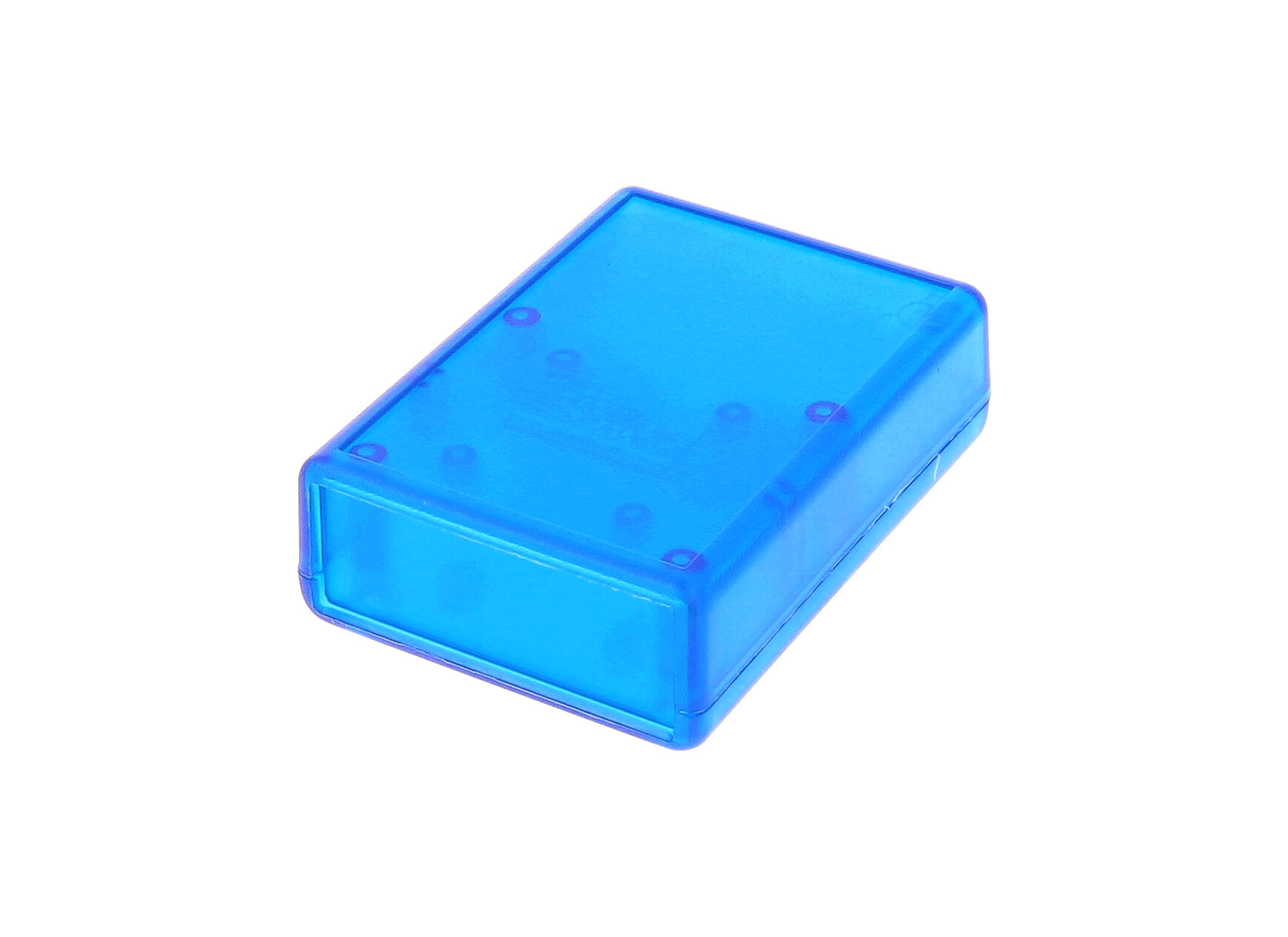

The 1593PTBU is the transparent blue version of the 1593P hand-held instrument enclosure. Molded in general purpose ABS with a satin texture, the translucent shell lets indicators and internal electronics show through while the ergonomic profile sits comfortably in the hand, making it a fit for prototypes, demonstration units and portable devices.
The case closes with self-tapping screws; transparent blue enclosures come with black finish screws. An integrated battery compartment uses a "three snap" door designed for long life, and one end panel is removable for connectors or controls. A recessed top (inlay 80.00 x 55.00 mm, 1.00 mm deep) takes a membrane display or pad.
The listed size is 3.6 x 2.6 x 1.1 in (91 x 66 x 28 mm), with 92 x 67 x 28 mm given in the series table. Usable inside space per the drawing is 49.86 mm long, 60.89 mm wide and 21.80 mm high, and boards up to 48.89 x 59.73 mm are recommended. PC boards mount with #4 self-tapping screws at 20-30 cN-m; cover screws take 40 cN-m.

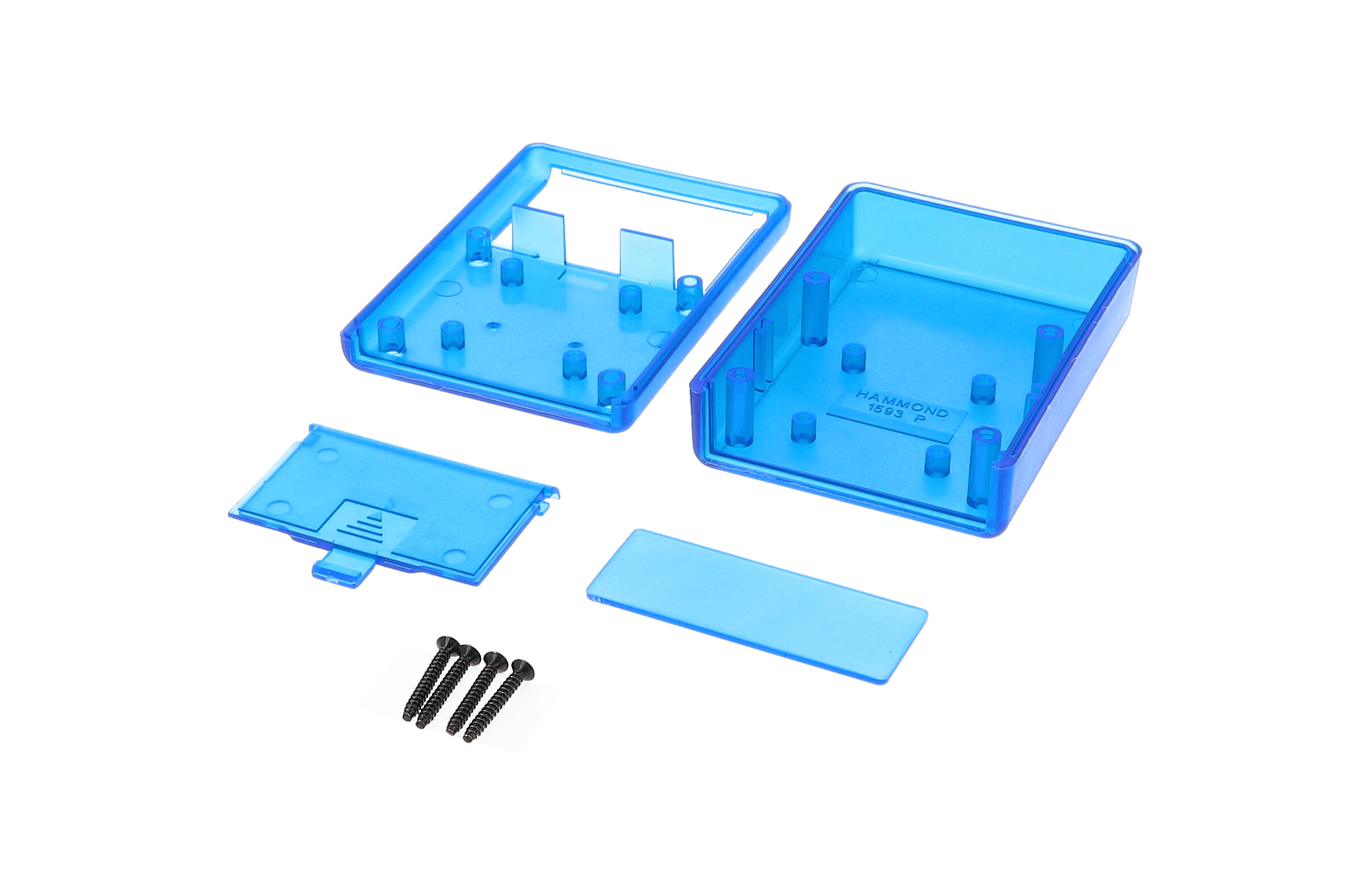

Each 1593PTBU ships shrink wrapped at 0.13 lbs (0.06 kg) with top and bottom cover, 1 flat front panel, battery door and 4 cover screws. It carries a UL94 HB flame rating and is RoHS and REACH compliant.
Ideal For
- Portable devices where internal LEDs should be visible
- Prototype and demonstration electronics
- Battery-powered hand-held instruments
- Membrane keypad controllers
Overview
| Type | General purpose |
| Color | Trans. Blue |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593PTBU |
| Short Description | 1593P TRANSPARENT BLUE |
| Color Variants (Black / Gray / Trans Blue) | 1593PBK / 1593PGY / 1593PTBU |
Dimensions
| Inside Width | 60.89 mm [2.40 in] |
| Inside Height | 21.80 mm [.86 in] |
| Inside Length | 49.86 mm [1.96 in] |
| Top Inlay Depth | 1.00 mm [.04 in] |
| Top Inlay Width | 55.00 mm [2.17 in] |
| Size (L X W X H) | 3.6 in x 2.6 in x 1.1 in (91 mm x 66 mm x 28 mm) |
| Top Inlay Length | 80.00 mm [3.15 in] |
| Depth (Series Table) | 1.10 in (28 mm) |
| Width (Series Table) | 2.64 in (67 mm) |
| Length (Series Table) | 3.62 in (92 mm) |
| Max. P.C. Board Width | 59.73 mm |
| Max. P.C. Board Length | 48.89 mm |
| End Panel Size (Drawing) | 60.00 x 22.70 x 1.70 mm [2.36 x .89 x .07 in] |
| Overall Dimensions (Drawing) | 92.00 x 66.50 x 27.90 mm [3.62 x 2.62 x 1.10 in] |
Accessories
| Battery Holders | BH1AAAW (1-AAA), BH2AAAW (2-AAA), BH2AAW (2-AA), BS61 (1-9V) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593PL1BK-10 (black), 1593PL1GY-10 (grey), 1593PL1TBU-10 (translucent blue) |
| Replacement Cover Screws | #4 x 3/4" self-tapping: 1593QS100 (silver) / 1593QS100BK (black), 100-pack |
| Standard Contoured Panel | 1593PL2BK-10 (black), 1593PL2GY-10 (grey), 1593PL2TBU-10 (translucent blue) |
| Aluminum End Panels (10-pack) | 1593PAL10 |
| Infrared End Panels (10-pack) | 1593PIR10 |
| Prototype PC Board (Enclosure Sold Separately) | 1593PPCB |
Identifiers
| UPC | 623980809731 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:25.04.2023 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.13 lbs (0.06 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | Yes |
| Included Items | Top and bottom cover, 1 plastic flat panel for front, battery door and 4 cover screws |
| Removable Panels | 1 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Battery Door Design | "Three snap" battery door designed for long life |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included Screw Finish | Black finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What color screws come with the 1593PTBU?▾
Transparent blue enclosures include black finish screws.
How many removable panels does it have?▾
One removable end panel. A flat front panel is included; contoured replacements are 1593PL2TBU-10 (translucent blue) and flat replacements are 1593PL1TBU-10.
What are the inside dimensions?▾
The drawing shows an inside length of 49.86 mm, inside width of 60.89 mm and inside height of 21.80 mm.
Can Hammond modify this enclosure?▾
Yes, the drawing states the enclosure can be factory modified (milling, drilling, printing etc.), and solid models are available in .stp or .x_t.
What chemicals should I avoid?▾
Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils.
