Hammond 1593KPCB Prototyping Circuit Board for 1593K Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Made to fit 1593K handheld enclosures; no cutting required
- FR4 glass epoxy, single sided 1 oz/ft2 copper
- 0.042 in holes on 0.1 in centers, 2-hole-per-strip pattern
- Two 0.125 in (1/8 in) mounting holes in position
- Lead free etched copper with anti-tarnish coating
- 58 x 57 x 2 mm (2.27 x 2.23 x 0.06 in)

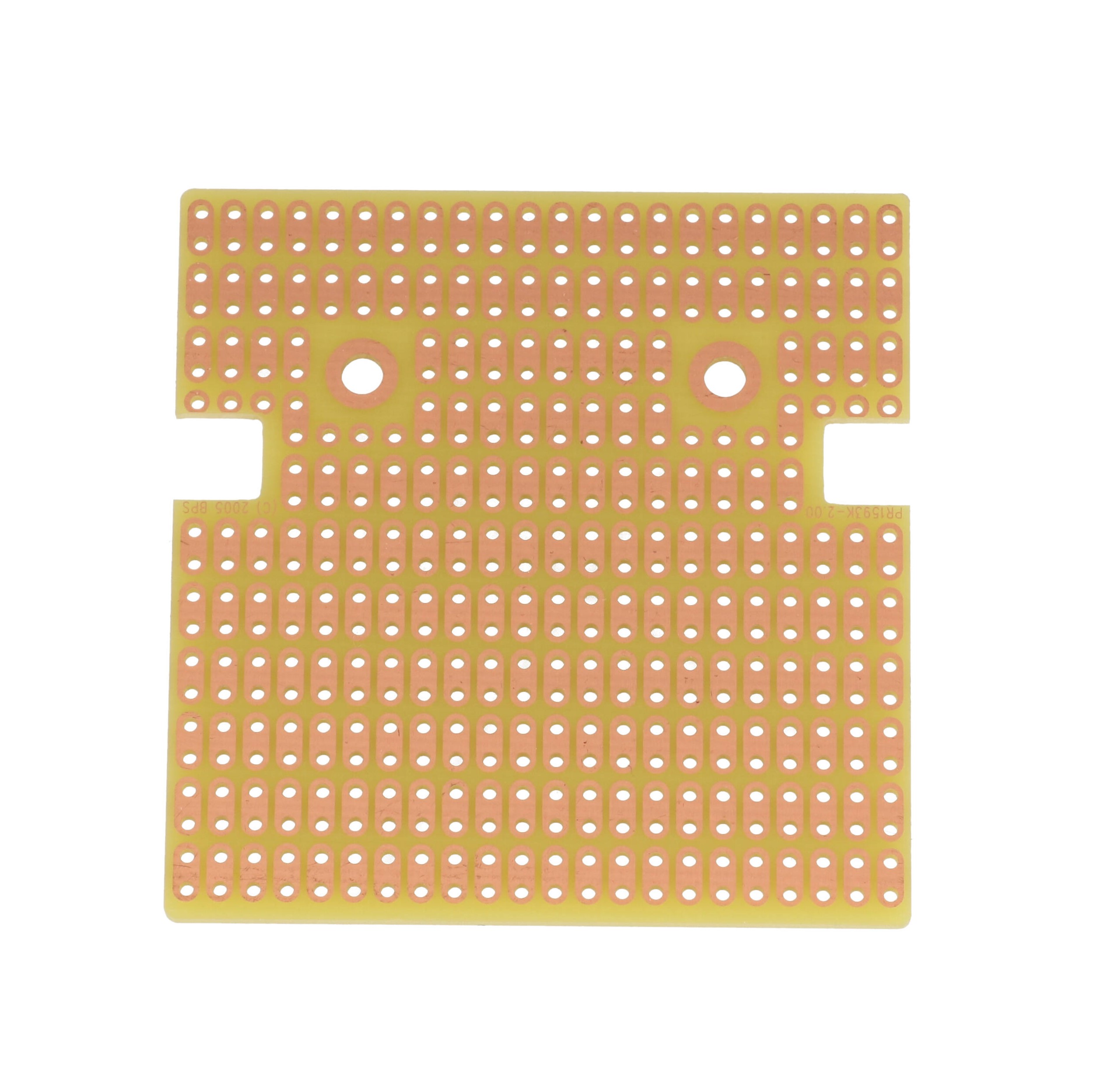

The 1593KPCB is a printed circuit board designed to fit the 1593K handheld enclosures (1593KBK, 1593KGY, 1593KTBU). It is a prototyping board, so you can build a circuit directly on a board whose outline and mounting holes already match the case, with no cutting needed. The enclosure is sold separately.
The board is FR4 glass epoxy, single sided with 1 oz/ft2 copper, and has 0.042 in holes drilled on 0.1 in centers in a 2-hole-per-strip pattern that makes it easy to connect parts while keeping usable board area. The copper is lead free etched with an anti-tarnish coating for easy soldering.

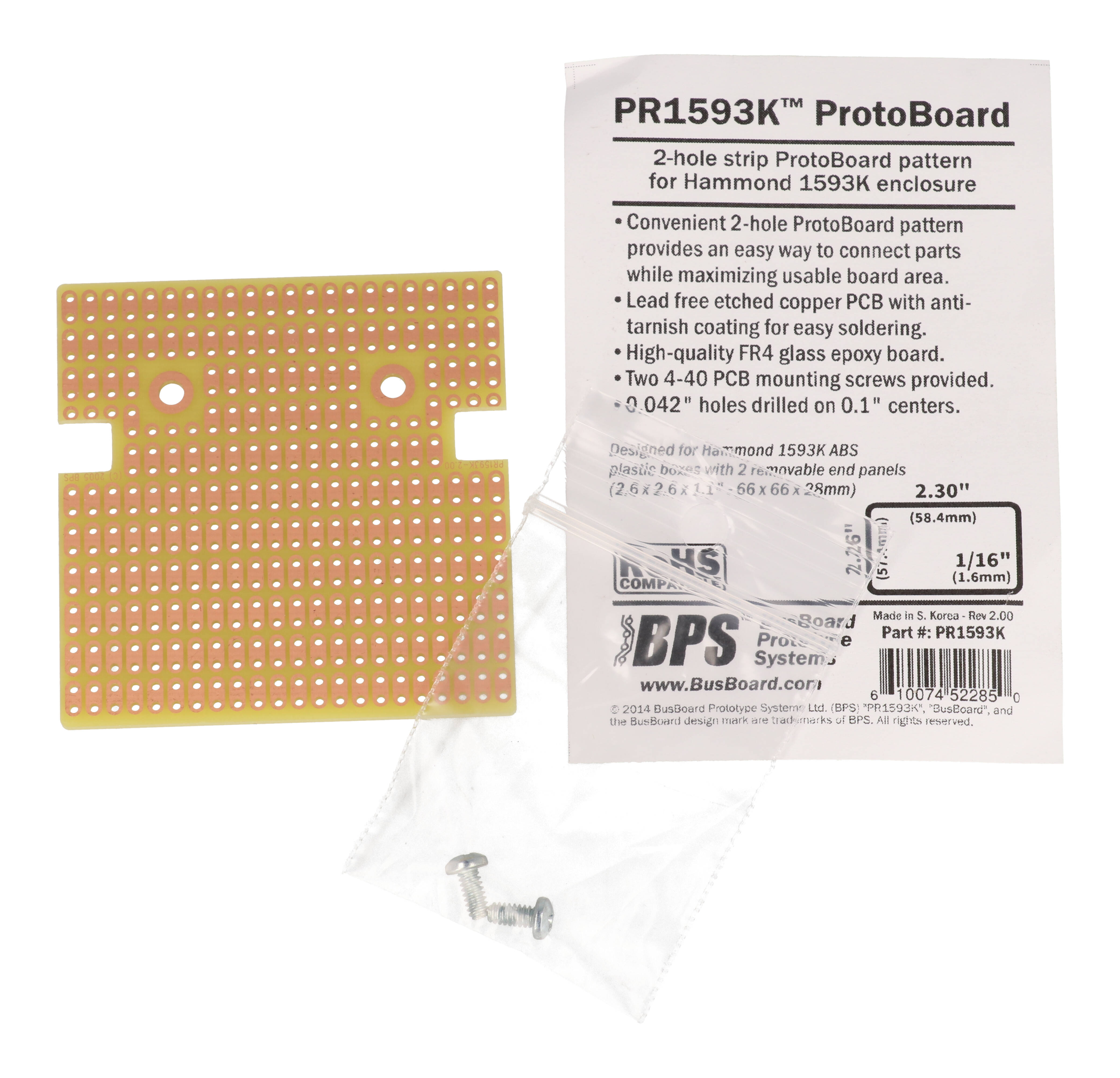

The part page lists the size as 2.27 x 2.23 x 0.06 in (58 x 57 x 2 mm); the board datasheet gives a PCB size of 2.3 x 2.3 in (58 x 58 mm). It has two 0.125 in (1/8 in) mounting holes, and the datasheet lists two 4-40 PCB mounting screws provided. In the 1593K enclosure the maximum PC board size on the drawing is 56.61 x 57.66 mm.
The 1593KPCB is RoHS and REACH compliant, shrink wrapped, and ships at 0.04 lbs (0.02 kg). It appears in the series accessory table beside 1593QS100 cover screws, 1593ATS50 PC board mounting screws, 1593PIR10 IR panels and 1593PAL10 aluminum panels for 1593K enclosures.
Ideal For
- Prototyping circuits inside 1593K enclosures
- Hand-wired one-off instruments
- Small-batch handheld electronics builds
Overview
| Type | Printed Circuit Board |
| Long Description | printed circuit board designed to fit 1593K enclosures |
| Short Description | 1593K PROTO PCB |
| Compatible Enclosures | 1593K (1593KBK, 1593KGY, 1593KTBU); enclosure sold separately |
Dimensions
| PCB Size (Datasheet) | 2.3 x 2.3 inches (58 x 58 mm) |
| Size L X W X H (Part Page) | 2.27 in x 2.23 in x 0.06 in (58 mm x 57 mm x 2 mm) |
Electrical
| Copper | Single sided, 1 oz/ft2 copper |
| Hole Pattern | 0.042" holes drilled on 0.1" centers, 2-hole per strip |
| Copper Finish | Lead free etched copper with anti-tarnish coating |
Identifiers
| UPC | 623980132242 |
| UNSPSC | 39121301 |
| Part Number | 1593KPCB |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Material | FR4 Glass Epoxy |
| Mounting Holes | Two 0.125" (1/8") |
| Mounting Screws | Two 4-40 PCB mounting screws provided (datasheet) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1593KPCB include the enclosure?▾
No. The series table lists it as a PC board with the enclosure sold separately.
What is the hole pattern?▾
0.042 in holes drilled on 0.1 in centers in a 2-hole-per-strip layout.
What material is the board?▾
FR4 glass epoxy with single sided 1 oz/ft2 copper.
Which enclosures does it fit?▾
The 1593K size: 1593KBK, 1593KGY and 1593KTBU.
How is it mounted?▾
Through two 0.125 in (1/8 in) mounting holes; the datasheet lists two 4-40 PCB mounting screws provided.
