Hammond 1593SGY Low-Profile Light Gray Handheld Enclosure, 92mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray ABS, low-profile 0.83 in (21 mm) depth
- "Three snap" battery door; accepts AAA batteries only
- Nickel finish self-tapping screws included (4 pcs)
- Max recommended PCB 48.89 x 59.73 mm
- Recessed top for membrane display or pad
- One removable end panel
- UL94 HB; RoHS and REACH compliant

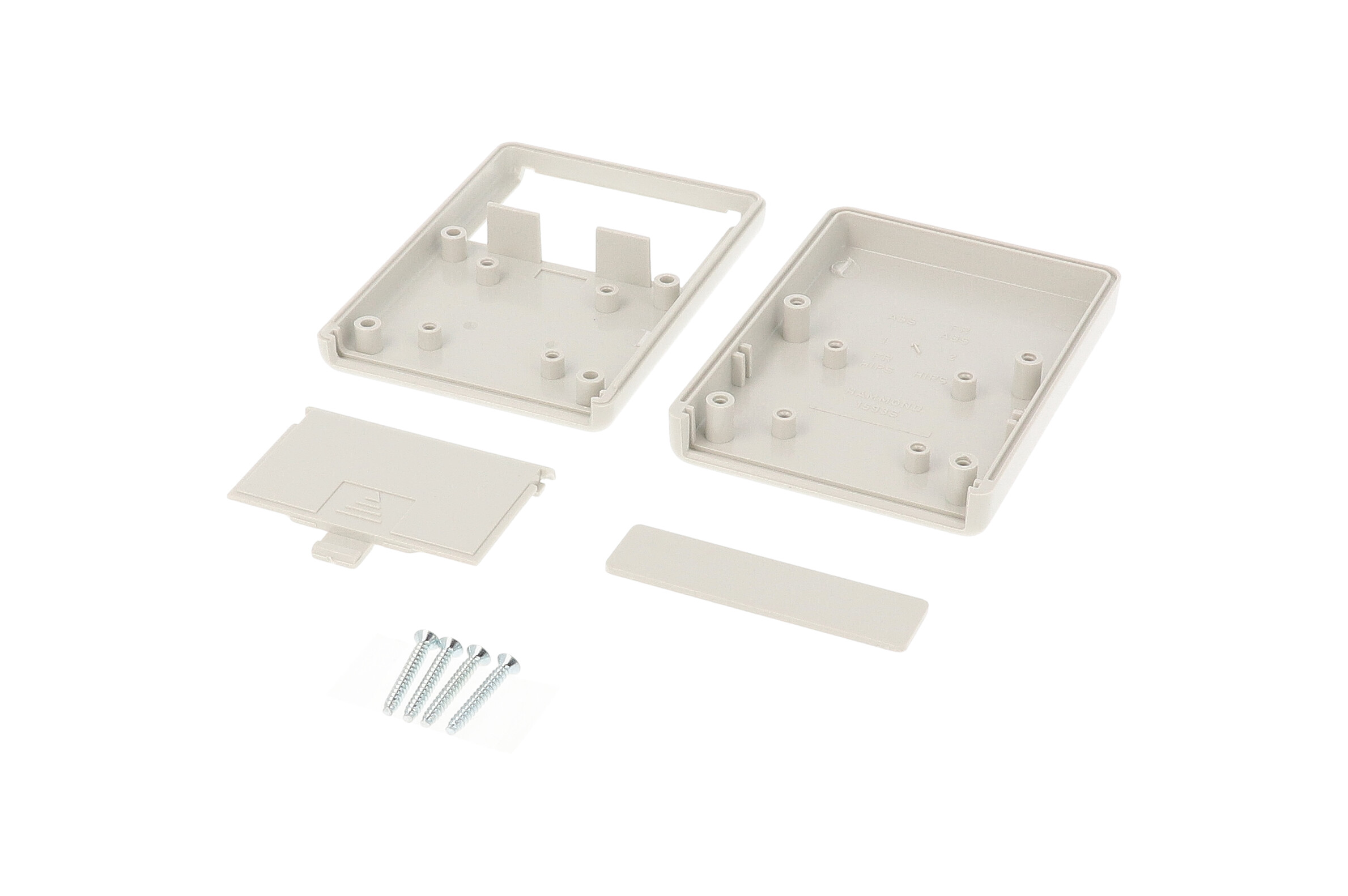

The 1593SGY is a light gray, low-profile hand-held instrument enclosure in general purpose ABS with a satin finish. With a depth of 0.83 in (21 mm) and an ergonomic shape, it houses thin battery-powered devices such as wireless remotes, readers and handheld sensors.
Its battery compartment is closed by a "three snap" door designed for long life and accepts AAA cells only; the two AAA battery holder is the largest that will fit. A single removable end panel provides an interface face, and the recessed top (80.25 x 55.06 mm, 1.00 mm deep) is ready for a membrane overlay. Gray enclosures include nickel finish screws.
Dimensions: 3.6 x 2.6 x 0.83 in (91 x 66 x 21 mm) listed, 92 x 67 x 21 mm in the series table. Inside space is 49.86 x 60.89 mm with 14.90 mm height; recommended boards are up to 48.89 x 59.73 mm, mounted with #4 self-tapping screws.
The 1593SGY ships shrink wrapped (0.12 lbs / 0.05 kg) with covers, 1 flat front panel, battery door and 4 cover screws. It is UL94 HB rated and RoHS and REACH compliant.
Ideal For
- Wireless remotes and readers
- Hand-held sensors
- Thin battery-powered PCB devices
Overview
| Type | General purpose |
| Color | Light Gray |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593SGY |
| Short Description | 1593S HAND HELD CASE GREY |
| Color Variants (Black / Gray / Trans Blue) | 1593SBK / 1593SGY / 1593STBU |
Dimensions
| Inside Width | 60.89 mm [2.40 in] |
| Inside Height | 14.90 mm [.59 in] |
| Inside Length | 49.86 mm [1.96 in] |
| Top Inlay Depth | 1.00 mm [.04 in] |
| Top Inlay Width | 55.06 mm [2.17 in] |
| Size (L X W X H) | 3.6 in x 2.6 in x 0.83 in (91 mm x 66 mm x 21 mm) |
| Top Inlay Length | 80.25 mm [3.16 in] |
| Depth (Series Table) | 0.83 in (21 mm) |
| Width (Series Table) | 2.64 in (67 mm) |
| Length (Series Table) | 3.62 in (92 mm) |
| Max. P.C. Board Width | 59.73 mm |
| Max. P.C. Board Length | 48.89 mm |
| End Panel Size (Drawing) | 59.50 x 15.00 x 1.70 mm [2.34 x .59 x .07 in] |
| Overall Dimensions (Drawing) | 92.00 x 66.50 x 21.00 mm [3.62 x 2.62 x .83 in] |
Accessories
| Battery Holders | BH1AAAW (1-AAA), BH2AAAW (2-AAA) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593SLBK-10 (black), 1593SLGY-10 (grey), 1593SLTBU-10 (translucent blue) |
| Replacement Cover Screws | #4 x 5/8" self-tapping: 1593MS100 (silver) / 1593MS100BK (black), 100-pack |
| Aluminum End Panels (10-pack) | 1593SAL10 |
| Infrared End Panels (10-pack) | 1593SIR10 |
Identifiers
| UPC | 623980794570 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:25.04.2023 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | Yes |
| Included Items | Top and bottom cover, 1 plastic flat panel for front, battery door and 4 cover screws |
| Removable Panels | 1 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Battery Door Design | "Three snap" battery door designed for long life |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Battery Compatibility | Accepts AAA batteries only; the two AAA battery holder is the largest holder that will fit |
| Included Screw Finish | Nickel finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Can I use AA batteries in the 1593SGY?▾
No. Due to the low profile design, the 1593S only accepts AAA batteries; the two AAA battery holder is the largest holder that will fit.
What screws come with it?▾
4 cover screws with nickel finish, as supplied with grey enclosures.
What are the internal dimensions?▾
Inside length 49.86 mm, inside width 60.89 mm and inside height 14.90 mm per the drawing.
What torque is recommended?▾
Cover screws 40 cN-m [57 ozf-in]; internal mounting screws 20-30 cN-m [29-42 ozf-in].
