Hammond 1593BBGY 95mm Gray Handheld ABS Instrument Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Light gray satin ABS hand held case, 95 x 76 x 30 mm
- Designed to meet IP54; no battery door
- Two removable end panels with grey replacements available
- Recessed top for membrane display or pad
- Max recommended PCB 86 x 70 mm
- Nickel finish self-tapping cover screws (4) included
- Gray nylon belt clip 1599CLIPGY available

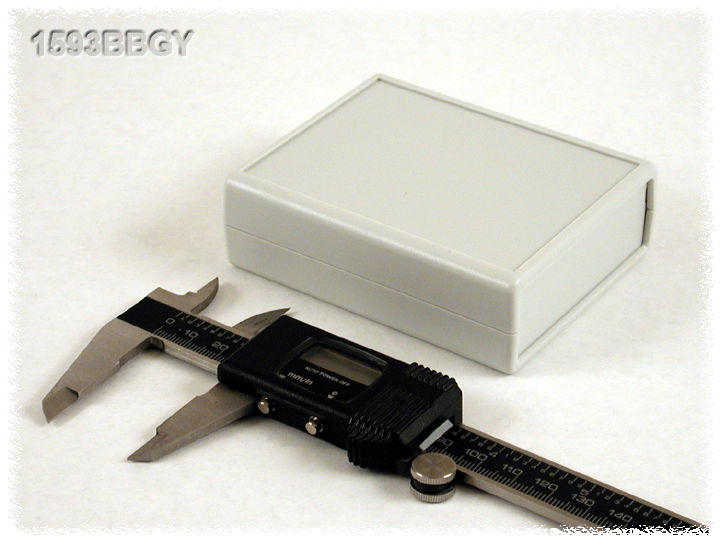

The 1593BBGY is the light gray version of the 1593BB hand held instrument enclosure, measuring 3.75 in x 3 in x 1.18 in (95 mm x 76 mm x 30 mm). It gives electronics engineers an ergonomically designed, palm-sized housing for a printed circuit board.
It is molded in general purpose ABS with a satin texture, carrying a UL94 HB rating. The case has two removable end panels and no battery door, so it is designed to meet IP54. The top is recessed, with an 88.00 mm x 66.00 mm inlay for a membrane display or pad. Assembly uses self-tapping screws, and gray enclosures include nickel finish screws.
Inside, the 1593BBGY offers 87.20 mm x 71.43 mm x 23.90 mm. Circuit boards up to 86.00 mm x 70.00 mm are recommended (board not supplied) and mount on bosses accepting #4 self-tapping screws. Recommended torque is 40 cN-m on cover screws and 20-30 cN-m on internal mounting screws.

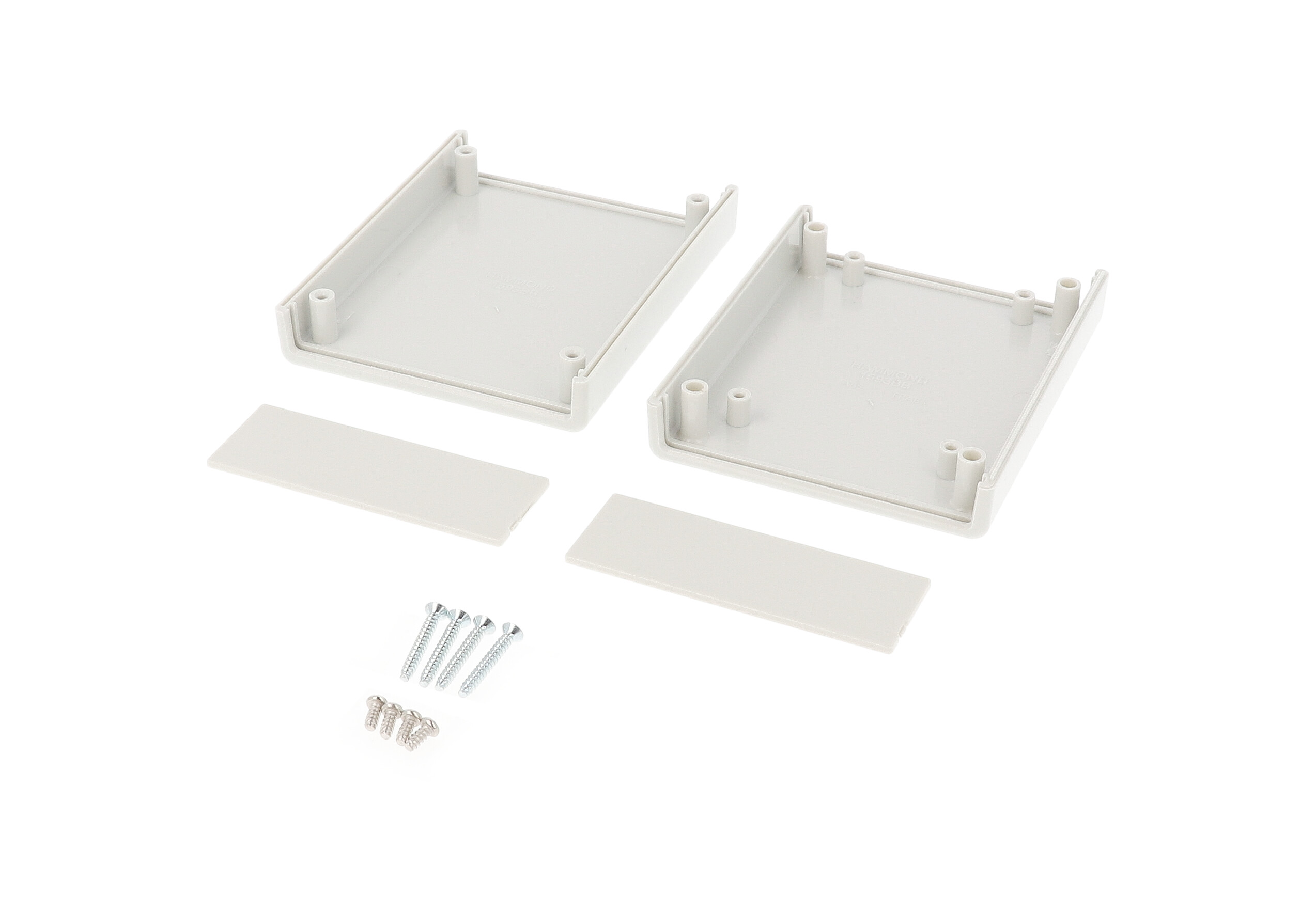

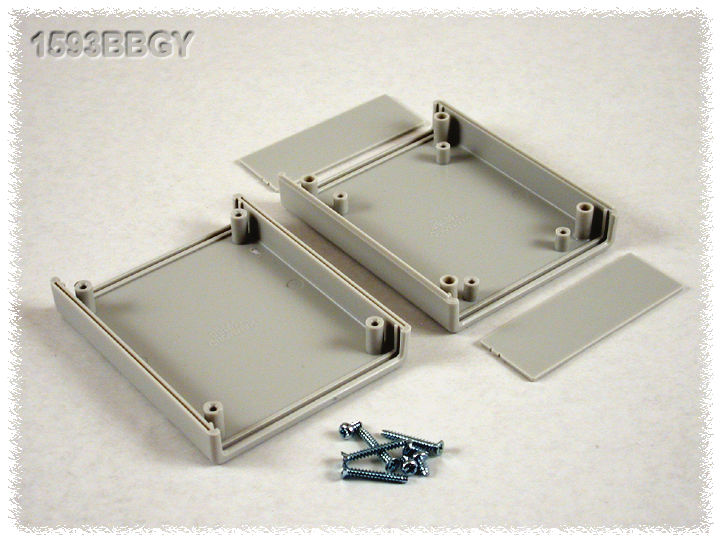

The enclosure ships in shrink wrap with top and bottom cover, two flat plastic end panels and four cover screws. Listed accessories include grey flat panels (1593BBLGY-10), infrared panels (1593BBIR10), 1593BBAL10 panels, 1593QS100 silver cover screws and the gray nylon belt clip 1599CLIPGY. RoHS and REACH compliant.
Ideal For
- Hand held test and measurement instruments
- Portable PCB enclosures
- Membrane keypad devices
- Belt-clip carried electronics
Overview
| Type | General purpose |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593BBGY |
| Customization | Factory modification available (milling, drilling, printing); solid models in .stp or .x_t |
| Short Description | ABS HAND HELD 95 X 77MM |
Dimensions
| Inside Width | 71.43 mm [2.81 in] |
| Inside Height | 23.90 mm [0.94 in] |
| Inside Length | 87.20 mm [3.43 in] |
| Panel Thickness | 1.52 mm [0.06 in] |
| Size (L X W X H) | 3.75 in x 3 in x 1.18 in (95 mm x 76 mm x 30 mm) |
| End Panel Size (Drawing) | 71.00 mm [2.80 in] x 24.30 mm [0.96 in] |
| Overall Height (Drawing) | 30.00 mm [1.18 in] |
| Top Inlay (L X W X Depth) | 88.00 mm [3.46 in] x 66.00 mm [2.60 in] x 1.00 mm [0.04 in] |
| Overall Length / Width (Drawing) | 95.31 mm [3.75 in] x 77.31 mm [3.04 in] |
| Nominal Size (Series Table L X W X D) | 3.74 in (95 mm) x 3.03 in (77 mm) x 1.18 in (30 mm) |
Accessories
| Aluminum Panels | 1593BBAL10 |
| Infrared Panels | 1593BBIR10 |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| Standard Flat Panel (Single Panel) | 1593BBLBK-10 (black), 1593BBLGY-10 (grey), 1593BBLTBU-10 (translucent blue) |
| P.C. Board Screws #4 X 1/4" Self-Tapping | 1593ATS50 (pkg 50), 1593ATS100 (pkg 100) |
| Cover Screws #4 X 3/4" Self-Tapping (100 Pkg) | 1593QS100 (silver), 1593QS100BK (black) |
Identifiers
| UPC | 623980401232 |
| UNSPSC | 39121301 |
PCB Mounting
| PCB Bosses | Accept #4 self-tapping screw |
| Max. P.C. Board Width | 86 mm |
| Max. P.C. Board Length | 70 mm |
| Max Recommended PCB Size (Drawing) | 86.00 mm [3.39 in] x 70.00 mm [2.76 in]; PCB not supplied |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Color | Light Gray |
| Texture | Satin |
| Assembly | Secured with self-tapping screws |
| Included | Top and bottom cover, 2 flat plastic panels for front and rear, and 4 cover screws |
| Material | ABS Plastic (GP ABS) |
| Flame Rating | UL94 HB |
| Screw Finish | Nickel |
| Removable Panels | 2 |
| Recommended Torque, Cover Screws | 40 cN-m [57 ozf-in] |
| Recommended Torque, Internal Mounting Screws | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Battery Door | No |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What finish are the screws on the 1593BBGY?▾
Gray 1593 enclosures include nickel finish screws; silver replacements are 1593QS100.
How big is the recessed top?▾
The inlay is 88.00 mm x 66.00 mm with a depth of 1.00 mm.
Does it have a battery door?▾
No, the 1593BB has two removable end panels and no battery door.
What PC board screws fit?▾
#4 x 1/4" self-tapping screws, 1593ATS50 (pack of 50) or 1593ATS100 (pack of 100).
What is the flammability rating?▾
UL94 HB (general purpose ABS).
