Hammond 1593SBK Low-Profile 21mm Black Handheld Case, AAA Battery
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Low-profile 21 mm (0.83 in) deep black ABS hand-held case
- AAA-only battery compartment with "three snap" door
- 3.6 x 2.6 x 0.83 in (91 x 66 x 21 mm)
- PC boards up to 48.89 x 59.73 mm; 14.90 mm inside height
- Recessed top inlay 80.25 x 55.06 mm for membrane display
- Black finish self-tapping screws included (4 pcs)
- UL94 HB; RoHS and REACH compliant

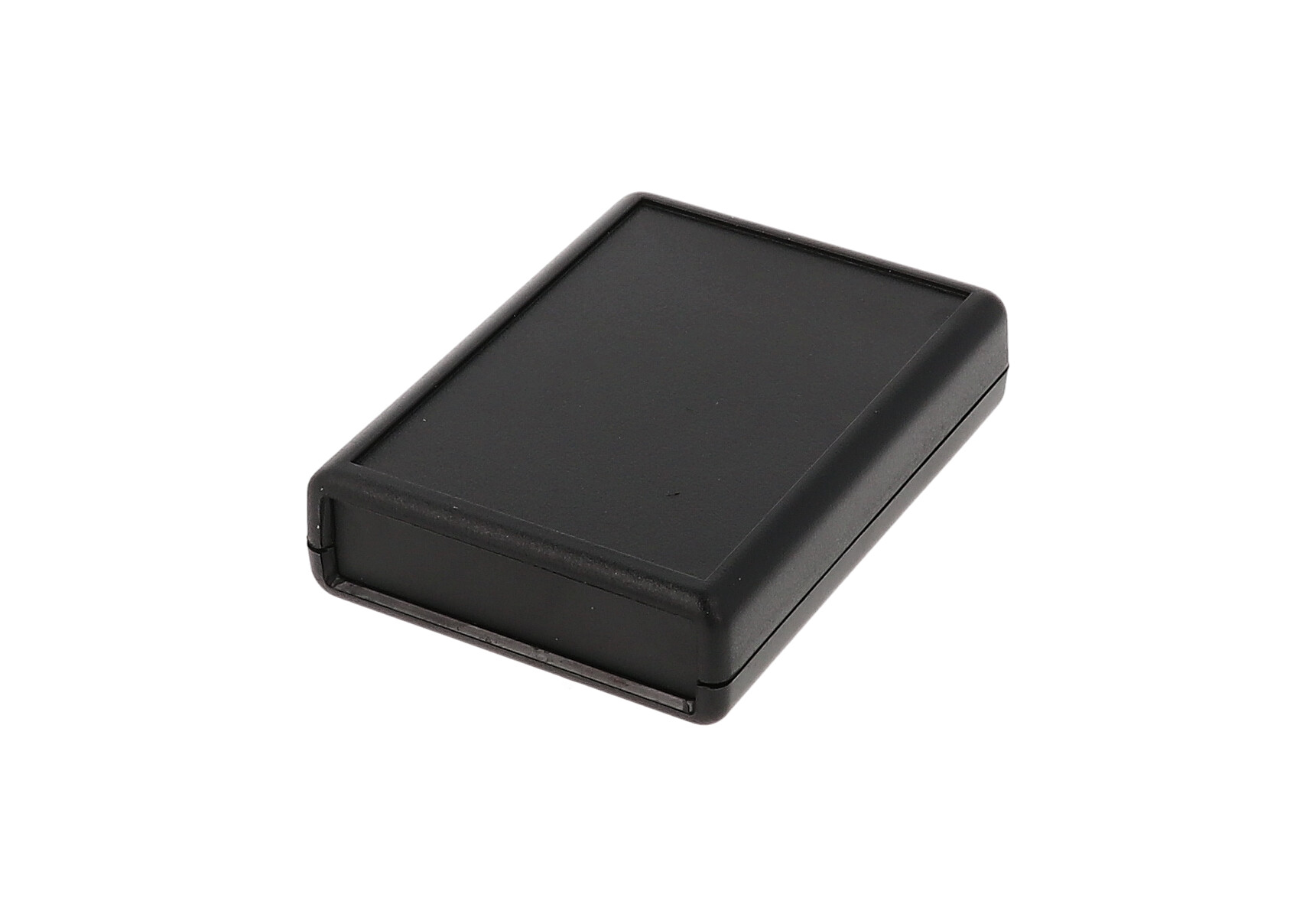

The 1593SBK is the low-profile, 92 mm member of the 1593 hand-held family, molded in black general purpose ABS. At just 0.83 in (21 mm) deep it suits slim remotes, key-fob style controllers and compact meters where a thin, comfortable hand-held case matters.
An integrated battery compartment uses a long-life "three snap" door. Because of the low profile, the 1593S accepts AAA batteries only, and the two AAA holder (BH2AAAW) is the largest holder that will fit. One end panel is removable, and the recessed top (80.25 x 55.06 mm inlay, 1.00 mm deep) takes a membrane display or pad. Black enclosures ship with black finish screws.
Size is 3.6 x 2.6 x 0.83 in (91 x 66 x 21 mm) on the part page and 92 x 67 x 21 mm in the series table. The drawing shows 49.86 mm inside length, 60.89 mm inside width and 14.90 mm inside height; the maximum PC board is 48.89 x 59.73 mm, fixed with #4 self-tapping screws.

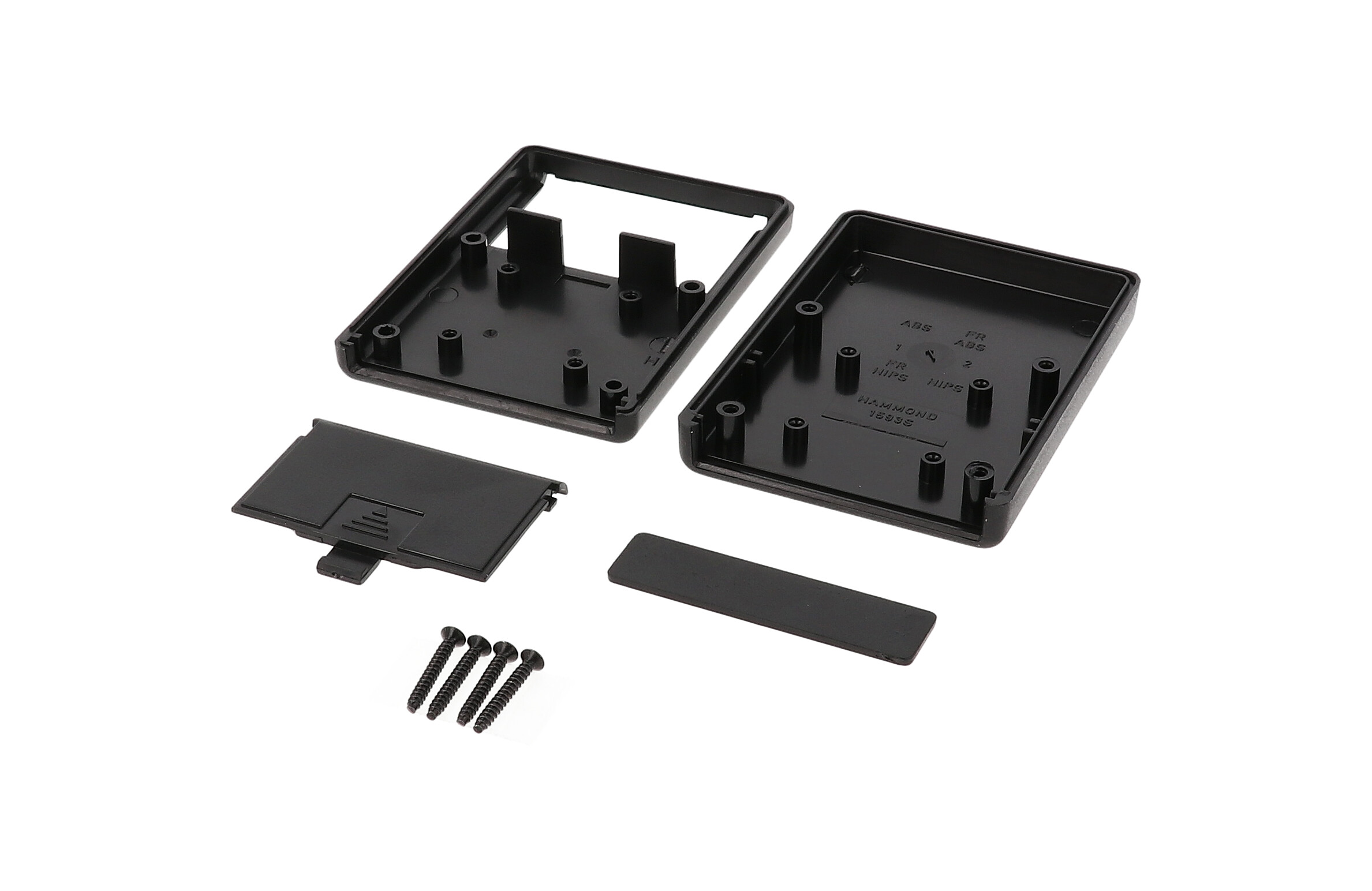

The 1593SBK includes top and bottom cover, 1 plastic flat front panel, battery door and 4 cover screws, shrink wrapped at 0.12 lbs (0.05 kg). Replacement cover screws are #4 x 5/8" (1593MS100 / 1593MS100BK). UL94 HB, RoHS and REACH compliant.
Ideal For
- Slim hand-held remote controls
- Compact AAA-powered instruments
- Low-profile membrane keypad devices
Overview
| Type | General purpose |
| Color | Black |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593SBK |
| Short Description | 1593S HAND HELD CASE BLACK |
| Color Variants (Black / Gray / Trans Blue) | 1593SBK / 1593SGY / 1593STBU |
Dimensions
| Inside Width | 60.89 mm [2.40 in] |
| Inside Height | 14.90 mm [.59 in] |
| Inside Length | 49.86 mm [1.96 in] |
| Top Inlay Depth | 1.00 mm [.04 in] |
| Top Inlay Width | 55.06 mm [2.17 in] |
| Size (L X W X H) | 3.6 in x 2.6 in x 0.83 in (91 mm x 66 mm x 21 mm) |
| Top Inlay Length | 80.25 mm [3.16 in] |
| Depth (Series Table) | 0.83 in (21 mm) |
| Width (Series Table) | 2.64 in (67 mm) |
| Length (Series Table) | 3.62 in (92 mm) |
| Max. P.C. Board Width | 59.73 mm |
| Max. P.C. Board Length | 48.89 mm |
| End Panel Size (Drawing) | 59.50 x 15.00 x 1.70 mm [2.34 x .59 x .07 in] |
| Overall Dimensions (Drawing) | 92.00 x 66.50 x 21.00 mm [3.62 x 2.62 x .83 in] |
Accessories
| Battery Holders | BH1AAAW (1-AAA), BH2AAAW (2-AAA) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593SLBK-10 (black), 1593SLGY-10 (grey), 1593SLTBU-10 (translucent blue) |
| Replacement Cover Screws | #4 x 5/8" self-tapping: 1593MS100 (silver) / 1593MS100BK (black), 100-pack |
| Aluminum End Panels (10-pack) | 1593SAL10 |
| Infrared End Panels (10-pack) | 1593SIR10 |
Identifiers
| UPC | 623980794563 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:25.04.2023 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | Yes |
| Included Items | Top and bottom cover, 1 plastic flat panel for front, battery door and 4 cover screws |
| Removable Panels | 1 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Battery Door Design | "Three snap" battery door designed for long life |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Battery Compatibility | Accepts AAA batteries only; the two AAA battery holder is the largest holder that will fit |
| Included Screw Finish | Black finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What batteries fit the 1593SBK?▾
Due to its low profile, the 1593S accepts AAA batteries only. The two AAA battery holder (BH2AAAW) is the largest holder that will fit; BH1AAAW is the single AAA holder.
How thin is it?▾
The case is 0.83 in (21 mm) deep, with 14.90 mm inside height per the drawing.
What replacement screws does the 1593S use?▾
#4 x 5/8" self-tapping oval head cover screws, 1593MS100 (silver) or 1593MS100BK (black), 100-pack. PC board screws are #4 x 1/4" (1593ATS50).
Which end panels fit?▾
Flat panels 1593SLBK-10, 1593SLGY-10 and 1593SLTBU-10, the 1593SIR10 infrared panel and the 1593SAL10 aluminum panel.
What is included?▾
Top and bottom cover, 1 plastic flat panel for the front, battery door and 4 cover screws.
