Hammond 1593TTBU Transparent Blue Slim 112mm Handheld Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Transparent blue ABS, 21 mm low profile, 112 mm long
- AAA battery compartment with "three snap" door
- Max PC board 59.14 x 68.12 mm
- Recessed top for membrane display or pad
- Black finish cover screws included (4 pcs)
- Translucent blue flat panels 1593SLTBU-10 available
- UL94 HB; RoHS and REACH compliant

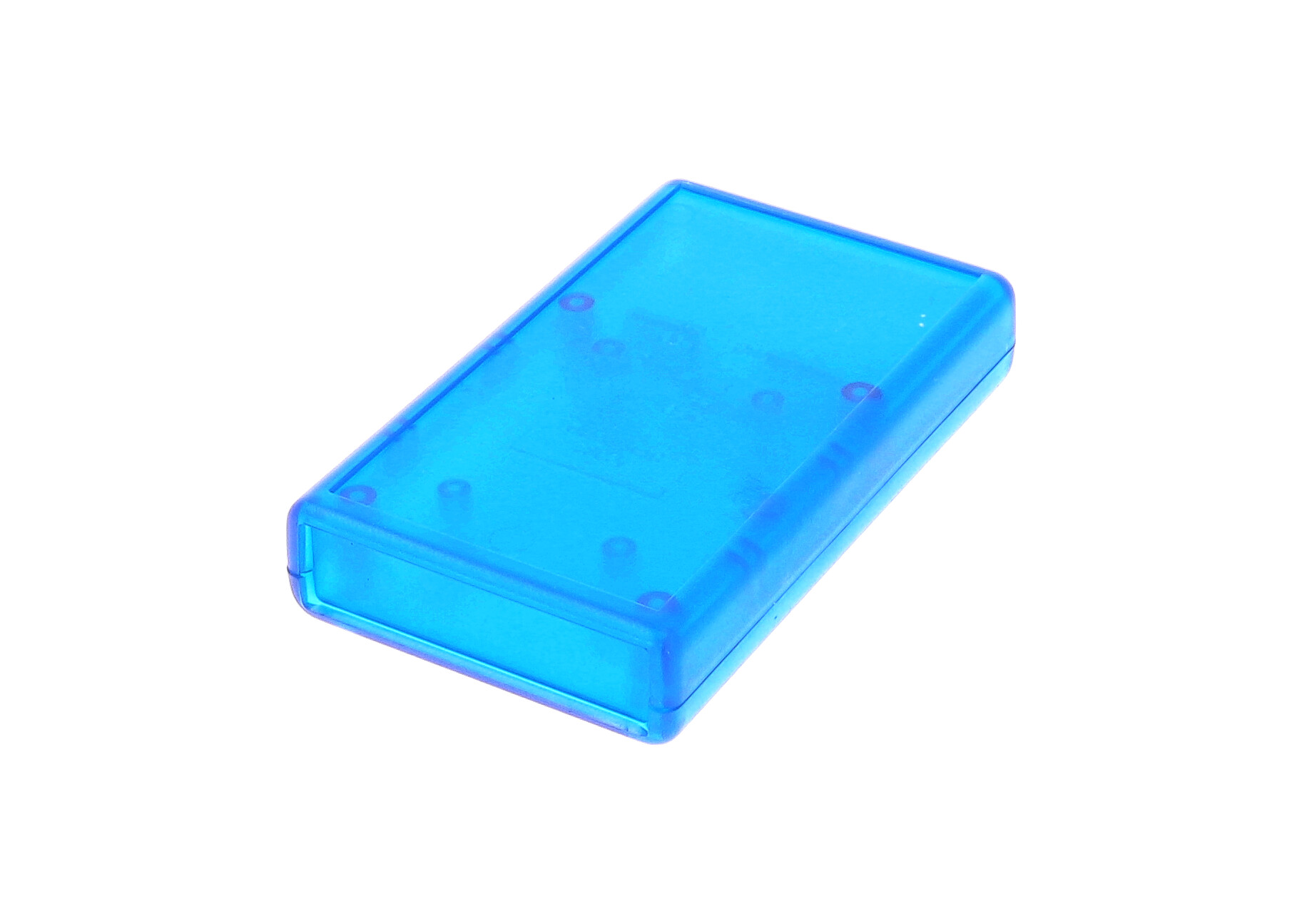

The 1593TTBU pairs the 112 mm low-profile 1593T body with a transparent blue satin-texture ABS shell. Its translucency suits portable devices where LEDs or displays should be visible through the case, such as handheld indicators, beacons and prototypes.
The integrated battery compartment closes with a long-life "three snap" door and takes AAA batteries only, with the two AAA battery holder the largest that will fit. One end panel is removable, and the recessed top provides a 100.00 x 55.00 mm inlay for a membrane display. Transparent blue enclosures include black finish screws.
Size is 4.4 x 2.6 x 0.83 in (112 x 66 x 21 mm), or 112 x 67 x 21 mm in the series table. The drawing gives 69.93 mm inside length, 60.79 mm inside width and 14.80 mm inside height; PC boards up to 59.14 x 68.12 mm mount on #4 self-tapping screws.

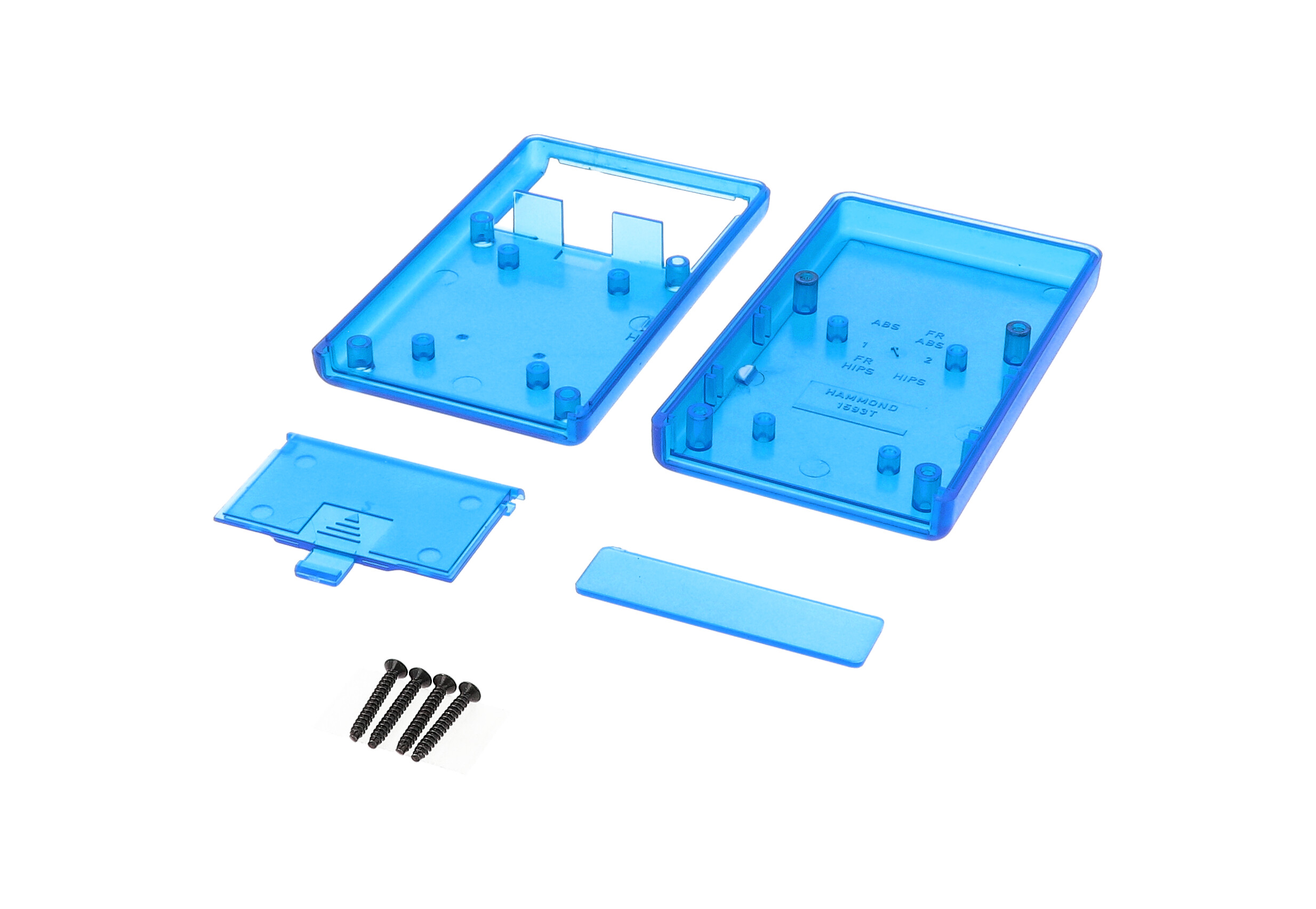

The 1593TTBU ships in shrink wrap at 0.14 lbs (0.06 kg) with top and bottom cover, 1 plastic flat front panel, battery door and 4 cover screws. Solid models are available in .stp or .x_t, and the case can be factory modified. UL94 HB, RoHS and REACH compliant.
Ideal For
- Hand-held indicators and beacons
- Prototypes with visible electronics
- Slim AAA-powered devices
Overview
| Type | General purpose |
| Color | Trans. Blue |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593TTBU |
| Short Description | 1593T TRANSPARENT BLUE |
| Color Variants (Black / Gray / Trans Blue) | 1593TBK / 1593TGY / 1593TTBU |
Dimensions
| Inside Width | 60.79 mm [2.39 in] |
| Inside Height | 14.80 mm [.58 in] |
| Inside Length | 69.93 mm [2.75 in] |
| Top Inlay Depth | 1.00 mm [.04 in] |
| Top Inlay Width | 55.00 mm [2.17 in] |
| Size (L X W X H) | 4.4 in x 2.6 in x 0.83 in (112 mm x 66 mm x 21 mm) |
| Top Inlay Length | 100.00 mm [3.94 in] |
| Depth (Series Table) | 0.83 in (21 mm) |
| Width (Series Table) | 2.64 in (67 mm) |
| Length (Series Table) | 4.41 in (112 mm) |
| Max. P.C. Board Width | 68.12 mm |
| Max. P.C. Board Length | 59.14 mm |
| End Panel Size (Drawing) | 59.50 x 15.00 x 1.70 mm [2.34 x .59 x .07 in] |
| Overall Dimensions (Drawing) | 112.00 x 66.50 x 21.00 mm [4.41 x 2.62 x .83 in] |
Accessories
| Battery Holders | BH1AAAW (1-AAA), BH2AAAW (2-AAA) |
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593SLBK-10 (black), 1593SLGY-10 (grey), 1593SLTBU-10 (translucent blue) |
| Replacement Cover Screws | #4 x 5/8" self-tapping: 1593MS100 (silver) / 1593MS100BK (black), 100-pack |
| Aluminum End Panels (10-pack) | 1593SAL10 |
| Infrared End Panels (10-pack) | 1593SIR10 |
Identifiers
| UPC | 623980809762 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:25.04.2023 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.14 lbs (0.06 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | Yes |
| Included Items | Top and bottom cover, 1 plastic flat panel for front, battery door and 4 cover screws |
| Removable Panels | 1 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Battery Door Design | "Three snap" battery door designed for long life |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Battery Compatibility | Accepts AAA batteries only; the two AAA battery holder is the largest holder that will fit |
| Included Screw Finish | Black finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1593TTBU transparent?▾
It is molded in transparent blue general purpose ABS with a satin texture.
Which batteries fit?▾
AAA batteries only; the two AAA battery holder (BH2AAAW) is the largest that fits. BH1AAAW is the single AAA holder.
What is included?▾
Top and bottom cover, 1 plastic flat panel for the front, battery door and 4 black finish cover screws.
What chemicals should be avoided?▾
Acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils.
