Hammond 1593PPCB Prototype PC Board for 1593P Handheld Enclosures
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to fit 1593P hand-held enclosures; no cutting required
- FR4 glass epoxy, single sided, 1 oz/ft2 copper
- 0.042 in holes on 0.1 in centers, 2-hole strip pattern
- Four 1/8 in mounting holes; four 4-40 mounting screws provided
- Lead-free etched copper with anti-tarnish coating
- Board size 1.9 x 2.4 in (49 x 60 mm)
- RoHS and REACH compliant

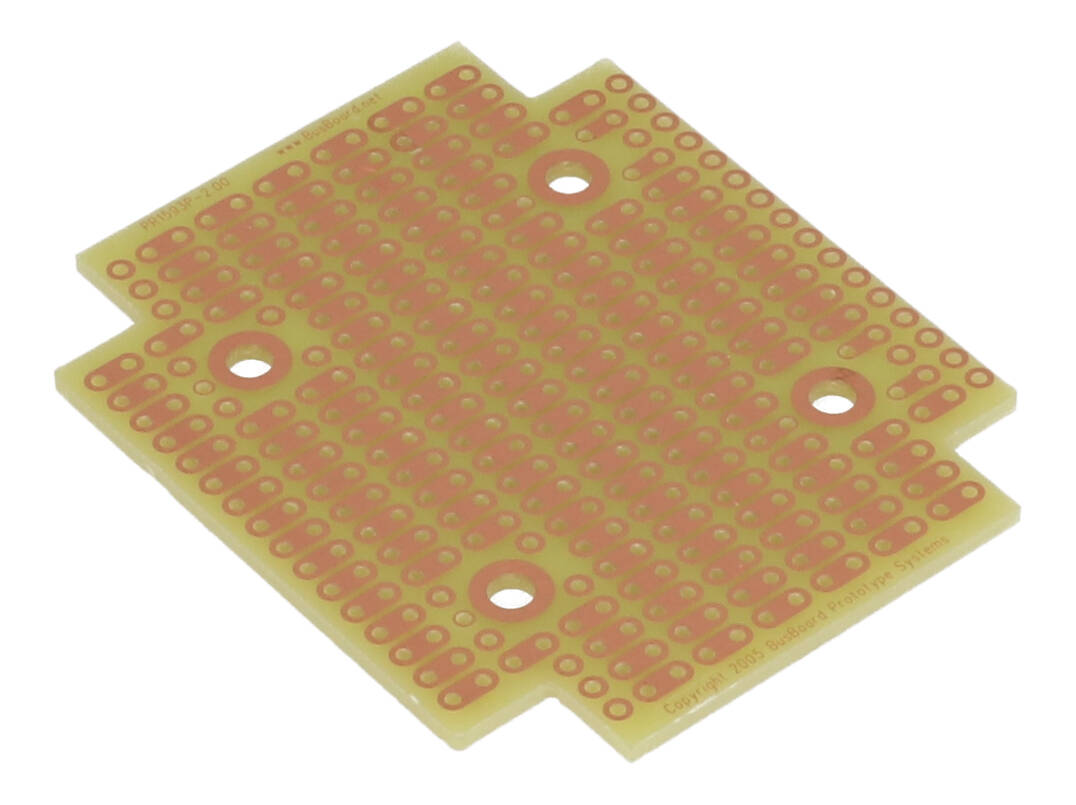

The 1593PPCB is a prototyping printed circuit board designed to fit the 1593P hand-held enclosure with battery compartment. It lets engineers and hobbyists build a circuit that drops straight into the case: the four mounting holes are in the right spots, so no cutting is required.
The board is high-quality FR4 glass epoxy, single sided with 1 oz/ft2 copper. Holes of 0.042 in are drilled on 0.1 in centers in a 2-hole strip pattern that makes it easy to connect parts while maximizing usable board area. The lead-free etched copper has an anti-tarnish coating for easy soldering.
The board size is 1.9 x 2.4 in (49 x 60 mm); the part page lists 2.35 x 1.93 x 0.06 in (60 x 49 x 2 mm). It has four 0.125 in (1/8 in) mounting holes, and four 4-40 PCB mounting screws are provided.
The enclosure is sold separately: order 1593PBK (black), 1593PGY (gray) or 1593PTBU (translucent blue). The 1593PPCB is RoHS and REACH compliant, shrink wrapped, with a shipping weight of 0.04 lbs (0.02 kg).
Inside the 1593P, internal bosses accept #4 self-tapping screws; the recommended torque for internal mounting screws is 20-30 cN-m [29-42 ozf-in].
Ideal For
- Prototyping circuits for 1593P hand-held enclosures
- Small-batch battery-powered devices
- Through-hole circuit builds
Overview
| Type | Printed Circuit Board |
| Description | printed circuit board designed to fit 1593P enclosures |
| Part Number | 1593PPCB |
| Short Description | 1593P PROTO PCB |
| Compatible Enclosures | 1593PBK (black), 1593PGY (gray), 1593PTBU (translucent blue); enclosure sold separately |
Dimensions
| Size (L X W X H) | 2.35 in x 1.93 in x 0.06 in (60 mm x 49 mm x 2 mm) |
| PCB Size (Datasheet) | 1.9 x 2.4 in (49 x 60 mm) |
Identifiers
| UPC | 623980132266 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.04 lbs (0.02 kg) |
Construction & Finish
| Copper | Single sided, 1oz/ft2 copper |
| Material | FR4 Glass Epoxy |
| Hole Pattern | 0.042" holes drilled on 0.1" centers, 2-hole pattern |
| Copper Finish | Lead free etched copper with anti-tarnish coating |
| Mounting Holes | Four 0.125" (1/8") mounting holes |
| Included Hardware | Four 4-40 PCB mounting screws |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1593PPCB include the enclosure?▾
No, the enclosure is sold separately. Order 1593PBK, 1593PGY or 1593PTBU for the box.
Do I need to cut the board to fit?▾
No cutting is required; the board is designed specifically for the 1593P and the mounting holes are in the right spots.
What hole pitch does it use?▾
0.042 in holes drilled on 0.1 in centers, single sided with 1 oz/ft2 copper.
Are mounting screws included?▾
Yes, four 4-40 PCB mounting screws are provided for the four 1/8 in mounting holes.
