Hammond 1593WTBU 105x110x35mm Transparent Blue ABS Handheld Enclosure

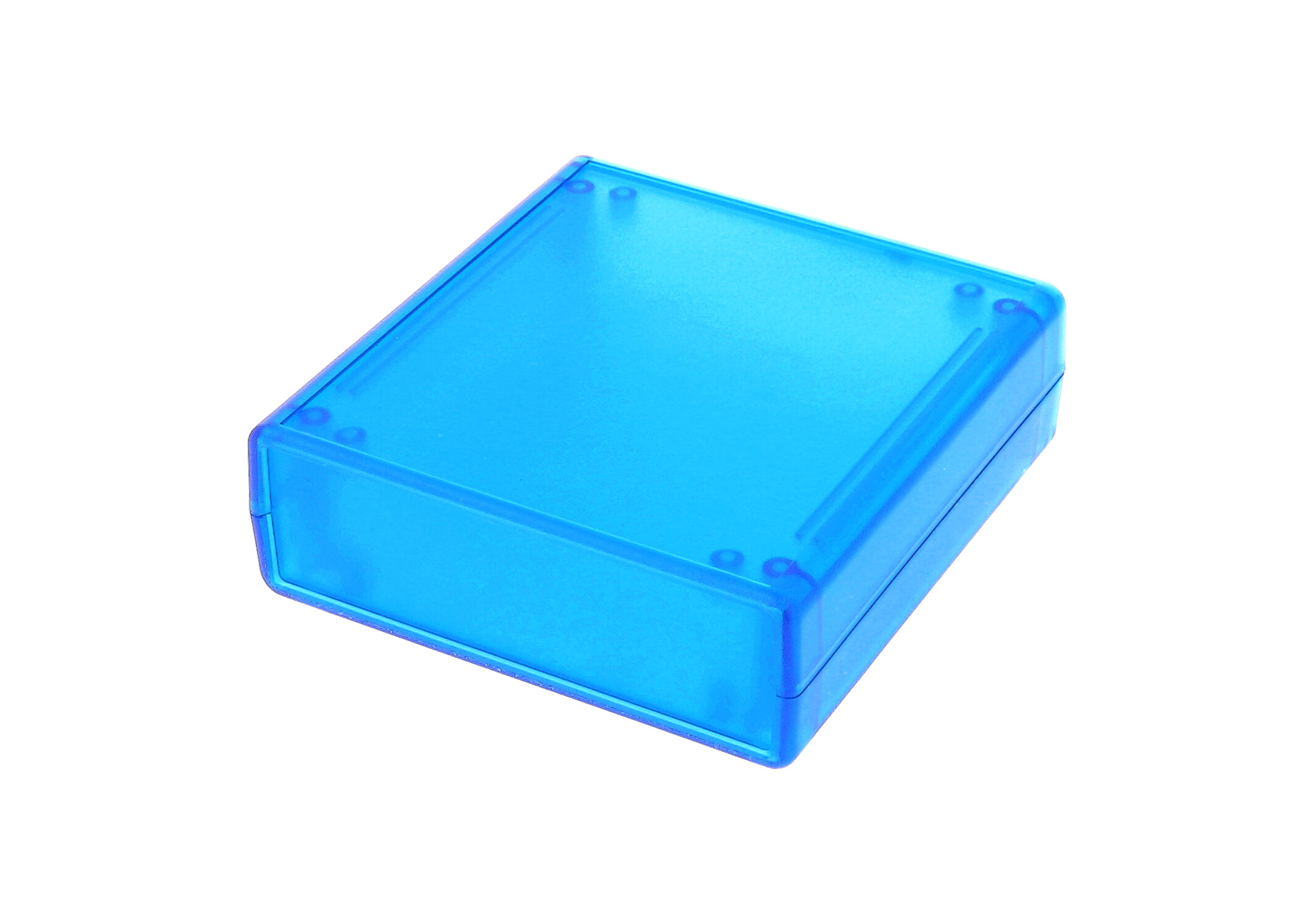

The 1593WTBU is the widest body in the 1593 range of ABS plastic hand held and instrument enclosures, molded in transparent blue general purpose ABS with a satin texture. It is aimed at OEM engineers and electronics designers who need a pocket-sized case for a printed circuit board, with a recessed top for a membrane display or pad and a shape designed to sit comfortably in the hand.

The part page lists a size of 4.13 x 4.33 x 1.38 in (105 x 110 x 35 mm). Inside, the drawing gives 98.67 mm length, 98.35 mm width and 29.70 mm height, and the maximum P.C. board size is 100 x 98 mm. The drawing also shows slots for a vertical PCB, with a maximum recommended vertical board of 77.00 x 29.50 mm and a maximum board thickness of 1.60 mm. PCB drawings are available as a design resource.

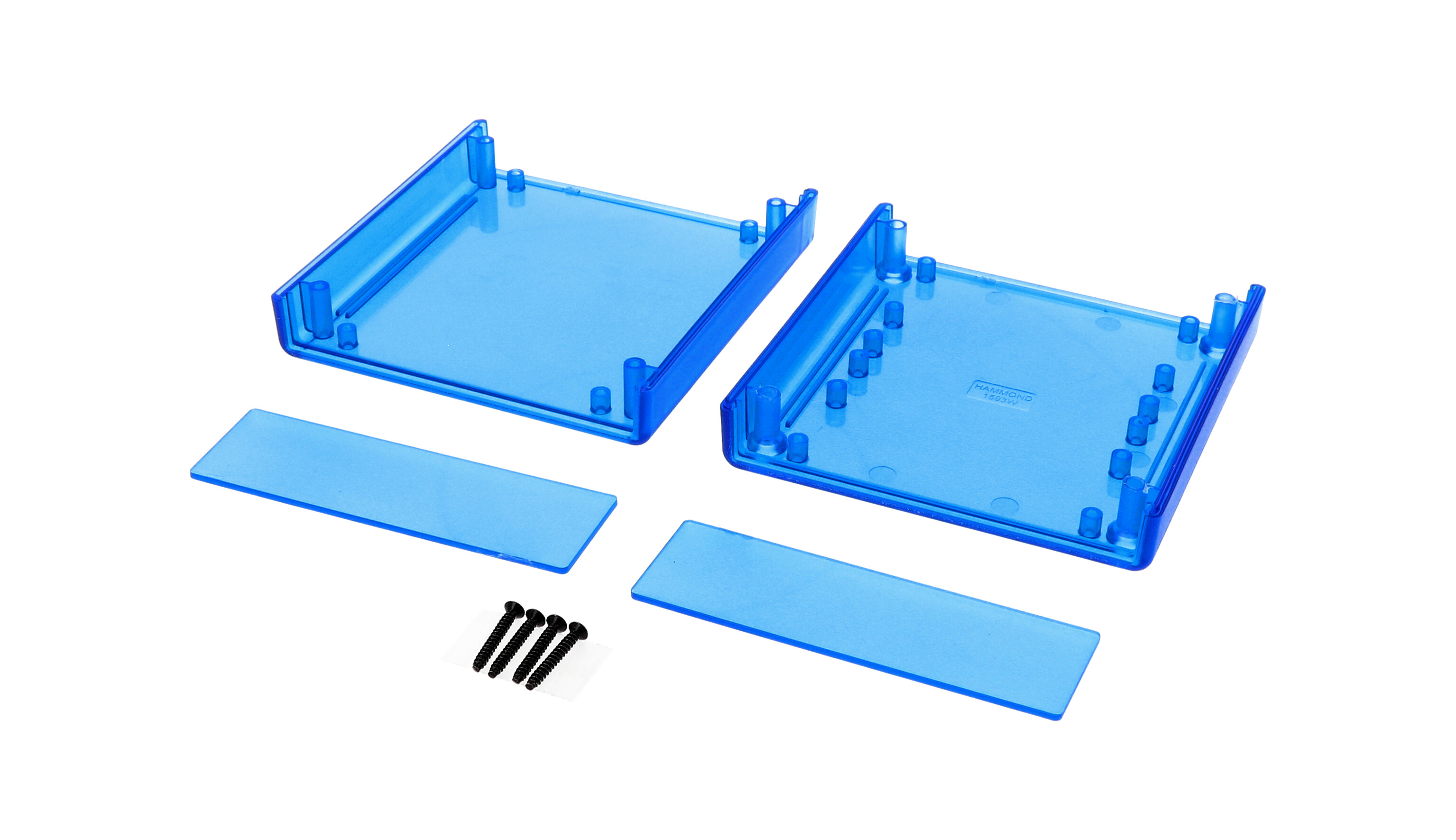

Each purchased assembly includes the top and bottom cover, 2 flat plastic panels for the front and rear, and 4 cover screws. The case is secured with self-tapping screws, and transparent blue enclosures ship with black finish screws. Recommended torque is 40 cN-m for the cover screws and 20-30 cN-m for internal mounting screws, which accept #4 self-tapping screws. There is no battery door on this size.

The 1593WTBU carries an IP54 rating and a UL94 HB flame rating, and is RoHS and REACH compliant. Shipping weight is 0.21 lbs (0.10 kg). Replacement flat panels, an aluminum panel pack (1593VAL10) and a nylon belt clip are listed as accessories, and enclosures can be factory modified by milling, drilling or printing.
