Hammond 1593VBK IP54 Black ABS Instrument Enclosure, 105x60x35mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- IP54 rated; no battery door
- 105 x 60 x 35 mm (4.13 x 2.36 x 1.38 in) black ABS
- Two removable end panels for front and rear I/O
- Accepts PC boards up to 98 x 48 mm
- Recessed 92.00 x 51.00 mm top inlay for membrane display
- Black finish self-tapping cover screws included (2 pcs)
- UL94 HB; RoHS and REACH compliant

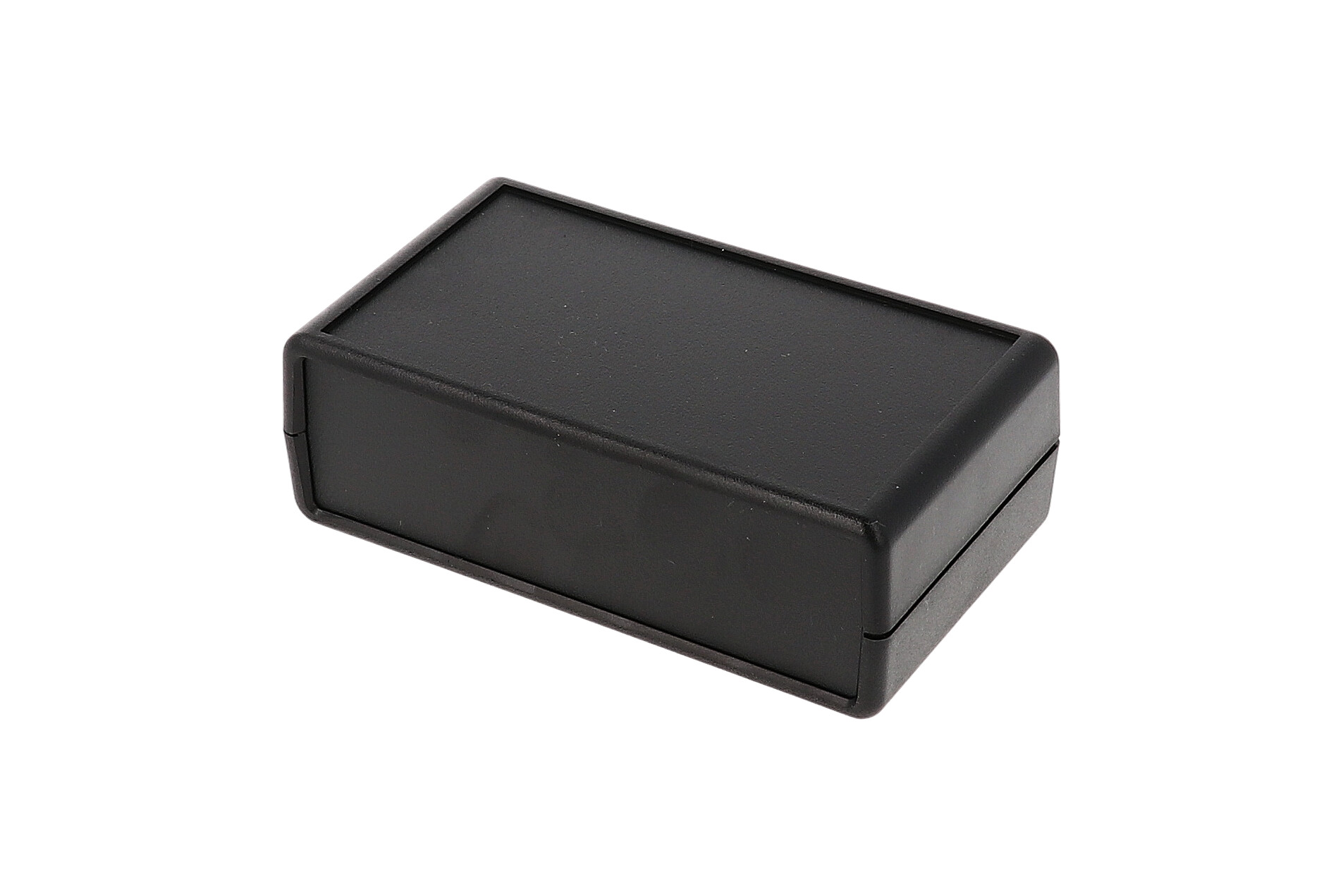

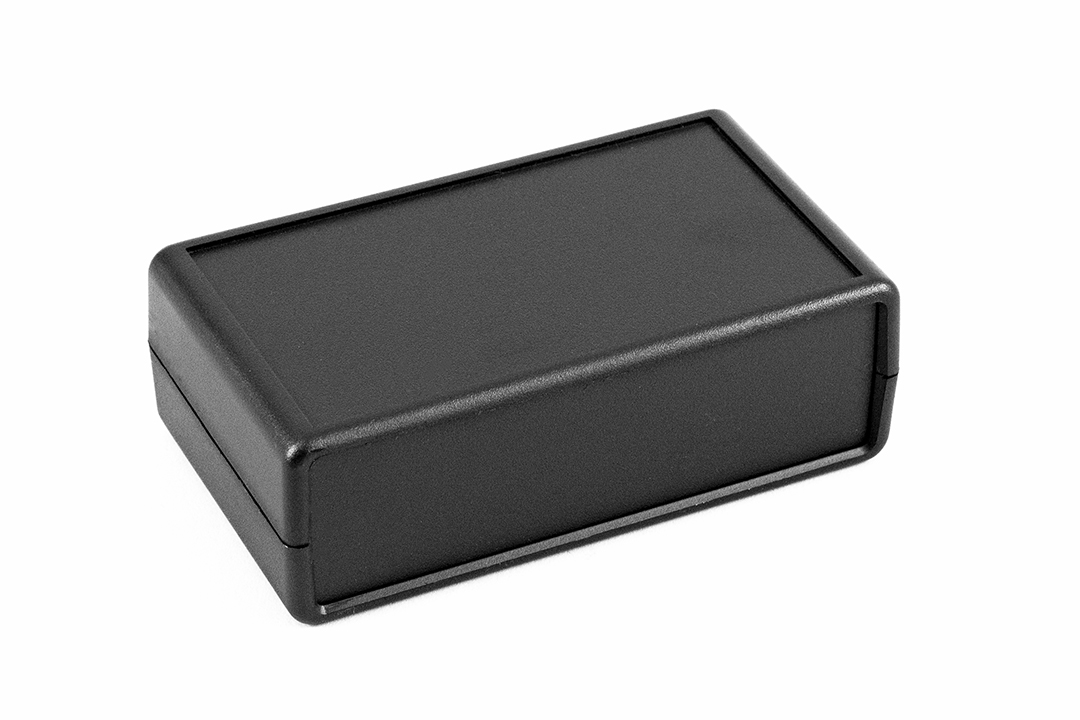

The 1593VBK is a black ABS instrument enclosure measuring 4.13 x 2.36 x 1.38 in (105 x 60 x 35 mm). Unlike the battery-door models in the 1593 Series, it has no battery door and two removable end panels, and it carries an IP54 rating, suiting sensor housings, interface modules and small control units.
The case is molded from general purpose ABS rated UL94 HB with a satin texture and is secured with self-tapping screws; black enclosures include black finish screws. The recessed top provides a 92.00 x 51.00 mm inlay for a membrane display or pad.
The part page lists a maximum P.C. board of 98 mm length by 48 mm width. The drawing shows an inside height of 29.70 mm and inside length of 48.67 mm, and internal bosses accept #4 self-tapping screws. Recommended torque is 40 cN-m for cover screws and 20-30 cN-m for internal mounting screws.

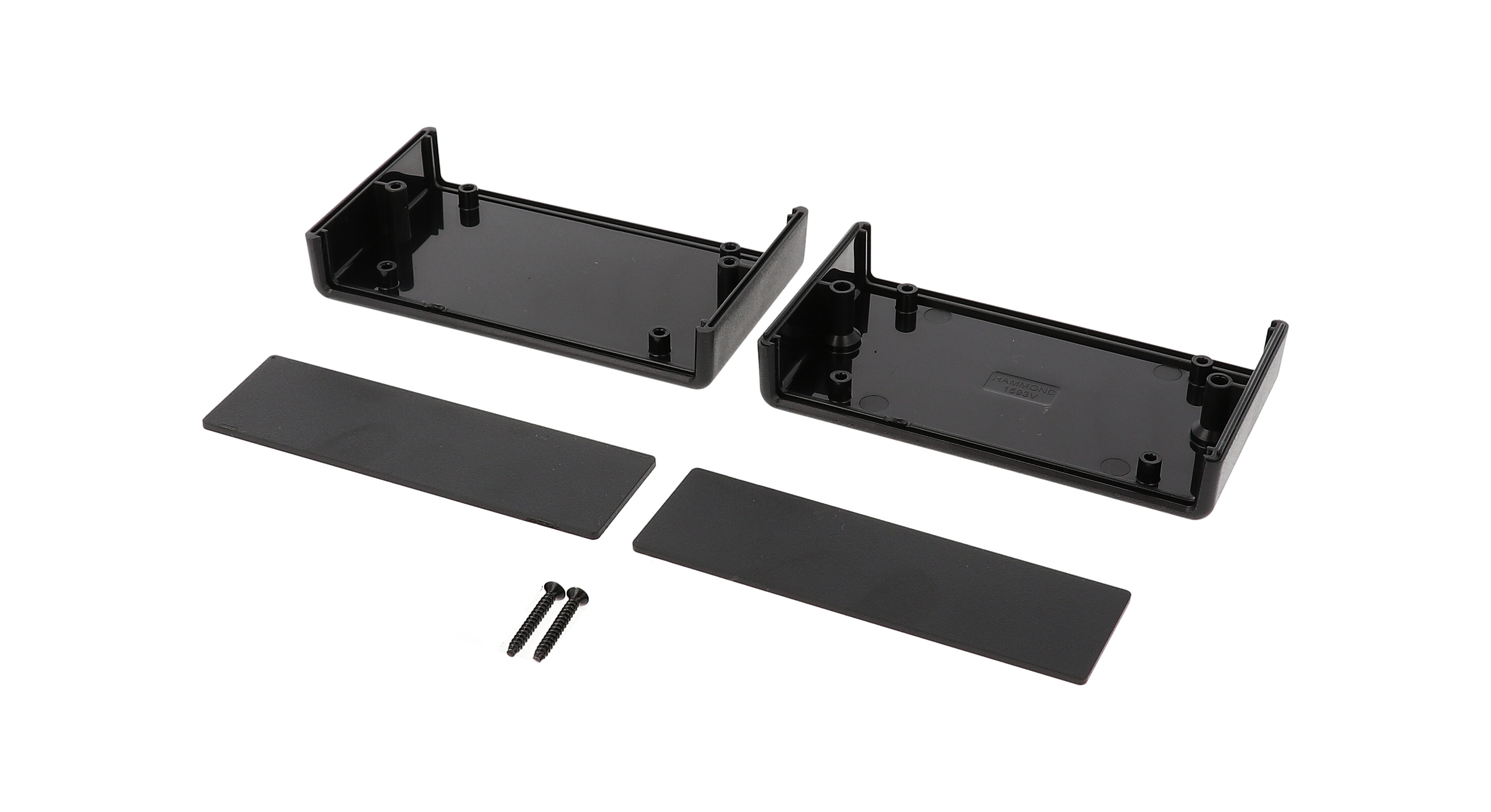

- Included: top and bottom cover, 2 flat panels for front and rear, 2 cover screws
- Replacement flat panels: 1593VLBK-10 (pack of 10); aluminum end panels: 1593VAL10
- Shipping weight 0.12 lbs (0.05 kg), shrink wrapped
The 1593VBK is RoHS and REACH compliant. It can be factory modified (milling, drilling, printing etc.), and solid models are available in .stp or .x_t.
Ideal For
- Sensor and interface housings
- Small control units with front and rear I/O
- PCB assemblies needing an IP54 enclosure
Overview
| Type | General purpose |
| Color | Black |
| Series | 1593 Series ABS Plastic Hand Held/Instrument Enclosures |
| Description | enclosure - plastic |
| Part Number | 1593VBK |
| Short Description | 105X60X35MM ABS ENCL BK |

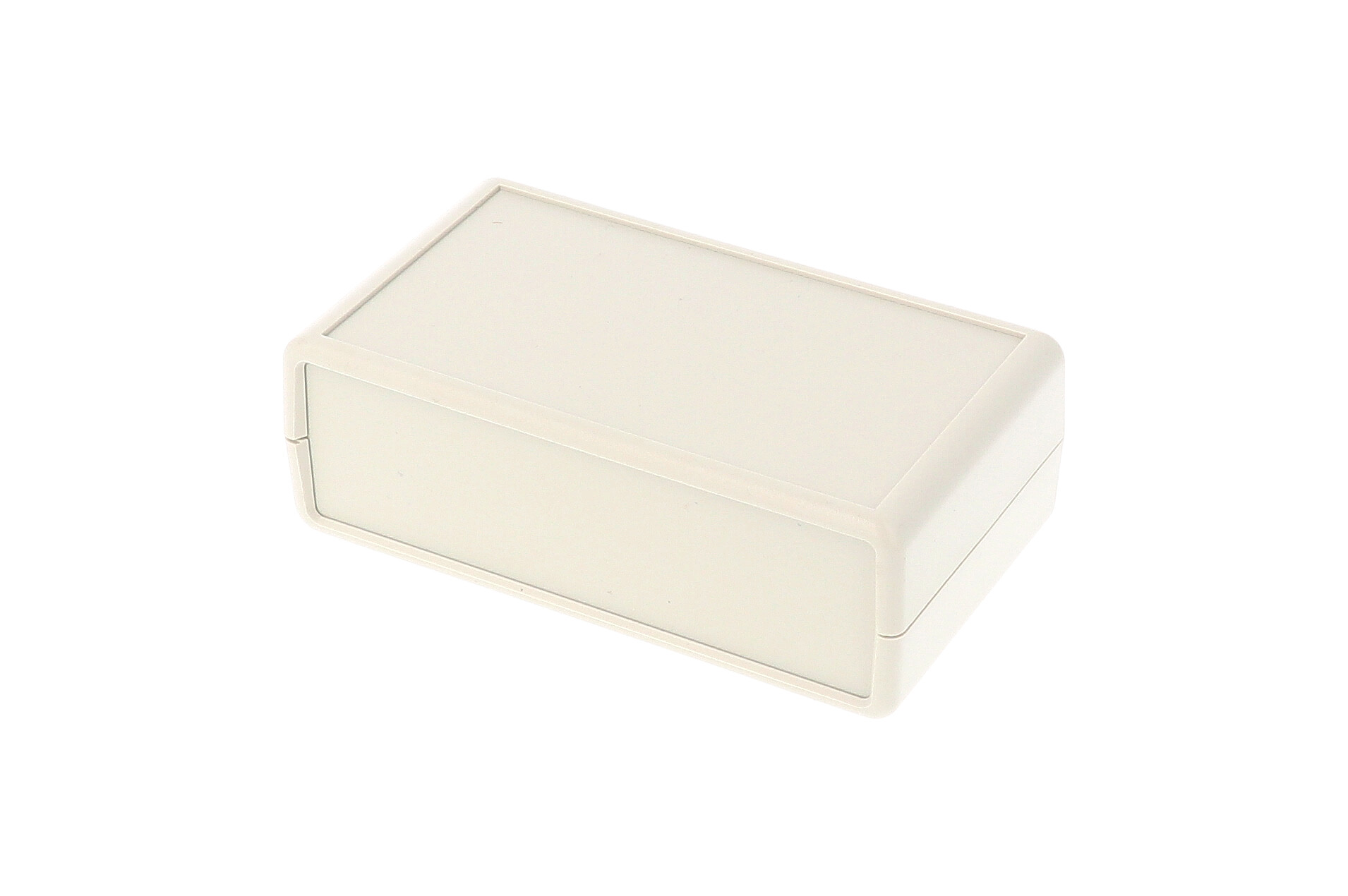

| Color Variants (Black / Gray / Trans Blue) | 1593VBK / 1593VGY / 1593VTBU |
Dimensions
| Inside Height | 29.70 mm [1.17 in] |
| Inside Length | 48.67 mm [1.92 in] |
| Top Inlay Width | 92.00 mm [3.62 in] |
| Size (L X W X H) | 4.13 in x 2.36 in x 1.38 in (105 mm x 60 mm x 35 mm) |
| Top Inlay Length | 51.00 mm [2.01 in] |
| Depth (Series Table) | 1.38 in (35 mm) |
| Width (Series Table) | 2.36 in (60 mm) |
| Length (Series Table) | 4.13 in (105 mm) |
| Max. P.C. Board Width | 48 mm |
| Max. P.C. Board Length | 98 mm |
| Overall Dimensions (Drawing) | 105.00 x 60.00 x 35.00 mm [4.13 x 2.36 x 1.38 in] |
Accessories
| Nylon Belt Clip | 1599CLIP (black), 1599CLIPGY (grey) |
| P.C. Board Screws | #4 x 1/4" self-tapping: 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Standard Flat Panel | 1593VLBK-10 (black), 1593VLGY-10 (grey), 1593VLTBU-10 (translucent blue), pack of 10 |
| Replacement Cover Screws | #4 x 3/4" self-tapping: 1593QS100 (silver) / 1593QS100BK (black), 100-pack |
| Aluminum End Panels (10-pack) | 1593VAL10 |
Identifiers
| UPC | 623980513539 |
| UNSPSC | 39121301 |
| Drawing Revision | REV:29.06.2023 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Top | Recessed top for membrane display or pad |
| Assembly | Secured with self-tapping screws |
| Material | ABS Plastic (general purpose, satin texture) |
| CAD Models | Solid models available in .stp or .x_t |
| Battery Door | No |
| Included Items | Top and bottom cover, 2 flat panels for front and rear and 2 cover screws |
| Removable Panels | 2 |
| Cover Screw Torque | 40 cN-m [57 ozf-in] |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Included Screw Finish | Black finish screws |
| Internal Mounting Screws | Accepts #4 self-tapping screw |
| Internal Mounting Screw Torque | 20-30 cN-m [29-42 ozf-in] |
Environmental & Protection
| IP Rating | IP54 |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken ABS plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, strong solvents and some greases and oils. |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1593VBK IP rated?▾
Yes, the 1593VBK has an IP54 rating. The series notes that versions without a battery door are designed to meet IP54.
Does it have a battery compartment?▾
No, the 1593V has no battery door. It has 2 removable end panels.
What is the largest PC board it accepts?▾
98 mm length by 48 mm width, per the part page.
What is included?▾
Top and bottom cover, 2 flat panels for front and rear and 2 cover screws.
Which replacement screws and panels fit?▾
Cover screws #4 x 3/4" self-tapping (1593QS100 silver / 1593QS100BK black), PC board screws #4 x 1/4" (1593ATS50 / 1593ATS100), flat panels 1593VLBK-10 and aluminum panels 1593VAL10.
