Hammond 1593PBK Black Handheld Case with Battery Compartment, 92 mm

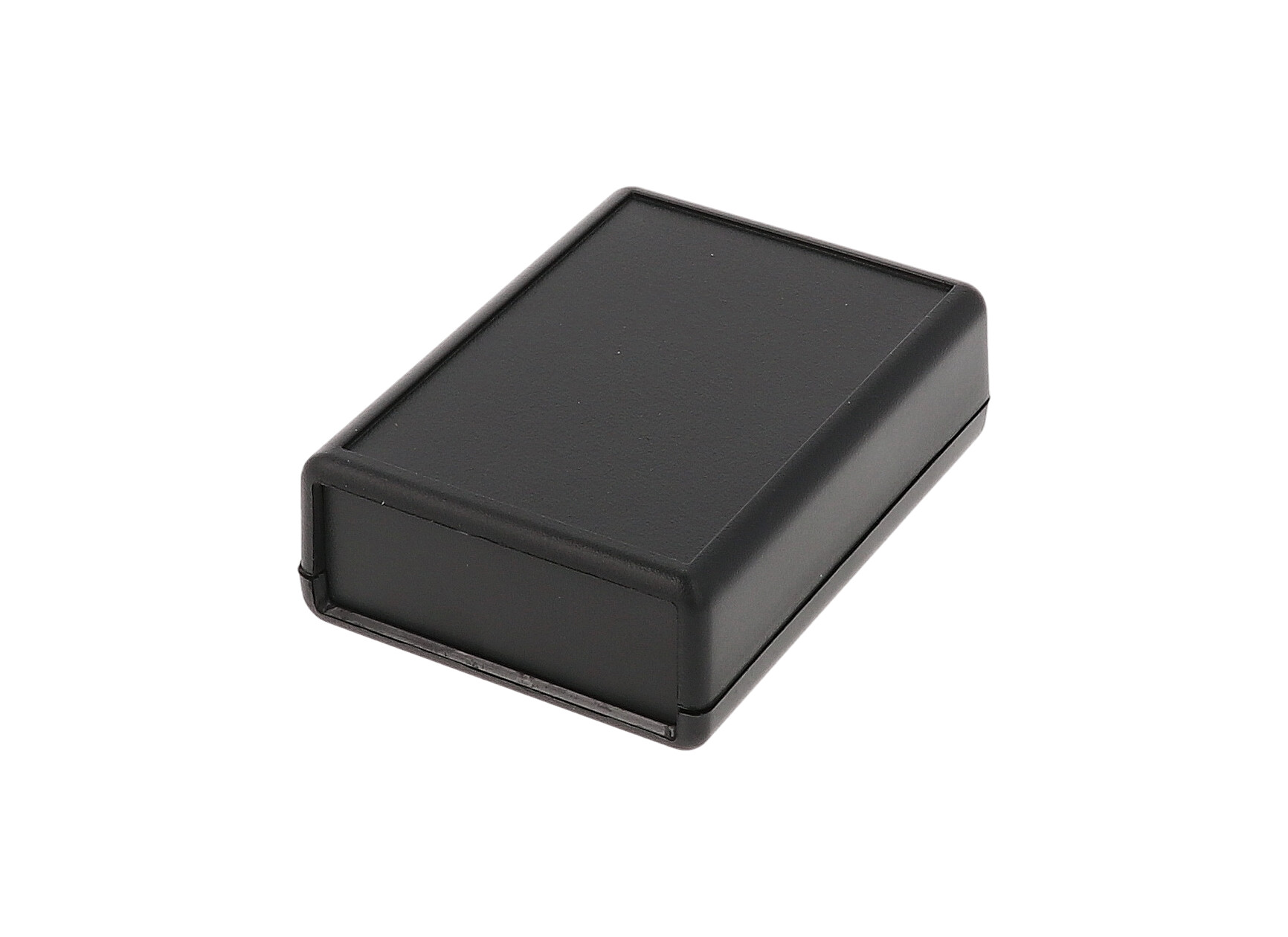

The 1593PBK is a black handheld instrument enclosure with an integrated battery compartment and "three snap" battery door. It is the choice in the 1593 family when a portable device needs to carry its own batteries inside the case, with one removable end panel.

The series table lists the 1593P at 92 x 67 x 28 mm (3.62 x 2.64 x 1.10 in); the part page gives 3.6 x 2.6 x 1.1 in (91 x 66 x 28 mm) and the drawing 92.00 x 66.50 x 27.90 mm overall. The drawing shows an inside length of 49.86 mm, inside width of 60.89 mm and inside height of 21.80 mm, and the maximum recommended PCB is 59.73 x 48.89 mm on #4 self-tapping screw bosses.

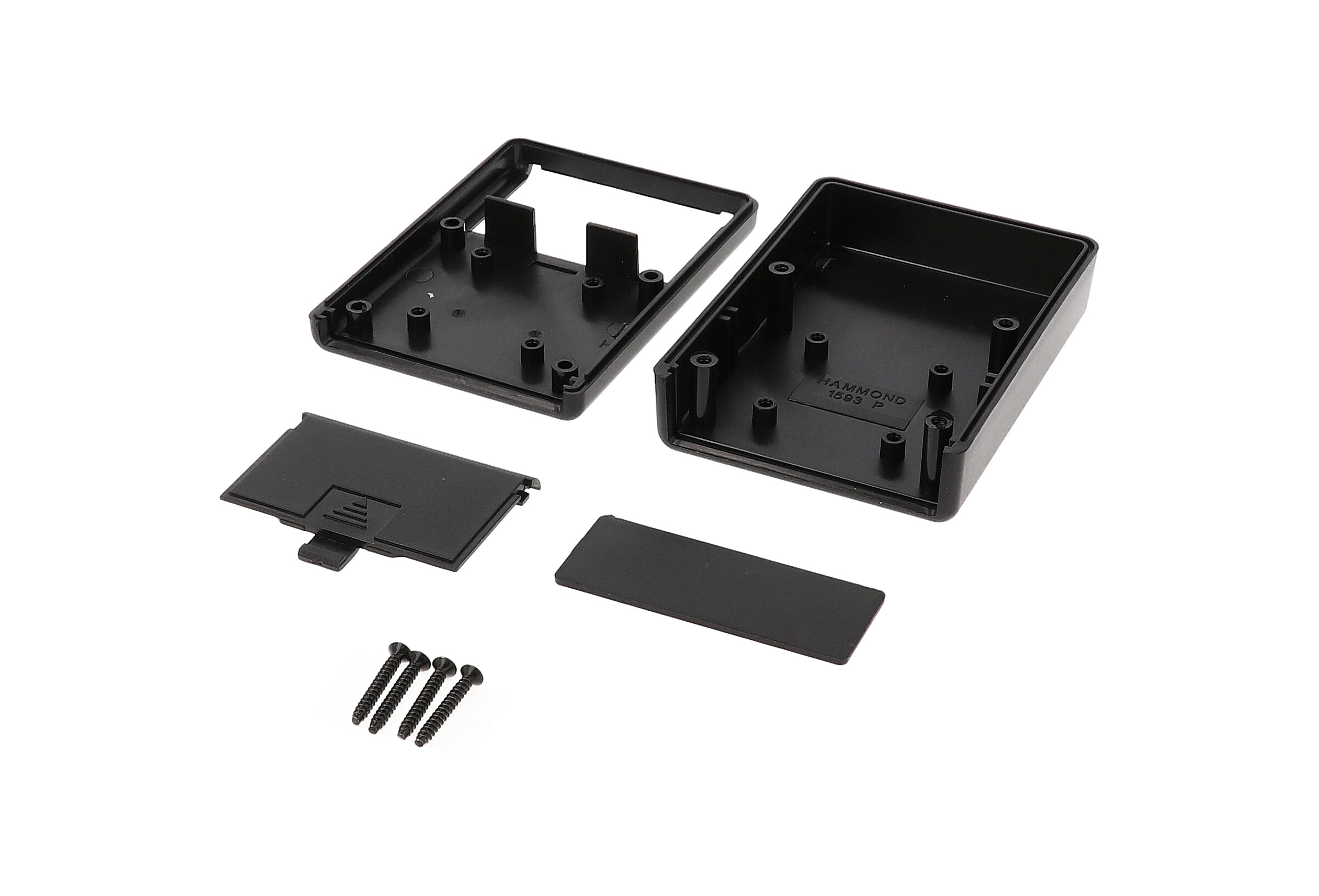

The enclosure is molded from general purpose black ABS with a satin texture and a UL94 HB flame rating. The purchased assembly includes the top and bottom cover, one plastic flat panel for the front, the battery door and four black finish cover screws. The top has an 80.00 x 55.00 mm recess, 1.00 mm deep, for a membrane display or pad.

Battery holders listed for the 1593PBK are BH1AAAW (1 x AAA), BH2AAAW (2 x AAA), BH2AAW (2 x AA) and BS61 (1 x 9V). Panels 1593PL1BK-10, 1593PL2BK-10, 1593PIR10 and 1593PAL10 fit this size, along with the 1593PPCB board. The part is RoHS and REACH compliant, shrink wrapped, and ships at 0.13 lbs (0.06 kg).
