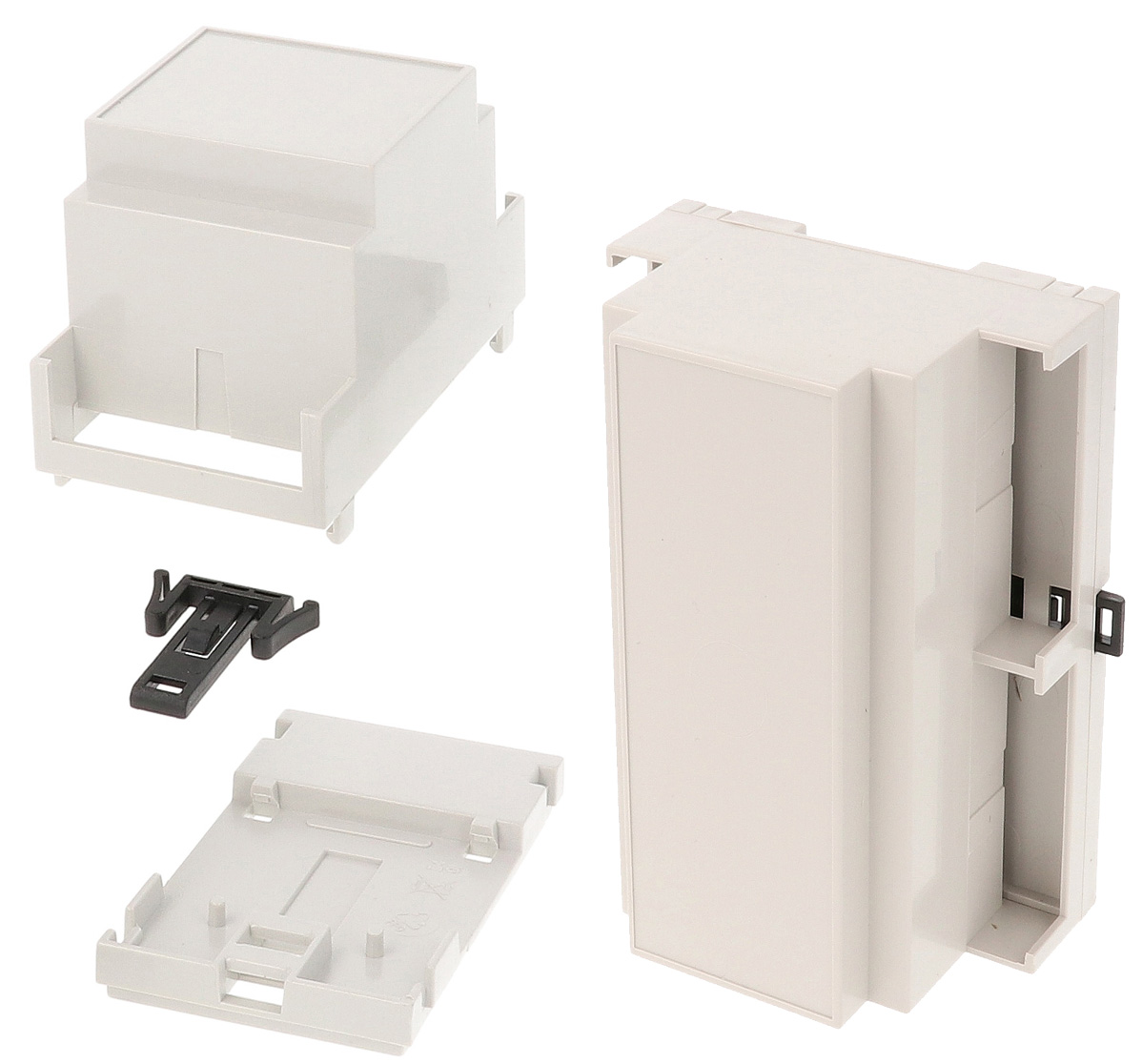

DIN Rail Mounted Enclosures · 1597DM Series

Brand: Hammond Manufacturing · 61 part numbers

■Italtronic brand electronic enclosures
■Designed to mount onto standard 35mm DIN rails using integrated DIN rail mounting clip
■Ideal for housing printed circuit boards, terminal blocks, and other DIN rail mounted electronics
■Snap closures for easy assembly, no hardware required
■Enclosures are constructed of RAL7035 light grey PPO thermoplastic with UL 94 V-0 flame rating Gray accessories are made of PC-ABS material with UL 94 V-0 flame rating Clear accessories are made of PC material with UL 94 V-2 flame rating
■Gray accessories are made of PC-ABS material with UL 94 V-0 flame rating

from $1.03

61 of 61 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your 1597DM Series part number

Filter 61 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

61 of 61 part numbers · 61 priced online

1597D2MBC

D2 Term Inserts, Bus Connect

Material PC-ABS
Flame Rating UL94 V-0
Description With Bus Connector
Compatible Size DIN 2

$1.60In stock

Buy now

1597D2MPH

D2 Top Panel Flat, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover, Gray
Compatible Size DIN 2

$1.51In stock

Buy now

1597D2MPRH

D2 Top Panel Inlay, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover With Inlay, Gray
Compatible Size DIN 2

$1.51In stock

Buy now

1597D2MPRTPC

D2 Top Panel Inlay Clear, Clips

Material PC
Flame Rating UL94 V-2
Description Top Cover With Inlay, Clear
Compatible Size DIN 2

$1.88In stock

Buy now

1597D2MTC

D2 Term Inserts, Blank, Closed

Material PC-ABS
Flame Rating UL94 V-0
Description Blank, Closed
Compatible Size DIN 2

$1.03In stock

Buy now

1597D2MTC6

D2 Terminal Inserts, Holes

Material PC-ABS
Flame Rating UL94 V-0
Description With Holes
Compatible Size DIN 2

$1.03In stock

Buy now

1597D2MTCKO

D2 Term Inserts, Punchout Hole

Material PC-ABS
Flame Rating UL94 V-0
Description With Punch-Out Holes
Compatible Size DIN 2

$1.03In stock

Buy now

1597D3MBC

D3 Term Inserts, Bus Connect

Material PC-ABS
Flame Rating UL94 V-0
Description With Bus Connector
Compatible Size DIN 3, DIN 6, DIN 9

$1.60In stock

Buy now

1597D3MPH

D3 Top Panel Flat, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover, Gray
Compatible Size DIN 3

$1.58In stock

Buy now

1597D3MPRH

D3 Top Panel Inlay, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover With Inlay, Gray
Compatible Size DIN 3

$1.58In stock

Buy now

1597D3MPRTPC

D3 Top Panel Inlay Clear, Clips

Material PC
Flame Rating UL94 V-2
Description Top Cover With Inlay, Clear
Compatible Size DIN 3

$1.95In stock

Buy now

1597D3MTC

D3 Term Inserts, Blank, Closed

Material PC-ABS
Flame Rating UL94 V-0
Description Blank, Closed
Compatible Size DIN 3, DIN 6, DIN 9

$1.03In stock

Buy now

1597D3MTC6

D3 Terminal Inserts, Holes

Material PC-ABS
Flame Rating UL94 V-0
Description With Holes
Compatible Size DIN 3, DIN 6, DIN 9

$1.03In stock

Buy now

1597D3MTCKO

D3 Term Inserts, Punchout Hole

Material PC-ABS
Flame Rating UL94 V-0
Description With Punch-Out Holes
Compatible Size DIN 3, DIN 6, DIN 9

$1.03In stock

Buy now

1597D3MTCP

D3 Term Inserts, Blank, Open

Material PC-ABS
Flame Rating UL94 V-0
Description Blank, Open
Compatible Size DIN 3, DIN 6, DIN 9

$1.03In stock

Buy now

1597D4MADP

1597DIN Bread Board

Description Bread Board
Compatible Size All

$29.18In stock

Buy now

1597D4MBC

D4 Term Inserts, Bus Connect

Material PC-ABS
Flame Rating UL94 V-0
Description With Bus Connector
Compatible Size DIN 4

$1.60In stock

Buy now

1597D4MHSC

D4 Terminal Inside Cover

Material PPO
Flame Rating UL94 V-0
Description Inside Terminal Cover
Compatible Size DIN 4

$1.03In stock

Buy now

1597D4MPH

D4 Top Panel Flat, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover, Gray
Compatible Size DIN 4

$1.66Backorder

Buy now

1597D4MPHGTPC

D4 Top Panel Hinge, Clear

Material PC
Flame Rating UL94 V-2
Description Top Hinge Cover, Clear
Compatible Size DIN 4

$2.20In stock

Buy now

1597D4MPHTPC

D4 Top Panel Flat Clear, Clips

Material PC
Flame Rating UL94 V-2
Description Top Cover, Clear
Compatible Size DIN 4

$2.43In stock

Buy now

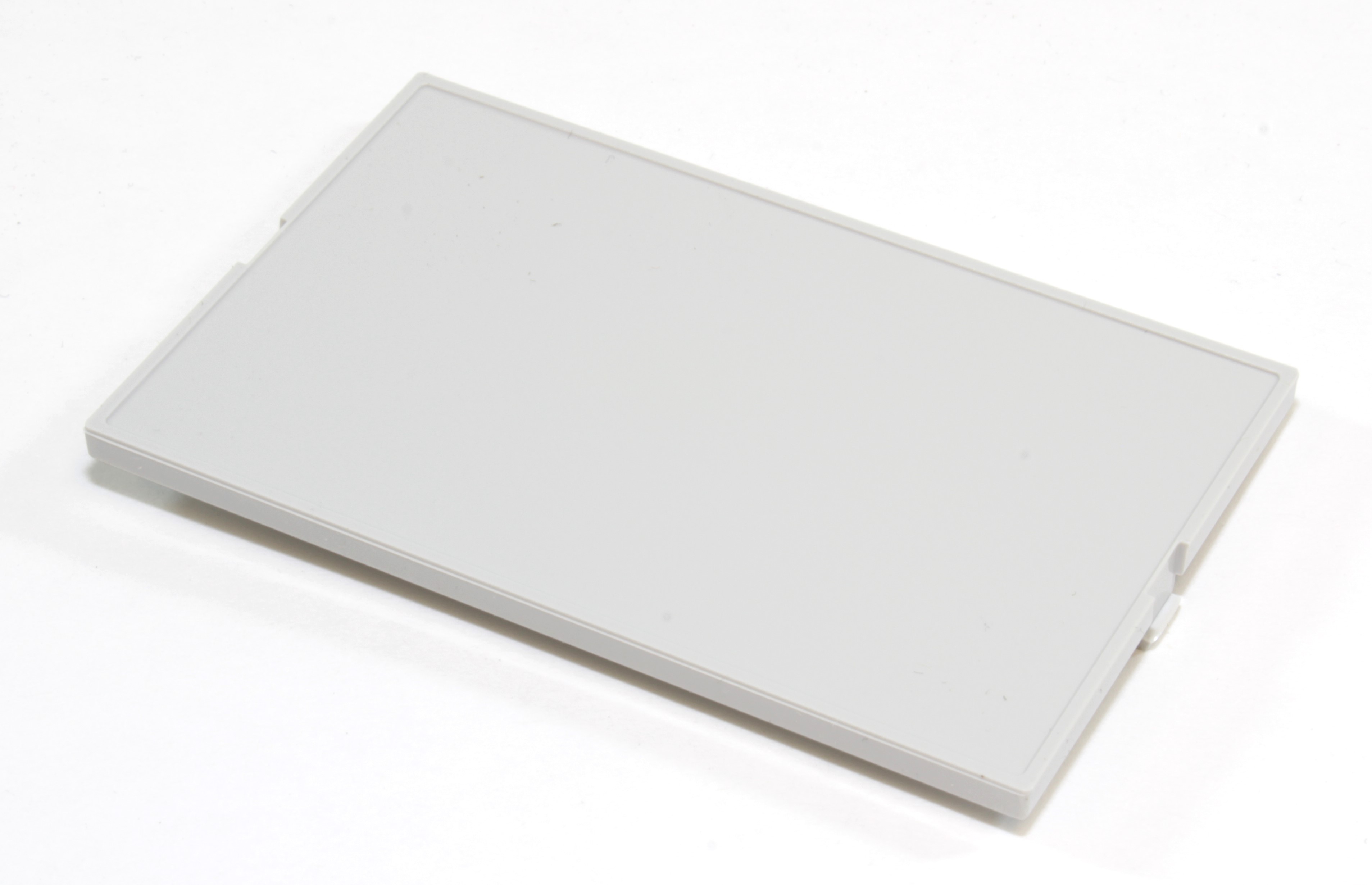

1597D4MPRH

D4 Top Panel Inlay, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover With Inlay, Gray
Compatible Size DIN 4

$1.62In stock

Buy now

1597D4MPRHTPC

D4 Top Panel Inlay Clear, Clips

Material PC
Flame Rating UL94 V-2
Description Top Cover With Inlay, Clear
Compatible Size DIN 4

$2.07In stock

Buy now

1597D4MTC6

D4 Terminal Inserts, Holes

Material PC-ABS
Flame Rating UL94 V-0
Description With Holes
Compatible Size DIN 4

$1.03In stock

Buy now

1597D4MTCKO

D4 Term Inserts, Punchout Hole

Material PC-ABS
Flame Rating UL94 V-0
Description With Punch-Out Holes
Compatible Size DIN 4

$1.03In stock

Buy now

1597D5MPH

D5 Top Panel Flat, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover, Gray
Compatible Size DIN 5

$1.82In stock

Buy now

1597D5MPRH

D5 Top Panel Inlay, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover With Inlay, Gray
Compatible Size DIN 5

$1.82In stock

Buy now

1597D5MPRHTPC

D5 Top Panel Inlay Clear, Clips

Material PC
Flame Rating UL94 V-2
Description Top Cover With Inlay, Clear
Compatible Size DIN 5

$2.24In stock

Buy now

1597D5MTC

D5 Term Inserts, Blank, Open

Material PC-ABS
Flame Rating UL94 V-0
Description Blank, Closed
Compatible Size DIN 5

$1.03In stock

Buy now

1597D5MTC6

D5 Terminal Inserts, Holes

Material PC-ABS
Flame Rating UL94 V-0
Description With Holes
Compatible Size DIN 5

$1.03In stock

Buy now

1597D5MTCKO

D5 Term Inserts, Punchout Hole

Material PC-ABS
Flame Rating UL94 V-0
Description With Punch-Out Holes
Compatible Size DIN 5

$1.03In stock

Buy now

1597D6MPH

D6 Top Panel Flat, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover, Gray
Compatible Size DIN 6

$1.96In stock

Buy now

1597D6MPHR

D6 Top Panel Inlay, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover With Inlay, Gray
Compatible Size DIN 6

$1.96In stock

Buy now

1597D6MPTPC

D6 Top Panel Flat Clear, Clips

Material PC
Flame Rating UL94 V-2
Description Top Cover With Inlay, Clear
Compatible Size DIN 6

$2.39In stock

Buy now

1597D6MPTPL

D6 Top Panel Flat Clear, No Clip

Material PC
Flame Rating UL94 V-2
Description Top Panel Cover, Clear
Compatible Size DIN 6

$1.88In stock

Buy now

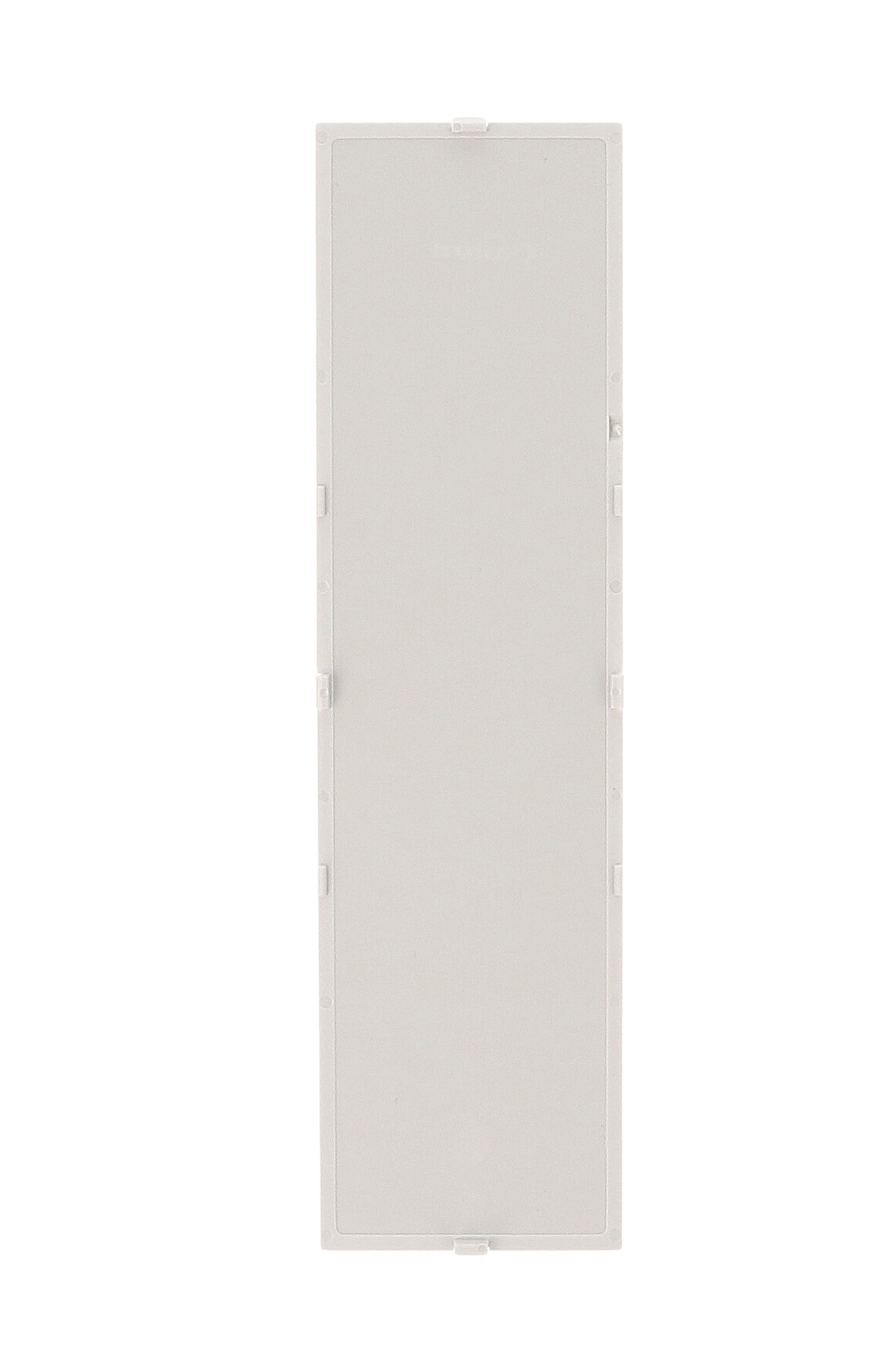

1597D9MPH

D9 Top Panel Flat, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover, Gray
Compatible Size DIN 9

$2.24In stock

Buy now

1597D9MPRH

D9 Top Panel Inlay, Clips

Material PC-ABS
Flame Rating UL94 V-0
Description Top Cover With Inlay, Gray
Compatible Size DIN 9

$2.24In stock

Buy now

1597D9MPRHTPC

D9 Top Panel Inlay Clear, Clips

Material PC
Flame Rating UL94 V-2
Description Top Cover With Inlay, Clear
Compatible Size DIN 9

$2.76In stock

Buy now

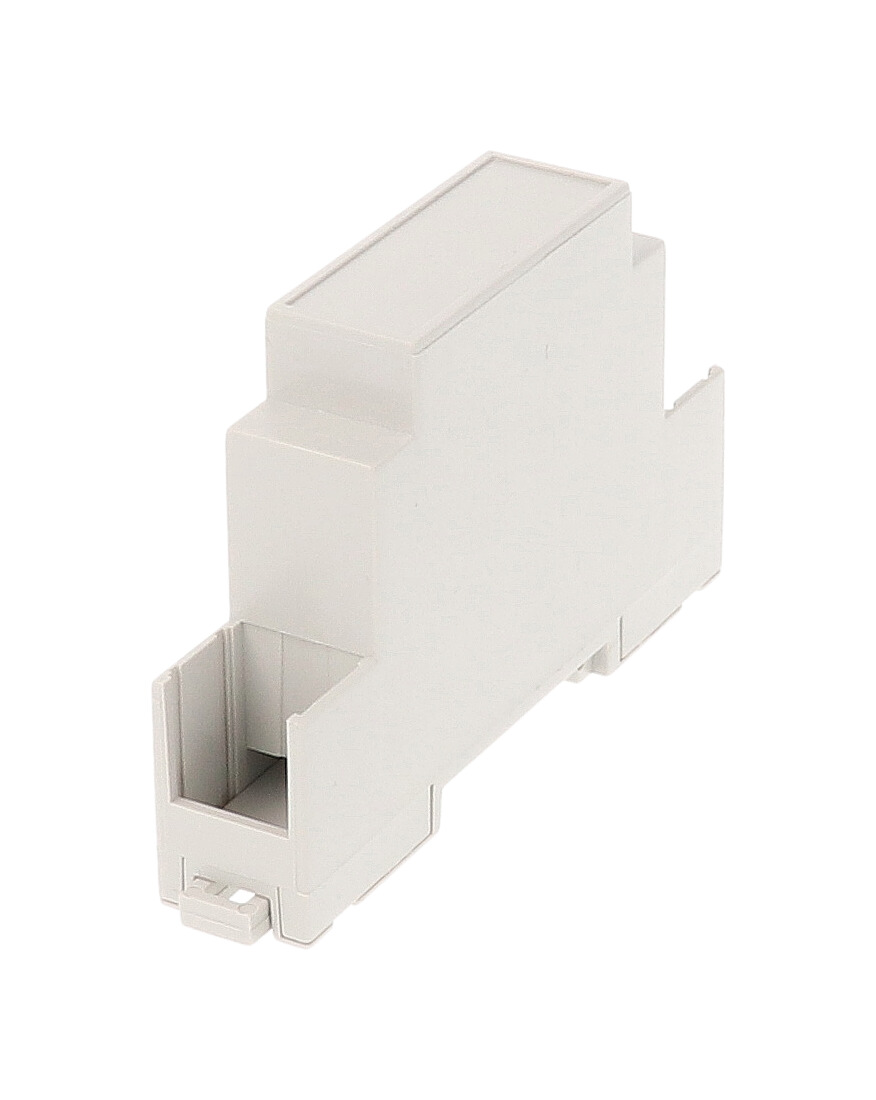

1597DIN1MC53

DIN1, Cl Top, Cl Terminals

Material PPO
Flame Rating UL94 V-0
Features Closed Top, Closed Terminals

$4.25In stock

Buy now

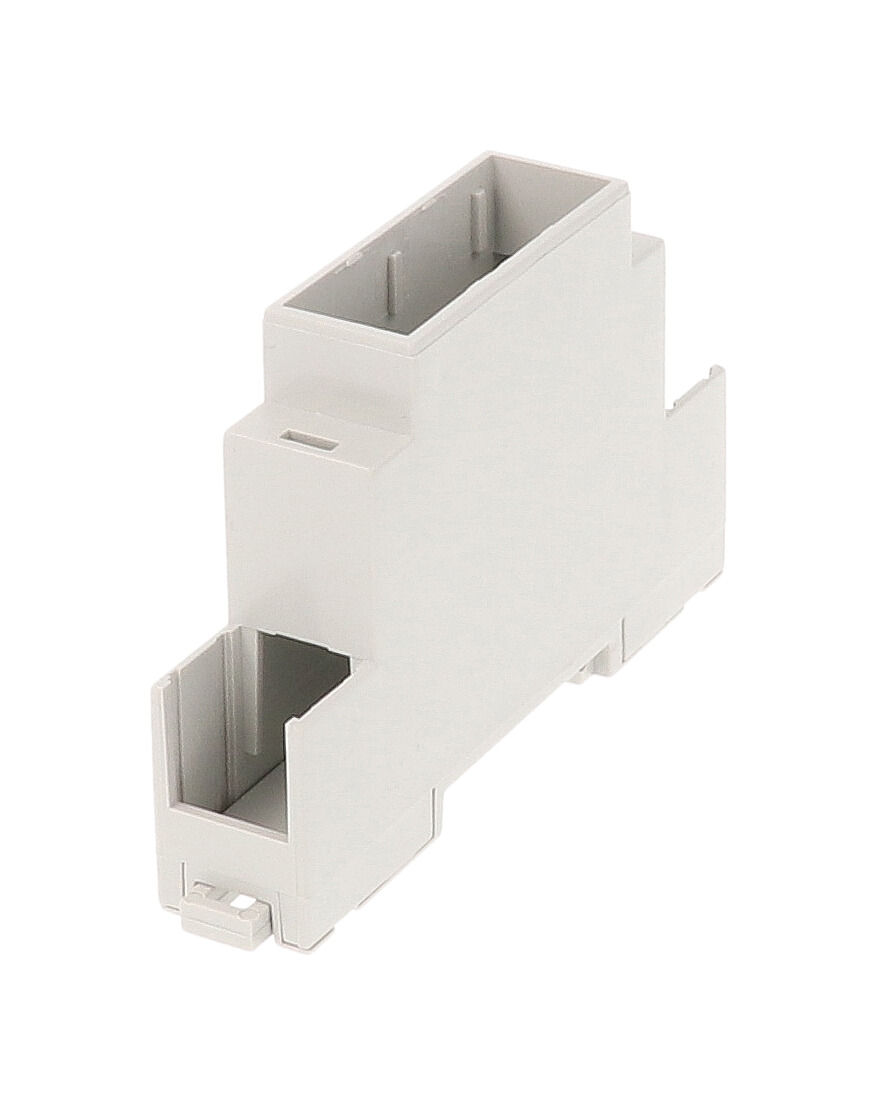

1597DIN1MH53

DIN1, Open Top, Open Terminals

Material PPO
Flame Rating UL94 V-0
Features Open Top, Open Terminals

$3.92In stock

Buy now

1597DIN1MPTPC

D1 Top Panel Flat Clear, No Clip

Material PPO
Flame Rating UL94 V-2
Description Top Panel Cover, Clear
Compatible Size DIN 1

$1.73In stock

Buy now

1597DIN2MC53

DIN2 Cl Top, Cl Terminals

Material PPO
Flame Rating UL94 V-0
Features Closed Top, Closed Terminals

$5.38In stock

Buy now

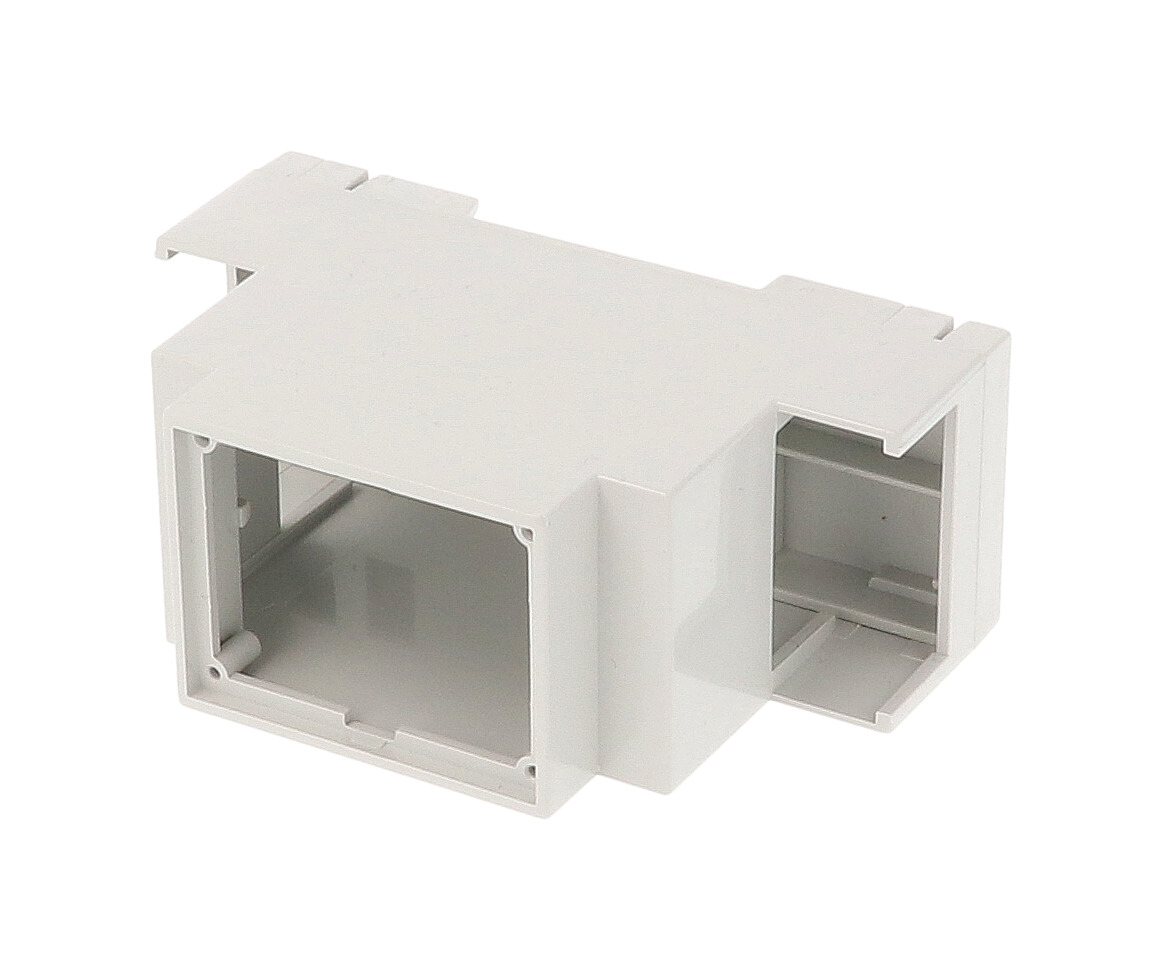

1597DIN2MH53

DIN2 Open Top, Open Terminals

Material PPO
Flame Rating UL94 V-0
Features Open Top, Open Terminals

$4.84In stock

Buy now

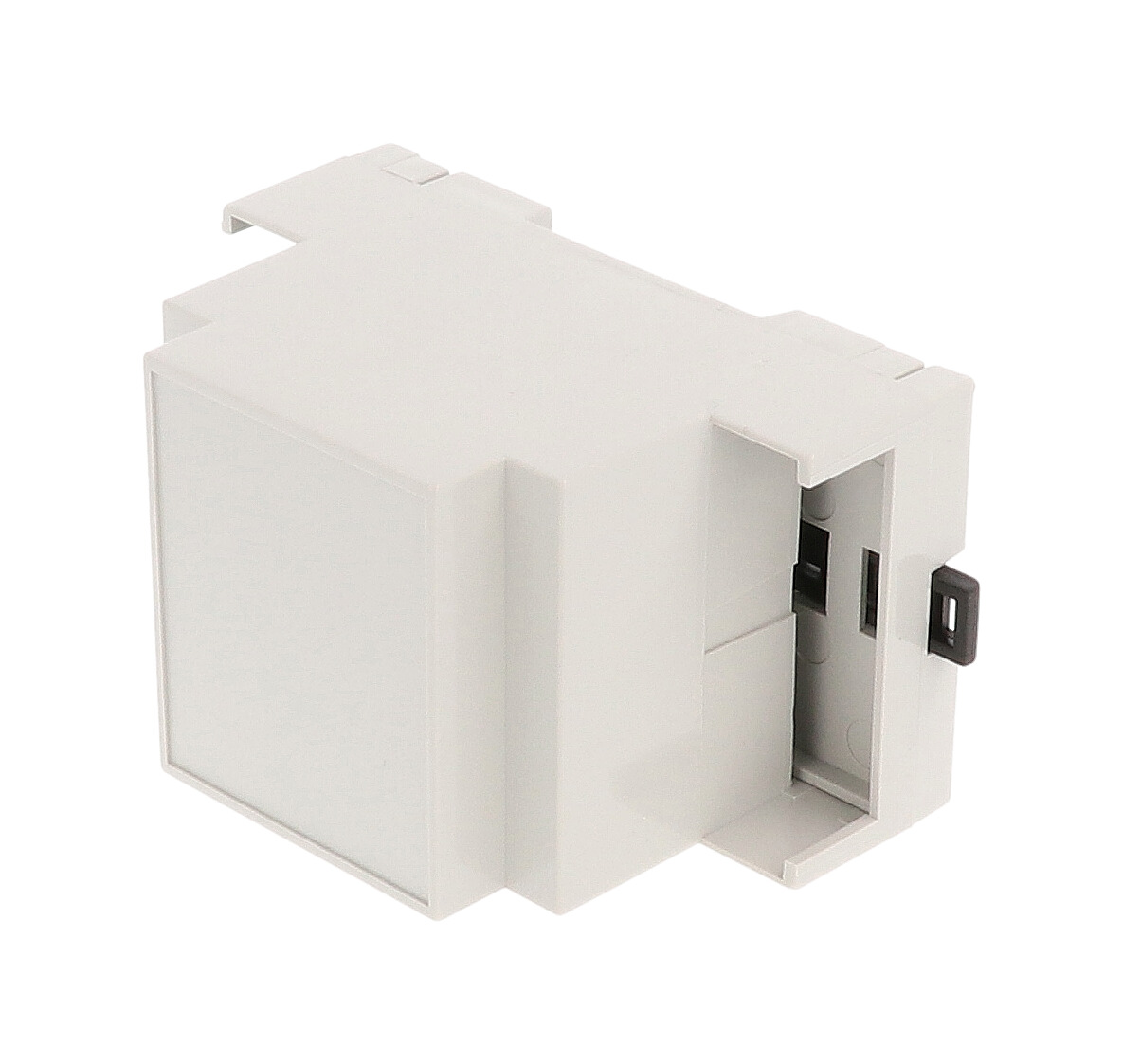

1597DIN3MC53

DIN3 Cl Top, Cl Terminals

Material PPO
Flame Rating UL94 V-0
Features Closed Top, Closed Terminals

$5.80In stock

Buy now

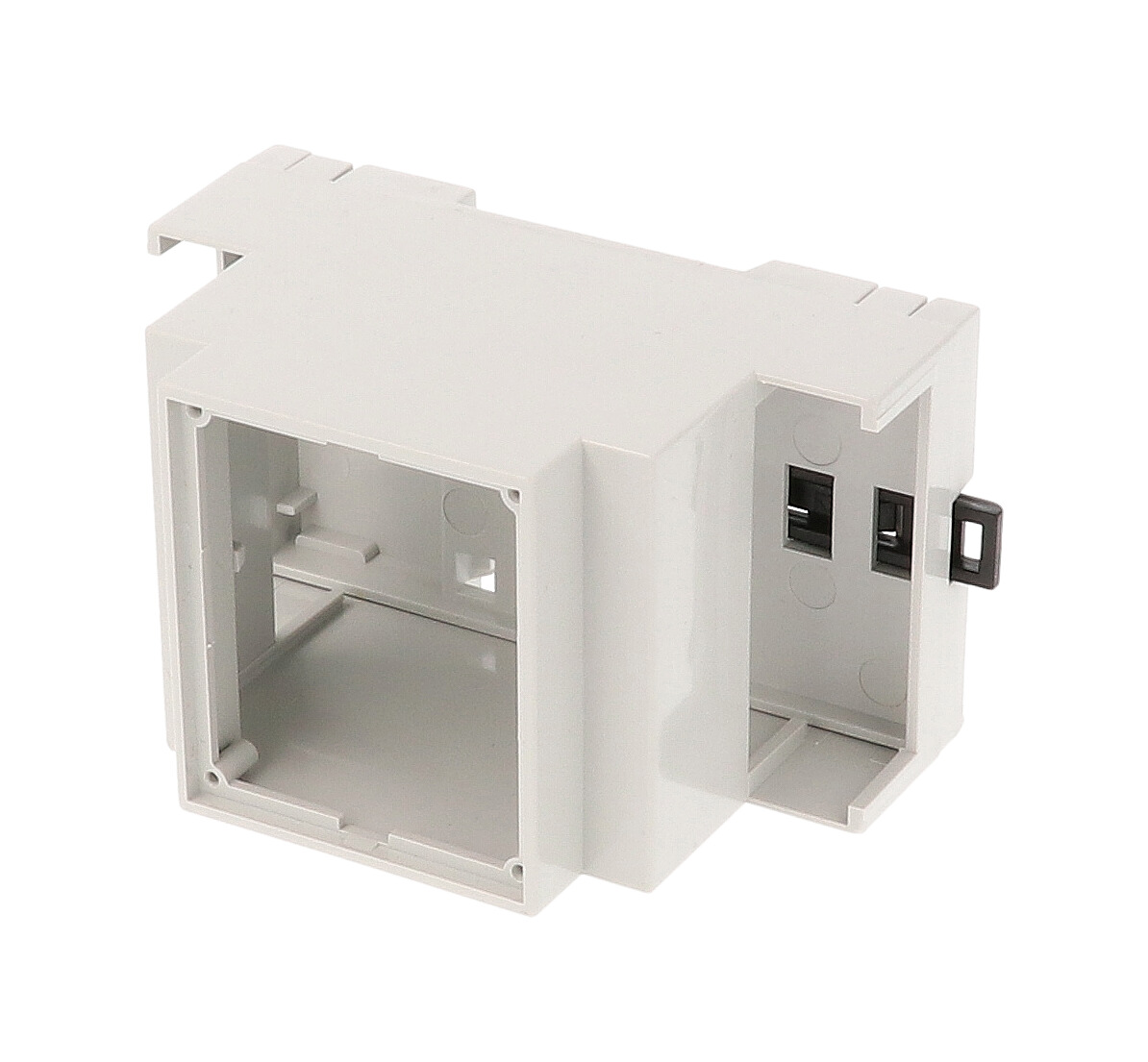

1597DIN3MH53

DIN3 Open Top, Open Terminals

Material PPO
Flame Rating UL94 V-0
Features Open Top, Open Terminals

$5.30In stock

Buy now

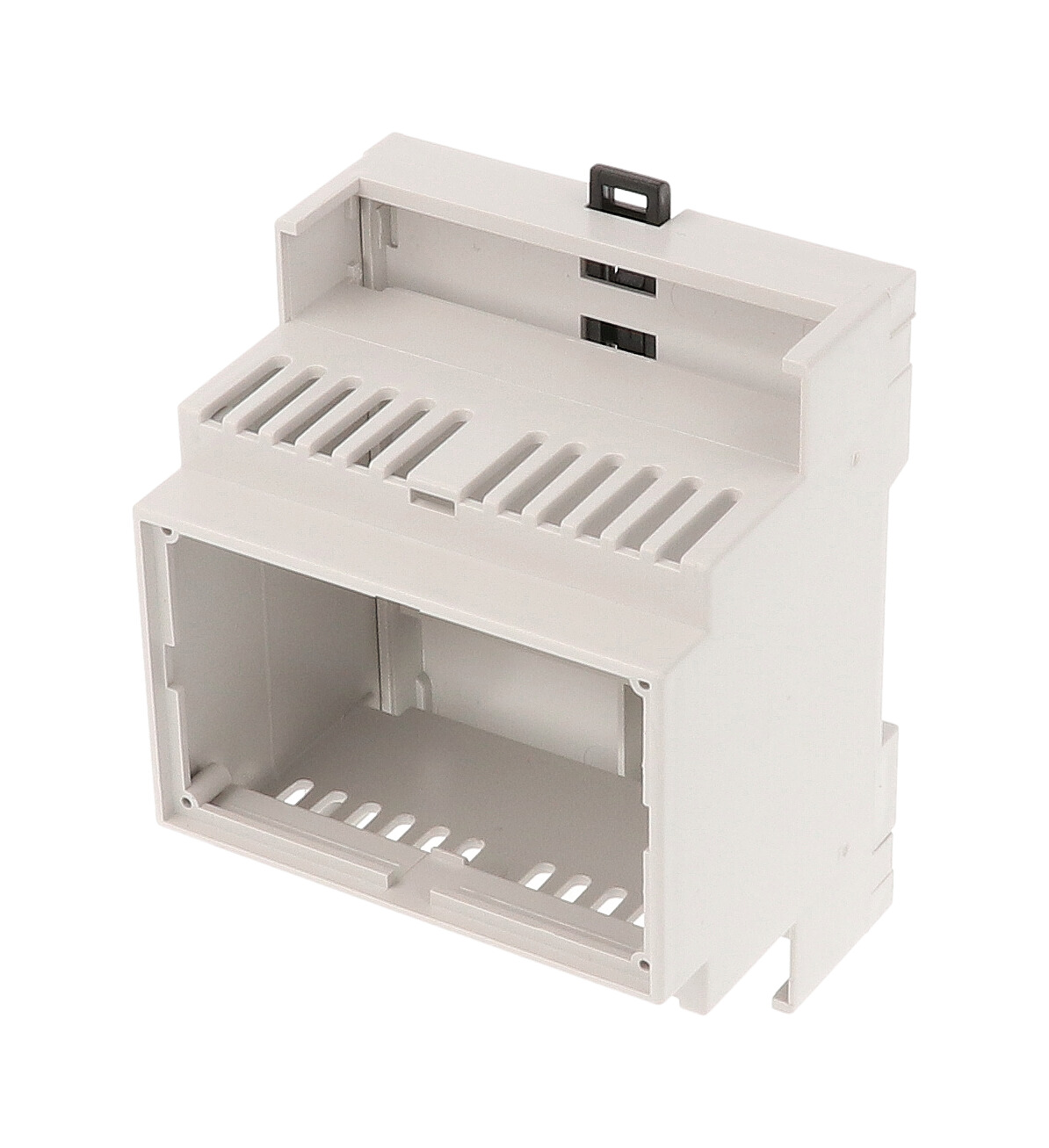

1597DIN4M53V

DIN4 Open Top, Cl Term, Vented

Material PPO
Flame Rating UL94 V-0
Features Open Top, Closed Terminals, Vents

$5.79In stock

Buy now

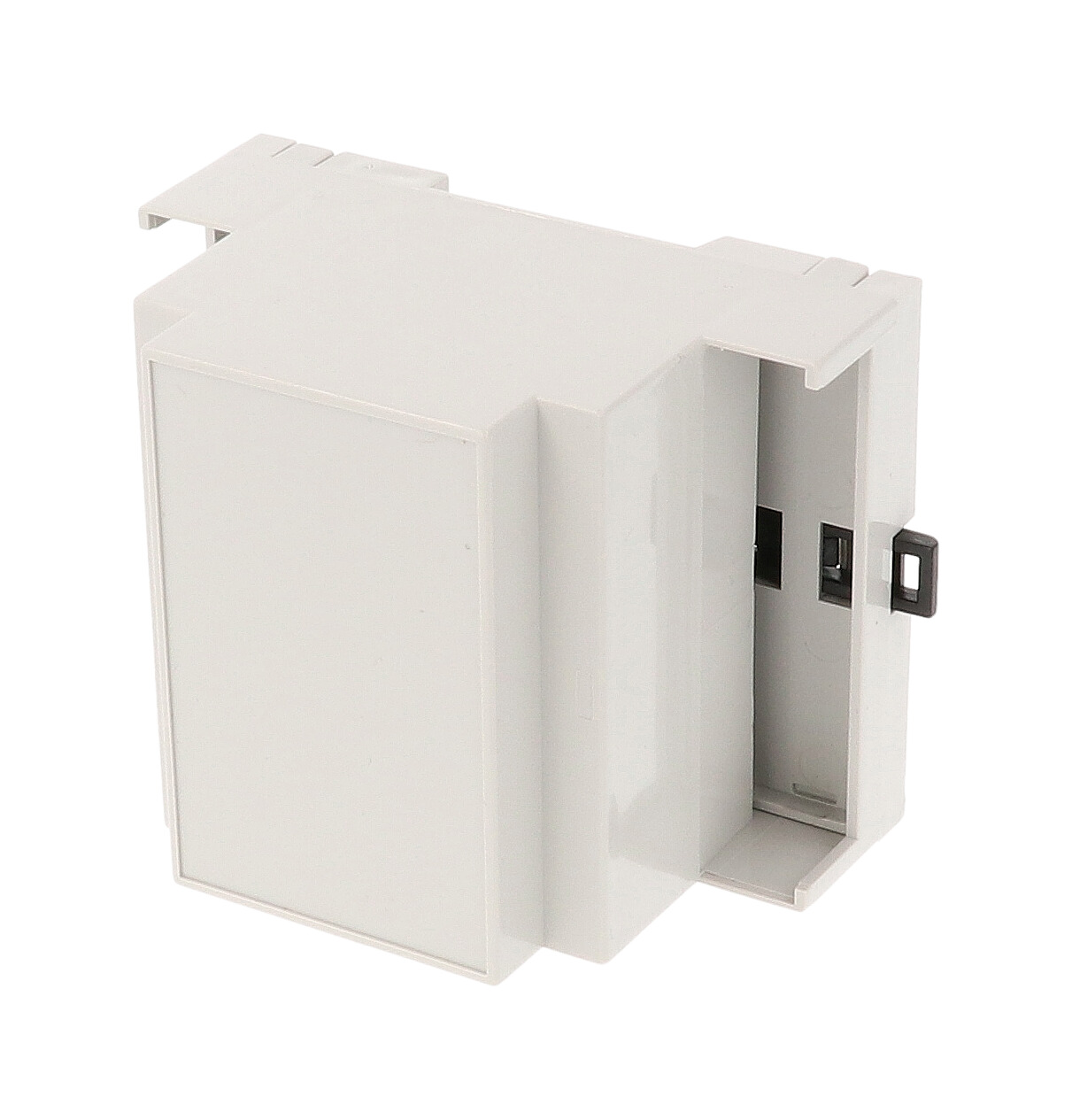

1597DIN4MC53

DIN4 Cl Top, Cl Terminals

Material PPO
Flame Rating UL94 V-0
Features Closed Top, Closed Terminals

$6.25In stock

Buy now

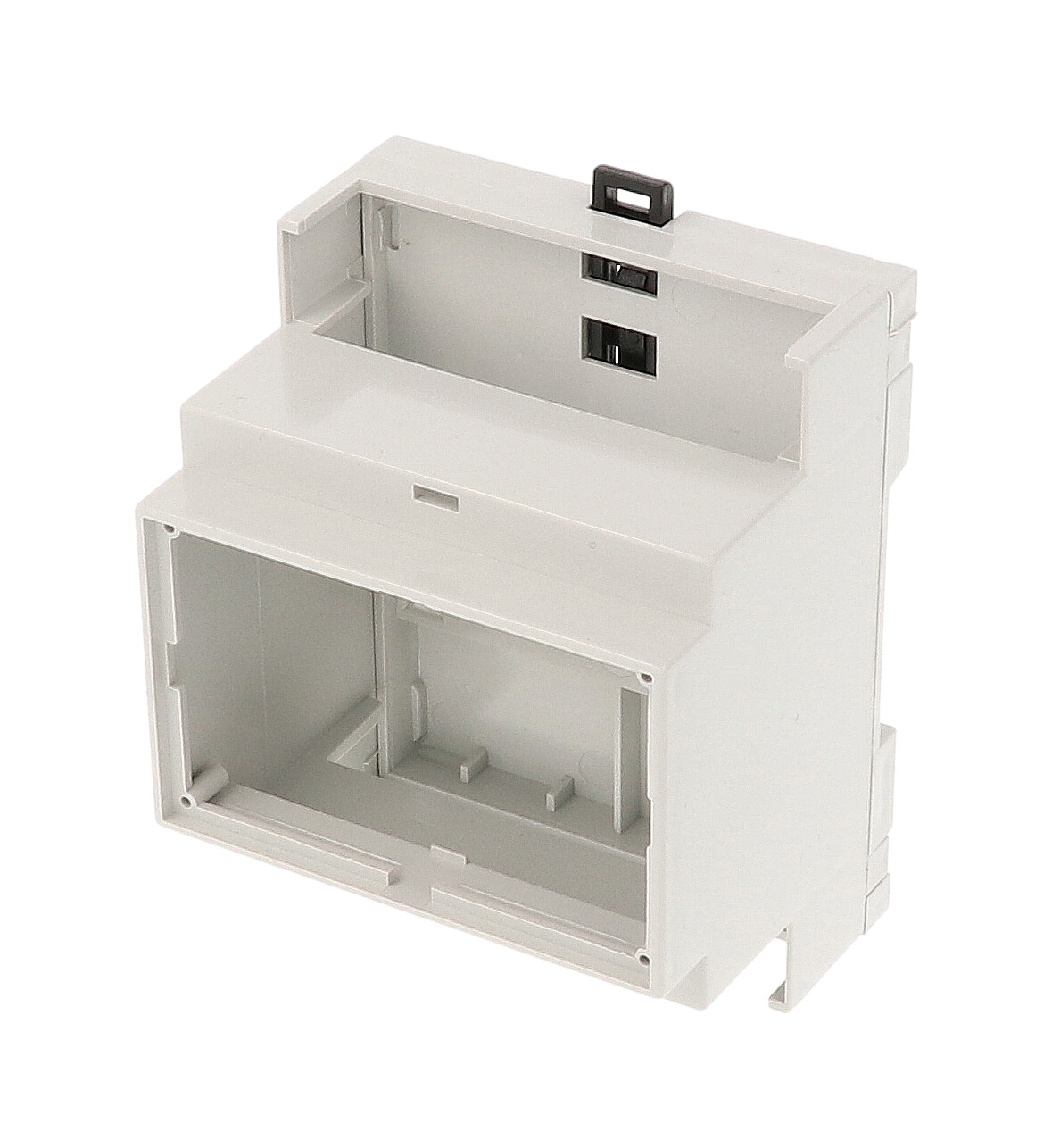

1597DIN4MH53

DIN4 Open Top, Open Terminals

Material PPO
Flame Rating UL94 V-0
Features Open Top, Open Terminals

$5.60In stock

Buy now

Dimension tables (inches / mm)

DIN 1

Part Number	Length (mm)	Width (mm)	Depth (mm)	Features	Price	Order
1597DIN1MC53	90	18	58	Closed Top, Closed Terminals	$4.25In stock	Buy now
1597DIN1MH53	90	18	58	Open Top, Open Terminals	$3.92In stock	Buy now

DIN 2

Part Number	Length (mm)	Width (mm)	Depth (mm)	Features	col6	Price	Order
1597DIN2MC53	90	36	58	Closed Top, Closed Terminals		$5.38In stock	Buy now
1597DIN2MH53	90	36	58	Open Top, Open Terminals		$4.84In stock	Buy now

DIN 3

Part Number	Length (mm)	Width (mm)	Depth (mm)	Features	col6	Price	Order
1597DIN3MC53	90	53	58	Closed Top, Closed Terminals		$5.80In stock	Buy now
1597DIN3MH53	90	53	58	Open Top, Open Terminals		$5.30In stock	Buy now

DIN 4

Part Number	Length (mm)	Width (mm)	Depth (mm)	Features	Price	Order
1597DIN4M53V	90	71	58	Open Top, Closed Terminals, Vents	$5.79In stock	Buy now
1597DIN4MC53	90	71	58	Closed Top, Closed Terminals	$6.25In stock	Buy now
1597DIN4MH53	90	71	58	Open Top, Open Terminals	$5.60In stock	Buy now
1597DIN4MH53V	90	71	58	Open Top, Open Terminals, Vents	$5.60In stock	Buy now
1597DIN4MH68	90	71	73	Open Top, Open Terminals, Tall	$5.60In stock	Buy now

DIN 5

Part Number	Length (mm)	Width (mm)	Depth (mm)	Features	Price	Order
1597DIN5MH53	90	88	58	Open Top, Open Terminals	$6.31In stock	Buy now

DIN 6

Part Number	Length (mm)	Width (mm)	Depth (mm)	Features	Price	Order
1597DIN6MC53	90	106	58	Closed Top, Closed Terminals, 1 Terminal Side Blocked	$7.69In stock	Buy now
1597DIN6MDC53	90	106	58	Closed Top, Closed Terminals	$7.69In stock	Buy now
1597DIN6MDH53	90	106	58	Open Top, Open Terminals	$6.89In stock	Buy now
1597DIN6MDH68	90	106	73	Open Top, Open Terminals, Tall	$6.89In stock	Buy now
1597DIN6MH53	90	106	58	Open Top, Open Terminals, 1 Terminal Side Blocked	$6.89In stock	Buy now

DIN 9

Part Number	Length (mm)	Width (mm)	Depth (mm)	Features	Price	Order
1597DIN9MDC53	90	155	58	Closed Top, Closed Terminals	$8.51In stock	Buy now
1597DIN9MDH53	90	159	58	Open Top, Open Terminals	$7.69In stock	Buy now
1597DIN9MHC53V	90	159	58	Closed Top, 1 Terminal Side Blocked, Vents	$8.51In stock	Buy now

Accessories - Top Covers

Part Number	Description	Compatible Size	Price	Order
1597DIN1MPTPC	Top Panel Cover, Clear	DIN 1	$1.73In stock	Buy now
1597D2MPH	Top Cover, Gray	DIN 2	$1.51In stock	Buy now
1597D2MPRH	Top Cover With Inlay, Gray	DIN 2	$1.51In stock	Buy now
1597D2MPRTPC	Top Cover With Inlay, Clear	DIN 2	$1.88In stock	Buy now
1597D3MPH	Top Cover, Gray	DIN 3	$1.58In stock	Buy now
1597D3MPRH	Top Cover With Inlay, Gray	DIN 3	$1.58In stock	Buy now
1597D3MPRTPC	Top Cover With Inlay, Clear	DIN 3	$1.95In stock	Buy now
1597D4MPH	Top Cover, Gray	DIN 4	$1.66Backorder	Buy now
1597D4MPRH	Top Cover With Inlay, Gray	DIN 4	$1.62In stock	Buy now
1597D4MPHTPC	Top Cover, Clear	DIN 4	$2.43In stock	Buy now
1597D4MPRHTPC	Top Cover With Inlay, Clear	DIN 4	$2.07In stock	Buy now
1597D4MPHGTPC	Top Hinge Cover, Clear	DIN 4	$2.20In stock	Buy now
1597D5MPH	Top Cover, Gray	DIN 5	$1.82In stock	Buy now
1597D5MPRH	Top Cover With Inlay, Gray	DIN 5	$1.82In stock	Buy now
1597D5MPRHTPC	Top Cover With Inlay, Clear	DIN 5	$2.24In stock	Buy now
1597D6MPH	Top Cover, Gray	DIN 6	$1.96In stock	Buy now
1597D6MPHR	Top Cover With Inlay, Gray	DIN 6	$1.96In stock	Buy now
1597D6MPTPL	Top Panel Cover, Clear	DIN 6	$1.88In stock	Buy now
1597D6MPTPC	Top Cover With Inlay, Clear	DIN 6	$2.39In stock	Buy now
1597D9MPH	Top Cover, Gray	DIN 9	$2.24In stock	Buy now
1597D9MPRH	Top Cover With Inlay, Gray	DIN 9	$2.24In stock	Buy now
1597D9MPRHTPC	Top Cover With Inlay, Clear	DIN 9	$2.76In stock	Buy now

Accessories - Terminal Covers

Part Number	Description	Compatible Size	Price	Order
1597D2MTC	Blank, Closed	DIN 2	$1.03In stock	Buy now
1597D2MBC	With Bus Connector	DIN 2	$1.60In stock	Buy now
1597D2MTC6	With Holes	DIN 2	$1.03In stock	Buy now
1597D2MTCKO	With Punch-Out Holes	DIN 2	$1.03In stock	Buy now
1597D4MBC	With Bus Connector	DIN 4	$1.60In stock	Buy now
1597D4MTC6	With Holes	DIN 4	$1.03In stock	Buy now
1597D4MTCKO	With Punch-Out Holes	DIN 4	$1.03In stock	Buy now
1597D4MHSC	Inside Terminal Cover	DIN 4	$1.03In stock	Buy now
1597D5MTC	Blank, Closed	DIN 5	$1.03In stock	Buy now
1597D5MTC6	With Holes	DIN 5	$1.03In stock	Buy now
1597D5MTCKO	With Punch-Out Holes	DIN 5	$1.03In stock	Buy now
1597D3MTC	Blank, Closed	DIN 3, DIN 6, DIN 9	$1.03In stock	Buy now
1597D3MTCP	Blank, Open	DIN 3, DIN 6, DIN 9	$1.03In stock	Buy now
1597D3MBC	With Bus Connector	DIN 3, DIN 6, DIN 9	$1.60In stock	Buy now
1597D3MTC6	With Holes	DIN 3, DIN 6, DIN 9	$1.03In stock	Buy now
1597D3MTCKO	With Punch-Out Holes	DIN 3, DIN 6, DIN 9	$1.03In stock	Buy now

Accessories - DIN Clips and Bread Boards

Part Number	Compatible Size	Description	Price	Order
1597DINCLIP1M	DIN1	DIN Clip (5 pack)	$14.34Backorder	Buy now
1597DINCLIPXT	DIN2, DIN3, DIN4, DIN5, DIN6, DIN9	DIN Clip (5 pack)	$7.88Backorder	Buy now
1597D4MADP	All	Bread Board	$29.18In stock	Buy now

Key Features:

■Italtronic brand electronic enclosures
■Designed to mount onto standard 35mm DIN rails using integrated DIN rail mounting clip
■Ideal for housing printed circuit boards, terminal blocks, and other DIN rail mounted electronics
■Snap closures for easy assembly, no hardware required
■Enclosures are constructed of RAL7035 light grey PPO thermoplastic with UL 94 V-0 flame rating Gray accessories are made of PC-ABS material with UL 94 V-0 flame rating Clear accessories are made of PC material with UL 94 V-2 flame rating
■Gray accessories are made of PC-ABS material with UL 94 V-0 flame rating
■Clear accessories are made of PC material with UL 94 V-2 flame rating
■DIN group numbers refer to the number of terminals on each side of the enclosure
■Accessories including bread boards, replacement DIN clips, terminal covers, and top covers are available NOTE: Some accessories are not compatible with all enclosures in a DIN size group. It is recommended to check the enclosure drawing to confirm compatibility
■NOTE: Some accessories are not compatible with all enclosures in a DIN size group. It is recommended to check the enclosure drawing to confirm compatibility
■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
